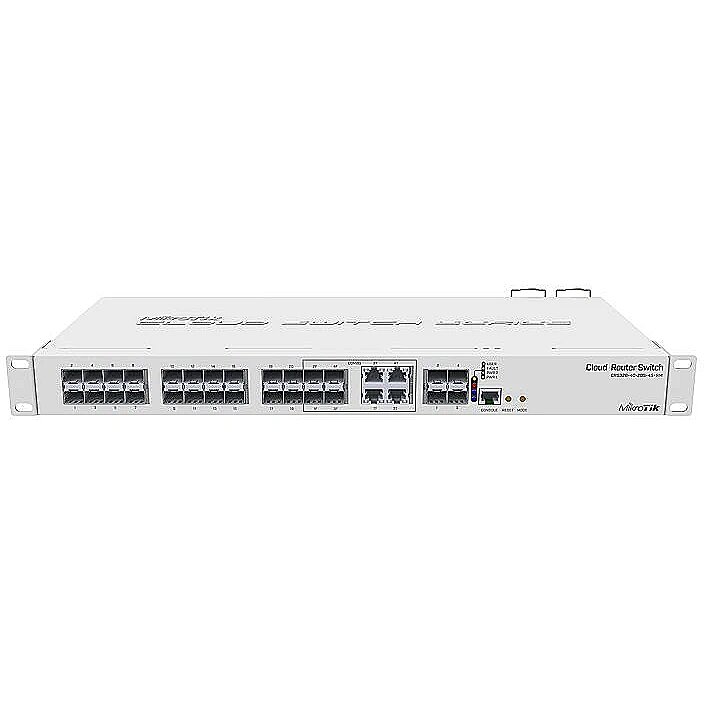

MikroTik Cloud Router Switch CRS328-4C-20S-4S+RM SFP ports quantity 20, Rack mountable, 4, Managed L3, 4

10/100/1000/2500 Mbps ports - None
10G support Network - Yes
Access Control List (ACL) Security - Yes
Accessories included -
AC input voltage Power - 100 - 240 V
Application - Medium and large companies
brand - MikroTik
Broadcast storm control Network - Yes
Built-in processor Performance - Yes
Cables included Packaging content - AC
category - MikroTik > Komutatori > Cloud Router Switch
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Chassis type - Rack
Code - CRS328-4C-20S-4S+RM
Combo SFP ports quantity Ports & interfaces - 4
Console port - Yes
Console port Ports & interfaces - RJ-45
Data transmission - Forwarding rate - 95.2 Mpps
Data transmission - Jumbo frames - 10218
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 16000 entries
Data transmission - Switching capacity - 128 Gbit/s
Depth Weight & dimensions - 44 mm
Description - CRS328-4C-20S-4S+RM to 28 niezależnych przełączników z grupą combo. To urządzenie ma dwadzieścia portów SFP, cztery porty SFP+ dla modułów 10G i cztery porty combo, gdzie możesz wybrać użycie portów SFP lub RJ45 z grupy combo. Te porty można również wybrać programowo, więc jeśli podłączyłeś wszystkie osiem kabli, możesz użyć skryptów, aby zdecydować, które cztery porty combo będą aktywne.
Urządzenie jest dostarczane w obudowie rackowej 1U z dwoma zasilaczami 100-240 V z funkcją przełączania awaryjnego. Port konsoli RJ45 jest dostępny do zarządzania i debugowania, a przycisk trybu może być dostosowany do wykonywania dowolnych poleceń RouterOS.
Urządzenie posiada funkcję Dual boot, która pozwala na wybór pomiędzy dwoma systemami operacyjnymi - RouterOS lub SwOS.
Description - The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active. The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands. The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Product colour - White
Design - Rack mounting - Yes
Design > Form factor - Rackmountable
Designation - CE+WEEE
dimensionalWeight - 1871
dimension depth - 60 mm
dimension height - 490 mm
Dimensions - 443 x 194 x 44 mm
dimension weight - 2150 g
dimension width - 310 mm
EAN - 4752224002242
ean - 4752224002242
Fan - Yes
Flash memory Performance - 16 MB
Form factor Design - 1U
Forwarding rate - 95.2 Mpps
Forwarding rate Data transmission - 95.2 Mpps
Gross weight - 2.5, 2.5 kg
guarantee - 12
guarantee_type - normal
height - 0.08 m
Height Weight & dimensions - 200 mm
IGMP snooping Security - Yes
Internal memory Performance - 512 MB
Jumbo frames Data transmission - 10218
Jumbo frame size - 10218 MB
Jumbo frames support Data transmission - Yes
L2 features -
L3 features -
LED indicators Design - Yes
length - 0.5 m
Link - https://mikrotik.com/product/crs328_4c_20s_4s_rm
Link aggregation Network - Yes
MAC address table Data transmission - 16000 entries
Management, monitoring, configuration -
Management features - Switch layer - L2/L3
Management features - Switch type - Managed
Management features > Switch type - Managed L3
Manufacturer - MikroTik
Mean time between failures (MTBF) - 200000 h
Model name - CRS328-4C-20S-4S+RM
mpn - CRS328-4C-20S-4S+RM
MPN - CRS328-4C-20S-4S+RM
Name - 20P+8 Mikrotik CRS328-4C-20S-4S+RM SFP+ POE
name - MikroTik Switch 20SFP 4 SFP+ CRS328-4C-20S-4S+R
Name - MikroTik | Cloud Router Switch CRS328-4C-20S-4S+RM | 12 month(s)
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.3ad
Network - Port mirroring - Yes
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Networking standards Network - IEEE 802.1Q, IEEE 802.3ad
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - None
Number of COMBO ports - 4
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of power supply units Power - 1
Number of QSFP+ ports - None
Number of SFP+ ports - 4
Number of SFP ports - 20
Operating temperature (T-T) Operational conditions - -20 - 60 °C
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Other features - Architektura: 32-bitowe ARM Procesor: 98DX3236 Liczba rdzeni procesora: 1 Częstotliwość nominalna procesora: 800 MHz Licencja RouterOS: 5 System operacyjny: RouterOS/SwitchOS Rozmiar pamięci RAM: 512 MB Rozmiar pamięci: 16 MB Typ pamięci: FLASH Testowana temperatura otoczenia -20°C do 60°C
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 490, 490 mm
Package features > Gross height (mm) - 60, 60 mm
Package features > Gross width (mm) - 310, 310 mm
Package features > Packing quantity - 1, 1.00 pc(s)
Package features > Palette Qty - 95 pc(s)
Package features > Paper/Pasteboard - 724 g
Package features > Plastic (No PET) - 80 g
Package features > Tare weight (kg) - 0.804, 0.804 kg
Package features > Volume (m3) - 0.009114, 0.009114 m³
Package features > WEE classification - CL109:6:2017-04-01, CL109:6:2017-04-01
Package features > WEEE tax - Yes, Yes
Packaging data - Cables included - AC
Packaging data - Rack mount kit - Yes
Performance - Built-in processor - Yes
Performance - Flash memory - 16 MB
Performance - Internal memory - 512 MB
Performance - Processor frequency - 800 MHz
Port mirroring Network - Yes
Ports & interfaces - Combo SFP ports quantity - 4
Ports & interfaces - Console port - RJ-45
Ports & interfaces - SFP+ module slots quantity - 4
Ports & interfaces - SFP module slots quantity - 20
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 4
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - SFP (1 Gbps Fiber)
Ports & interfaces > SFP+ ports quantity - 4
Ports & interfaces > SFP ports quantity - 20
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power consumption (max) - 43 W
Power - Power supply included - Yes
Power consumption - 43 W
Power consumption (max) Power - 43 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power over Ethernet (PoE) Power over Ethernet (PoE) - No
Power supply -
Power supply included Power - Yes
Processor frequency Performance - 800 MHz
producer - Mikrotik
producerCode - CRS328-4C-20S-
Producer product name - Cloud Router Switch CRS328-4C-20S-4S+RM
Product colour Design - White
productName - Mikrotik CRS328-4C-20S-4S+RM network switch Managed L2/L3 1U White
productSize - Normal
QoS -
Rack mounting Design - Yes
Rack mount kit Packaging content - Yes
Security -
Security - Access Control List (ACL) - Yes
Security - IGMP snooping - Yes
SFP+ module slots quantity Ports & interfaces - 4
SFP module slots quantity Ports & interfaces - 20
sizeX - 495
sizeY - 315
sizeZ - 60
Summary - Mikrotik CRS328-4C-20S-4S+RM. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3ad. Rack mounting, Form factor: 1U
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Managed
Switching capacity Data transmission - 128 Gbit/s
Switch layer - L2
Switch layer Management features - L2/L3
Switch type Management features - Managed
Technical details > Net weight - 1.696, 1.696 kg
Technical details > Other features - POE In: Passive POE
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS (Level 5)
Technical details > Warranty - 12 month(s)
Throughput - 128 Gb/s
title - MikroTik CRS328-4C-20S-4S+RM
Unit Box Height - 0.31
Unit Box Length - 0.495
Unit Box Width - 0.06
Unit Calculated Volume - 0.01132 cubm
Unit Calculated Weight - 2.53 kg
Units per Pallet - 0
Units per Shipping Box - 6
Vendor Homepage - https://mikrotik.com/
vendpn - CRS328-4C-20S-4S+RM
VLAN -
VLAN support Network - Yes
Warranty - 12
Warranty - 12 months
warrantyLength - 24
warrantyType - G
Weight - 2.56
weight - 2.75 kg
weight - 2520
Weight & dimensions - Depth - 44 mm
Weight & dimensions - Height - 200 mm
Weight & dimensions - Width - 443 mm
width - 0.32 m
Width Weight & dimensions - 443 mm
