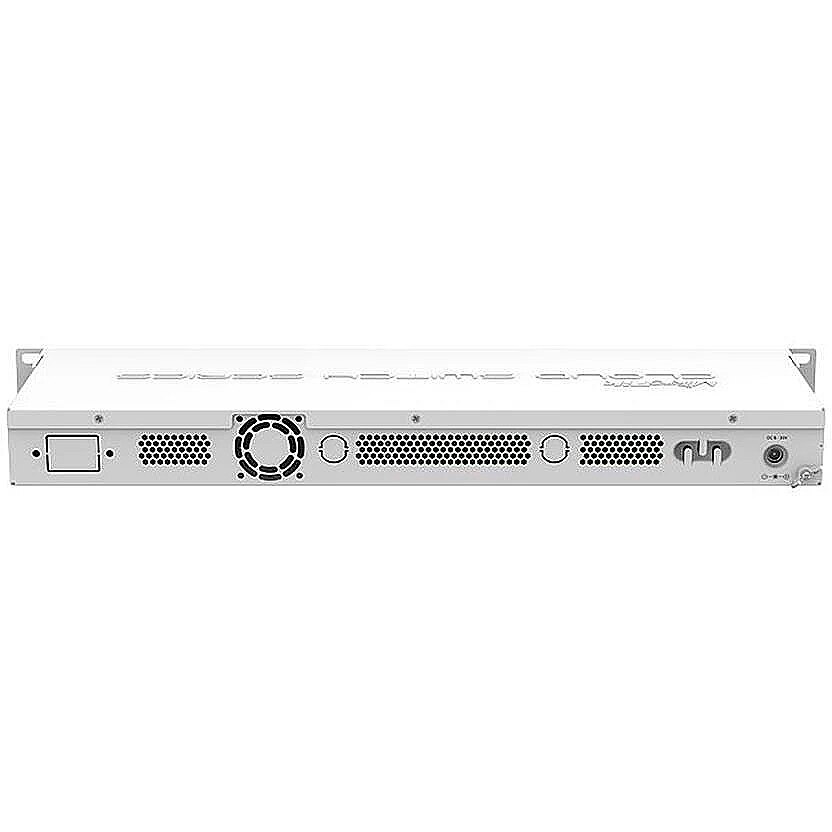

MikroTik CSS326-24G-2S+RM SwOS 24xGig LAN, 2xSFP+ 1.25/10GbE, Rack 19"

10/100/1000/2500 Mbps ports - None
10G support Network - Yes

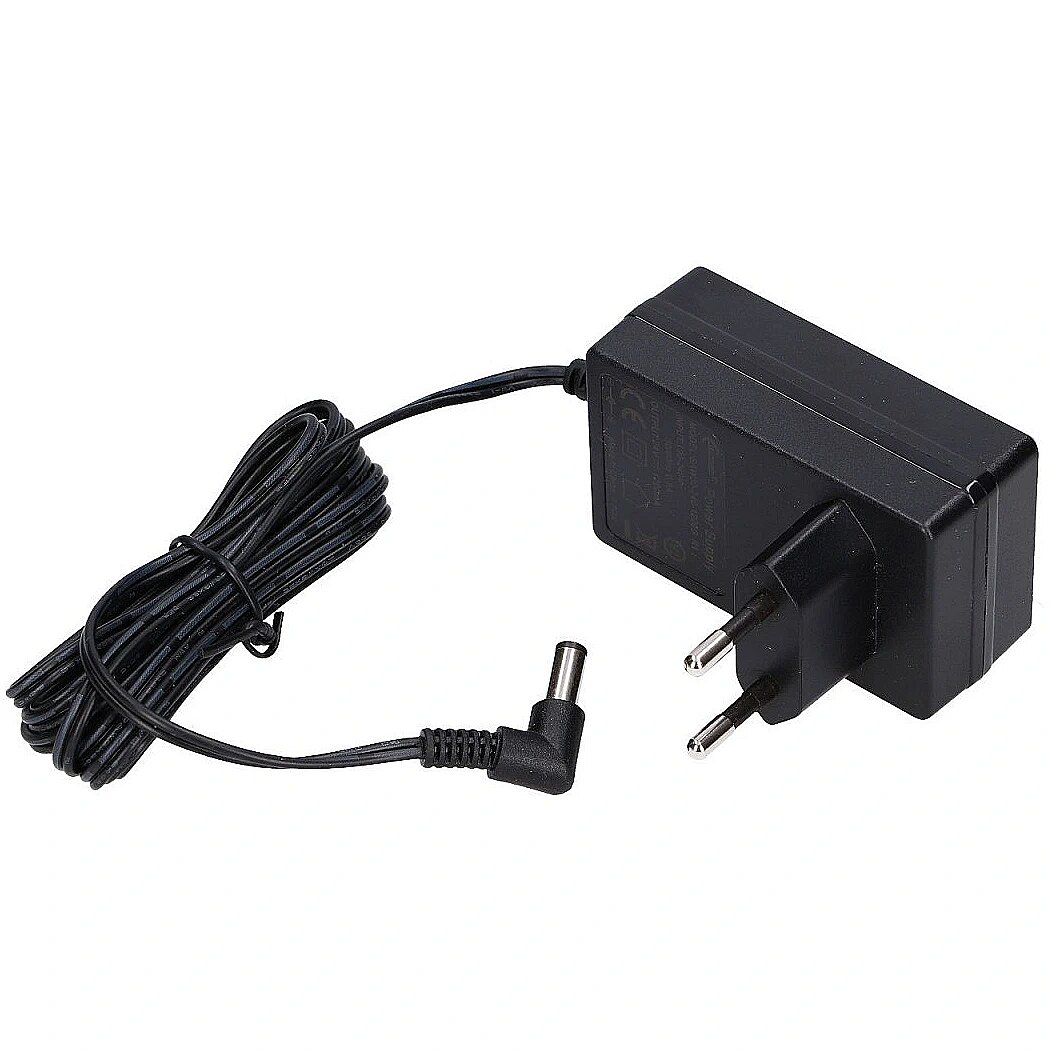

AC adapter included Packaging data - Yes
Access Control List (ACL) Security - Yes
Accessories included -
Application - Medium and large companies
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 24
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
brand - MikroTik
Broadcast storm control Network - Yes
Built-in processor Performance - Yes
category - Mājas un biroju tīkli > Komutatori > 1G komutatori
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Chassis type - Rack
Code - CSS326-24G-2S+RM
Dane techniczne: Gwarancja - 1 rok w serwisie sprzedawcy
Dane techniczne: Głębokość - 144 mm
Dane techniczne: Liczba portów LAN 10/100/1000 - 24 szt.
Dane techniczne: Możliwość instalacji w szafach 19' - tak
Dane techniczne: Producent - MikroTik
Dane techniczne: Przeznaczenie - do szaf RACK 19"
Dane techniczne: Sloty SFP+ 10G - 2 szt.
Dane techniczne: Szerokość - 443 mm
Dane techniczne: Typ - zarządzalny
Dane techniczne: Wysokość - 44 mm
Dane techniczne: Zarządzalność - tak
Depth Weight & dimensions - 144 mm
Description - Cloud Smart Switch 326-24G-2S+RM to 24-portowy przełącznik Gigabit Ethernet z obsługą SwOS z dwoma portami SFP+ w obudowie rackowej 1U, która zapewnia łączność z prędkością przewodową z kilkoma nowymi funkcjami przełączania.
Zapewnia wszystkie podstawowe funkcje przełącznika zarządzanego, a także więcej: umożliwia zarządzanie przekierowaniem między portami, stosowanie filtru MAC, konfigurowanie sieci VLAN, dublowanie ruchu, stosowanie ograniczeń przepustowości, a nawet dostosowywanie niektórych pól nagłówka MAC i IP. Klatka SFP obsługuje zarówno moduły 1,25 Gb SFP, jak i 10 Gb SFP+.

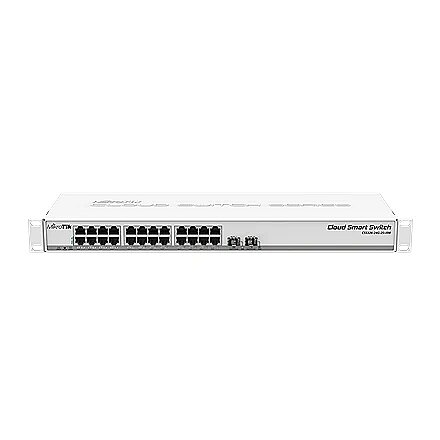

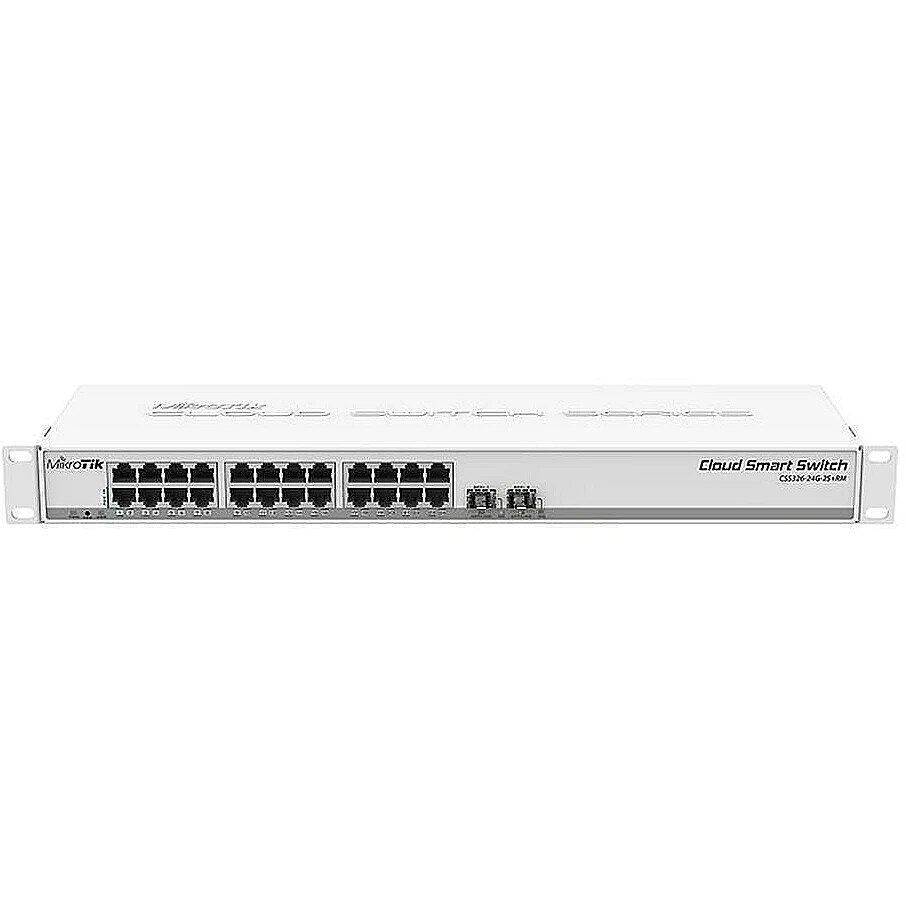

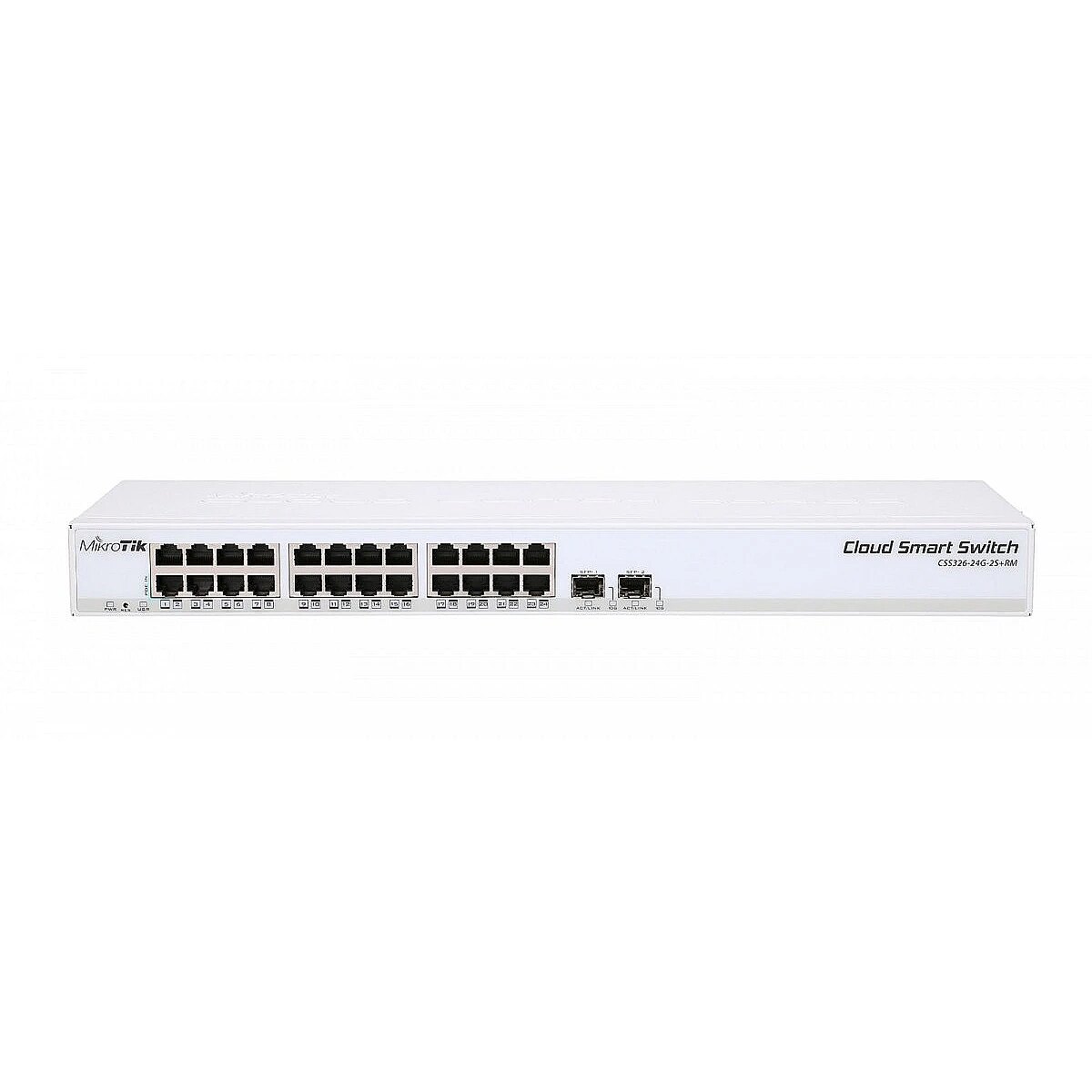

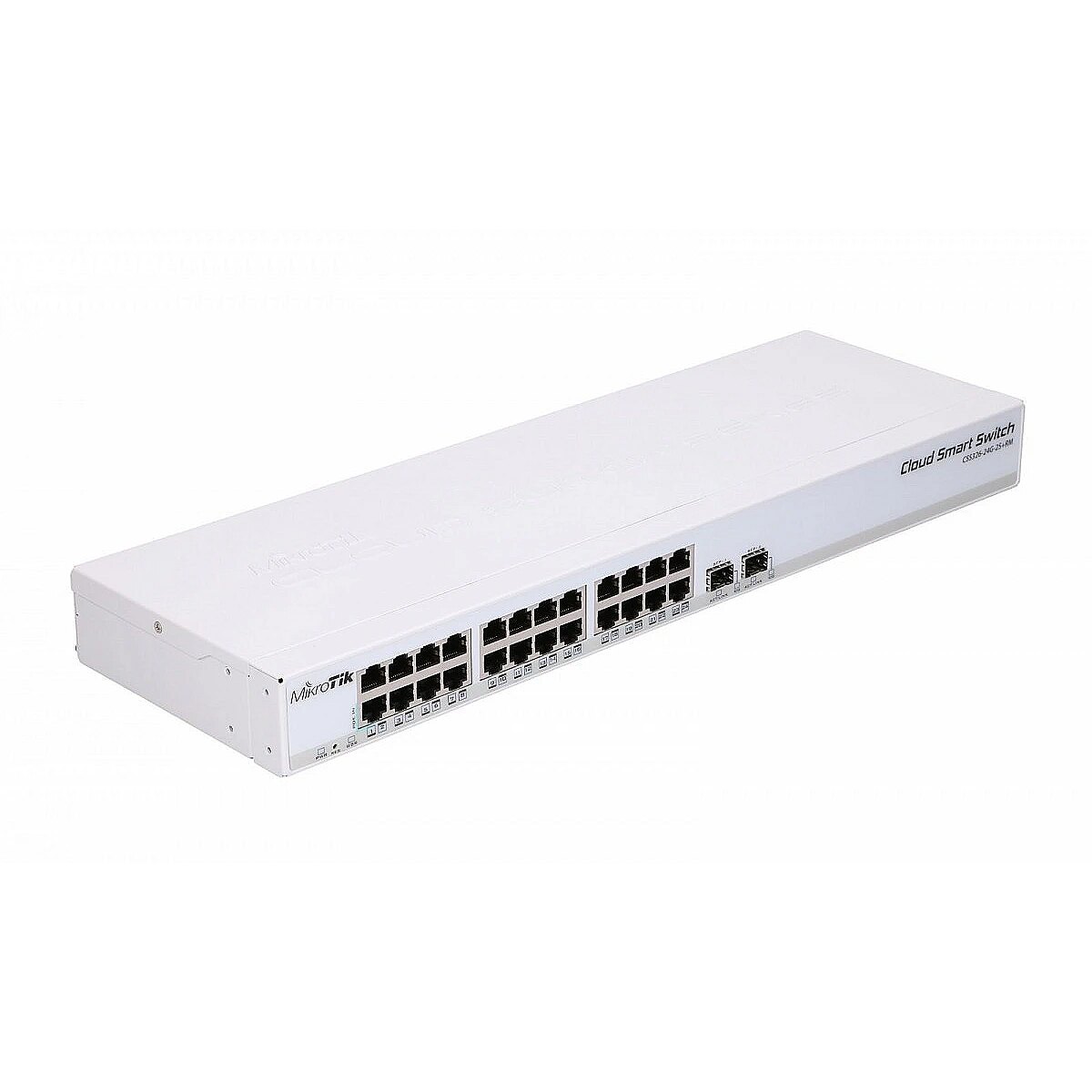

Description - SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features. The device is powered by a Marvell DX switch chip. The device is running an operating system designed specifically for MikroTik switch products - SwOS. SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
Design - Form factor - 1U
Design - Product colour - White
Design - Rack mounting - Yes
Design - Reset button - Yes
Design > Form factor - Rackmountable
Designation - CE+WEEE
dimensionalWeight - 1638
dimension depth - 200 mm
dimension height - 560 mm
Dimensions - 443 x 144 x 44 mm
dimension weight - 1600 g
dimension width - 70 mm
EAN - 4752224002334
ean - 4752224002334
Eans - 4752224002334
Flash memory Performance - 2 MB
Form factor Design - 1U
Gross weight - 1.856 kg
guarantee - 12
guarantee_type - normal
Harmonized System (HS) code Logistics data - 85176990
height - 0.087 m
Height Weight & dimensions - 44 mm
Internal memory Performance - 2 MB
L2 features -
L3 features -
length - 0.58 m
Link - https://mikrotik.com/product/CSS326-24G-2SplusRM
Logistics data - Harmonized System (HS) code - 85176990
MAC address filtering Security - Yes
Management, monitoring, configuration -
Management features - Switch type - Managed
Management features - Web-based management - Yes
Management features > Switch type - Managed L2
Manual Packaging content - Yes
Manufacturer - MikroTik
Mean time between failures (MTBF) - 200000 h

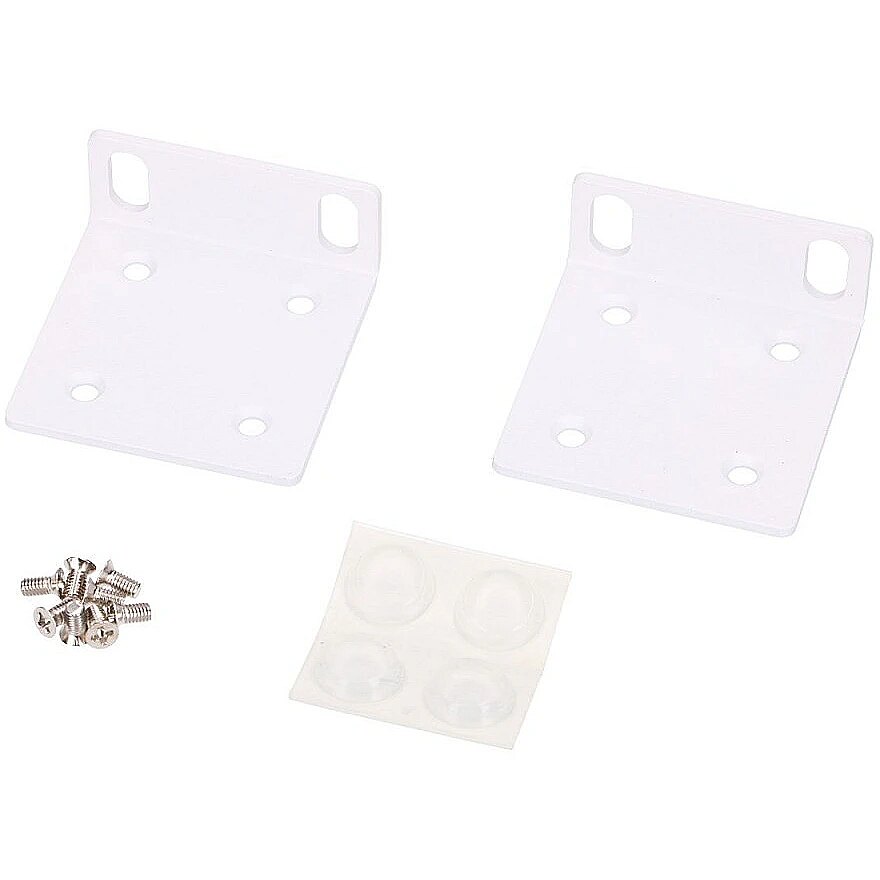

Mounting brackets included Packaging data - Yes
mpn - CSS326-24G-2S+RM
MPN - CSS326-24G-2S+RM
Name - 24+2P MikroTik CSS326-24G-2S+RM SFP+ M RM
Name - Cloud Smart Switch | CSS326-24G-2S+RM | 12 month(s)
Name - MikroTik CSS326-24G-2S+RM
name - MikroTik Switch 24x1GbE 2xSFP+ CSS326-24G-2S+R
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Networking standards - IEEE 802.1Q
Network - Number of VLANs - 4000
Network - Port mirroring - Yes
Network - Spanning tree protocol - Yes
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Networking standards Network - IEEE 802.1Q
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 24
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of power supply units Power - 1
Number of QSFP+ ports - None
Number of SFP+ ports - 2
Number of SFP ports - None
Number of VLANs Network - 4000
Operating temperature (T-T) Operational conditions - -40 - 70 °C
Operational conditions - Operating temperature (T-T) - -40 - 70 °C
Other features - Typ pamięci: Flash Rozmiar pamięci: 2 MB System operacyjny: SwOS Obsługiwane napięcie wejściowe: 10 - 30 V (jack lub pasywne PoE) Temperatura pracy: -40°C .. +70°C
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 560.00 mm
Package features > Gross height (mm) - 200.00 mm
Package features > Gross width (mm) - 80.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 193 pc(s)
Package features > Paper/Pasteboard - 590 g
Package features > Plastic (No PET) - 66 g
Package features > Tare weight (kg) - 0.656 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - AC adapter included - Yes
Packaging data - Manual - Yes
Packaging data - Mounting brackets included - Yes
Performance - Built-in processor - Yes
Performance - Flash memory - 2 MB
Performance - Internal memory - 2 MB
Port mirroring Network - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces - SFP+ module slots quantity - 2
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 24
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 1 Gbps (RJ-45)
Ports & interfaces > SFP+ ports quantity - 2
Power - Number of power supply units - 1
Power - Power consumption (typical) - 19 W
Power - Power supply included - Yes
Power connector Ports & interfaces - DC-in jack
Power consumption - 19 W
Power consumption (typical) Power - 19 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) type supported Power over Ethernet (PoE) - Passive PoE
Power over Ethernet (PoE) voltage range Power over Ethernet (PoE) - 10 - 30 V
Power source Power - DC/PoE
Power supply -
Power supply included Power - Yes
producer - Mikrotik
Producer - MikroTik
producerCode - CSS326-24G-2S+RM
ProducerCode - CSS326-24G-2S+RM
Producer product family - Cloud Smart Switch
Producer product name - CSS326-24G-2S+RM
Product colour Design - White
productName - Mikrotik CSS326-24G-2S+RM network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
productSize - Normal
QoS -
Rack mounting Design - Yes
Reset button Design - Yes
Security -
Security - Access Control List (ACL) - Yes
Security - MAC address filtering - Yes
Security - Security algorithms - SNMP
Security algorithms Security - SNMP
SFP+ module slots quantity Ports & interfaces - 2
ShortDescription -
sizeX - 560
sizeY - 195
sizeZ - 75
Spanning tree protocol Network - Yes
Summary - Mikrotik CSS326-24G-2S+RM. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Networking standards: IEEE 802.1Q. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Supported protocols and standards -
Switch class - Managed
Switch type Management features - Managed
Technical details > Net weight - 1.20 kg
Technical details > Other features - POE In: Passive POE
Technical details > Producer - MikroTik
Technical details > Software type - SwitchOS
Technical details > Warranty - 12 month(s)
title - MikroTik CSS326-24G-2S+RM
Unit Box Height - 0.07
Unit Box Length - 0.56
Unit Box Width - 0.2
Unit Calculated Volume - 0.00957 cubm
Unit Calculated Weight - 1.86 kg
Units per Shipping Box - 10
Vendor Homepage - https://mikrotik.com/product/CSS326-24G-2SplusRM
vendpn - CSS326-24G-2S+RM
VLAN -
VLAN support Network - Yes
Warranty - 12
Warranty - 12 months
warrantyLength - 12
warrantyType - G
Web-based management Management features - Yes
weight - 1.89 kg
Weight - 1.633
weight - 1650
Weight & dimensions - Depth - 144 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
width - 0.2 m
Width Weight & dimensions - 440 mm
