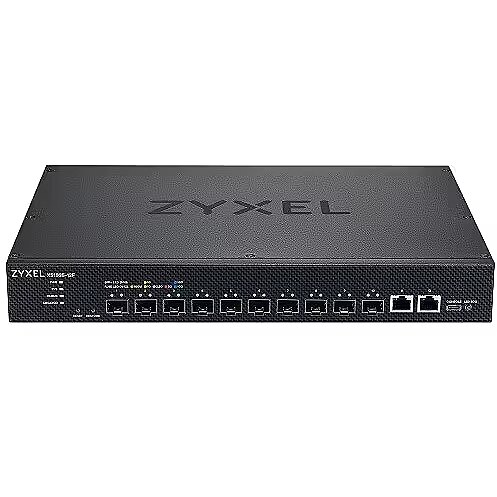

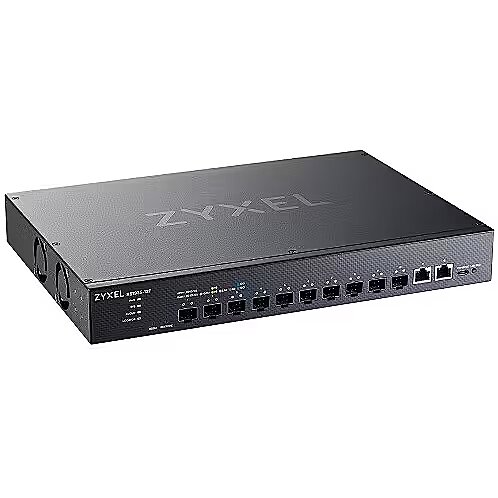

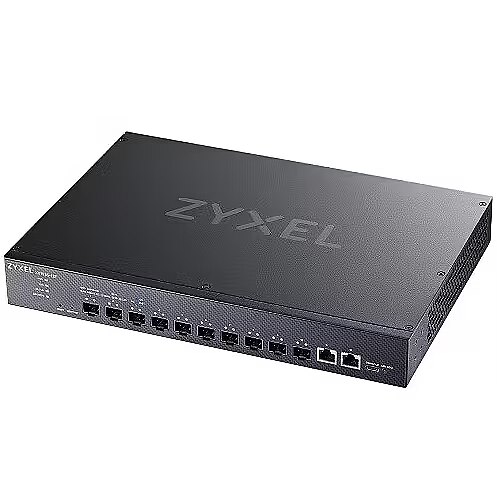

Zyxel Switch Zyxel XS1935-12F 12p Managed Multigigabit/10G

Application - Home and small office
Certificates - Safety: LVD, BSMI Safety EMC: FCC Part 15 (Class A), CE (Class A), BSMI EMC RoHS
Chassis type - Rack
Console port - No
Data transmission - Forwarding rate - 178 Mpps
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 32000 entries
Data transmission - Switching capacity - 240 Gbit/s
Description - XS1935 Series As businesses adopt cloud applications, AI-driven workloads, and high-definition collaboration tools, network performance is critical. With WiFi 7 delivering speeds beyond 10 Gbps, the demand for faster, more efficient wired infrastructure is growing. Zyxel's XS1935 Series Switch is built for modern networks with future-ready technology. Smart fan design delivers near silent and stable Multi-Gig 10G operation.
Unlock the Future of Networking with 10G Multi-Gig Switches
A 10G Multi-Gig switch provides the flexibility to support 100M, 1G, 2.5G, 5G, and 10G connections, allowing businesses to upgrade their network gradually without overhauling their entire infrastructure. This ensures that high-performance devices such as servers, NAS, workstations, and next-gen WiFi 7 access points can operate at their full potential without bottlenecks.
Description - ZYXEL XS1935-12F, 10-PORT 10G L3 SMART MANAGED FIBER SWITCH, 2 MULTI-GIGABIT PORTS, HYBRID MODE, STANDALONE OR NEBULAFLEX CLOUD
Design - Rack mounting - Yes
Design - Stackable - No
Designation - CE+WEEE
dimensionalWeight - 2885
dimension depth - 95 mm
dimension height - 375 mm
Dimensions - 330 x 230 x 44 mm
dimension weight - 3854 g
dimension width - 410 mm
ean - 4718937637805
Environment requirements - Operating temperature: -20°C to 50°C/-4°F to 122°F Operating humidity 5% to 95% (non-condensing) Storage temperature: -40°C to 70°C/-40°F to 158°F  Storage humidity 5% to 95% (non-condensing)
Fan - Yes
Forwarding rate - 178.5 Mpps
guarantee - -1
guarantee_type - external
Height - 96.000000
Jumbo frame size - 12 KB
L2 features - L2 multicast group: 1K IGMP snooping (v1, v2, v3) Configurable IGMP snooping timer and priority IGMP snooping statistics IGMP throttling IGMP filtering Static multicast Multicast load sharing over trunking port
L3 features - Multilevel CLI CLI (Cisco-like) Expanding Network Capacity IEEE 802.1Q Static VLAN: up to 4,094 IPv4 Address table: up to 1,024 MAC table: up to 32K IPv4/IPv6 Static route: up to 64/64 ACL: up to 256 Networked AV Mode Protocol-Based VLAN IP subnet-based VLAN MAC-based VLAN VLAN isolation IEEE 802.1AD VLAN stacking (QinQ) VLAN mapping MRSTP (Zyxel Proprietary) BPDU transparency Flex link IEEE 802.3ah OAM (Link Discovery, Loopback) BPDU Guard Root Guard IP source guard (IPv4/IPv6) DHCPv6 Snooping IPv6 DHCP trust ARP Inspection ARP Freeze Anti-ARP Scan MAC Freeze DHCP Server Guard MVR support IGMP Snooping Immediate Leave MLD Snooping (MLD v1) sFlow IEEE 802.3x Flow Control Diffserv (DSCP) Auto PD recovery ZUID MAC-based authentication per VLAN Compound Authentication DHCP Client Option60 Multiple TACACs+ server Login authentication by TACACS+ TACACS+ Accounting Authorization on TACACS+ Zyxel Private MIB
Length - 408.000000
MAC address table size - 16000
Management, monitoring, configuration - SNMP v1, v2c, v3 SNMP trap group RMON (1, 2, 3, 9) Syslog (IPv4/v6) IEEE 802.1AB LLDP IEEE 802.1AB LLDP-MED Custom default Display port utilization Support NebulaFlex for hybrid mode Standalone management by Web interface Cloud management by Nebula Control Center Auto configuration recovery (only for cloud mode) Zyxel iStackingTM Management through Web, SNMP Firmware upgrade by FTP/Web Configuration saving and retrieving Multiple login supported DHCP relay DHCP relay per VLAN DHCP client IPv4 (IPv4*/IPv6) DHCP option 82 Daylight saving NTP Server (IPv4*/IPv6) Port mirroring Scheduled PoE PoE default consumption mode PoE power management extended configuration Restore to last custom default
Management features - Switch layer - L2
Management features - Switch type - Managed
Manufacturer - Zyxel
ManufacturerPartNumber - XS1935-12F-ZZ0101F
Mean time between failures (MTBF) - 443496 h
name - Smart Switch 12P XS1935-12F-ZZ0101F
Network architecture - GigabitEthernet
Number of 10/100/1000 Mbps ports - 10
Number of 10Gb ports - 2
Number of SFP+ ports - 10
Number of VLAN groups - 4000
Packet buffer - 2 MB
PeriodofWarranty - 5 Y
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 2
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 10G Ethernet (100/1000/10000)
Power - Power source - AC adapter
Power - Power supply included - Yes
Power consumption - 36.65 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - 100 - 240 V AC, 50/60 Hz
Power supply - Internal
producer - Zyxel
producerCode - XS1935-12F-ZZ0101F
productName - Switch Zyxel XS1935-12F 12p Managed Multigigabit/10G
productSize - Normal
QoS - No. of hardware queues per port: 8 802.1p queuing methods: SPQ, WRR, WFQ Storm control: broadcast, unknown L2MC, unknown unicast (DLF) Rate limiting per port Policy-based rate limiting Policy-based prioritization
Security - 802.1X Port security MAC authentication Static MAC forwarding Static ARP Policy-based security filtering Port isolation MAC search Guest VLAN PPPoE relay agent PPPoE option 82 PPPoE IA Interface related trap enable/disable (by port) CPU protection Import HTTPS certification Login authentication by RADIUS RADIUS accounting Authorization on RADIUS Multiple RADIUS servers (IPv4/IPv6) VLAN and bandwidth assignment via RADIUS with 802.1x authentication ACL packet filtering (IPv4/IPv6)
sizeX - 375
sizeY - 95
sizeZ - 405
Stackability - No
Supported protocols and standards - IEEE 802.3z 1000BASE-X IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3an 10G BASE-T Ethernet IEEE 802.3ae 10 Gbit/s Ethernet over fiber IEEE 802.3x flow control IEEE 802.3ad LACP aggregation IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1p Class of Service (CoS) prioritization IEEE 802.1X port authentication
Support for Jumbo frames - Yes
Switch class - SMART
Switch layer - L3
Throughput - 240 Gb/s
vendpn - XS1935-12F-ZZ0101F
VLAN - 802.1Q Static VLANs/Dynamic VLANs: 1K/4K Support up to 4K VLAN ID Independent VLAN Learning (IVL) L2PT Port-based VLAN Voice VLAN VLAN trunking GVRP
warrantyType - W
Weight - 2.2 kg
Weight - 3.870000
weight - 3865
Width - 374.000000
