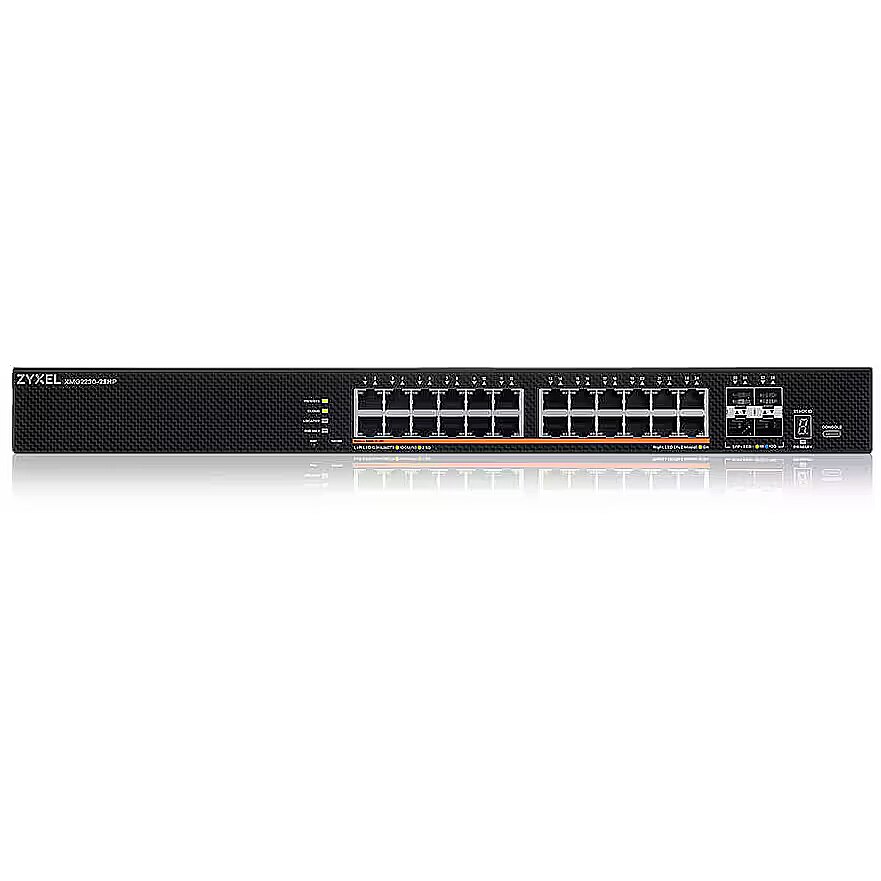

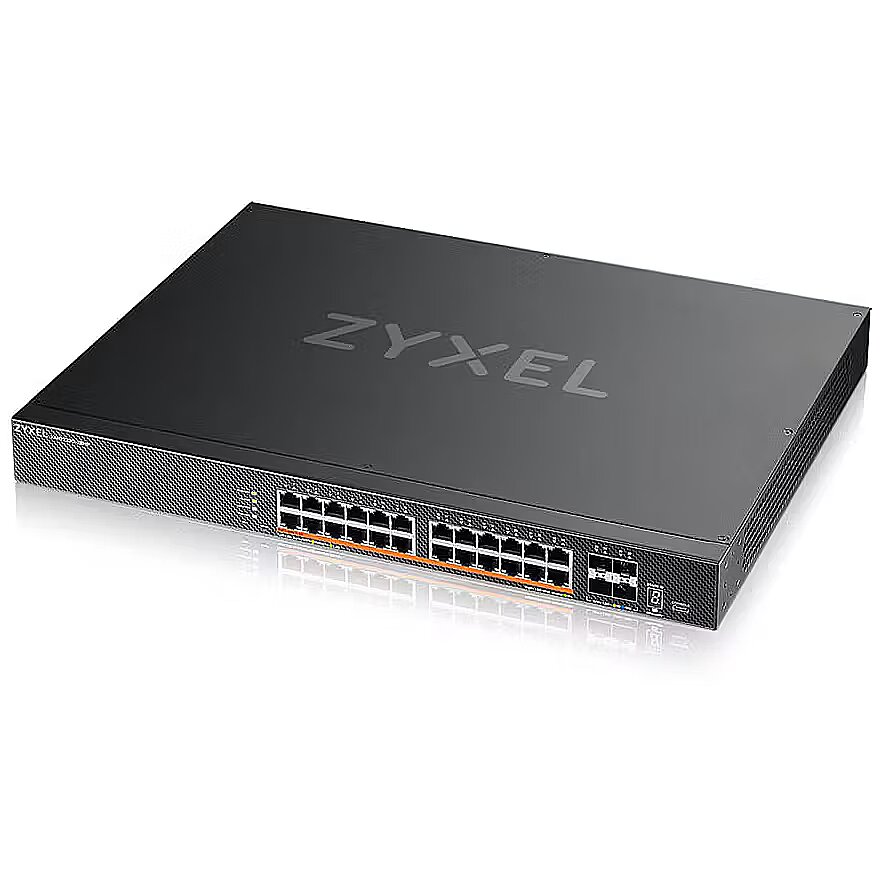

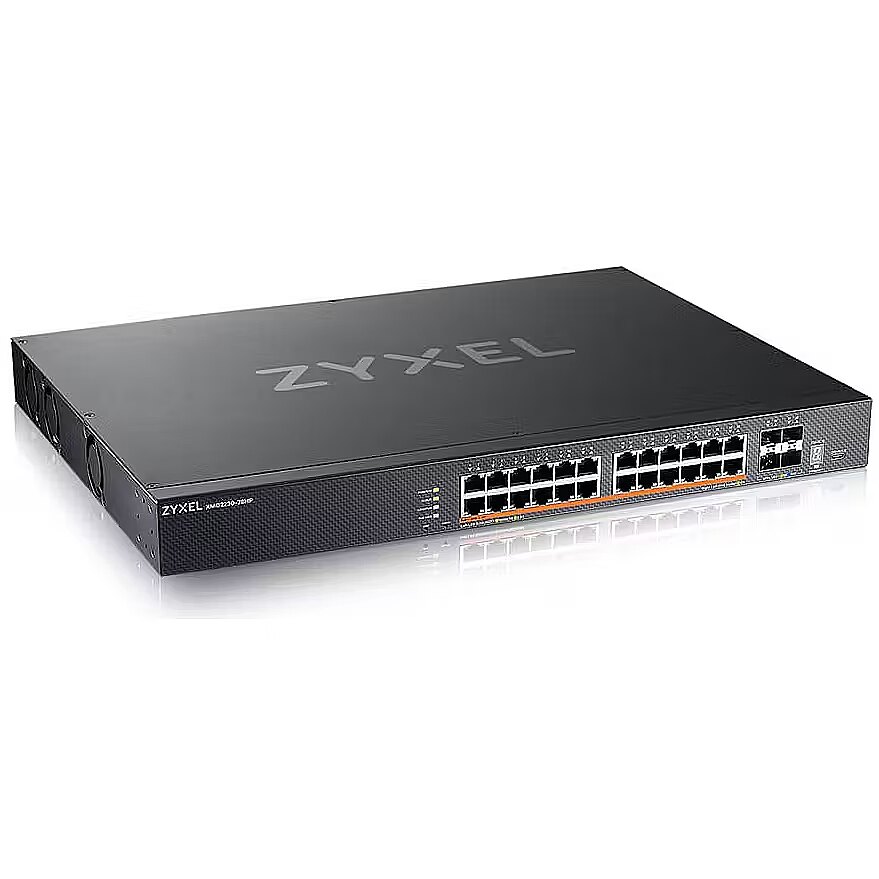

Zyxel XMG2230-28HP, L3 ACCESS SWITCH, 24X 2.5G AC:700W POE , DC:1440W POE, 4 X SFP+ UPLINK, INCL 1 YR NEBULAFLEX PRO

Brand - Zyxel
BrandPartCode - XMG2230-28HP-ZZ0101F
Category - Network Switches
Certificates - Certification - FCC Part 15 (Class A)
CE EMC (Class A)
BSMI EMC
Certificates - Compliance certificates - BSMI, Low Voltage Directive (LVD), RoHS
Data transmission - Forwarding rate - 148.8 Mpps
Data transmission - Jumbo frames - 12
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 32000 entries
Data transmission - Number of IP interfaces - 32
Data transmission - Number of static routes - 4000
Data transmission - Packet buffer memory - 2 MB
Data transmission - Static route - Yes
Data transmission - Switching capacity - 200 Gbit/s
Description - ZYXEL XMG2230-28HP, L3 ACCESS SWITCH, 24X 2.5G AC:700W POE , DC:1440W POE, 4 X SFP+ UPLINK, INCL 1 YR NEBULAFLEX PRO (5Y WARRANTY)
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Stackable - Yes
GTIN - 4718937645312
Height - 100.000000
Length - 600.000000

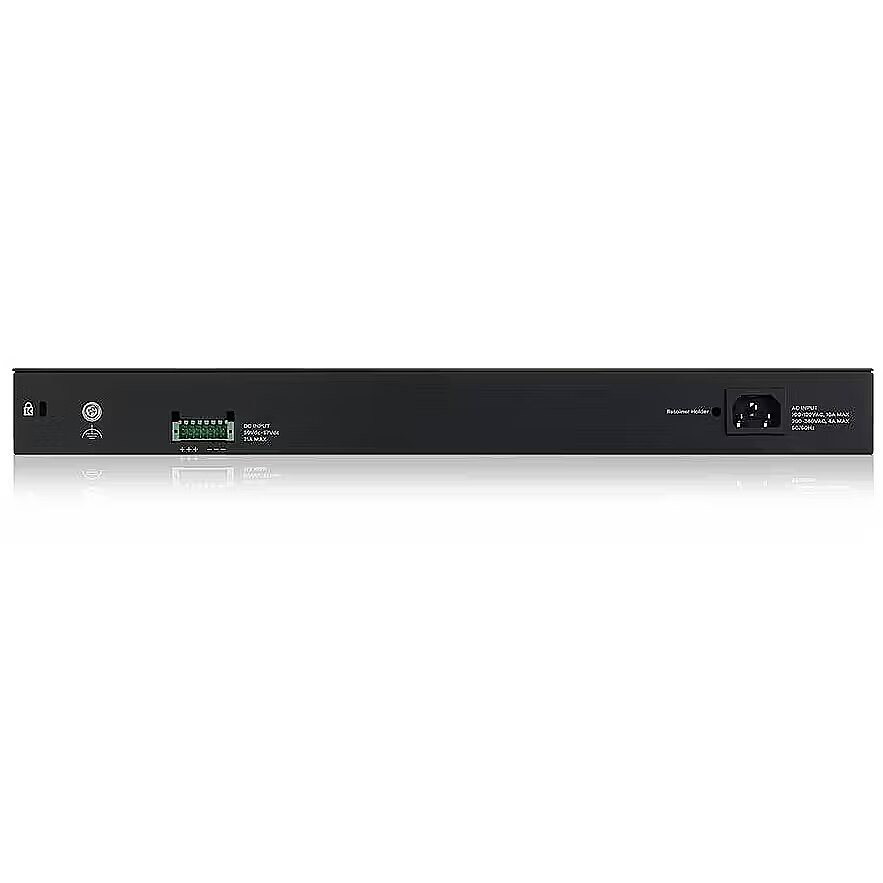

LongDesc - Flexible Multi-Gig port configuration for diversified deploymentsThe XMG2230-28HP offers PoE-capable 2.5G Multi-Gig ports, while the XMG2230-52HP provides a mix of 1G and 2.5G PoE ports. Both models include four 10G SFP+ fiber uplinks for high-speed connectivity. The 52-port model’s port mix enables efficient bandwidth allocation based on device needs, balancing cost and performance for scalable, future-proof networks.Dual power foralways-on connectivityThe XMG2230 Series is designed with superior network resiliency in mind, featuring dual power sources: an internal AC input as the primary source and an optional DC input for connection to an external DC power system. This active-standby power redundancy enables automatic switchover to backup power if the main AC source fails. The dual power design helps prevent unexpected outages and ensures stable, 24/7 connectivity.High-power, adaptive PoE for modern business devicesThe XMG2230-28HP supports PoE++ on all ports, while the XMG2230-52HP offers a mix of PoE+ and PoE++ for greater deployment flexibility. The series provides adaptive PoE power budget with either internal AC power 700W (28HP)/960W (52HP) or external DC power system 1440W (28HP)/2400W (52HP). It is built for higher capacity, improved efficiency, and reliable operation in demanding environments such as high-performance WiFi, video conferencing, IP surveillance, thin/zero clients, smart building, IoT, and AV applications.Segment your networkmore effectively for securityDesigned for SME networks, this series of switches supports full L2 feature sets such as VLAN, ACL, port aggregation, and mirroring, along with advanced security to keep your business protected. It also provides essential L3 access features for converged voice, video, and data. With support for static routing, the switches ensure efficient traffic flows across your network, while the built-in DHCP server simplifies device onboarding and reduces IT overhead.Click. Tap. Done.Get up and running in minutes with the Nebula mobile app. With just a few simple clicks, our user-friendly step-by-step wizard walks you through the entire installation process, no technical expertise required.Once connected, the intuitive interface gives you complete control, making it easy to adjust settings, monitor performance and manage your network anytime, anywhere.Search: Zyxel Nebula MobilePowerful, effortless andscalable connectivity.With Nebula, you can manage your entire network – wireless, switching, security and LTE/5G – through a single centralized cloud platform. Deploy and configure devices quickly and remotely, without the need for extra hardware controllers or software.Whether you're managing one site or many, Nebula delivers real-time monitoring, instant alerts and complete network visibility – anytime, anywhere.Scale confidently, simplify operations and stay secure – all through one intuitive platform.Dedicated networkedAV modeThe Networked AV mode in standalone mode simplifies deployment with an intuitive setup wizard and AI-driven auto-configuration. A visual dashboard highlights key AV settings like IGMP, while a simplified menu streamlines management. With high performance plus built-in Dante and AES67 profile support, the XMG2230 ensures smooth, reliable AVoIP streaming for professional AV environments.
LongProductName - 24-port 2.5G PoE L3 Access Switch with 4 10G Uplink, Layer 3 Access, IEEE 802.3bt PoE++ (60W), 100-240V AC, 50/60Hz/50-57V DC, 441 x 330 x 44 mm, 4.53 kg
LongSummaryDescription - Zyxel XMG2230-28HP. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 50 - 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2/L3
Management features - Switch type - Managed
Manufacturer - Zyxel
ManufacturerPartNumber - XMG2230-28HP-ZZ0101F
Multicast features - Multicast support - Yes
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Copper ethernet cabling technology - 2.5GBASE-T, 100BASE-T, 1000BASE-T
Network - Networking standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
Network - Policy-based routing - Yes
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Routing entries - 64
Network - Virtual LAN features - IP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Operational conditions - Heat dissipation - 2856 BTU/h
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -20 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging data - Package depth - 503 mm
Packaging data - Package height - 95 mm
Packaging data - Package weight - 6.81 kg
Packaging data - Package width - 580 mm
Performance - Flash memory - 64 MB
Performance - Internal memory - 1000 MB
Performance - Mean time between failures (MTBF) - 554612.62 h
Performance - Noise level - 48.85 dB
PeriodofWarranty - 5 Y
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 2.5G Ethernet (100/1000/2500)
Ports & interfaces - Console port - RJ-45/USB Type-C
Ports & interfaces - SFP+ module slots quantity - 4
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - DC input voltage - 50 - 57 V
Power - Power consumption (max) - 1519.1 W
Power - Power source - AC/PoE
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) type supported - PoE++ (4PPoE)
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 1440 W
ProductName - XMG2230-28HP
Protocols - GARP VLAN Registration Protocol (GVRP) - Yes
Protocols - IPv4 & IPv6 features - Dual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet
Security - Authentication - Guest VLAN, MAC-based authentication
Security - Authentication type - IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP Option 60, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 snooping
Security - IGMP proxy - Yes
Security - IGMP snooping - Yes
Security - IP-MAC-Port binding - Yes
Security - Security algorithms - SNMP, SNMPv2, SNMPv3
Security - SSH/SSL support - Yes
Security - Static port security - Yes
ShortSummaryDescription - Zyxel XMG2230-28HP, Managed, L2/L3, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting, 1U
Title - Zyxel XMG2230-28HP Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
URL - https://www.zyxel.com/global/en/products/switch/24-48-port-gbe-and-2-5g-l3-access-switch-with-4-10g-uplink-xmg2230-series/overview
WarrantyInfo -
Weight - 6.790000
Weight & dimensions - Depth - 330 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 4.53 kg
Weight & dimensions - Width - 441 mm
Width - 500.000000
