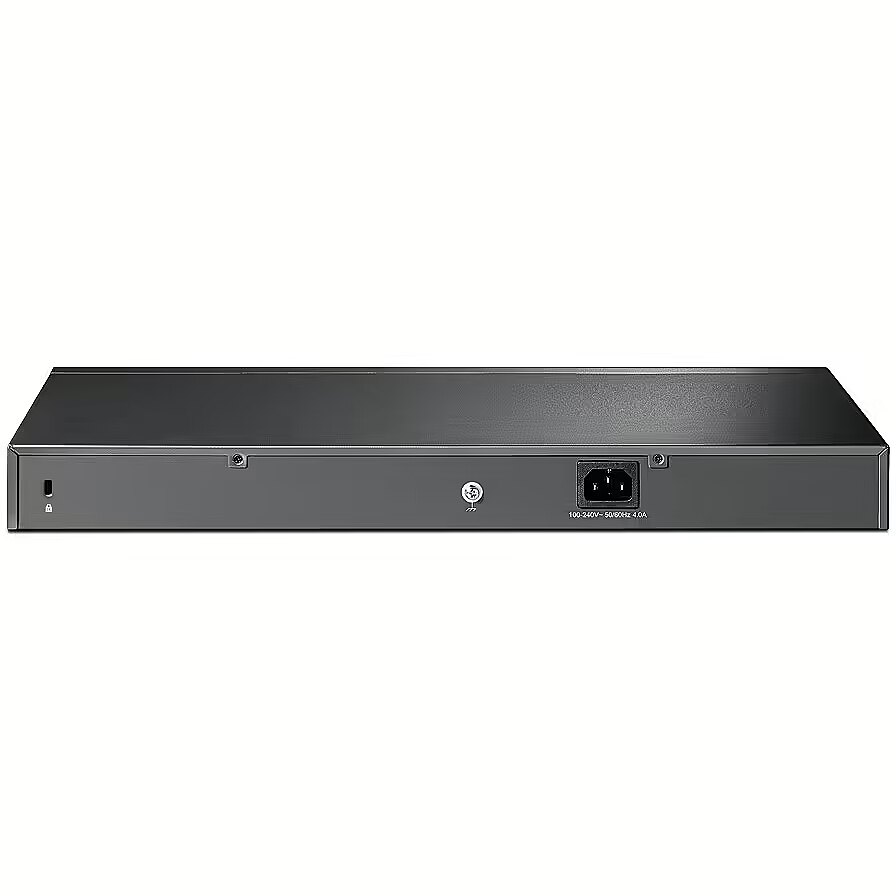

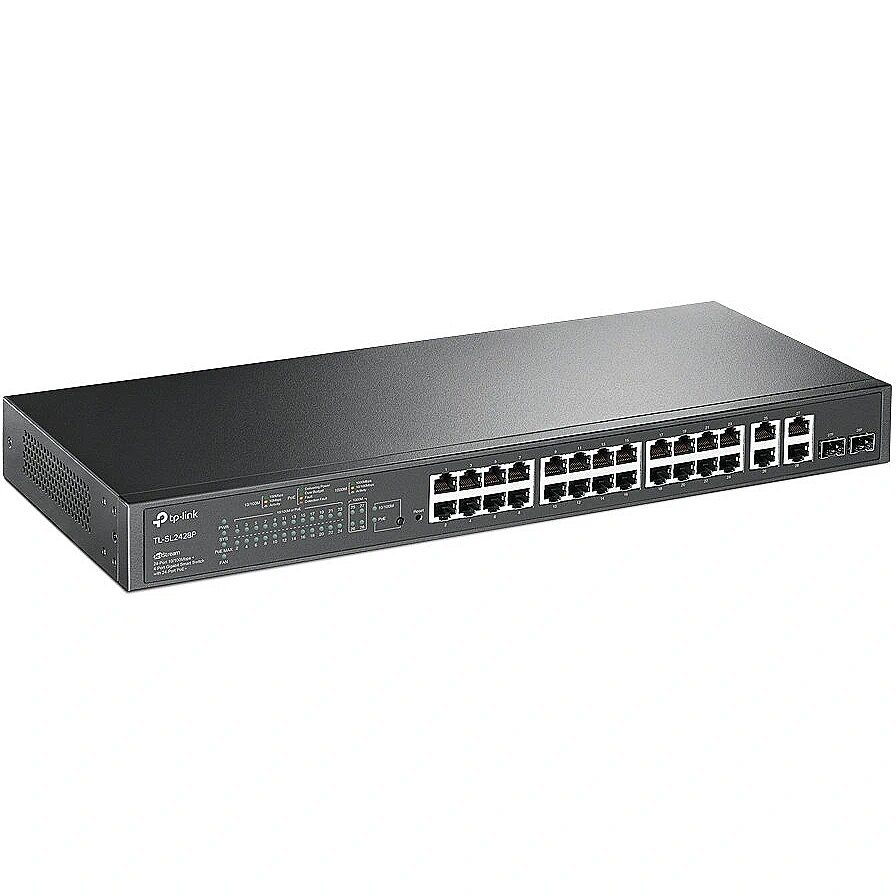

TP-LINK TL-SL2428P, 24-Port PoE+ 4-Port Gigabit

10G support Network - No
Access Control List (ACL) Security - Yes
Accessories included - Przełącznik TL-SL2428P Kabel zasilający Instrukcja instalacji Zestaw montażowy Gumowe nóżki
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
Application - Medium and large companies
ARP inspection Management features - Yes
ARTIKEL1 - 24-PORT POE SMART SWITCH
ARTIKEL2 - 24X RJ+4X RJ+2X SFP
Auto MDI/MDI-X Network - Yes
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 24
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Fast Ethernet (10/100)
Brand - TP-Link
BrandPartCode - SL2428P
Breite - 0
Broadcast storm control Network - Yes
Cables included Packaging content - AC
Cable types supported Network - Cat5, Cat5e
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Certificates - Certification - CE, FCC, RoHS
Certification Certificates - CE, FCC, RoHS
Chassis type - Desktop
CnCode - 85176200
Code - SL2428P
Combo SFP ports quantity Ports & interfaces - 2
Compatible operating systems Performance - Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Configuring Location Settings (CLI) Management features - Yes
Copper ethernet cabling technology Network - 10BASE-T, 100BASE-TX, 1000BASE-T
Dane techniczne: Grupa produktowa - Przełączniki TP-Link
Dane techniczne: Gwarancja - 5 lat w serwisie sprzedawcy
Dane techniczne: Głębokość - 180 mm
Dane techniczne: Liczba portów LAN 10/100 - 24 szt.
Dane techniczne: Liczba portów LAN 10/100/1000 - 4 szt.
Dane techniczne: Obsługa VLANów - tak
Dane techniczne: Obsługiwane protokoły - IEEE 802.1D
Dane techniczne: Obsługiwane protokoły - IEEE 802.1p
Dane techniczne: Obsługiwane protokoły - IEEE 802.1Q
Dane techniczne: Obsługiwane protokoły - IEEE 802.1s
Dane techniczne: Obsługiwane protokoły - IEEE 802.1w
Dane techniczne: Obsługiwane protokoły - IEEE 802.1x
Dane techniczne: Obsługiwane protokoły - IEEE 802.3ab
Dane techniczne: Obsługiwane protokoły - IEEE 802.3ad
Dane techniczne: Obsługiwane protokoły - IEEE 802.3af
Dane techniczne: Obsługiwane protokoły - IEEE 802.3at
Dane techniczne: Obsługiwane protokoły - IEEE 802.3az
Dane techniczne: Obsługiwane protokoły - IEEE 802.3i
Dane techniczne: Obsługiwane protokoły - IEEE 802.3u
Dane techniczne: Obsługiwane protokoły - IEEE 802.3x flow control
Dane techniczne: Obsługiwane protokoły - IEEE 802.3z
Dane techniczne: Porty PoE - 24 szt.
Dane techniczne: Producent - TP-Link
Dane techniczne: Przeznaczenie - do szaf RACK 19"
Dane techniczne: Prędkość magistrali wew. - 12.8 Gb/s
Dane techniczne: Sloty SFP 1000 Mb/s - 2 szt. (combo)
Dane techniczne: Szerokość - 440 mm
Dane techniczne: Szybkość przekierowań pakietów - 9.5 mpps
Dane techniczne: Typ - zarządzalny
Dane techniczne: Wysokość - 44 mm
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Number of queues - 4
Data transmission - Packet buffer memory - 4.1 MB
Data transmission - Switching capacity - 12.8 Gbit/s
Data transmission - Throughput - 9.5 Mpps
Depth Weight & dimensions - 180 mm
Description - Przełącznik stworzony do wielu zastosowań 24 porty PoE+ o łącznej mocy 250 W Przełącznik TL-SL2428P to urządzenie zgodne ze standardami 802.af/at, które jest w stanie zapewnić urządzeniom nawet 30 W* mocy zasilania na każdym porcie. 250 W łącznej mocy zasilania PoE* przełącznika wyposażonego w 24 porty PoE+ 10/100 Mb/s to rozwiązanie idealne m.in. dla systemów monitoringu, biur, akademików i małych firm. Urządzenie jest w pełni zgodne z kamerami IP, punktami dostępowymi, telefonami IP, komputerami, drukarkami, itd.
Description - TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance. 24× 10/100 Mbps 802.3af/at PoE+ ports with up to 30 W PoE output per port2× Gigabit RJ45 ports and 2× Combo Gigabit RJ45/SFP ports250 W total PoE budgetCentralized cloud management via the web or the Omada appStandalone management via web, CLI, SNMP, and RMONStatic Routing helps route internal traffic for higher efficiencyVLAN, ACL, QoS, and IGMP SnoopingDurable metal casing and rackmountable design
Design - Form factor - 1U
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
Design > Form factor - Rackmountable
Designation - CE+WEEE
dimension depth - 80 mm
dimension height - 250 mm
Dimensions - 440 x 180 x 44 mm
dimension weight - 3076 g
dimension width - 527 mm
EAN - 6935364030612
ean - 6935364030612
EANCode - 6935364030612
Eans - 6935364030612
Fan - Yes
Fast Ethernet (copper) ports quantity Ports & interfaces - 24
Firmware upgradeable Performance - Yes
Flow control support Network - Yes
Form factor Design - 1U
Gigabit Ethernet (copper) ports quantity Ports & interfaces - 4
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 6935364030612
guarantee - 60
guarantee_type - normal
Heat dissipation Operational conditions - 995.09 BTU/h
Height Weight & dimensions - 44 mm
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - SL2428P
IGMP snooping Security - Yes
Jumbo frames Data transmission - 9000
Jumbo frame size - 9 KB
Jumbo frames support Data transmission - Yes
L2 features - Agregacja łączy - Statyczna agregacja łączy - Do 8 grup agregacji i do 8 portów na grupę - LACP 802.3ad Protokół drzewa rozpinającego (STP) - STP 802.1D - RSTP 802.1w - MSTP 802.1s - Zabezpieczenia STP: ochrona TC, filtrowanie/ochrona poprzez pakiety BPDU, ochrona Root, ochrona przed pętlami Wykrywanie pętli zwrotnych - Oparte na portach - Oparte na VLAN Kontrola przepływu - Kontrola przepływu 802.3x - Zapobieganie blokowaniu HOL Mirroring - Port Mirroring - Przesył One-to-One - Przesył Many-to-One - Port wejścia/wyjścia / obydwa porty - Mirroring procesora
L3 features - 16 interfejsów IPv4/IPv6 Routing statyczny - 48 tras statycznych Wpisy statyczne ARP - 128 wpisów statycznych 316 wpisów ARP Proxy ARP Gratuitous ARP Serwer DHCP DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay DHCP L2 Relay
Laenge - 0
Link - https://www.tp-link.com/uk/business-networking/smart-switch/tl-sl2428p/#overview
Link aggregation Network - Yes
LongDesc - TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
LongProductName - 24× 10/100 Mbps RJ45, 2× 10/100/1000Mbps RJ45, 2× Gigabit Combo RJ45/SFP, 12.8 Gbps, 8K MAC, 9 KB Jumbo, 440×180×44
LongSummaryDescription - TP-Link Omada SL2428P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
MAC address table Data transmission - 8000 entries
MAC address table size - 8000
Management, monitoring, configuration - Interfejs graficzny GUI Interfejs linii poleceń CLI SNMP v1/v2c/v3 - Trap/Inform - RMON (grupy 1, 2, 3, 9) Szablon SDM Klient DHCP/BOOTP LLDP/LLDP-MED 802.1ab Automatyczna instalacja DHCP Dual Image, Dual Configuration Monitorowanie zużycia procesora Diagnostyka kabli EEE Odzyskiwanie haseł SNTP Logi systemu
Management features - ARP inspection - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Management features > Switch type - Managed L2
Management protocols Protocols - SNMP v1/v2c/v3, RMON, SNTP, TFTP
Manufacturer - TP-Link
Model name - SL2428P
MPN - SL2428P
Multicast features - Multicast support - Yes
Multicast support Multicast features - Yes
Name - 24+4P TP-LINK SL2428P M RM POE+
name - SL2428P Switch Smart 24PoE+ 2GE 2SFP
Name - TP-Link SL2428P
Name - TP-LINK | Switch Web managed | TL-SL2428P | Managed L2 | Rackmountable | 10/100 Mbps (RJ-45) ports quantity 24 | Gigabit Ethernet (copper) ports quantity 4 | Power supply type Single
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Broadcast storm control - Yes
Network - Cable types supported - Cat5, Cat5e
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Flow control support - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Network - Number of VLANs - 512
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Networking standards Network - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Number of 10/100 Mbps ports - 24
Number of COMBO ports - 2
Number of fans Design - 2 fan(s)
Number of PoE ports (PoE & PoE+) - 24
Number of queues Data transmission - 4
Number of SFP ports - 2
Number of VLANs Network - 512
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Heat dissipation - 995.09 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Certyfikaty: CE, FCC, RoHS
Other features > Power supply type - Single
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 530 mm
Package features > Gross depth master carton - 550 mm
Package features > Gross height (mm) - 83 mm
Package features > Gross height master carton - 265 mm
Package features > Gross width (mm) - 252 mm
Package features > Gross width master carton - 520 mm
Package features > Net weight master carton - 18.33 kg
Package features > Packing quantity - 6 pc(s)
Package features > Palette Qty - 132 pc(s)
Package features > Paper/Pasteboard - 640.00 g
Package features > Plastic (No PET) - 160.00 g
Package features > Tare weight (kg) - 0.80 kg
Package features > Tare weight master carton - 1.288 kg
Package features > Volume (m3) - 0.01108548 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Packaging content - Rack mount kit - Yes
Packet buffer memory Data transmission - 4.1 MB
Performance - Compatible operating systems - Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Performance - Firmware upgradeable - Yes
Port mirroring Network - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Combo SFP ports quantity - 2
Ports & interfaces - Fast Ethernet (copper) ports quantity - 24
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 4
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 24
Ports & interfaces > Combo SFP ports quantity - 2
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 4
Ports & interfaces > POE - PoE+ 802.3at/af
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 291.6 W
Power - Power source - AC
Power consumption - 18.8 W
Power consumption (max) Power - 291.6 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 24
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 250 W
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power over Ethernet plus (PoE+) ports quantity Power over Ethernet (PoE) - 24
Power source Power - AC
Power supply -
Power supply - Internal
Producent: Nazwa producenta / importera - TP-Link
TP-Link Polska sp. z o.o.
Ożarowska 40/42
05-850 Duchnice

producer - TP-LINK
Producer - TP-Link
ProducerCode - SL2428P
Producer product family - Switch Web managed
Producer product name - TL-SL2428P
Product colour Design - Black
ProductName - SL2428P
Protocols - Management protocols - SNMP v1/v2c/v3, RMON, SNTP, TFTP
QoS - Obsługa priorytetowania 802.1p CoS/DSCP 8 kolejek priorytetowania Tryb harmonogramu priorytetowania: - SP (Strict Priority) - WRR (Weighted Round Robin) Konfiguracja wagi kolejek Kontrola przepustowości - Ograniczanie prędkości transferu w oparciu o port/przepływ danych Płynniejsze działanie Działania dla przepływów - Mirror (do obsługiwanego interfejsu) - Redirect (do obsługiwanego interfejsu) - Limit prędkości - QoS Remark Storm Control - Wiele trybów kontroli (kb/s/wskaźnik/p/s) - Kontrola transmisji Broadcast/Multicast/Unknown-Unicast
Quality of Service (QoS) support Management features - Yes
Quick start guide Packaging content - Yes
Rack mounting Design - Yes
Rack mount kit Packaging content - Yes
Rate limiting Network - Yes
Security - Wiązanie adresów IP, MAC i portów - DHCP Snooping - Inspekcja ARP - Ochrona źródłowego adresu IPv4 Wiązanie adresów IPv6, MAC i portów - DHCPv6 Snooping - Wykrywanie ND - Ochrona źródłowego adresu IPv6 Ochrona przed atakami DoS Ochrona portów poprzez ich statyczną/dynamiczną konfigurację - Do 64 adresów MAC na port Storm Control Broadcast/Multicast/Unicast - tryb kontroli (kb/s/wskaźnik/p/s) Kontrola dostępu w oparciu o IP/port/MAC Uwierzytelnianie 802.1X - Uwierzytelnianie w oparciu o port - Uwierzytelnianie w oparciu o adres MAC - Przydzielanie VLAN - MAB - Sieć VLAN dla gości - Uwierzytelnianie i autoryzowanie poprzez Radius AAA (w tym TACACS+) Izolacja portów Bezpieczne zarządzanie webowe poprzez HTTPS z szyfrowaniem SSLv3/TLS 1.2 Bezpieczne zarządzanie CLI z szyfrowaniem SSHv1/SSHv2
Security - Access Control List (ACL) - Yes
Security - IGMP snooping - Yes
Security - Security algorithms - SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
Security - SSH/SSL support - Yes
Security algorithms Security - SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
ShortDescription -
ShortSummaryDescription - TP-Link Omada SL2428P, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting, 1U
Spanning tree protocol Network - Yes
SSH/SSL support Security - Yes
Stackability - No
Stck_Kart - 9998
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Storno - Y
Summary - TP-Link Omada SL2428P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Supported protocols and standards - IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Support for Jumbo frames - Yes
Switch class - SMART
Switching capacity Data transmission - 12.8 Gbit/s
Switch layer Management features - L2
Switch type Management features - Managed
System event log Management features - Yes
Technical details > Gross weight - 3.055 kg
Technical details > Net weight - 2.255 kg
Technical details > Producer - TP-LINK
Throughput - 12.8 GB/s
Throughput Data transmission - 9.5 Mpps
Title - TP-Link Omada SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Total Power over Ethernet (PoE) budget Power over Ethernet (PoE) - 250 W
Unit Box Height - 0.08
Unit Box Length - 0.535
Unit Box Width - 0.252
Unit Calculated Volume - 0.01079 cubm
Unit Calculated Weight - 3.2 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/en/business-networking/omada-switch-poe/sl2428p/#overview
Vendor Homepage - https://www.tp-link.com/en/business-networking/omada-switch-poe/sl2428p/#overview
vendpn - SL2428P
VLAN - Grupy VLAN - Maks. 4K grup VLAN Tagowanie 802.1Q VLAN Adres MAC VLAN: 12 wpisów Protokół VLAN Prywatna sieć VLAN GVRP VLAN VPN (QinQ) - QinQ oparty na portach - Selective QinQ Głosowa sieć VLAN
VLAN support Network - Yes
Warranty - 24 months
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo -
Web-based management Management features - Yes
Weight - 3.188
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
Width Weight & dimensions - 440 mm
