Brand - TP-Link
BrandPartCode - SX3032F
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Data transmission - Forwarding rate - 240 Mpps
Data transmission - Jumbo frames - 9
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 32000 entries
Data transmission - Number of IP interfaces - 128
Data transmission - Number of queues - 8
Data transmission - Number of static routes - 128
Data transmission - Packet buffer memory - 24 MB
Data transmission - Static route - Yes
Data transmission - Switching capacity - 640 Gbit/s
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Redundant fans support - Yes
EAN - 4895252504477
GTIN - 4895252504477
GTIN - 4895252504484

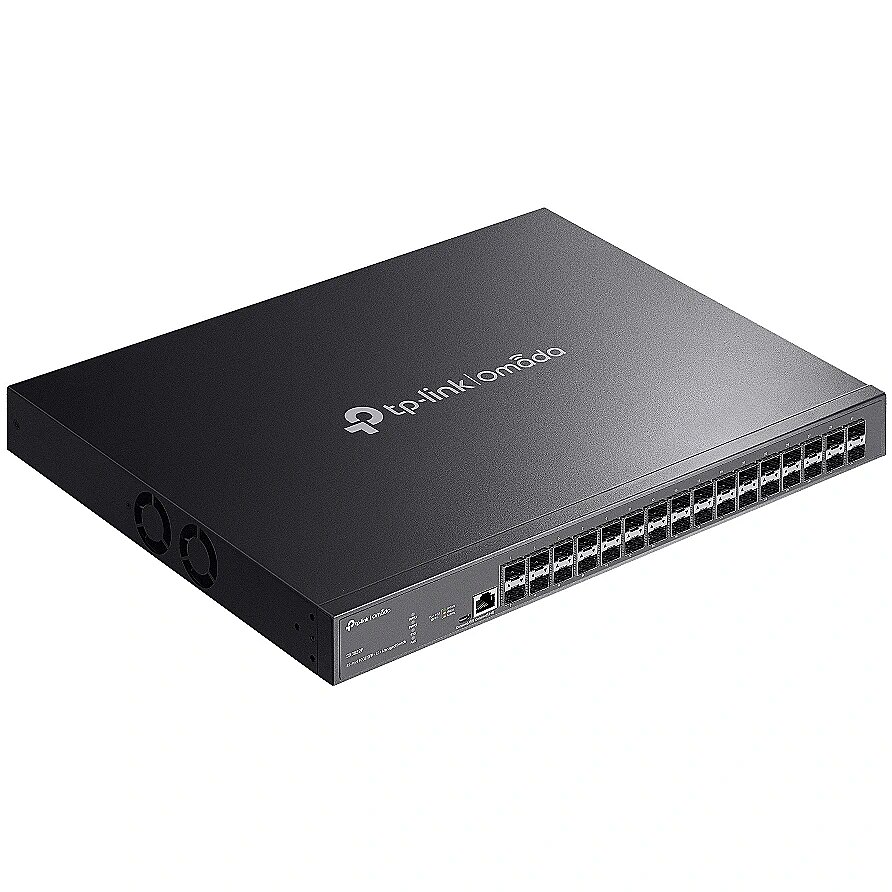

LongDesc - Omada 32-Port 10GE SFP+ L2+ Managed SwitchEasily Build a Whole 10G Multi-gigabit NetworkSoftware Defined Networking (SDN) with Cloud AccessRemotely manage your access points, switches, and gateways across multiple sites all from a single interface.
LongProductName - L2+, 32× 10-Gbit/s-SFP+, 640 Gbit/s, 32 K MAC, 9 KB Jumbo, 440 x 330 x 44 mm
LongSummaryDescription - TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 1, Installed SFP+ modules quantity: 32, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x. Rack mounting
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - MIB support - • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2+
Management features - Switch type - Managed
Manufacturer - TP-Link
MPN - SX3032F(UN)
Multicast features - Multicast Listener Discovery (MLD) snooping - Yes
Multicast features - Multicast support - Yes
Multicast features - Number of multicast groups filtered - 4000
Name - TP-Link Omada Switch 16x GE SX3032F
Network - Broadcast storm control - Yes
Network - Flow control support - Yes
Network - IPv4 routes - 48
Network - IPv6 routes - 48
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x
Network - Number of VLANs - 30
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN
Network - VLAN support - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - 40 - 70 °C
Packaging content - Cables included - Power
Packaging content - Quick start guide - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 1
Ports & interfaces - Console port - RJ-45/Micro-USB
Ports & interfaces - Installed SFP+ modules quantity - 32
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 49.4 W
Power - Power source - AC
Power - Power supply included - Yes
ProductName - Omada 32-Port 10GE SFP+ L2+ Managed Switch
Protocols - GARP VLAN Registration Protocol (GVRP) - Yes
Protocols - IP Source Guard (IPSG) - Yes
Protocols - IPv4 & IPv6 features - Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP
Security - Access Control List (ACL) - Yes
Security - Authentication - MAC-based authentication, Port-based authentication
Security - Authentication type - AAA, TACACS+
Security - DHCP features - DHCP relay, DHCP server, DHCPv6 snooping
Security - IGMP snooping - Yes
Security - IP-MAC-Port binding - Yes
Security - Loop protection - Yes
Security - Password protection - Yes
Security - Queue scheduling algorithms - Priority queuing (PQ), SP, Weighted Round Robin (WRR)
Security - SSH/SSL support - Yes
Security - Static port security - Yes
ShortSummaryDescription - TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch, Managed, L2+, Rack mounting
Title - TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch
URL - https://www.tp-link.com/au/business-networking/omada-switch-easy-managed/es205g/
WarrantyInfo -
Weight & dimensions - Depth - 330 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
