Brand - TP-Link
BrandPartCode - SG6654X
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Data transmission - Forwarding rate - 160.7 Mpps
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 32000 entries
Data transmission - Packet buffer memory - 3 MB
Data transmission - Static route - Yes
Data transmission - Switching capacity - 216 Gbit/s
Design - Form factor - 1U
Design - LED indicators - Yes

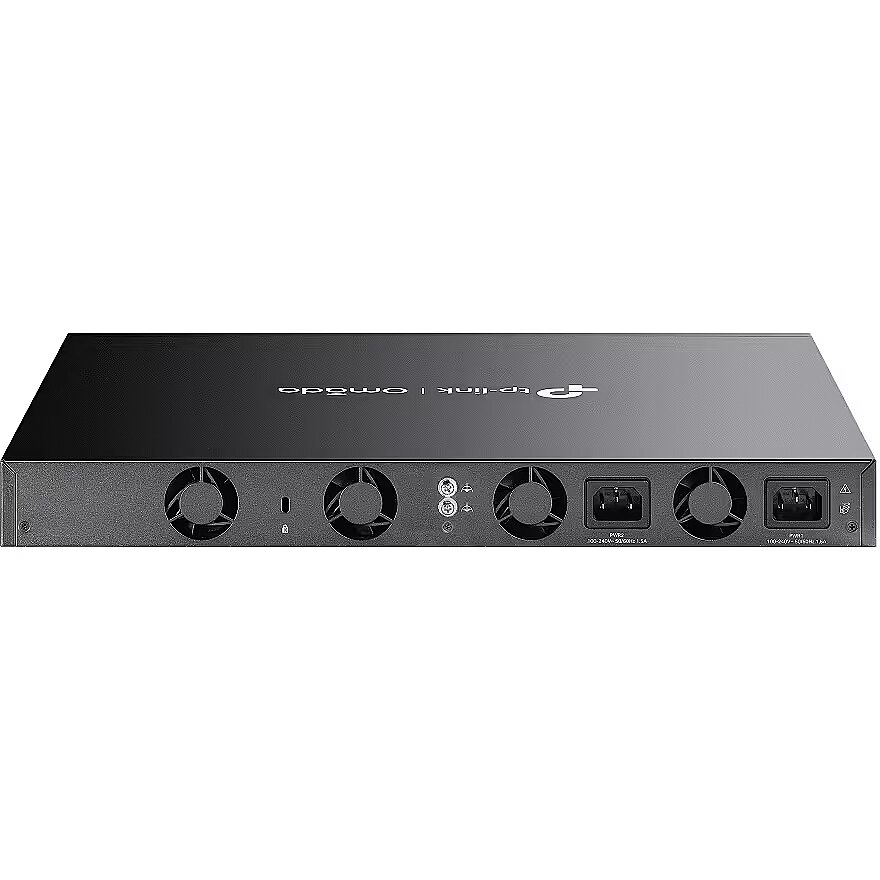

Design - Number of fans - 4 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Stackable - Yes
EAN - 4895252501452
GTIN - 0840030705977
GTIN - 840030705977
GTIN - 4895252501452
GTIN - 4895252501469

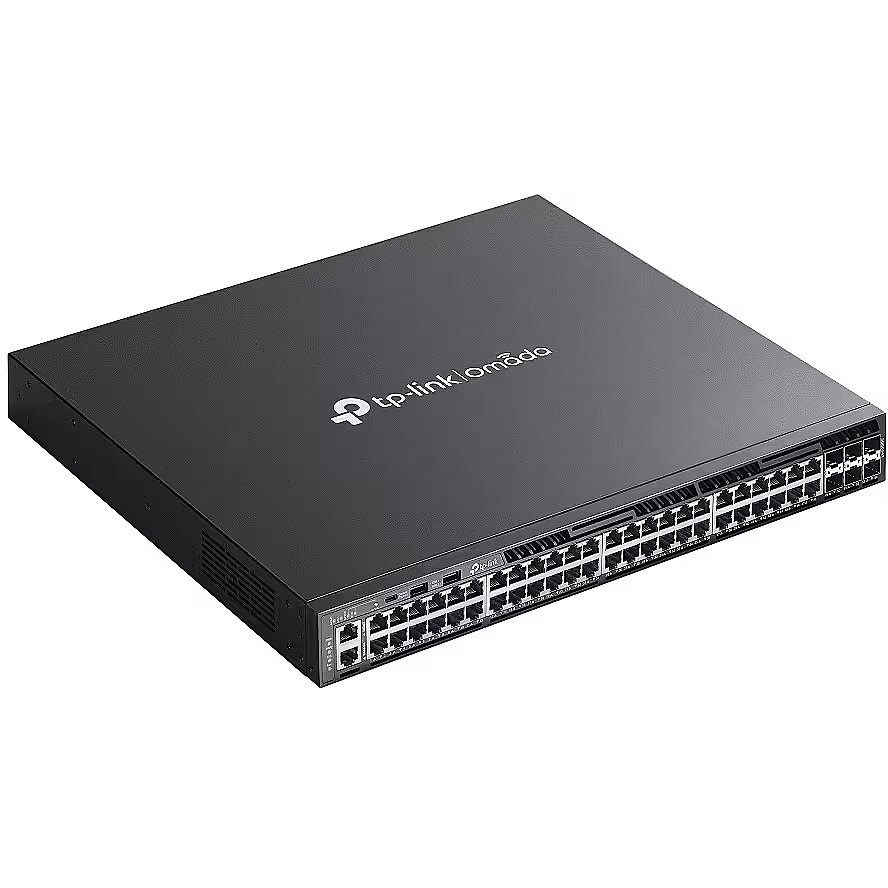

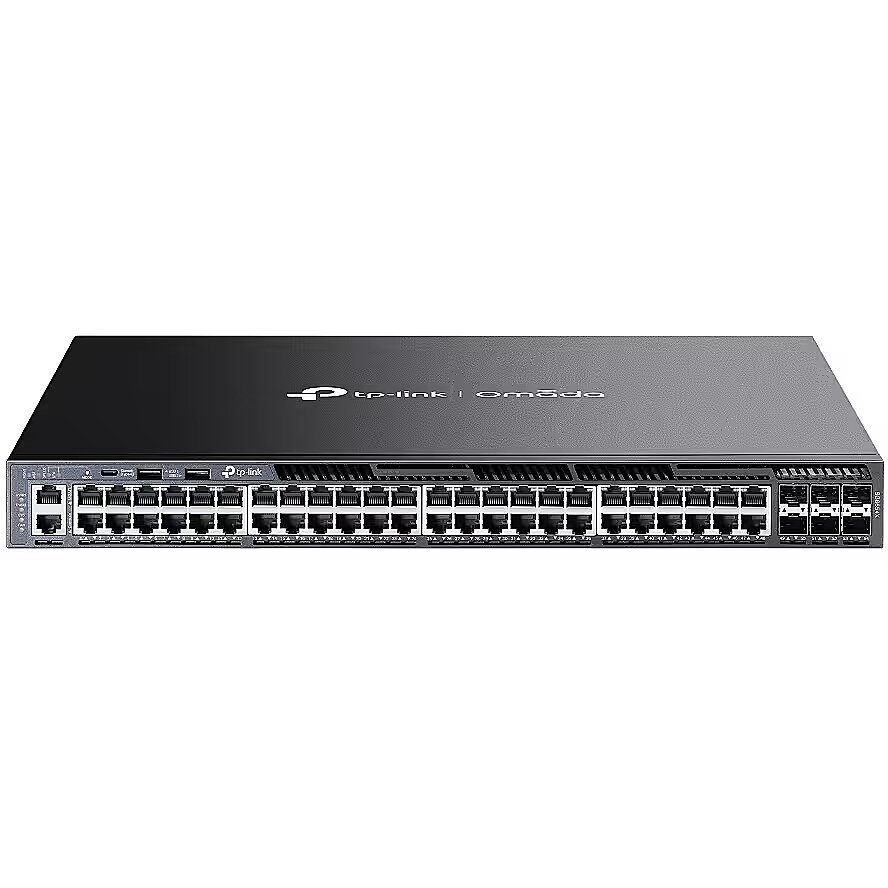

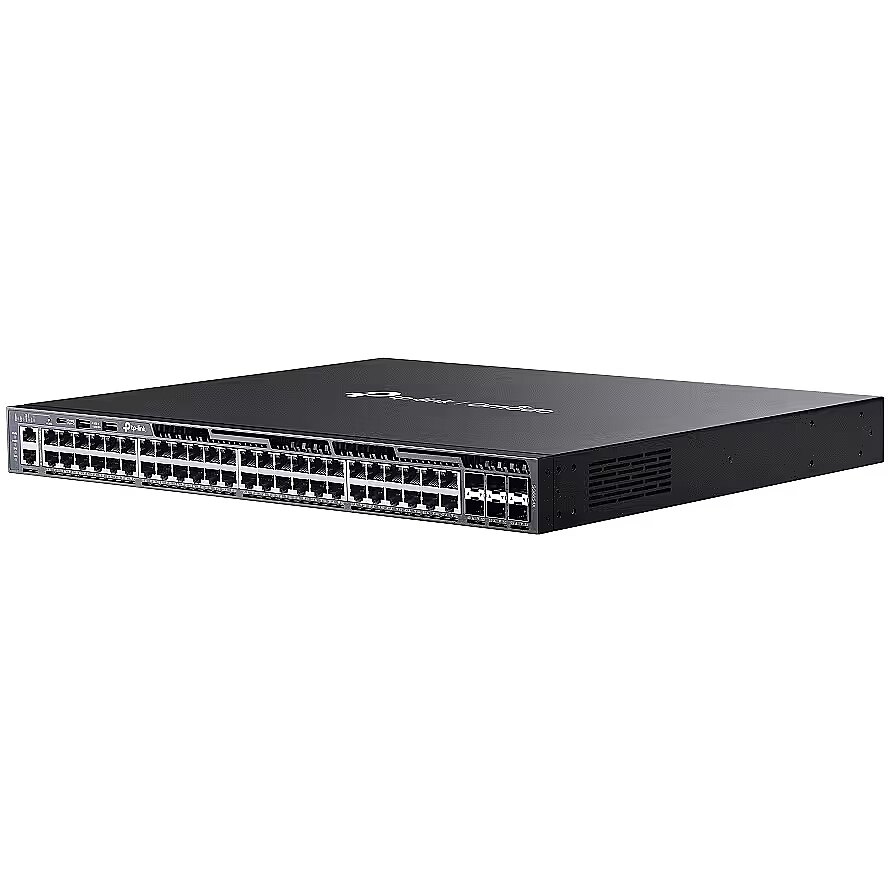

LongDesc - What This Product DoesOmada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.High-speed Connectivity and Powerful Stacking48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 864 Gbps switching capacity empower the networking structure with built-in redundancy and performance.Abundant Layer 3 CapabilitiesComes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.Highly AvailableInternal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.Enhanced Security FunctionsDefend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.Omada SDNIntegration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.Apart from the ability to be centrally managed via the web or the Omada app, SG6654X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
LongProductName - 48x 10/100/1000 Mbps RJ45, 6x 10G SFP+, 2x USB 2.0, 1x RJ45 Console, 1x USB Type-C Console, 1x RJ45 Management, 216 Gbps, 160.7 Mpps, 32K MAC, 9 KB Jumbo, 440 x 380 x 44 mm
LongSummaryDescription - TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 2, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x. Rack mounting, Form factor: 1U
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L3
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Manufacturer - TP-Link
MPN - SG6654X(UN)
Multicast features - Multicast support - Yes
Name - TP-Link Omada Switch 48x GE SG6654X Layer 3
Network - 10G support - No
Network - Broadcast storm control - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - IP routing - Yes
Network - Networking standards - IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
Network - Number of VLANs - 4000
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Network - VLAN support - Yes
Operational conditions - Heat dissipation - 135.81 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - Cables included - AC, LAN (RJ-45)
Packaging content - Manual - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 48
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Console port - RJ-45/USB Type-C
Ports & interfaces - SFP+ module slots quantity - 6
Ports & interfaces - USB 2.0 ports quantity - 2
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 39.8 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
ProductName - Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots
Security - Access Control List (ACL) - Yes
Security - Authentication - Auto VLAN, MAC-based authentication, Port-based authentication
Security - Authentication type - RADIUS
Security - DHCP features - DHCP relay, DHCP snooping, DHCPv6 snooping
Security - IGMP entries - 2048
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - SSH/SSL support - Yes
ShortSummaryDescription - TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Title - TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots
URL - https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sg6654x/#highlights
WarrantyInfo -
Weight & dimensions - Depth - 380 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
