10/100/1000/2500 Mbps ports - None
Accessories included - SX6632YF Power cord Quick installation guide Rack mounting kit Rubber feet
Application - Medium and large companies
Brand - TP-Link
BrandPartCode - SX6632YF
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Certificates -
Chassis type - Rack
Console port - Yes
Data transmission - Forwarding rate - 610.1 Mpps
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 128000 entries
Data transmission - Packet buffer memory - 8 MB
Data transmission - Switching capacity - 820 Gbit/s
Description - Omada Managed L3 Aggregation Switch, Stackable, 26 SFP+ 10G Slots, 6 SFP28 25G Slots 26 SFP+ 10G Slots, 6 SFP28 25G Slots 820 Gbps Switching Capacity Physical Stacking for Redundancy and Better Performance L3 Features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay Security Strategies: ACL, Port Security, DoS Protection, 802.1X Increased Availability with Dual Power Supplies*, VRRP, and ERPS Centralized Cloud Management via Omada SDN Controller Autonomous Management via Web Interface, CLI, SNMP, RMON *The switch ships with one PSM550-AC Power Supply Module. If you wish to utilize the second power supply slot, you must purchase an additional power supply separately.
Product Applications

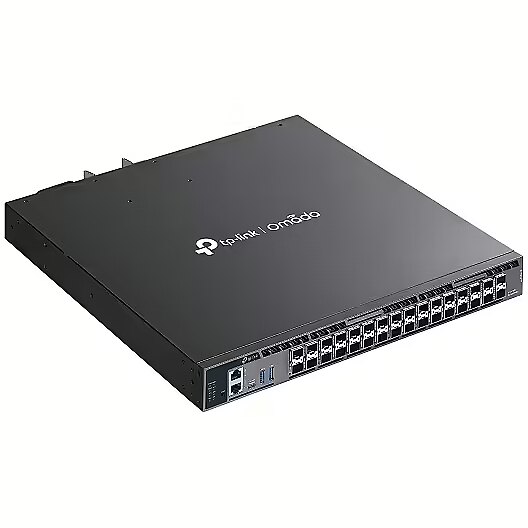

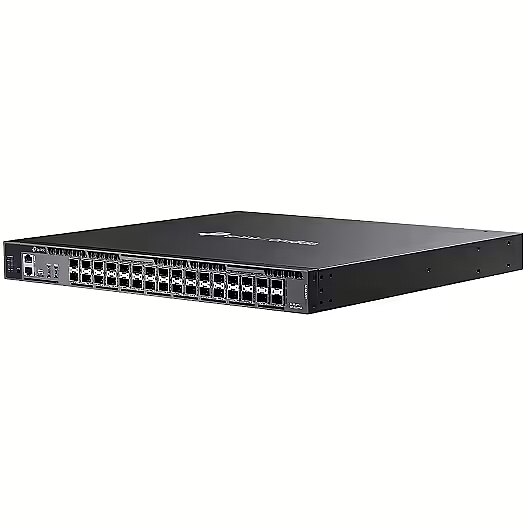

The Omada SX6632YF is a managed Layer 3 switch with fiber ports that offers L3 routing, high-speed 25 Gbps wire speed, stacking, and redundant power supply to meet the needs of the convergence layer. It is equipped with six 25 Gbps SFP28 slots, 26 10 Gbps SFP+ slots, and physical stacking capabilities. High-level security and advanced management features ensure this switch provides reliable performance for SMB, enterprise, and ISP applications.
High Speed and Efficient Stacking
Six 25 Gbps SFP28 slots and 26 10 Gbps SFP+ slots provide up to 820 Gbps of switching capacity per unit. Physical stacking of up to 8 units and a combined switching speed of up to 6560 Gbps strengthens the network fabric with its performance and built-in redundancy.
Extensive Layer 3 Capabilities
The switch features multiple Layer 3 routing protocols to support network scalability. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. The PIM-DM multicast routing protocol ensures efficient routing for multicast groups.
High Availability
Redundant power* and VRRP are ideal for a reliable network architecture. ERPS supports rapid protection and recovery in a ring topology.
Advanced Security Features
ACLs (IPv4 and IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell (SSH) protect the network against a wide range of threats.
Omada SDN
The Omada system offers centralized cloud management and numerous management features, such as Zero-Touch Provisioning (ZTP)*. The Omada software-defined network infrastructure (SDN) platform integrates network devices, including access points, switches, and gateways, providing completely centralized cloud management from a single interface.
In addition to centralized management via the Omada app, the SX6632YF switch can also be easily managed via a web configuration page or command line interface (CLI). Both methods protect traffic using SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON enable polling of the switch to obtain valuable information and send traps in the event of unexpected events.
Design - Number of fans - 4 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Stackable - Yes
Designation - CE+WEEE
dimension depth - 570 mm
dimension height - 180 mm
Dimensions - 440 × 380 × 44 mm
dimension weight - 10200 g
dimension width - 605 mm
ean - 4895252501315
EAN - 4895252501315
Environment requirements - Operating Temperature: -5°C to 50°C at an altitude of 300 meters -5°C to 45°C at an altitude of 2000 meters -5°C to 40°C at an altitude of 3000 meters Storage Temperature: -40°C to 70°C (-40°C to 158°C)
Humidity: 1090%, non-condensing
Storage Humidity: 590%, non-condensing
Fan - Yes
Forwarding rate - 610.1 Mpps
GTIN - 0840030705816
GTIN - 840030705816
GTIN - 4895252501315
GTIN - 4895252501322
guarantee - 60
guarantee_type - normal
Jumbo frame size - 9 KB
L2 features - Link Aggregation: Static Link Aggregation 802.3ad LACP Up to 8 ports per group Up to 120 LAG groups Spanning Tree Protocol: 802.1d STP 802.1w RSTP 802.1s MSTP Up to 64 MSTI instances (4 in Omada Controller mode) STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect Loopback Detection: Port-based VLAN-based Flow Control: 802.3x Supports 4093 IGMP groups ERPS: Up to 64 ERPS rings Mirroring: Port Mirroring CPU Mirroring One-to-One Many-to-One Tx/Rx/Both RSPAN
Addresses MAC: MAC Address Table Static MAC: Maximum 128 entries Dynamic MAC: Maximum 128K entries MAC Address Filtering: Maximum 128 entries Virtual MAC (available only in standalone mode)
L3 features - IP Interfaces: IPv4: maximum 256, IPv6: maximum 256 Static Routing: IPv4: maximum 2048, IPv6: maximum 1024 Host Route Table: maximum 15300 entries
RIP: Version v1/v2, maximum 102400
RIPng: maximum 51200
OSPF: Version v2/v3: v2: maximum 102400 v3: maximum 51200 VRRP: Version v2/v3, maximum 64 groups
ECMP: 256 entries, maximum 32 ECMP Nexthops per destination
Static ARP: 1024 static entries Dynamic ARP: 24576 dynamic entries Proxy ARP
DHCP Server: Maximum 64 pools IP Maximum 1000 manual binding entries DHCP Relay:
Interface Relay VLAN Relay
LongDesc - What This Product DoesThe Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.High-speed Connectivity and Powerful Stacking6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.Abundant Layer 3 CapabilitiesComes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.Highly AvailableInternal fixed redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.Enhanced Security FunctionsDefend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.Omada SDNIntegration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.Apart from the ability to be centrally managed via the web or the Omada app, SX6632YF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
LongProductName - Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots
LongSummaryDescription - TP-Link SX6632YF. Switch type: Managed, Switch layer: L2+/L3. Console port: RJ-45. MAC address table: 128000 entries, Switching capacity: 820 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah. Rack mounting
MAC address table size - 128000
Management, monitoring, configuration - Graphical User Interface (GUI) Command Line Interface (CLI) via console port, Telnet SNMP v1/v2c/v3 Trap/Inform RMON (Groups 1, 2, 3, 9) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Usage Monitoring Cable Diagnostics Password Recovery SNTP System Logs
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2+/L3
Management features - Switch type - Managed
Management features - Web-based management - Yes
Manufacturer - TP-Link
Maximum number of units per stack - 8
Mean time between failures (MTBF) - 0 s
MPN - SX6632YF(UN)
Multicast features - Multicast support - Yes
Name - TP-Link Omada Switch 26x GE SX6632Y Layer 3
name - TP-Link Switch SX6632YF
Network - 10G support - Yes
Network - IP routing - Yes
Network - Networking standards - IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah
Network - Port mirroring - Yes
Network - Virtual LAN features - MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE++ ports - 1
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of ports 1G/2.5G/5G/10G - 1
Number of ports 25Gb - None
Number of QSFP+ ports - None
Number of SFP+ ports - 26
Number of SFP56 ports - None
Number of SFP ports - None
Number of VLAN groups - 4000
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C

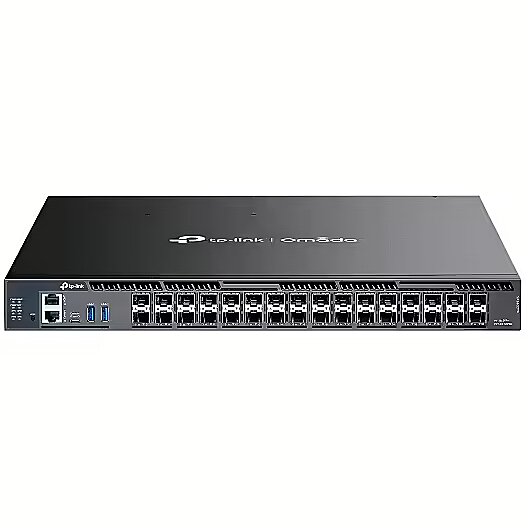

Other features - Ports: 6 SFP28 10/25G slots 26 SFP+ 1/10G slots 2 USB 3.0 ports 1 RJ45 console port 1 USB Type-C console port 1 RJ45 management port Number of fans: 4 hot-swappable fan headers (N+1 redundant) Heat output: 295.85 BTU/hour (110V/60Hz) Stacking:
Maximum number of devices in a stack: 8 Stacking port: 25G SFP28 Stack throughput: up to 300 Gb/s (6 ports stacked) System requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, 7, 8, 10, 11 MAC OS NetWare UNIX Linux
Other functions -
Packaging content - Cables included - Power
Packaging content - Quick start guide - Yes
Packaging content - Rack mount kit - Yes
Packet buffer - 8 MB
Performance - Minimum system requirements - Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - No
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Number of management ports - 1 pc(s)
Ports & interfaces - SFP+ module slots quantity - 26
Ports & interfaces - SFP module slots quantity - 6
Ports & interfaces - USB Type-A ports quantity - 2
Ports & interfaces - USB Type-C ports quantity - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 2
Power - Power source - AC
Power - Redundant power supply (RPS) support - Yes
Power consumption - 86.7 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No

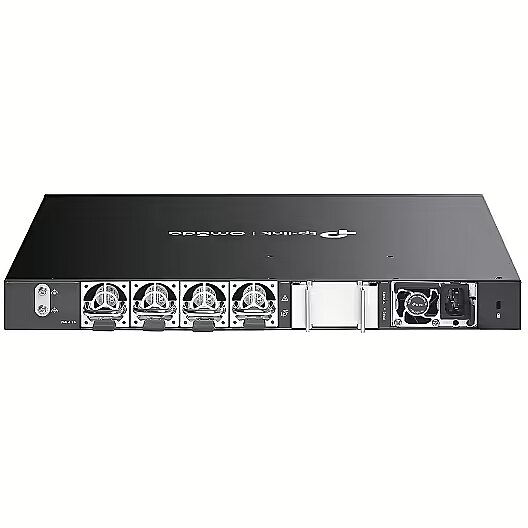

Power supply - Two hot-swappable power supply sockets (100-240 VAC, 50/60 Hz) The switch ships with one PSM550-AC power module. If you wish to use a second power supply socket, you must purchase another power supply separately.
Power supply - Internal
producer - TP-LINK
ProductName - SX6632YF
Protocols - Management protocols - SNMPv1/v2c/v3
QoS - Class of Service: 8 Priority Queues Port Priority IEEE 802.1p Priority DSCP Priority Minimum Queue Throughput Scheduling Mode (SP, WRR, SP+WRR) Bandwidth Control: Rate Limiting Storm Control User-Defined OUI
Smoother Performance
Flow Performance
QoS Remark (802.1P Remark, DSCP Remark)
Security - Port Isolation CPU Defense ARP Inspection (Dynamic ARP Inspection) DoS Attack Protection IP-MAC-Port Binding 1024 Entries DHCP Snooping ARP Inspection IPv4 Source Address Protection IPv6-MAC Port Binding 1024 Entries DHCPv6 Snooping ND Detection ND Snooping IPv6 Source Address Protection DHCP Filter Port Protection via Static/Dynamic Configuration Up to 64 MAC Addresses per Port Storm Control Broadcast/Multicast/Unknown Unicast Control Mode: Kbps/Rate 802.1X Port-Based Authentication MAC Address-Based Authentication VLAN Assignment MAB Guest VLAN Authentication and Authorization via Radius AAA (including TACACS+) Secure web management via HTTPS with SSLv3/TLS 1.2 encryption Secure CLI management with SSHv2 encryption IP/Port/MAC-based access control
Security - Access Control List (ACL) - Yes
Security - DHCP features - DHCP Option 82
Security - IGMP snooping - Yes
Security - MAC address filtering - Yes
Security - SSH/SSL support - Yes
Security - Static port security - Yes
SFP28 ports - 6
ShortSummaryDescription - TP-Link SX6632YF, Managed, L2+/L3, Rack mounting
Stackability - Yes
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Managed
Switch layer - L2
Switch layer - L2+
Switch layer - L3
Throughput - 820 GB/s
Title - TP-Link SX6632YF network switch Managed L2+/L3 Black
URL - https://www.tp-link.com/eg/business-networking/managed-switch/sx6632yf/
vendpn - SX6632YF
VLAN - VLAN Groups (802.1q VLAN) Max. 4K VLAN Groups 802.1Q VLAN Tagging MAC VLAN Entries: 200 Multicast VLAN Management VLAN VPN VLAN (QinQ): Max. 256 entries GVRP Protocol VLAN: Protocol Template 16, Protocol VLAN 12 VPN VLAN VLAN Mapping VLAN Replace Voice VLAN Private VLAN
WarrantyInfo -
Weight - 0 kg
Weight & dimensions - Depth - 380 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
