Data transmission - Forwarding rate - 29.8 Mpps
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 4 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 40 Gbit/s
Design - Number of fans - 1 fan(s)
Design - Rack mounting - Yes
Design - Wall mountable - Yes
dimensionalWeight - 2117
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 18
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - SFP module slots quantity - 2
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (typical) - 250 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 230 W
producerCode - TEG1120P-16-250W

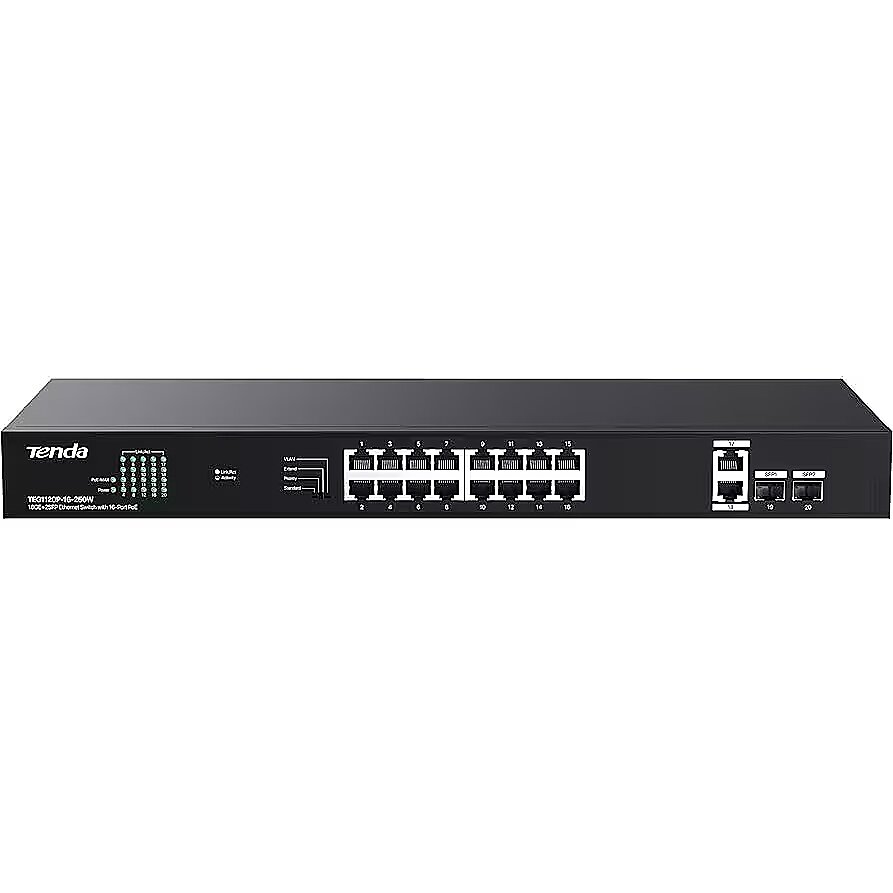

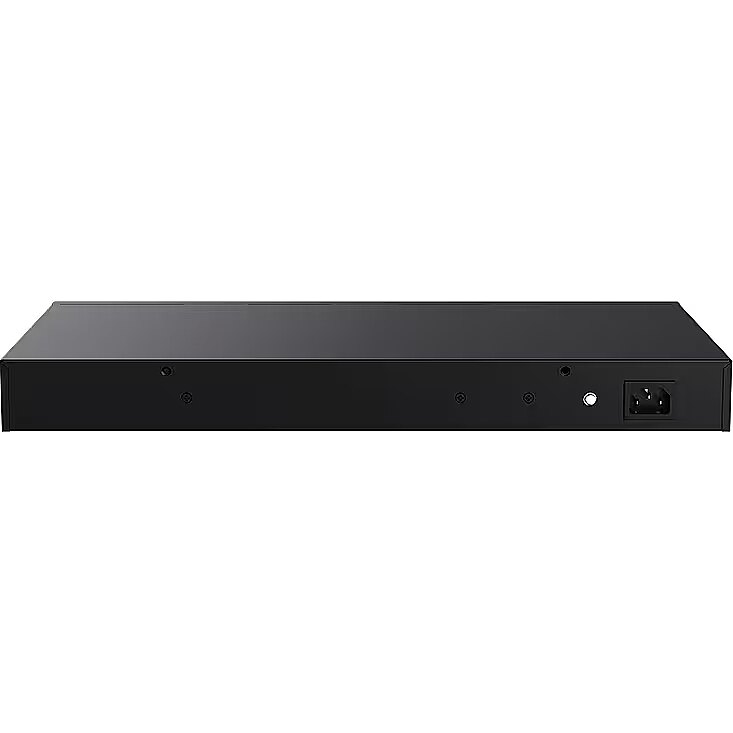

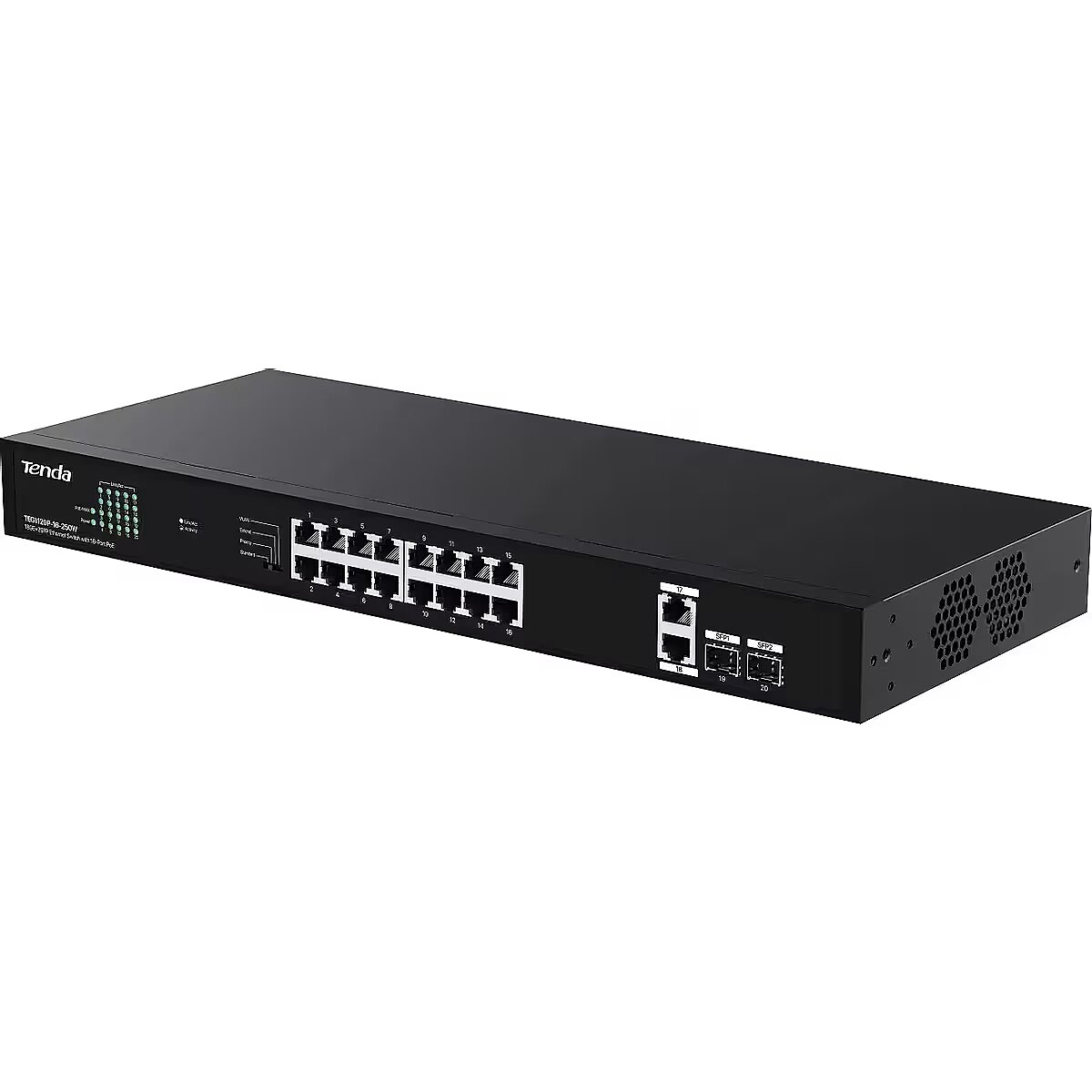

productName - Tenda TEG1120P-16-250W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
productSize - Normal
sizeX - 470
sizeY - 265
sizeZ - 85
Sustainability - Sustainability compliance - Yes
warrantyLength - 36
warrantyType - G
weight - 2750
Weight & dimensions - Depth - 178 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
