Category 1 - Netzwerk
Category 2 - Switching Hubs
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 20 Gbit/s
Design - Housing material - Metal
Design - LED indicators - Activity
Design - LED indicators - Link
Design - LED indicators - PoE
Design - LED indicators - Power
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Stackable - No
dimensionalWeight - 1419
EAN - 6971690790301
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Manufacturer - Cudy
MPN - GS2008PS2

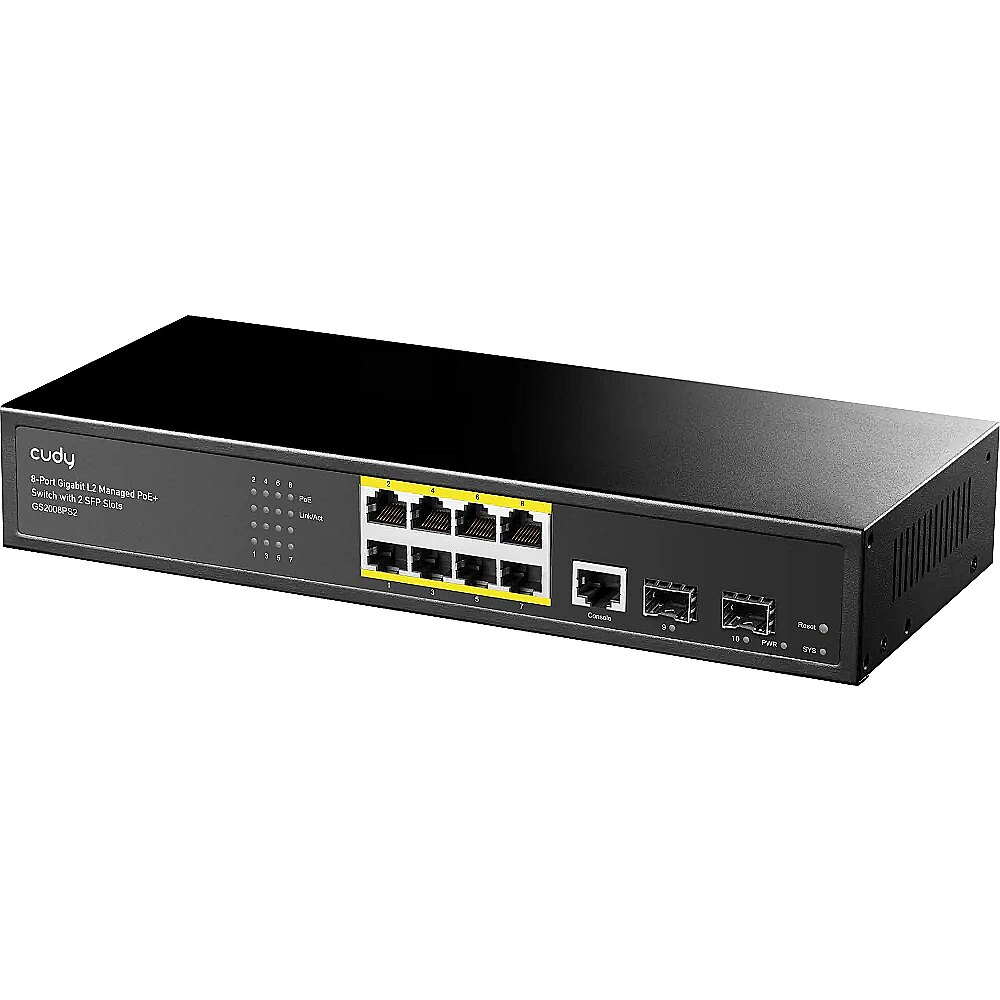

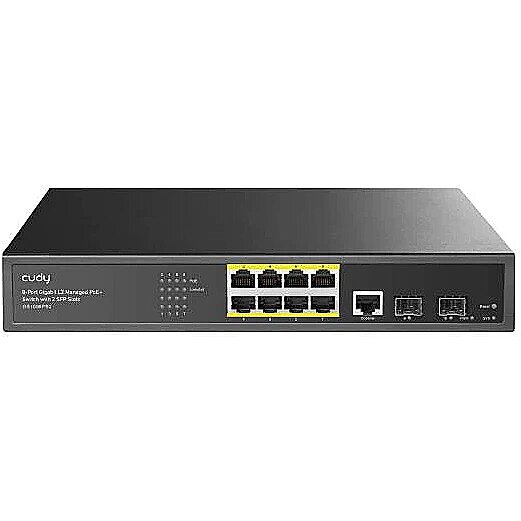

Name - 8+2P Cudy GS2008PS2 M PoE+ SFP
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.1D
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.1x
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3ad
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3az
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Networking standards - IEEE 802.3z
Network - VLAN support - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Packet transfer speed - 14.88
Performance - Mean time between failures (MTBF) - 50000 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Installed SFP modules quantity - 2

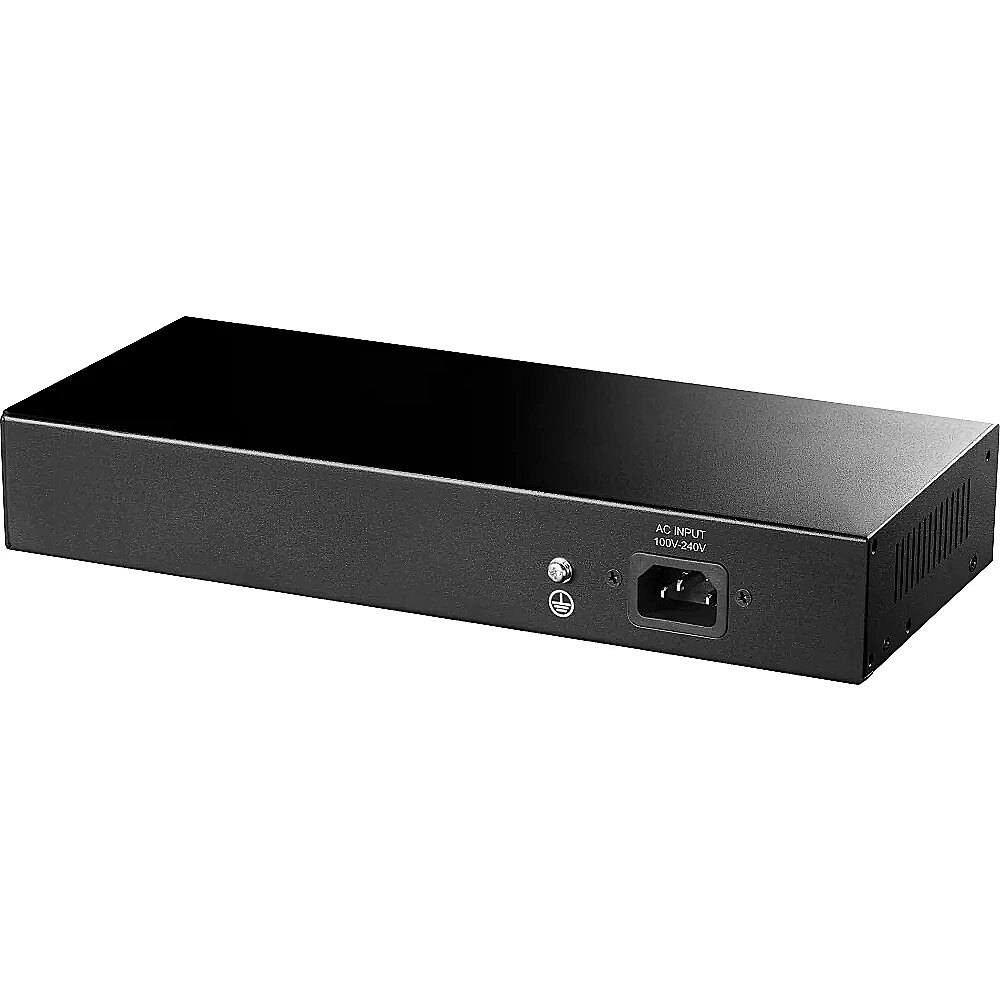

Ports & interfaces - Power connector - AC-in jack
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Output power - 32 W
Power - Output voltage - 55 V
Power - Power source - AC
Power - Power supply included - Yes
Power - Surge protection - Yes
Power - Surge protection voltage - 4 kV
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 32 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 120 W
producerCode - GS2008PS2
productName - Cudy GS2008PS2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
productSize - Normal
Security - Authentication type - AAA, IEEE 802.1x, RADIUS, TACACS+
Security - IGMP snooping - Yes
Security - MAC address filtering - Yes
Security - Security algorithms - SNMP
sizeX - 315
sizeY - 265
sizeZ - 85
warrantyLength - 24
warrantyType - G
Weight - 1.62
weight - 1610
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 45 mm
Weight & dimensions - Width - 280 mm
