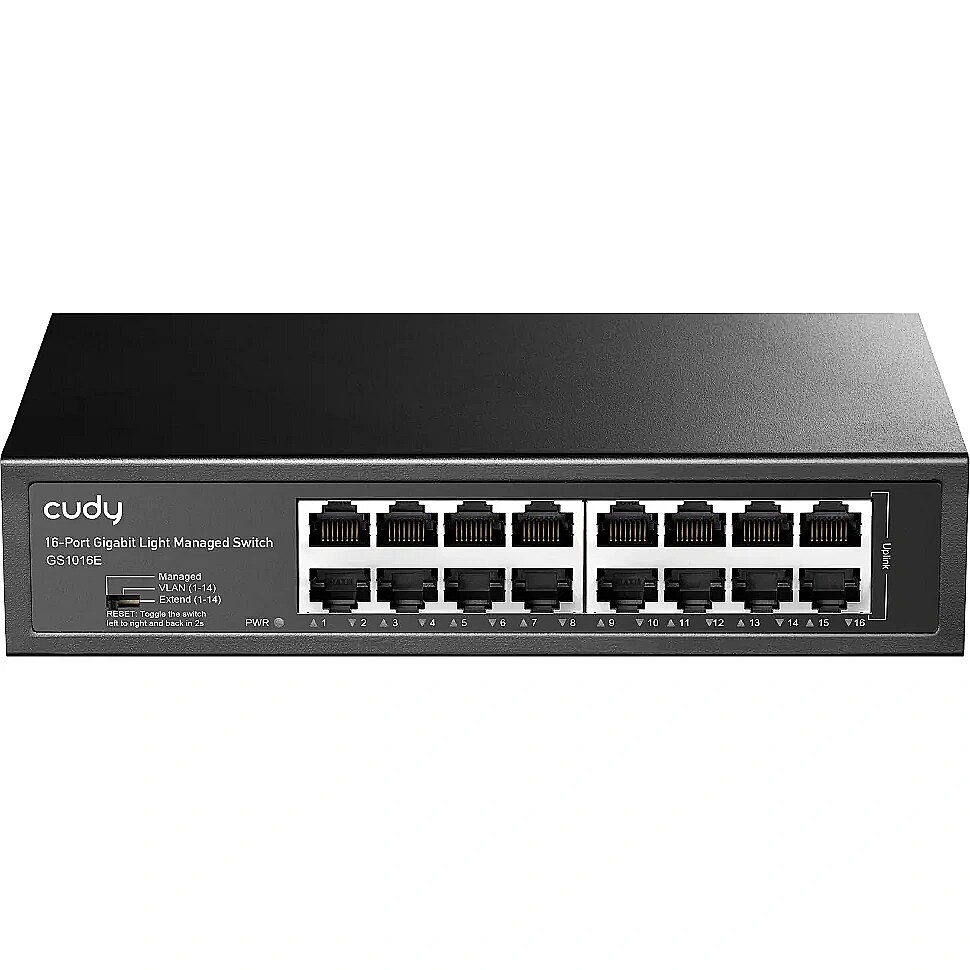

Cudy GS1016E, 16xGE

10/100/1000/2500 Mbps ports - None
Accessories included - GS1016E Power cord Installation guide Mounting kit
Application - Home and small office
Brand - Cudy
BrandPartCode - GS1016E 1.0
Category - Network Switches
Category1 - Network Wireless
Chassis type - Rack
Console port - No
Data Act - Link
Data transmission - Forwarding rate - 23.808 Mpps
Data transmission - Jumbo frames - 15000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8192 entries
Data transmission - Number of trunks - 4
Data transmission - Packet buffer memory - 0.5 MB
Data transmission - Switching capacity - 32 Gbit/s
Description - 16-Port Gigabit Light Managed Switch 802.1Q / MTU / Port-Based / Voice VLAN
802.1Q VLANs allow you to create secure and efficient network segments across multiple managed switches. MTU- and port-based VLANs provide a simpler way to configure local VLAN networks. QoS DSCP / 802.1p / Port-Based
DSCP/802.1p QoS identifies DSCP packets in traffic and prioritizes latency-sensitive data. Link Aggregation
Enables the creation of multiple LAG groups to increase backbone bandwidth. DHCP Snooping
Assign an authorized DHCP server to prevent network downtime caused by unauthorized DHCP servers connecting to the network. IGMP Snooping
Identifies multicast groups connected to the switch and forwards data only to the appropriate ports instead of broadcasting it. Loop Prevention
STP/RSTP improve network performance and automatically eliminate loops with other managed switches. A basic loop prevention function is activated when STP/RSTP is disabled. Basic VLAN Mode
Disables management features and prevents communication between downlink ports, enhancing network security. Extended Mode
Disables management features and extends transmission distance up to 250 meters, simplifying installation. Port speed in this mode is limited to 10 Mb/s.
Description1 - Cudy Switch GS1016E - 16 Ports - 16x GE (10/100/1000)
Design - Housing material - Metal
Design - LED indicators - Power, Speed, Link, Activity
Design - Product colour - Black
Design - Rack mounting - Yes
Designation - CE+WEEE
dimension depth - 80 mm
dimension height - 200 mm
Dimensions - 200 × 118 × 44 mm
dimension weight - 1120 g
dimension width - 230 mm
ean - 6971690794033
EAN - 6971690794033
Environment requirements - Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%, non-condensing Storage humidity: 5% to 90%, non-condensing
Forwarding rate - 23.808 MB/s
GTIN - 6971690794033
guarantee - 24
guarantee_type - normal
Jumbo frame size - 15 KB
L2 features - IGMP Snooping Loop Prevention DHCP Snooping STP/RSTP LLDP Config and Neighbors MTU VLAN Port-Based VLAN 802.1Q VLAN Voice VLAN DSCP QoS 802.1p QoS Port-Based QoS
Logistics data - Master (outer) case gross weight - 11.9 kg
Logistics data - Master (outer) case height - 221 mm
Logistics data - Master (outer) case length - 410 mm
Logistics data - Master (outer) case net weight - 11.2 kg
Logistics data - Master (outer) case width - 482 mm
Logistics data - Products per master (outer) case - 10 pc(s)
LongDesc - Secure and High-Performance Switching802.1Q/MTU/Port-Based/Voice VLAN802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.DSCP/802.1p/Port-Based QoSDSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.Essential Management FeaturesLink AggregationAllows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.DHCP SnoopingAssign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.IGMP SnoopingIdentifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.Loop PreventionAutomatically detects network loops and blocks affected ports. Supports STP/RSTP to ensure stable performance in large redundant networks.Web Configuration and SNMP V1/V2Management Made EasyMonitor port status, configure VLAN groups, LAG, DHCP, and more in the intuitive configuration page. The device also features SNMP to allow remote and centralized control.Managed/VLAN/Extend Preset ModesBasic VLAN ModeTurn off management features and prevent downlink ports to communicate with each other, improving network security.Extend ModeTurn off management features and prolong the transmission to a maximum of 250 meters and simplify installation. These ports' speed will be capped at 10 Mbps.
LongProductName - 16-Port Gigabit Easy-Managed Switch, GS1016E 1.0
LongSummaryDescription - Cudy 16-Port Gigabit Easy-Managed Switch, GS1016E 1.0. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1D, IEEE 802.11w, IEEE.... Power connector: AC-in jack. Rack mounting
MAC address table size - 8192
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Web-based management - Yes
Manufacturer - Cudy
ManufacturerID - GS1016E
Memory buffer - 4 MB
name - CUDY GS1016 16-Port Giggabit Light Mngd Switch
Network - 10G support - No
Network - Broadcast storm control - Yes
Network - Cable length detection - Yes
Network - Cable types supported - Cat3, Cat5, Cat5e, Cat6
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Flow control support - Yes
Network - Networking standards - IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1D, IEEE 802.11w, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab
Network - Number of VLANs - 4096
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Voice VLAN, Port-based VLAN, MTU VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 16
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of ports 25Gb - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
PackageHeight - 84
PackageLength - 231
PackageWeight - 1200
PackageWidth - 205
Packaging content - Cables included - AC
Packaging content - User guide - Yes
Packaging data - Package depth - 202 mm
Packaging data - Package height - 78 mm
Packaging data - Package weight - 1.12 kg
Packaging data - Package width - 230 mm
Performance - Firmware upgradeable - Yes
Performance - Flash memory - 8 MB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 16
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 16

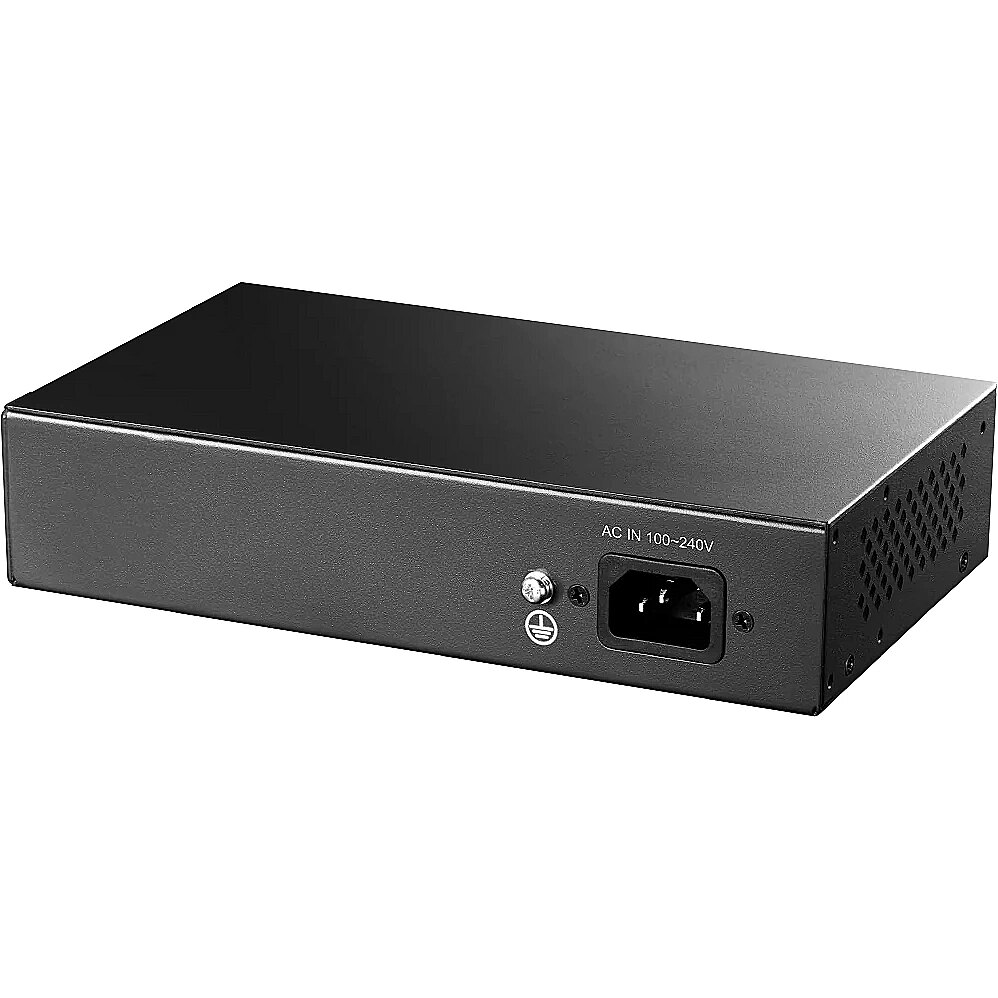

Ports & interfaces - Power connector - AC-in jack
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 90 - 264 V
Power - Power consumption (max) - 7.8 W
Power - Power saving mode (EEE) - Yes
Power - Power source - AC
Power - Surge protection - Yes
Power - Surge protection voltage - 8 kV
Power consumption - 7.8 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - Power supply methods: AC AC input: 90-260 V~, 50/60 Hz Maximum power consumption: 7.8 W Idle power consumption: 4.5 W
producer - Cudy
ProductName - 16-Port Gigabit Easy-Managed Switch, GS1016E 1.0
Security - DHCP features - DHCP snooping
Security - IGMP snooping - Yes
Security - Loop protection - Yes
ShortSummaryDescription - Cudy 16-Port Gigabit Easy-Managed Switch, GS1016E 1.0, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting
Supported protocols and standards - 802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3az Power Saving 802.1d: STP 802.1w: RSTP 802.1p: LAN Layer 2 QoS/CoS 802.1q: VLAN Bridge Operation 802.1ab: LLDP/LLDP-MED
Support for Jumbo frames - Yes
Switch class - Managed
Switch layer - L2
Throughput - 32 GB/s
Title - Cudy 16-Port Gigabit Easy-Managed Switch, GS1016E 1.0 L2 Gigabit Ethernet (10/100/1000) Black
URL - https://www.cudy.com/en-cis/products/gs1016e-1-0?_pos=1&_psq=GS1016E+1.0&_ss=e&_v=1.0
vendpn - GS1016E
WarrantyInfo -
WEEE - DE83654239
Weight - 625.5 g
Weight & dimensions - Depth - 118 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 625.5 g
Weight & dimensions - Width - 200 mm
