Data transmission - Forwarding rate - 14.88 Mpps
Data transmission - Jumbo frames - 9.6
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 0.5 MB
Data transmission - Static route - Yes
Data transmission - Switching capacity - 20 Gbit/s
Design - Form factor - 1U
Design - LED indicators - Activity
Design - LED indicators - Link
Design - LED indicators - Power
Design - LED indicators - System
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Stackable - Yes
dimensionalWeight - 492
Management features - Additional information - LED indicator; Power: Red, Ethernet: Yellow POE: Green
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2/L3
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Traffic classification - Yes
Management features - Web-based management - Yes
Multicast features - Multicast support - Yes
Network - Broadcast storm control - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat6
Network - Cable types supported - Cat6+
Network - Cable types supported - Cat6a
Network - Cable types supported - Cat6e
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - IP routing - Yes
Network - Link aggregation - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.1Qav
Network - Networking standards - IEEE 802.11j
Network - Networking standards - IEEE 802.11k
Network - Number of VLANs - 4096
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Voice VLAN
Network - VLAN support - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 85 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Optical fiber - Fiber type - Multi-mode
Packaging data - Package type - Box
Packaging data - Package weight - 660 g
Performance - Flash memory - 16 MB
Performance - Internal memory - 128 MB
Performance - Memory type - DDR-SDRAM
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 24
Ports & interfaces - Installed SFP modules quantity - 4
Power - AC input voltage - 100 - 240 V
Power - Power source - AC
Power - Power supply included - Yes
producerCode - IG1008S2P

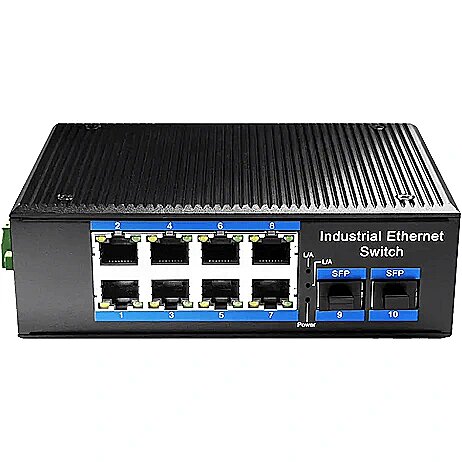

productName - Switch Cudy IG1008S2P network links 8-port Black.
productSize - Normal
Protocols - IPv4 & IPv6 features - IPv6 Telnet
Security - Authentication - Port-based authentication
Security - Authentication type - AAA, TACACS+
Security - DHCP features - DHCP Option 82
Security - DHCP features - DHCP server
Security - DHCP features - DHCP snooping
Security - IGMP snooping - Yes
Security - IP-MAC-Port binding - Yes
Security - SSH/SSL support - Yes
sizeX - 220
sizeY - 160
sizeZ - 70
warrantyLength - 24
warrantyType - G
weight - 705
Weight & dimensions - Depth - 103 mm
Weight & dimensions - Height - 44.2 mm
Weight & dimensions - Weight - 560 g
Weight & dimensions - Width - 147.7 mm
