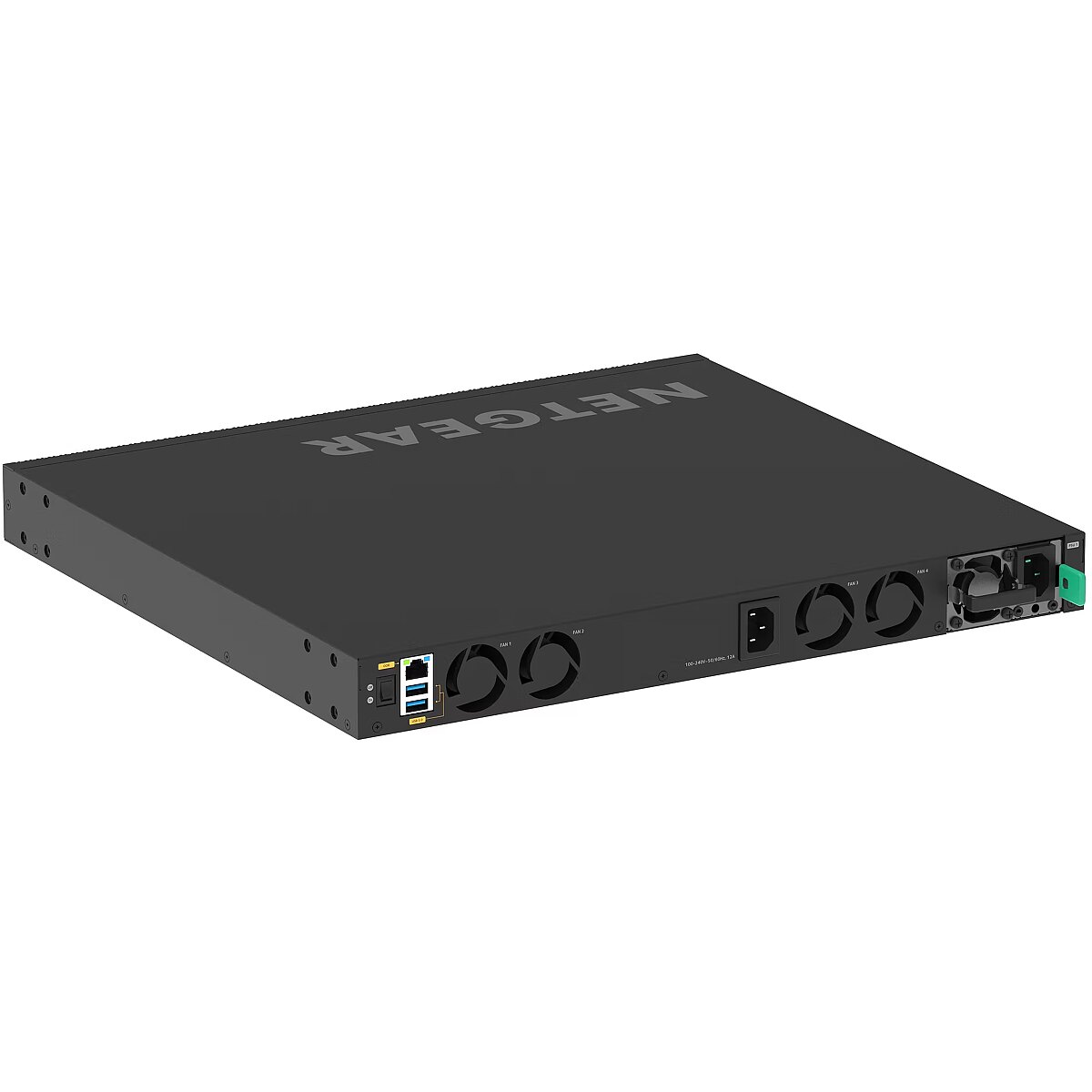

Netgear 28-PORT POE MANAGED SWITCH M4350-24X4V 24X2.5G/10G 4XSFP28

Accessories included - M4350-24X4V (XSM4328CV) Power cord USB Type-C Console Cable Standard set of brackets for rack mounting Set of longer brackets for flush mounting 4 x Rubber footrests for mounting on the table top Installation Guide
Application - Medium and large companies
ARTIKEL1 - 28-PORT POE MANAGED SWITCH
ARTIKEL2 - M4350-24X4V 24X2.5G/10G 4XSFP28
Brand - NETGEAR
BrandPartCode - XSM4328CV-100NES
Category - Network Switches
Certificates - CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, Class A, EN 61000-3-3:2013, EN 55024:2010 VCCI : VCCI-CISPR 32:2016, Class A RCM: AS/NZS CISPR 32:2013 Class A CCC: GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A) FCC: 47 CFR FCC Part 15, Class A, ANSI C63.4:2014 ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014 BSMI: CNS 13438 Class A CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 UL listed (UL 1950)/cUL IEC 950/EN 60950 CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 RCM (AS/NZS) 60950.1:2015 CCC (China Compulsory Certificate): GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A) BSMI: CNS 14336-1
Certificates - Compliance certificates - BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Chassis type - Rack
Console port - Yes
Data transmission - Jumbo frames - 12000
Data transmission - Jumbo frames support - Yes
Data transmission - Latency (1 Gbps) - 2.43 µs
Data transmission - Latency (10 Gbps) - 2.2 µs
Data transmission - MAC address table - 16000 entries
Data transmission - Packet buffer memory - 32 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 680 Gbit/s
Data transmission - Throughput - 505.92 Mpps
Description - M4350-24X4V 24x10G/Multi-Gig PoE+ (576W base, up to 720W) and 4xSFP28 25G (XSM4328CV)   24 10G / Multi-Gig PoE+ ports with 4 25GBASE-X SFP28 uplinks Internal 880 w power supply provides 576W PoE budget One slot for modular power supply (1+1 redundancy and/or EPS share) Any APS350Wv1, APS600Wv2, APS920Wv1 or APS2000Wv1 can be used PoE budget can reach 720W when redundant PoE budget remains 576W. Virtual chassis stacking ensures uninterrupted handover (NSF) and error-free failover Layer 3 feature set includes static, policy-based and dynamic routing NETGEAR IGMP Plus, AV user interface and enablement controller accelerate AV installation NETGEAR ProSAFE limited lifetime hardware warranty Lifetime next business day hardware replacement service.   Power and bandwidth Stackable platform from one Gigabit to 100 Gigabit, all within 15.75 inches (40 cm) deep. Groundbreaking AV GUI Simplified user interface makes it easy to assign configuration profiles to each port. Multicast in an instant NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.   Sleek, quiet design Lower fan noise and mounting lugs included for server rack mounting. Automatic configuration Auto-trunk and auto-LAG function automatically connects to other M4350 (and M4250) switches. Quick, easy configuration for AV professionals A simplified interface allows you to assign default AV settings or user-specified AV profiles to individual ports with just a few clicks. Focus on the event, not the fan noise Most models have a silent mode that significantly reduces fan noise. Designed to AV OVER IP right out of the box With NETGEAR's built-in IGMP Plus protocol, no configuration is required to ensure seamless video over IP. Enable multicasting right out of the box.
Design - Airflow direction - Front-to-back airflow
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Stackable - Yes
Designation - CE+WEEE
dimension depth - 620 mm
dimension height - 100 mm
Dimensions - 440 x 43.2 x 400 mm
dimension weight - 10000 g
dimension width - 580 mm
ean - 606449161427
EANCode - 0606449161427
Environment requirements - Ambient temperature during operation: 0° - 45°C Ambient humidity during operation: 90% relative humidity, non-condensing Storage temperature: - 20° - 70°C Storage humidity: 95% relative humidity, non-condensing
Fan - Yes
Forwarding mode - Store-and-forward
Forwarding rate - 505.92 Mpps
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0606449161427
GTIN - 606449161427
guarantee - 0
guarantee_type - perpetual
HERSTELLER - NETGEAR
HSTNUMMER - XSM4328CV-100NES
Jumbo frame size - 12 KB
L2 features - IEEE 802.1Q VLAN Tagging Auto-Trunk Protocol Based VLANs: IP subnet; ARP; IPX Subnet based VLANs MAC based VLANs Voice VLAN Private Edge VLAN Private VLAN IEEE 802.1x Guest VLAN RADIUS based VLAN assignment via .1x RADIUS based Filter ID assignment via .1x MAC-based .1x Unauthenticated VLAN Double VLAN Tagging Enabling dvlan-tunnel makes interface Global ethertype (TPID) Interface ethertype (TPID) Customer ID using PVID GARP with GVRP/GMRP Multiple Registration Protocol (MRP) Multicast VLAN Registration Protocol (MVRP) MVR (Multicast VLAN registration)
L3 features - L3 Services - Multicast Routing: IGMP Proxy MLD Proxy Any Source Multicast (ASM) Source Specific Multicast (SSM) Multicast streams routing between subnets, VLANs Multicast static routes (IPv4, IPv6) Neighbor discovery PIM-DM (Multicast Routing - dense mode) PIM-DM (IPv6) PIM-SM (Multicast Routing - sparse mode) PIM-SM (IPv6) PIM multi-hop RP support PIM Timer Accuracy PIM-SM Unhandled Events IPMC replication (hardware support) L3 Services - DHCP: DHCP IPv4 / DHCP IPv6 Client DHCP IPv4 / DHCP IPv6 Server (Stateless, Stateful) DHCP Snooping IPv4 / IPv6 BootP Relay IPv4 / IPv6 DHCP Relay IPv4 / IPv6 DHCP Relay Option 82 circuit-id and remote-id for VLANs Multiple Helper IPs Auto Install (DHCP options 66, 67, 150 and 55, 125) L3 Services - Routing: Static Routing / ECMP Static Routing IPv4/IPv6 Multiple next hops to a given destination Load sharing, Redundancy Default routes Static Reject routes Port Based Routing VLAN Routing 802.3ad (LAG) for router port VRRP IPv4 Pingable VRRP interface VRRP Route/Interface Tracking Loopback Interfaces Tunnel interfaces IPv4 / IPv6 Configured 6to4 tunnels Automatic 6to4 tunnels 6to4 Border Router RIP IPv4 RIPv1/RIPv2 Route Redistribution
LongDesc - POWER AND THROUGHPUTEdge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.Groundbreaking AV GUIA simplified user interface makes it easy to assign configuration profiles to each port.Multicast in an InstantNETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.Sleek, Quiet DesignLess fan noise, and mounting ears included for rack mounting.Automatic ConfigurationAuto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.FAST, EASY CONFIGURATION FOR AV PROSA streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.FOCUS ON THE EVENT NOT FAN NOISEMost models have quiet mode which greatly reduces fan noise.DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOXWith built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
LongProductName - 24 x 10G/Multi-Gig PoE+, 4 x 25G SFP28, 440 x 400 x 43.2 mm, 6.58 kg
LongSummaryDescription - NETGEAR M4350-24X4V. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 680 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
MAC address table size - 16000
Management, monitoring, configuration - Management ACL (MACAL), Max Rules: 64 Out of band Management Radius accounting TACACS+ Malicious Code Detection
Management features - ARP inspection - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L3
Management features - Switch type - Managed
Management features - Web-based management - Yes
Multicast features - Multicast Listener Discovery (MLD) snooping - Y
Multicast features - Multicast support - Yes
name - Switch XSM4328CV 24x10GE PoE+ 4xSFP28
Network - 6to4 tunnel - Yes
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - IPv4 routes - 512
Network - IPv6 routes - 256
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
Network - Number of VLANs - 4093
Network - Policy-based routing - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - MAC address-based VLAN, Private VLAN, Voice VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10Gb ports - 24
Number of PoE+ ports - 24
Number of VLAN groups - 4000
Operational conditions - Non-operating altitude - 0 - 3000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features - Base PoE budget: 576W Management ports: RJ-45 USB-C console port 2 x USB-A
Other features - Power supply - 880 W
Other functions -
Packaging content - Cables included - AC, USB Type-C
Packaging content - Quick start guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Included power plug types - EU, UK, NA
Packet buffer - 32 MB
Performance - Built-in processor - Yes
Performance - Flash memory - 512 MB
Performance - Internal memory - 2048 MB
Performance - Memory type - DDR4-SDRAM
Performance - Processor frequency - 1800 MHz
Performance - Processor model - ARM Cortex-A57
Performance - sFlow - Yes
Ports & interfaces - 10G Ethernet (copper) ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 10G Ethernet (100/1000/10000)
Ports & interfaces - Power connector - AC-in jack
Ports & interfaces - SFP28 ports quantity - 4
Power - Power consumption (max) - 750.1 W
Power - Power consumption (typical) - 119.4 W
Power - Power source - AC
Power - Power supply included - Yes
Power consumption - 880 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 24
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 720 W
Power supply -
Power supply - Internal
producer - Netgear
ProductName - M4350-24X4V
Protocols - GARP VLAN Registration Protocol (GVRP) - Yes
Protocols - Management protocols - SNMP V1, V2, V3
Protocols - Routing protocols - OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
QoS - Auto-VoIP
Access Lists: L2 MAC, L3 IP and L4 Port ACLs Ingress Egress Time-based 802.3ad (LAG) for ACL assignment Binding ACLs to VLANs ACL Logging Support for IPv6 fields DiffServ QoS: Edge Node applicability Interior Node applicability 802.3ad (LAG) for service interface Support for IPv6 fields Ingress/Egress EEE 802.1p COS: 802.3ad (LAG) for COS configuration WRED (Weighted Deficit Round Robin) Strict Priority queue technology Single Rate Policing: Committed Information Rate Committed Burst Size Excessive Burst Size DiffServ feature applied to class ma
Security - Successive Tiering (DOT1X; MAB; Captive Portal) DHCP Snooping Dynamic ARP Inspection IP Source Guard Network Storm Protection, DoS Broadcast, Unicast, Multicast DoS Protection Denial of Service Protection (control plane) Denial of Service Protection (data plane) DoS Attacks Protection CPU Rate Limiting ICMP throttling
Security - Access Control List (ACL) - Yes
Security - Access Control List (ACL) egress - 1023
Security - Access Control List (ACL) ingress - 511
Security - Authentication - Guest VLAN, MAC-based authentication
Security - Authentication type - RADIUS, TACACS+
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Security - DoS attack prevention - Yes
Security - IGMP proxy - Yes
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - MAC address filtering - Yes
Security - Password protection - Yes
Security - Queue scheduling algorithms - Strict Priority Queue (SPQ), Weighted random early detection (WRED)
Security - Root protection - Yes
Security - Static port security - Yes
SFP28 ports - 4
ShortSummaryDescription - NETGEAR M4350-24X4V, Managed, L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting, 1U
Stackability - Yes
Stck_Kart - 1
Stck_Pal - 7
Storno - Y
Supported protocols and standards -
Support for Jumbo frames - Yes
Sustainability - Sustainability compliance - Yes
Switch class - Managed
Switch layer - L3
Throughput - 680 Gb/s
Title - NETGEAR M4350-24X4V Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
URL - https://www.netgear.com/business/wired/switches/fully-managed/xsm4328cv/
vendpn - XSM4328CV-100NES
VLAN - Static Dynamic Voice MAC GVRP/GMRP Double VLAN mode Private VLANs
WarrantyInfo - Limited Lifetime
Weight - 6.58 kg
Weight & dimensions - Depth - 400 mm
Weight & dimensions - Height - 43.2 mm
Weight & dimensions - Weight - 6.58 kg
Weight & dimensions - Width - 440 mm
