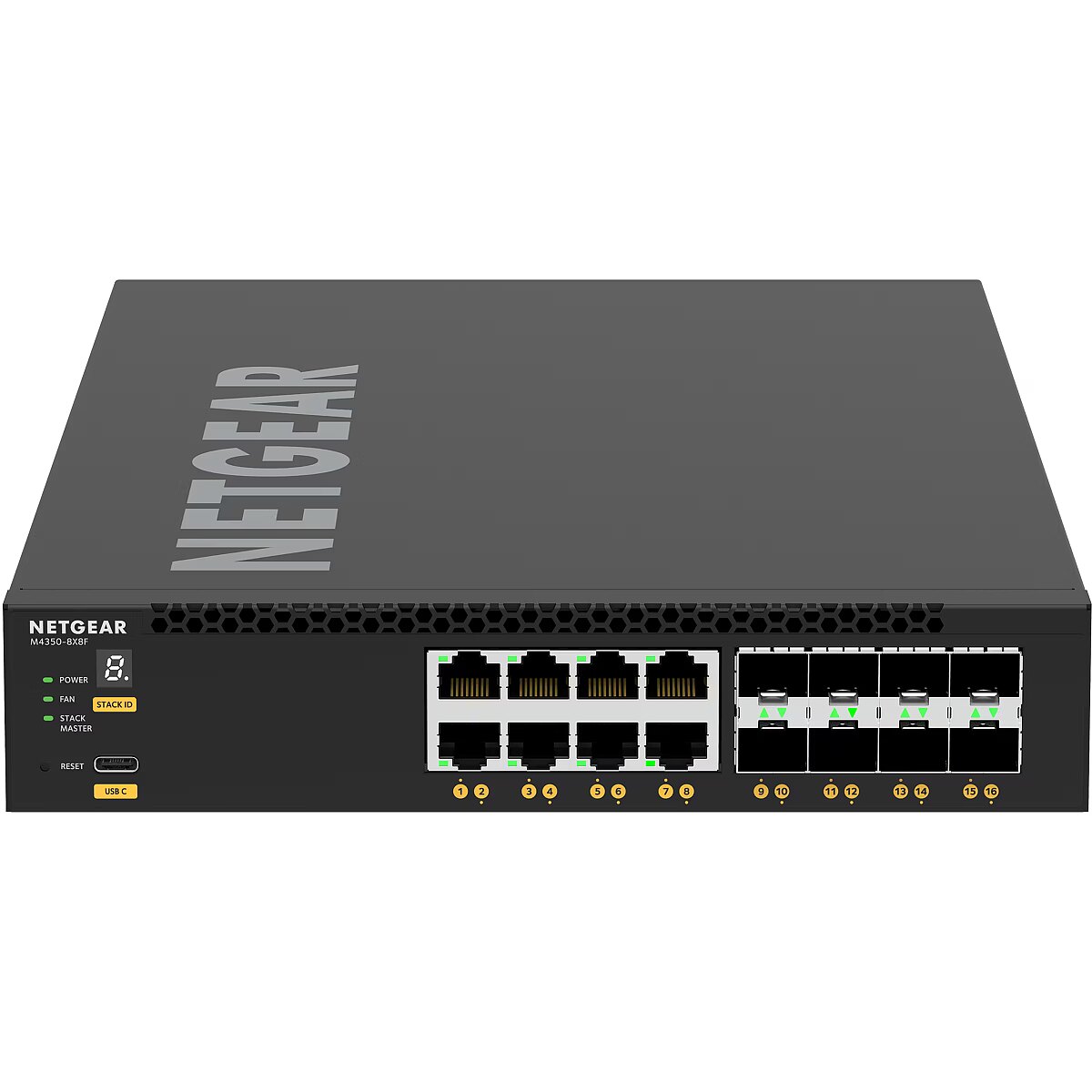

ARTIKEL1 - 16-PORT 10G MANAGED SWITCH
ARTIKEL2 - M4350-8X8F 8X10G 8XSFP+
Brand - NETGEAR
BrandPartCode - XSM4316-100NES
Breite - 0.34
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Certificates - Compliance certificates - BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Data transmission - Jumbo frames - 12000
Data transmission - Jumbo frames support - Yes
Data transmission - Latency (1 Gbps) - 2.28 µs
Data transmission - Latency (10 Gbps) - 2.39 µs
Data transmission - MAC address table - 16000 entries
Data transmission - Packet buffer memory - 32 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 320 Gbit/s
Data transmission - Throughput - 238.08 Mpps
Design - Airflow direction - Front-to-back airflow
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - Yes

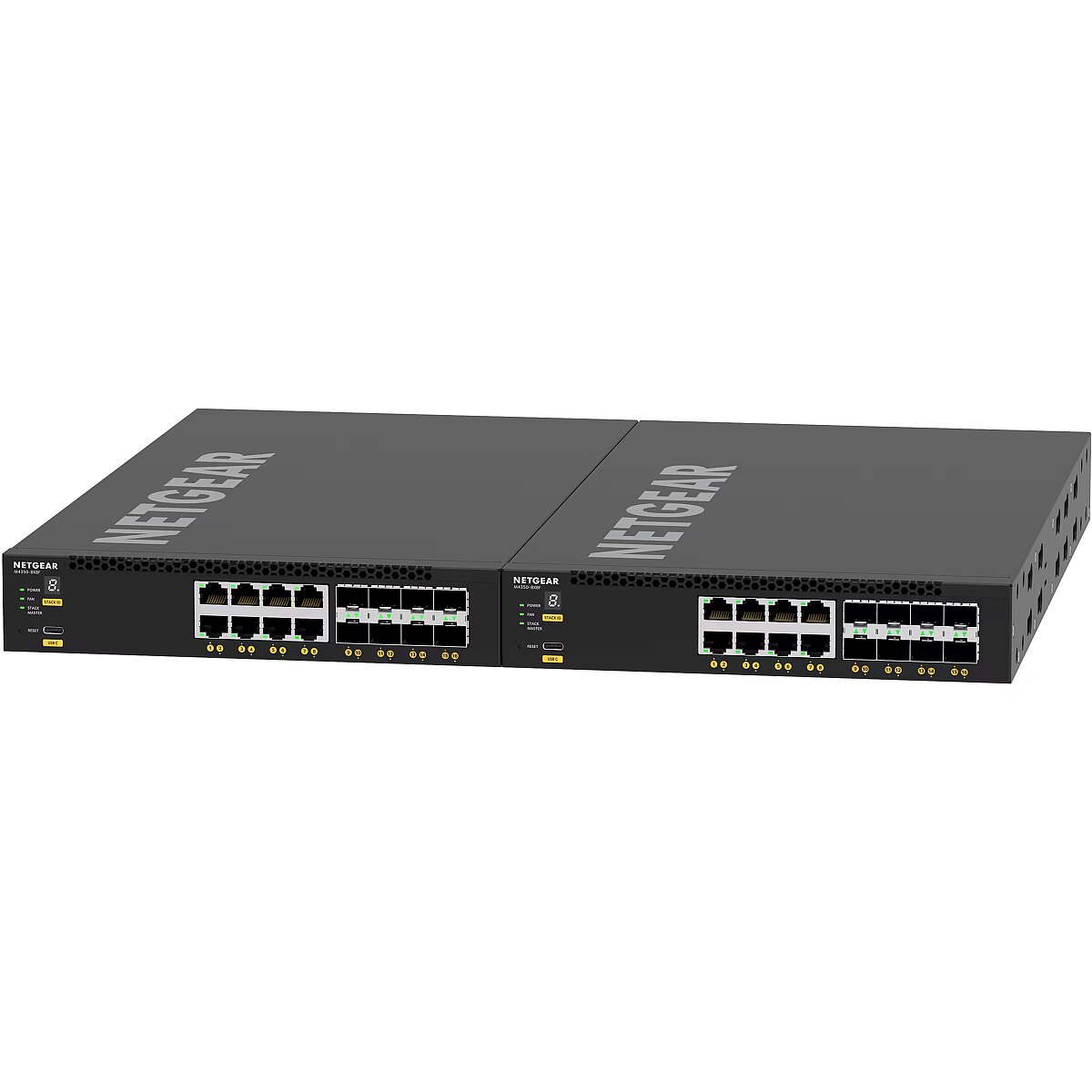

Design - Stackable - Yes
EAN - 0606449161472
EANCode - 0606449161472
Gewicht - 7.53
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 606449161472
GTIN - 0606449161472
HERSTELLER - NETGEAR
Hoehe - 0.15
HSTNUMMER - XSM4316-100NES
Laenge - 0.54
LongDesc - POWER AND THROUGHPUTEdge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.Groundbreaking AV GUIA simplified user interface makes it easy to assign configuration profiles to each port.Multicast in an InstantNETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.Sleek, Quiet DesignLess fan noise, and mounting ears included for rack mounting.Automatic ConfigurationAuto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.FAST, EASY CONFIGURATION FOR AV PROSA streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.FOCUS ON THE EVENT NOT FAN NOISEMost models have quiet mode which greatly reduces fan noise.DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOXWith built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
LongProductName - 8 x 10G/Multi-Gig, 8 x 10G SFP+, 220 x 400 x 43.2 mm, 4.05 kg
LongSummaryDescription - NETGEAR M4350-8X8F. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U
Management features - ARP inspection - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L3
Management features - Switch type - Managed
Management features - Web-based management - Yes
Manufacturer - NETGEAR
MPN - XSM4316-100NES
Multicast features - Multicast Listener Discovery (MLD) snooping - Y
Multicast features - Multicast support - Yes
Name - 16-PORT 10G MANAGED SWITCH
Network - 6to4 tunnel - Yes
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - IPv4 routes - 512
Network - IPv6 routes - 256
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
Network - Number of VLANs - 4093
Network - Policy-based routing - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - MAC address-based VLAN, Private VLAN, Voice VLAN
Network - VLAN support - Yes
Operational conditions - Non-operating altitude - 0 - 3000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features - Power supply - 240 W
Packaging content - Cables included - AC, USB Type-C
Packaging content - Quick start guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Included power plug types - EU, UK, NA
Performance - Built-in processor - Yes
Performance - Flash memory - 512 MB
Performance - Internal memory - 2048 MB
Performance - Memory type - DDR4-SDRAM
Performance - Processor frequency - 1800 MHz
Performance - Processor model - ARM Cortex-A57
Performance - sFlow - Yes

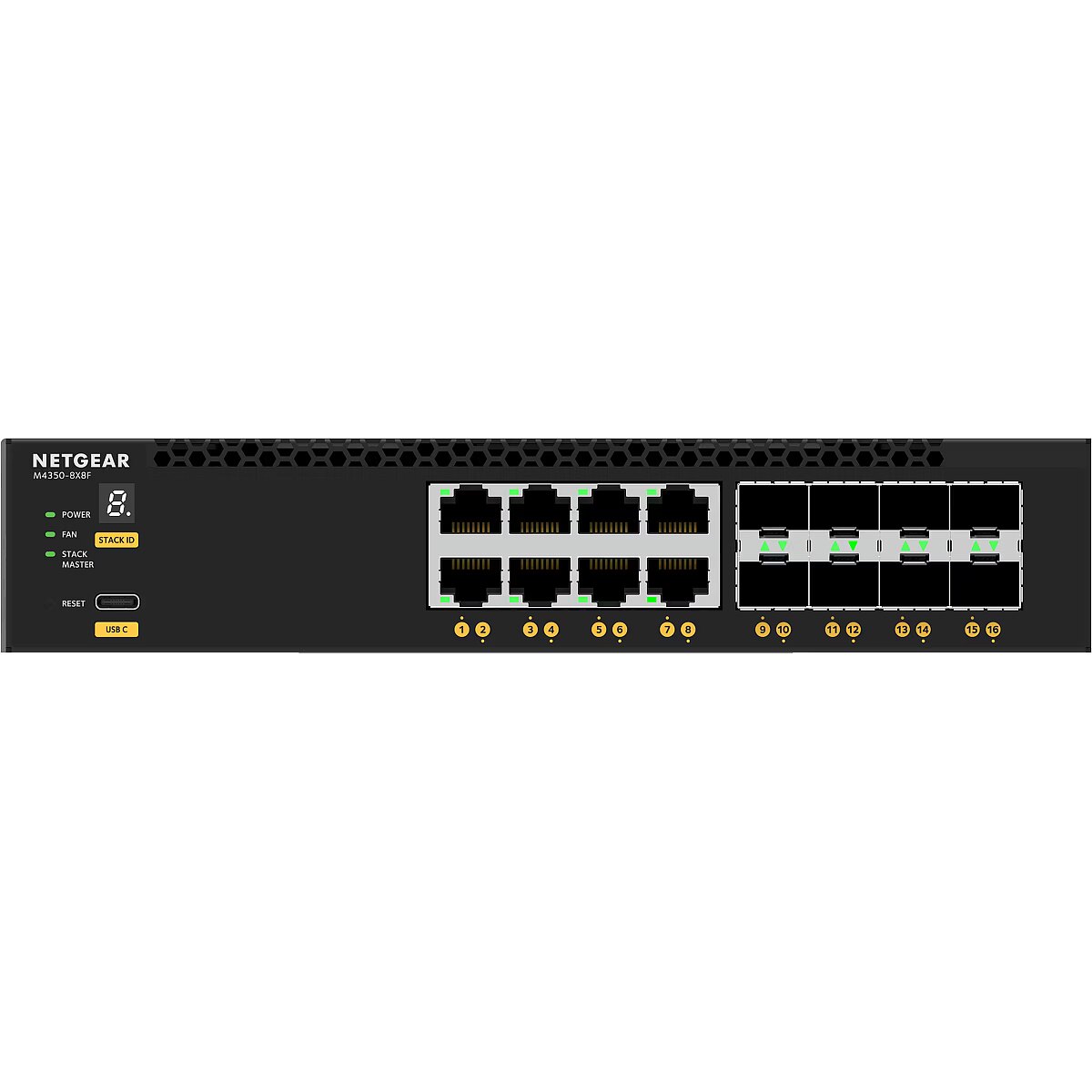

Ports & interfaces - 10G Ethernet (copper) ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 10G Ethernet (100/1000/10000)

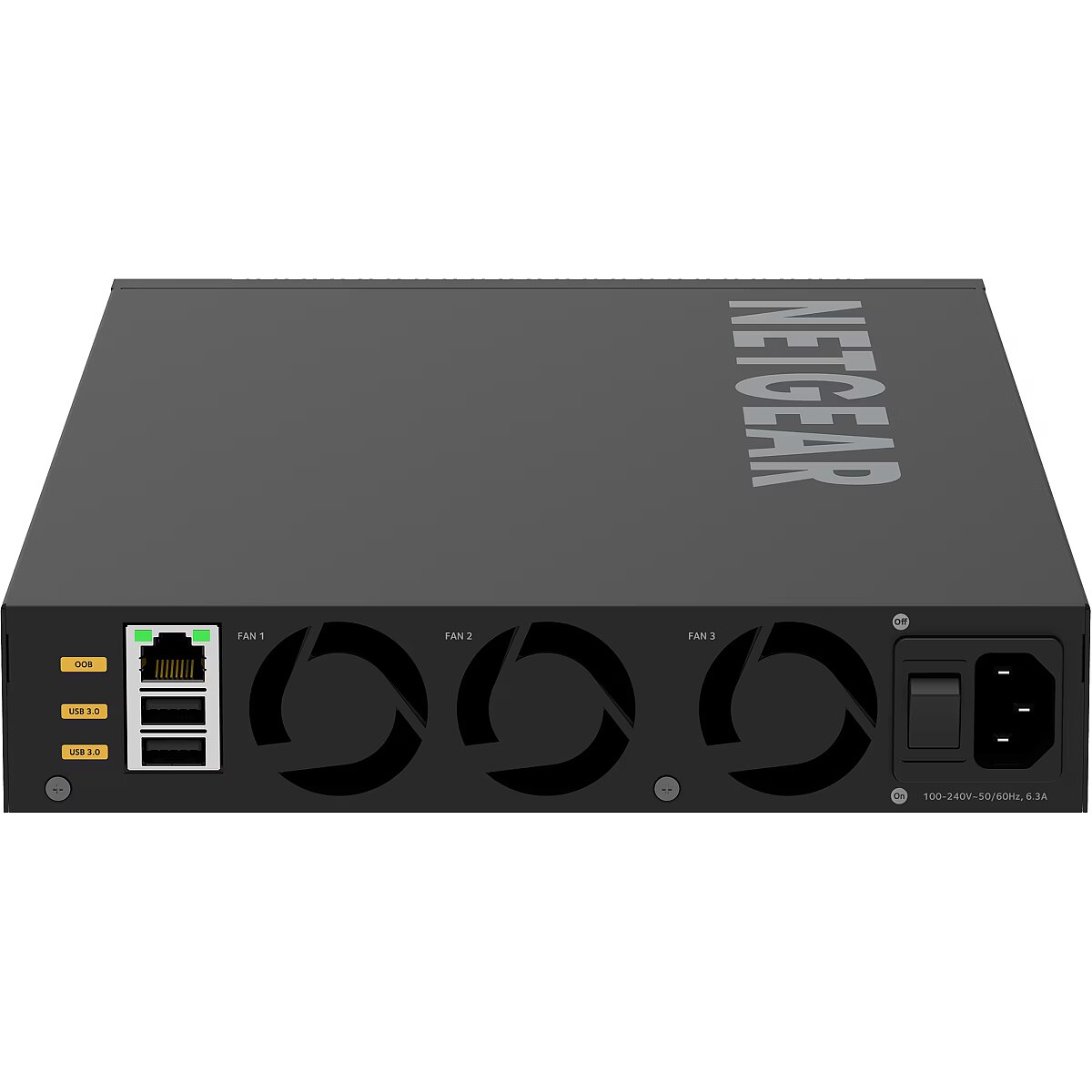

Ports & interfaces - Power connector - AC-in jack
Ports & interfaces - SFP+ module slots quantity - 8
Power - Power consumption (typical) - 81.1 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
ProductName - M4350-8X8F
Protocols - GARP VLAN Registration Protocol (GVRP) - Yes
Protocols - Management protocols - SNMP V1, V2, V3
Protocols - Routing protocols - OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
Security - Access Control List (ACL) - Yes
Security - Access Control List (ACL) egress - 1023
Security - Access Control List (ACL) ingress - 511
Security - Authentication - Guest VLAN, MAC-based authentication
Security - Authentication type - RADIUS, TACACS+
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Security - DoS attack prevention - Yes
Security - IGMP proxy - Yes
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - MAC address filtering - Yes
Security - Password protection - Yes
Security - Queue scheduling algorithms - Strict Priority Queue (SPQ), Weighted random early detection (WRED)
Security - Root protection - Yes
Security - Static port security - Yes
ShortSummaryDescription - NETGEAR M4350-8X8F, Managed, L3, 10G Ethernet (100/1000/10000), Full duplex, Rack mounting, 1U
Stck_Kart - 1
Stck_Pal - 3
Storno - Y
Sustainability - Sustainability compliance - Yes
Title - NETGEAR M4350-8X8F Managed L3 10G Ethernet (100/1000/10000) 1U Black
URL - https://www.netgear.com/business/wired/switches/fully-managed/xsm4316/
WarrantyInfo - Limited Lifetime
Weight & dimensions - Depth - 400 mm
Weight & dimensions - Height - 43.2 mm
Weight & dimensions - Weight - 4.05 kg
Weight & dimensions - Width - 220 mm
