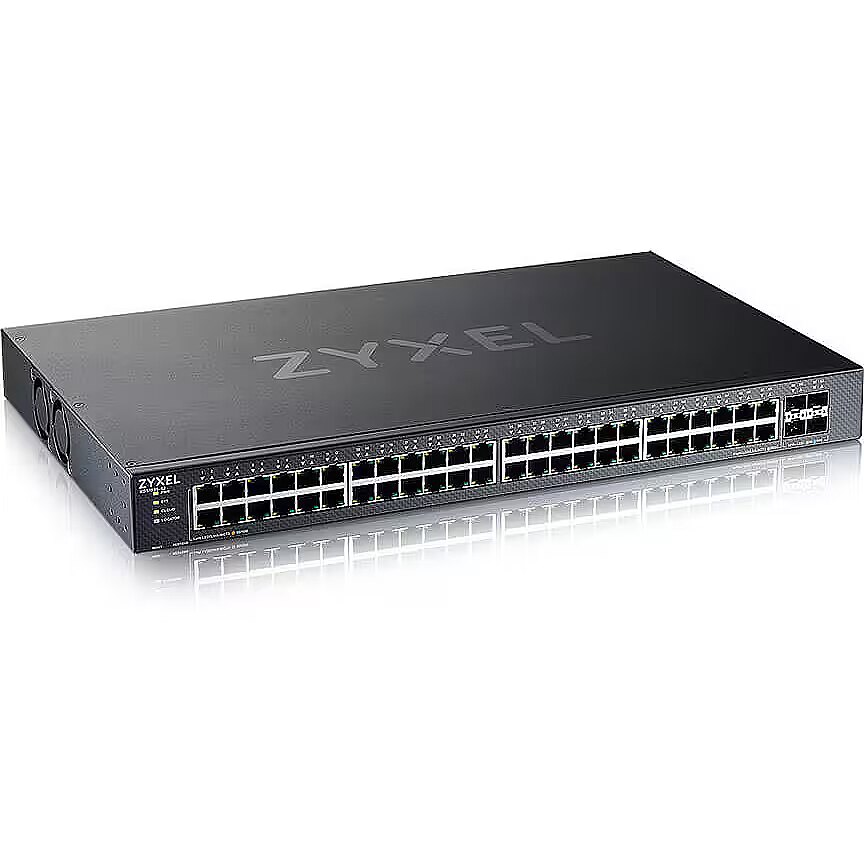

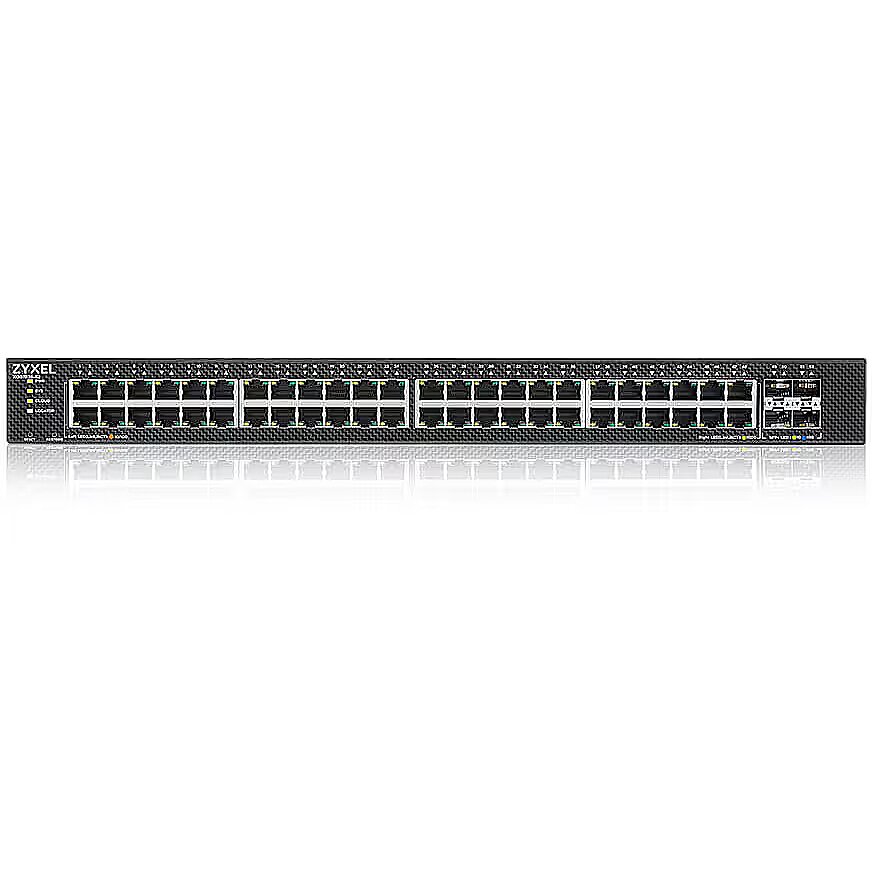

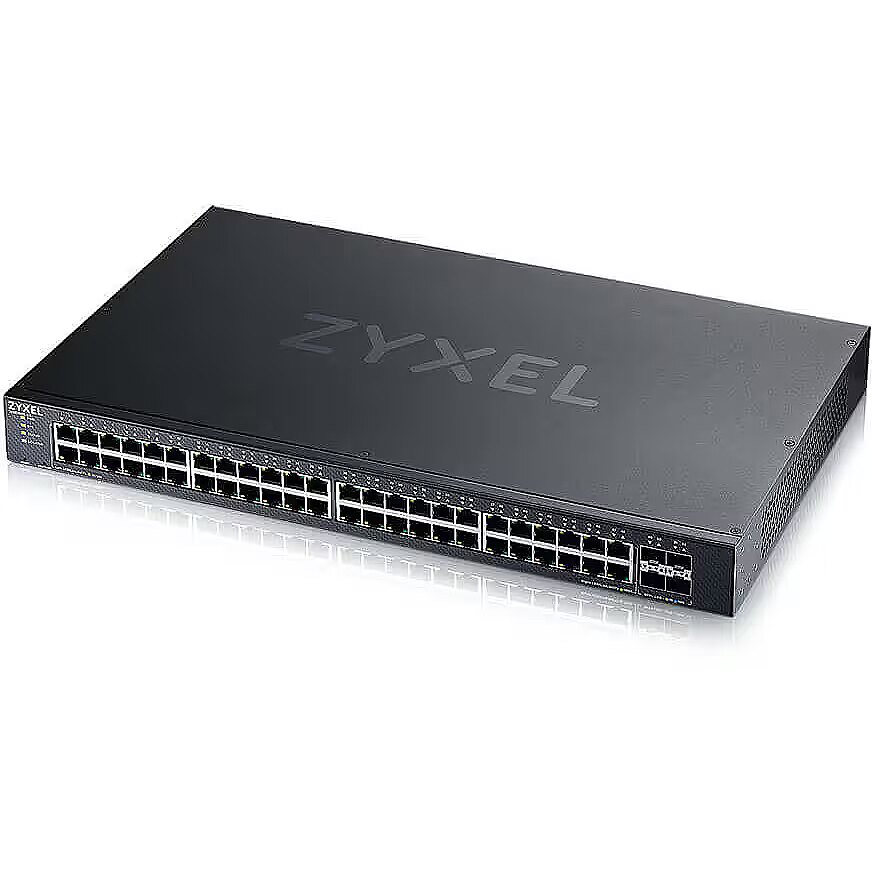

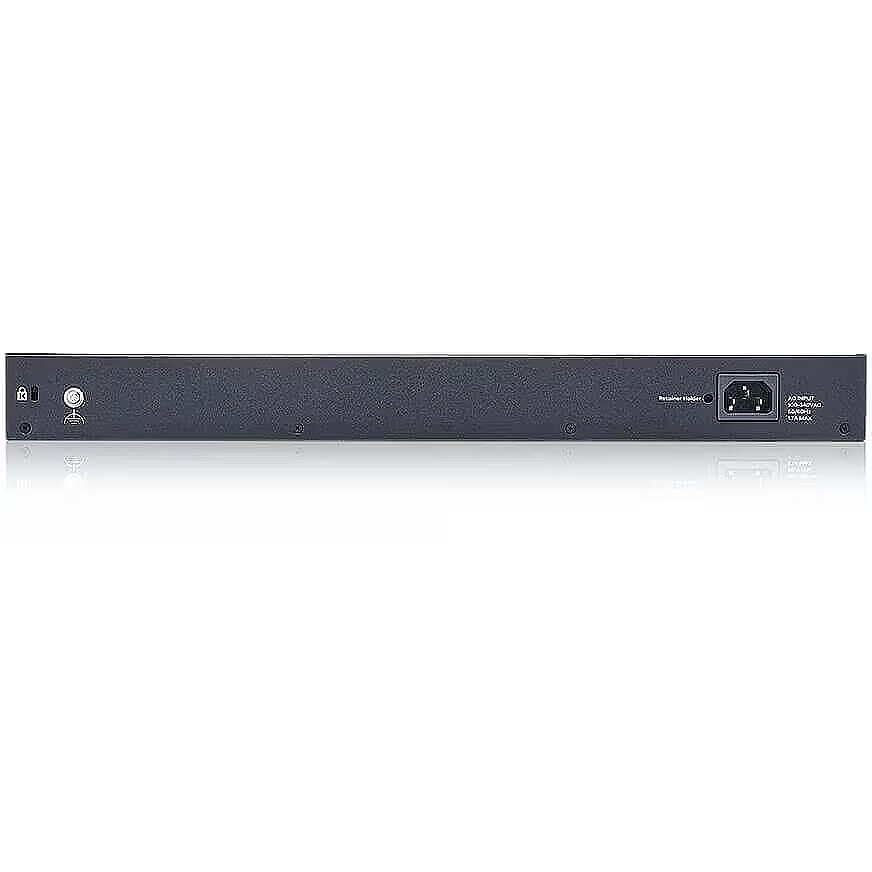

Zyxel XGS1935-52, 52-PORT

10/100/1000/2500 Mbps ports - None
Accessories included - Przewód zasilający Zestaw do montażu w szafie rack
Application - Medium and large companies
Brand - Zyxel
BrandPartCode - XGS1935-52-EU0101F
Category - Network Switches
Chassis type - Rack
Data transmission - Forwarding rate - 130.9 Mpps
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 16000 entries
Data transmission - Packet buffer memory - 1.5 MB
Data transmission - Switching capacity - 176 Gbit/s
Description - 10GbE Uplink Switch at a Reasonable Price With gigabit connectivity and four 10GbE uplinks, the XGS1935 series is an ideal solution for users who need basic features, easier management, and an affordable price to upgrade their networks and ensure performance, translating into continuous business productivity. Manage Your Way! NebulaFlex support allows easy switching between standalone mode and our free Nebula cloud management platform. Nebula provides both an intuitive web interface and a mobile app, offering a simplified network setup and management environment without additional software or hardware controller costs. Internet-based Management with Advanced Features You can configure and manage advanced functions such as static routing, VLAN, QoS, IGMP Snooping, link aggregation, IPv6, and DoS attack prevention using the intuitive built-in web browser interface. Additionally, a user-friendly step-by-step wizard helps avoid complex configuration pages, allowing quick setup in just a few clicks within minutes. Smart Power for More Devices The PoE models XGS1935-28HP and XGS1935-52HP feature compact dimensions and support PoE+, delivering 30W per portmaking them ideal for dense PoE deployments. With a high 375W power budget, they can handle energy-demanding devices. Moreover, the power consumption mode improves budget efficiency, providing a better return on investment (ROI) by allowing more PD devices to connect to the system. Quiet and Reliable Operation This series is equipped with an intelligent fan that automatically adjusts its speed according to device temperature, ensuring nearly silent operation and stable connectivity during everyday use.
Description - ZYXEL XGS1935-52, 52 PORT LITE-L3 SMART MANAGED SWITCH, 48X GIGABIT COPPER AND 4X 10G SFP+, HYBRID MODE, STANDALONE OR NEBULAFLEX CLOUD (5Y WARRANTY)
Design - Rack mounting - Yes
Designation - CE+WEEE
dimensionalWeight - 3672
dimension depth - 395 mm
dimension height - 90 mm
Dimensions - 440 x 270 x 43 mm
Dimensions W x D x H, mm - 440 x 270 x 43
dimension weight - 4500 g
dimension width - 515 mm
ean - 4718937636372
Environment requirements - Operating Temperature: -20°C to 50°C Humidity: 10% to 95% (non-condensing) Storage Temperature: -40°C to 70°C Humidity: 10% to 95% (non-condensing)
Ethernet LAN (RJ-45) ports quantity - 48
Fan - Yes
Forwarding mode - Store-and-forward
Forwarding rate - 130.9 Mpps
GTIN - 4718937636372
guarantee - 24
guarantee_type - external
Height - 90.000000
Jumbo frame size - 9 KB
Length - 395.000000
LongDesc - Using 10GbE Uplink Switch With Reasonable PriceWith Gigabit connectivity plus four 10GbE uplinks, the XGS1935 Series is an ideal option for those who need basic functions, easier management, and a more reasonable price to upgrade their networks and ensure network efficiency for continuous business productivity.Manage It Your Way!The support of NebulaFlex allows you to easily switch network management modes between standalone, and our license-free Nebula cloud management platform. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller.Anytime, Anywhere withNebula Mobile App- Easy device onboarding: QR code scan- At a glance of network status- Remote control your network- Reboot AP, Camera by PoE power cycle- Block clients with unusual trafficWeb-managed with advanced featuresYou can configure and manage advanced features like static routing, VLAN, QoS, IGMP Snooping, Link Aggregation, IPv6 and DoS prevention through an intuitive built-in Web-based browser. Moreover, the friendly step-by-step intuitive wizard helps avoiding multiple complicated configuration pages for quick set up with few clicks in the matter of minutes.Powering more devices intelligentlyThe PoE models XGS1935-28HP and XGS1935-52HP are designed with compact dimensions and support PoE+ delivering 30W per port, making them ideal for dense PoE deployments. With a 375W high-power budget, they can meet the demands of power-hungry devices. Additionally, the power consumption mode improves budget efficiency for a better ROI, allowing more PD devices to be connected within the system.Silent, and reliable operationThis Series is built with smart fan designed to automatically adjust speeds based on the device temperature, offering near silent operation and stable connection for your daily work.Built with nature in mindThe XGS1935 series is built with a more compact chassis, reducing packaging by up to 36% and weight by up to 22% compared to the previous XGS1930 series. These efforts have resulted in a 48% increase in units per pallet and a reduced carbon footprint.
LongProductName - 52-port GbE Lite-L3 Smart Managed Switch with 4 10G Uplink
LongSummaryDescription - Zyxel XGS1935-52. Switch type: Managed, Switch layer: L2+/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting
MAC address table, entries - 16 K
MAC address table size - 16000
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2+/L3
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Traffic classification - Yes
Management features - Traffic shaping - Yes
Management features - Web-based management - Yes
Manufacturer - Zyxel
ManufacturerPartNumber - XGS1935-52-EU0101F
Mean time between failures (MTBF) - 919.583 h
Memory buffer - 1.5 MB
Multicast features - Multicast support - Yes
name - Switch XGS1935-52-EU0101F
Network - 10G support - Yes
Network - Networking standards - IEEE 802.1D
Network - Networking standards - IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1s
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.1x
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3ad
Network - Networking standards - IEEE 802.3az
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Networking standards - IEEE 802.3z
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 48
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of ports 25Gb - None
Number of QSFP+ ports - None
Number of SFP+ ports - 4
Number of SFP56 ports - None
Number of SFP ports - None
Operating temperature range (T-T), °C - -20 - 50
Operational conditions - Heat dissipation - 155.594 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -20 - 50 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - Cables included - AC
Packaging content - Rack mount kit - Yes
Performance - Flash memory - 32 MB
Performance - Internal memory - 512 MB
Performance - Mean time between failures (MTBF) - 919583 h
PeriodofWarranty - 5 Y
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 48
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - SFP+ module slots quantity - 4
Ports quantity - 52
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 45.6 W
Power - Power consumption (typical) - 24.7 W
Power - Power protection features - Surge protection
Power - Power source - AC
Power - Power supply included - Yes
Power consumption - 45.6 W
Power consumption (max.), W - 45.6
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power over Ethernet (PoE) Support - No
Power supply - Imput: 100-240 V AC, 50/60 Hz
Power supply - Internal
producer - Zyxel
producerCode - XGS1935-52-EU0101F
ProductName - XGS1935-52
productName - Zyxel XGS1935-52 Managed L2+/L3 Gigabit Ethernet (10/100/1000)
productSize - Normal
Safety warning - Warnings - Avoid contact of the device with liquid.
Safety warning - Warnings - Follow the safety guidelines for electrical current.
Safety warning - Warnings - Make sure the ventilation of the equipment is not blocked.
Security - DHCP features - DHCP client
Security - DHCP features - DHCP client, DHCP relay
Security - DHCP features - DHCP relay
Security - IGMP snooping - Yes
SFP+ slots quantity - 4
ShortSummaryDescription - Zyxel XGS1935-52, Managed, L2+/L3, Gigabit Ethernet (10/100/1000), Rack mounting
sizeX - 400
sizeY - 510
sizeZ - 90
Storage temperature range (T-T), °C - -40 - 70
Support for Jumbo frames - Yes
Switch class - Managed
Switching capacity, Gbit/s - 176
Switch layer - L3
Switch type - Managed
Throughput - 176 GB/s
Title - Zyxel XGS1935-52 Managed L2+/L3 Gigabit Ethernet (10/100/1000)
URL - https://www.zyxel.com/global/en/products/switch/24-48-port-gbe-lite-l3-smart-managed-switch-with-4-10g-uplink-xgs1935-series/overview
vendpn - XGS1935-52-EU0101F
WarrantyInfo -
warrantyType - W
Weight - 3.7 kg
Weight - 5.250000
weight - 5240
Weight & dimensions - Depth - 270 mm
Weight & dimensions - Height - 43 mm
Weight & dimensions - Weight - 3.7 kg
Weight & dimensions - Width - 440 mm
Weight, g - 3700
Width - 510.000000
