ID: 1135627
Tuotekoodi: TSW040000000
Voidaan tilata 2 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 2 vuotta

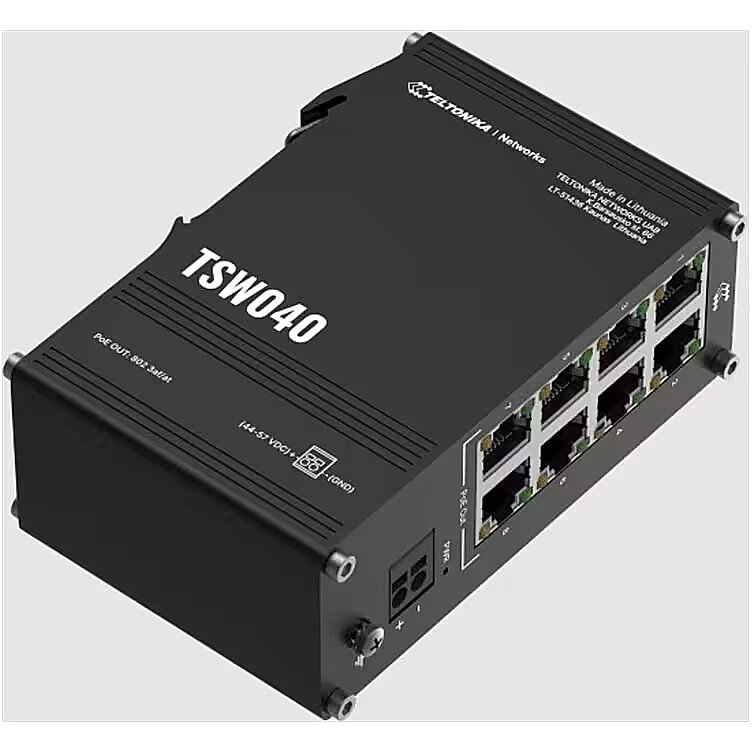

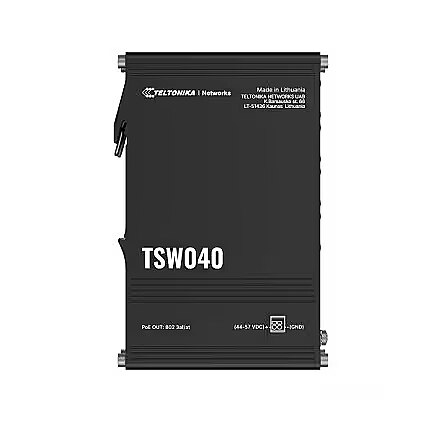

Teltonika TSW040, 8x100Mb PoE+
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Base-T-nopeus: 10/100
- RJ-45-portit: 8
Satamat ja laitteet
Base-T-nopeus
: 10/100
PoE-portit
: 8
RJ-45-portit
: 8
SFP-portit
: N/A
Tekniset tiedot
Fanien määrä
: Fanless
Paino (g)
: 280 g
PoE Kokonaisenergiabudjetti
: 240 W
PoE Per-Port Virran Budjetti
: 30 W
PoE Tuki
: Ir
Verkkokortit
Yksityiskohtaisempi erittely
Auto MDI/MDI-X - Yes
Bandwidth, Gbit/s - 20
Buffer size, KB - 128
Code - TSW040000000
Description - TELTONIKA IOT SWITCH TSW040 8X POE
Design > Form factor - DIN rail mountable
Dimensions W x D x H, mm - 113.1 x 74.6 x 41.2
EAN - 4779051841448
Ethernet LAN (RJ-45) PoE ports quantity - 8
Ethernet LAN data transfer rates, Mbit/s - 10/100/1000
Height - 46.000000
IP classification - IP30
Jumbo Frames support - 9216 bytes
Length - 82.000000
Link - https://teltonika-networks.com/products/ethernet-switches/tsw040
MAC address table, entries - 2K
Management features > Switch type - Unmanaged
Manufacturer - Teltonika
ManufacturerPartNumber - TSW040000000
Name - Teltonika Industrial Switch | TSW040 | Unmanaged | DIN rail mountable | 10/100 Mbps (RJ-45) ports quantity 8 | PoE+ ports quantity 8 | Power supply type 2-pin industrial DC power socket
Networking standards - 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Operating temperature range (T-T), °C - - 40 - 75
Other features > Power supply type - 2-pin industrial DC power socket
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 75.00 mm
Package features > Gross height (mm) - 41.00 mm
Package features > Gross width (mm) - 113.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 2487 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.12 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PeriodofWarranty - 2 Y
PoE capasity per port W - 30
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 8
Ports & interfaces > PoE+ ports quantity - 8
Ports & interfaces > Predominant port type - 10/100 Mbps (RJ-45)
Ports quantity - 8
Power over Ethernet (PoE), W - 240
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) Support - Yes
Technical details > Gross weight - 0.40 kg
Technical details > Net weight - 0.28 kg
Technical details > Producer - Teltonika
Technical details > Producer product family - Industrial Switch
Technical details > Producer product name - TSW040
Warranty - 24
Warranty - 24 month(s)
Weight - 0.280000
Weight, g - 280
Width - 130.000000
Bandwidth, Gbit/s - 20
Buffer size, KB - 128
Code - TSW040000000
Description - TELTONIKA IOT SWITCH TSW040 8X POE
Design > Form factor - DIN rail mountable
Dimensions W x D x H, mm - 113.1 x 74.6 x 41.2
EAN - 4779051841448
Ethernet LAN (RJ-45) PoE ports quantity - 8
Ethernet LAN data transfer rates, Mbit/s - 10/100/1000
Height - 46.000000
IP classification - IP30
Jumbo Frames support - 9216 bytes
Length - 82.000000
Link - https://teltonika-networks.com/products/ethernet-switches/tsw040
MAC address table, entries - 2K
Management features > Switch type - Unmanaged
Manufacturer - Teltonika
ManufacturerPartNumber - TSW040000000
Name - Teltonika Industrial Switch | TSW040 | Unmanaged | DIN rail mountable | 10/100 Mbps (RJ-45) ports quantity 8 | PoE+ ports quantity 8 | Power supply type 2-pin industrial DC power socket
Networking standards - 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Operating temperature range (T-T), °C - - 40 - 75
Other features > Power supply type - 2-pin industrial DC power socket
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 75.00 mm
Package features > Gross height (mm) - 41.00 mm
Package features > Gross width (mm) - 113.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 2487 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.12 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PeriodofWarranty - 2 Y
PoE capasity per port W - 30
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 8
Ports & interfaces > PoE+ ports quantity - 8
Ports & interfaces > Predominant port type - 10/100 Mbps (RJ-45)
Ports quantity - 8
Power over Ethernet (PoE), W - 240
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) Support - Yes
Technical details > Gross weight - 0.40 kg
Technical details > Net weight - 0.28 kg
Technical details > Producer - Teltonika
Technical details > Producer product family - Industrial Switch
Technical details > Producer product name - TSW040
Warranty - 24
Warranty - 24 month(s)
Weight - 0.280000
Weight, g - 280
Width - 130.000000
