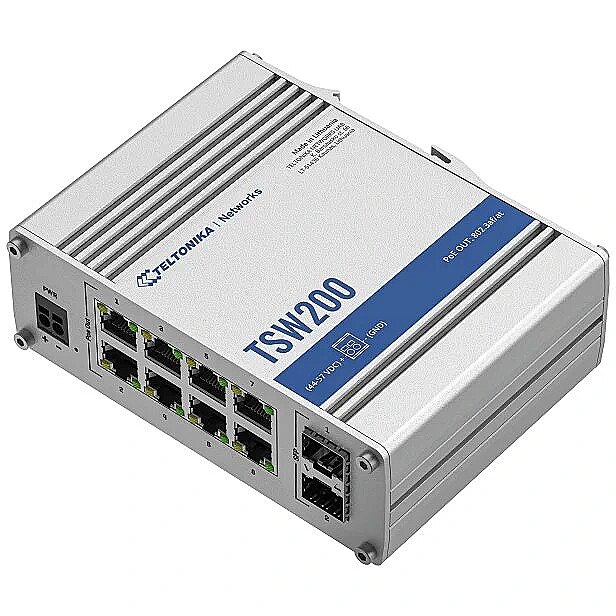

Teltonika TSW200, 8xGbE 2xSFP 8xPoE+

10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Home and small office
Certificates - CE UKCA CITC ANRT FCC IC CB
Chassis type - Desktop
Chassis type - Rack
Code - TSW2000000B0
Console port - No
Description - TELTONIKA IOT SWITCH TSW200 POE
Description - TSW200
PRZEŁĄCZNIK PRZEMYSŁOWY POE+ ETHERNET
TSW200 to przemysłowy przełącznik Ethernet z 2 portami SFP do komunikacji światłowodowej dalekiego zasięgu i 8 portami Gigabit Ethernet obsługującymi standardy IEEE802.af i IEE802.3at Power-over-Ethernet. Sklasyfikowany jako sprzęt źródła zasilania (PSE), umożliwia centralizację zasilania, zapewniając do 30 watów na port i zmniejszając wysiłek związany z instalacją zasilania.

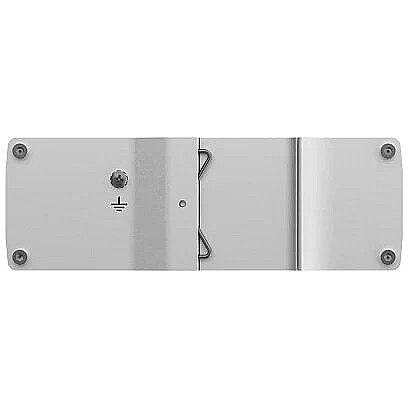

Design > Form factor - DIN rail mountable
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 150 mm
Dimensions - 132 x 44.2 x 95.1 mm
dimension weight - 625 g
dimension width - 175 mm
EAN - 4779051843671
ean - 4779051843671
Environment requirements - Temperatura pracy -40°C do 75°C Wilgotność pracy 10% do 90% bez kondensacji
Fan - No
guarantee - 24
guarantee_type - normal
Height - 50.000000
Jumbo frame size - 9216 KB
L2 features -
L3 features -
Length - 110.000000
Link - https://www.teltonika-networks.com/products/ethernet-switches/tsw200
MAC address table size - 2000
Management, monitoring, configuration -
Manufacturer - Teltonika
ManufacturerPartNumber - TSW2000000B0
name - Industrial switch TSW200 Switch 2xSFP 8xPoE+ 8xGbE
Name - Teltonika TSW200 | Industrial POE+ Ethernet Switch | DIN rail mountable | SFP ports quantity 2 | PoE+ ports quantity 8
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - 8
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - 2
Other features -
Other functions - ESD EN 61000-4-2:2009 Radiated Immunity EN IEC 61000-4-3:2020 EFT EN 61000-4-4:2012 Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017 CS EN 61000-4-6:2014 DIP EN IEC 61000-4-11:2020
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 175.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 150.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 470 pc(s)
Package features > Paper/Pasteboard - 130.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.15 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packet buffer - 128 KB
PeriodofWarranty - 2 Y
Ports & interfaces > POE - PoE+
Ports & interfaces > PoE+ ports quantity - 8
Ports & interfaces > SFP ports quantity - 2
Power consumption - 240 W
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power supply -
Power supply - External
producer - TELTONIKA
QoS -
Security - IP30 IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020
Supported protocols and standards - 802.3i 802.3u 802.3ab 802.3x 802.3az EN 55032:2015 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 + A1:2021 EN 61000-3-3:2013 + A1:2019
Support for Jumbo frames - Yes
Switch class - Unmanaged
Technical details > Gross weight - 0.60 kg
Technical details > Net weight - 0.45 kg
Technical details > Producer - Teltonika
Technical details > Producer product family - Industrial POE+ Ethernet Switch
Technical details > Producer product name - TSW200
Throughput - 20 GB/s
vendpn - TSW2000000B0
VLAN -
Warranty - 24
Warranty - 24 month(s)
Weight - 0.540000
Weight - 517 g
Width - 150.000000
