Brand - Dahua Technology
BrandPartCode - DH-PFS3110-8ET-96-V2
Category - Network Switches
Data transmission - Forwarding rate - 4.17 Mpps
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 1 MB
Data transmission - Switching capacity - 7.6 Gbit/s
Design - Form factor - 10U
Design - Product colour - Black
Design - Rack mounting - No
Design - Reset button - No
Design - Stackable - No
dimensionalWeight - 1036
GTIN - 6923172503862

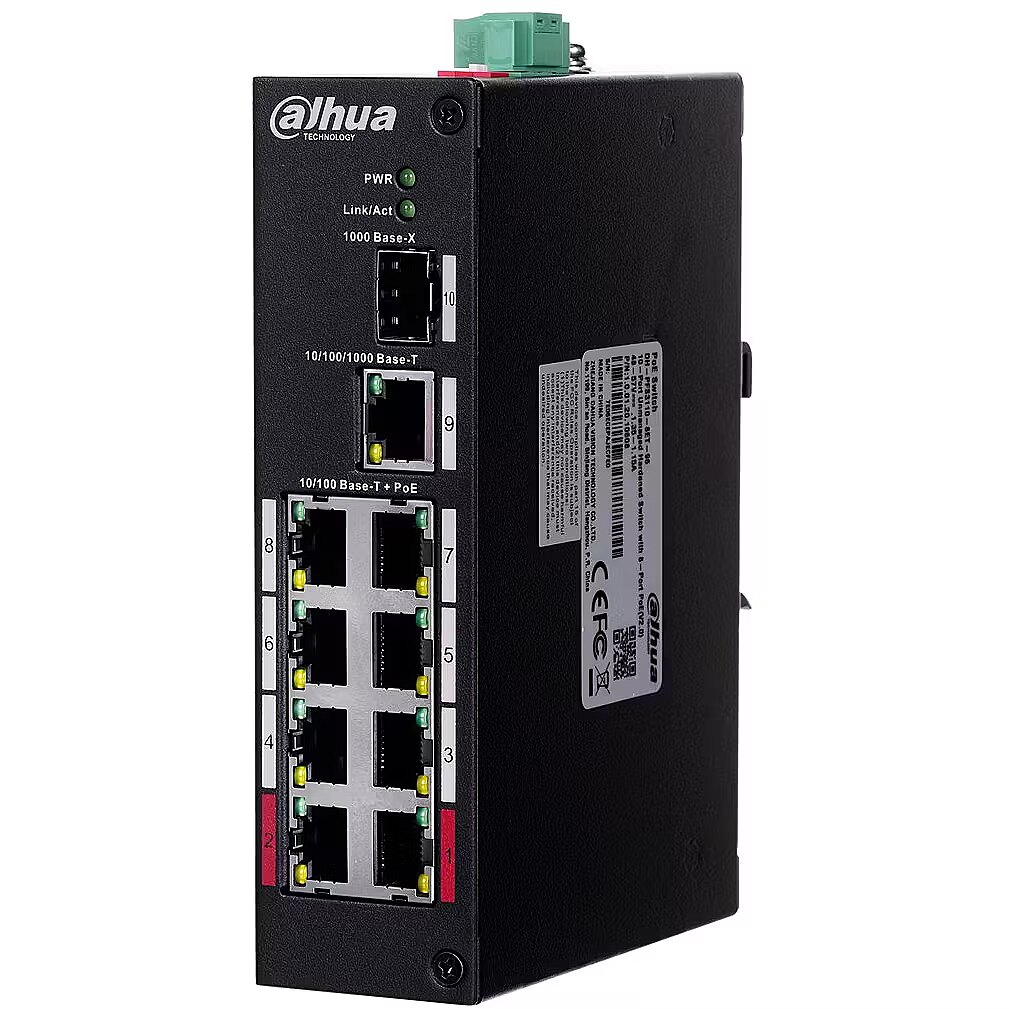

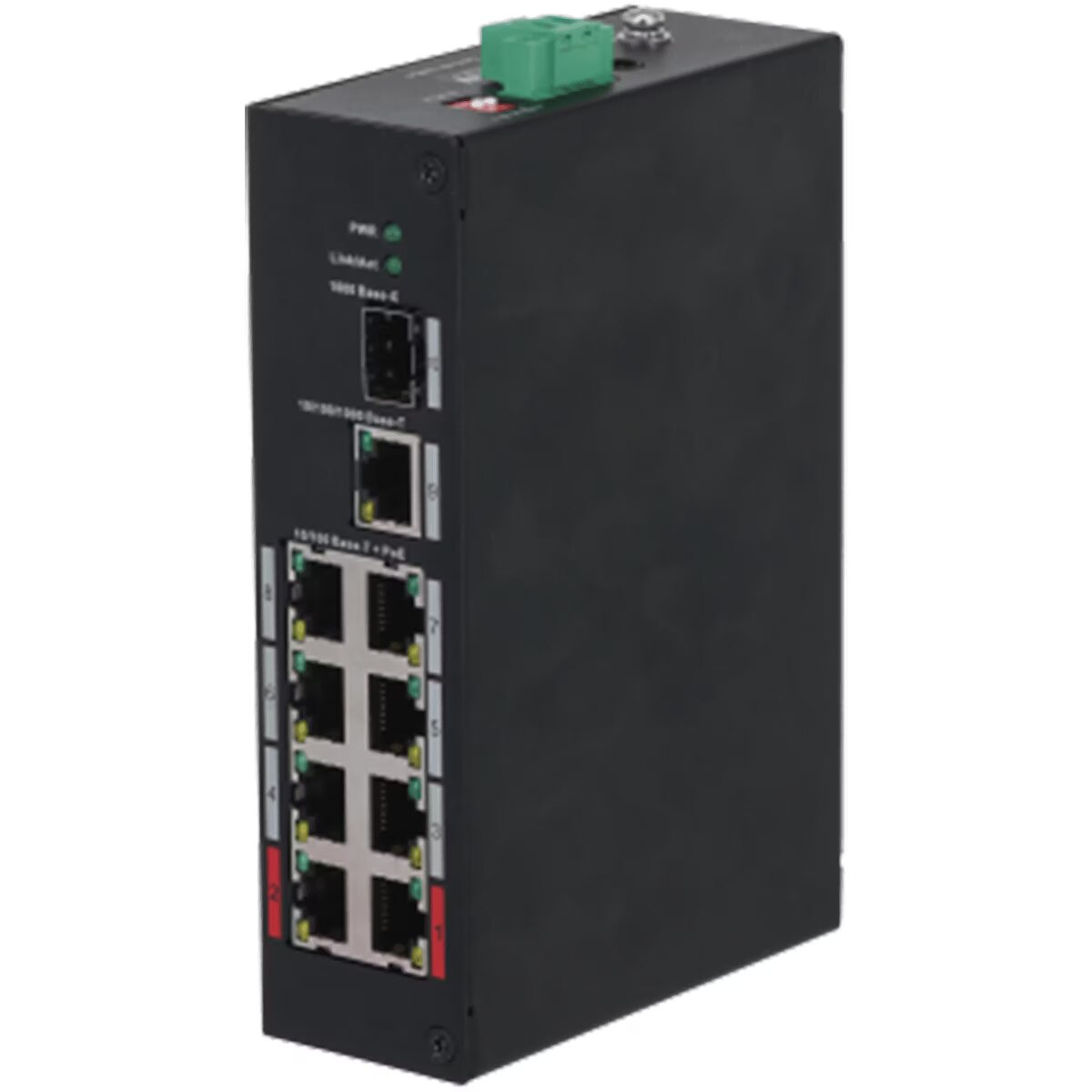

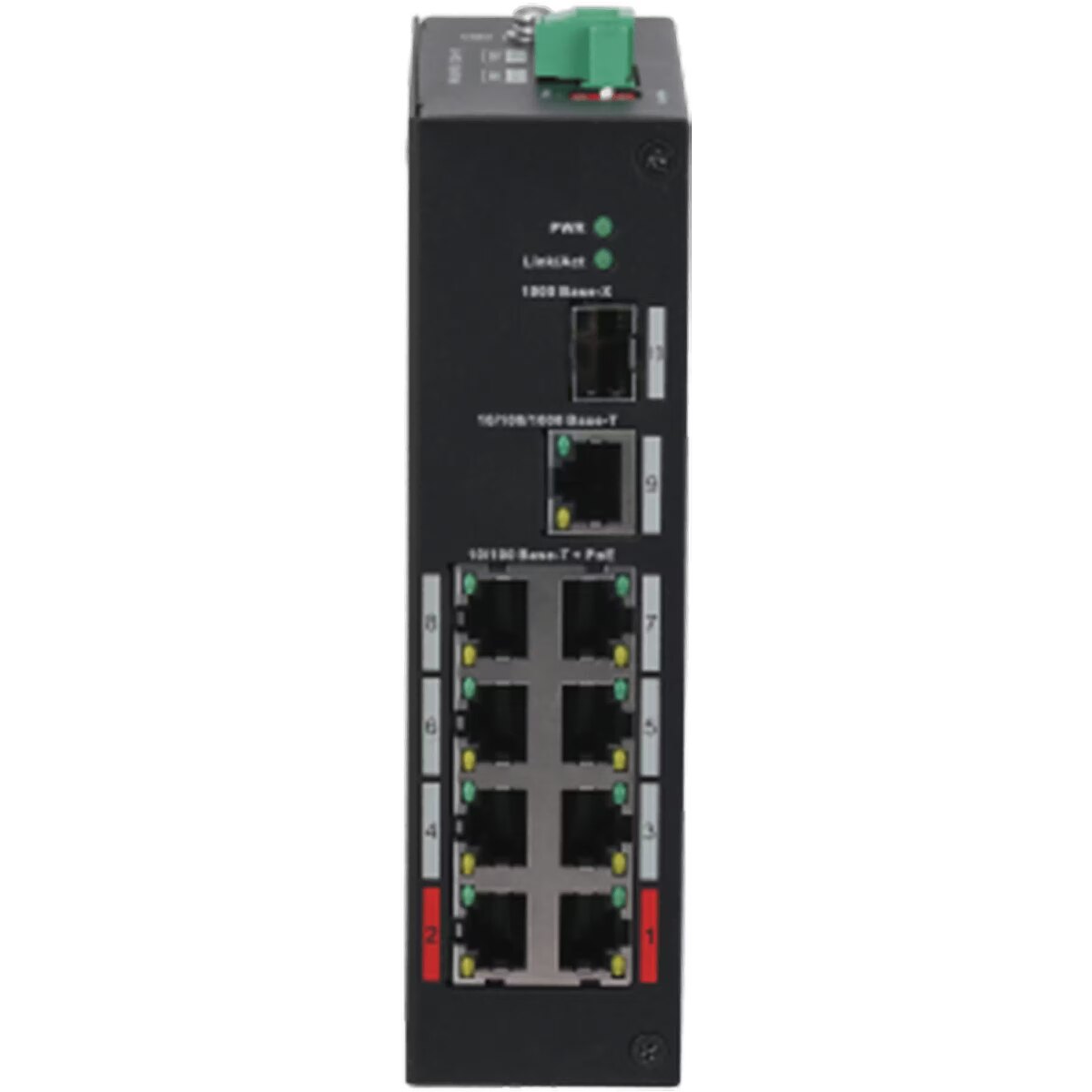

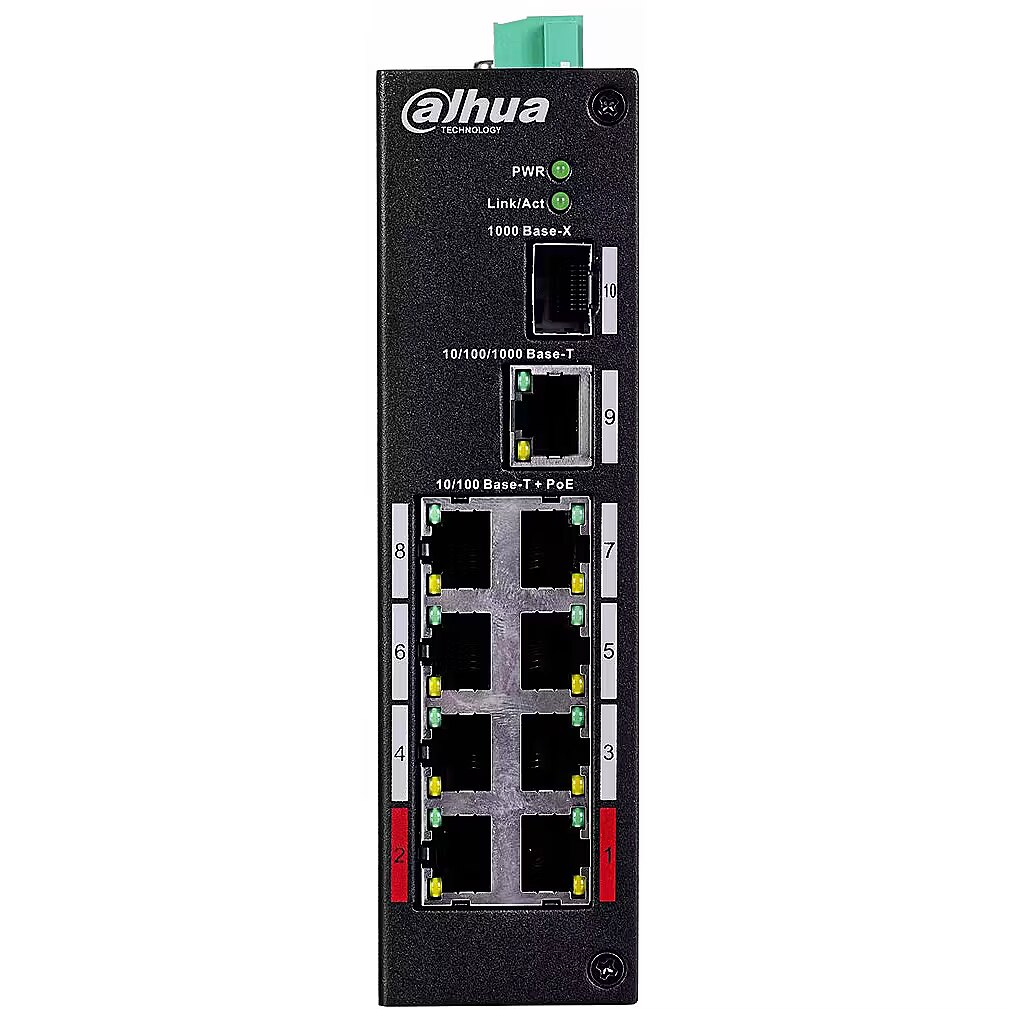

LongDesc - System OverviewDH-PFS3110-8ET-96 is an unmanaged Hardened PoE Switch with 8 ×10/100Mbps PoE Ports. It provides 8 × 10/100 Mbps Ethernet ports ,1 × 1000M SFPand 1× 10/100/1000 Mbps uplink ports. The productis equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). The red port supports the IEEE802.3bt and theHi-PoE standards. The maximum power consumption is 90W. It alsosupports PoE watchdog to avoid manually maintenance and devicerestart, which can realize the intelligent management and reduce thecost. FunctionsIntelligent PoEProvides control over power consumption and offers real-timemonitoring to ensure power supplies receive priority with importantports and to prevent malfunctions caused by changes in powerconsumption. Supports ultra wide power supplies and is able to adaptto IPC power fluctuations.BT 90WThe red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoEstandards, with a maximum output power consumption rate of 90W perport. Suitable for powering high-power devices.PoE WatchdogAdopts the innovative PoE Watchdog. PoE Watchdog can be switchedon by dialing or turning on the WEB page switch. It enables the switchto automatically detect port status and restart failed ports to recoverconnection in case of IPC connection exception. This enables intelligentoperation and maintenance management in its truest sense, effectivelyreducing manual maintenance costs.Long Distance PoEBy dialing or enabling long-range transmission on the WEB interface,the transmission distance of a PoE port can be up to 250 m, meeting therequirements of wired transmission (bandwidth reduced to 10 Mbps).8-pin Assignment PoE Power SupplySupports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8negative). Signal lines and idle lines supply power at the same time.Compatibility with IPC is enhanced. Cable loss is reduced. Loadingcapacity is increased.SceneThe device is applicable for use in different scenarios, including home,office, server farm, and small mall.
LongProductName - 10-Port Unmanaged Desktop Switch with 8 Port PoE
LongSummaryDescription - Dahua Technology PFS3110-8ET-96-V2. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 8000 entries, Switching capacity: 7.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE). Form factor: 10U
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3bt
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Networking standards - IEEE 802.3z
Operational conditions - Operating temperature (T-T) - -30 - 65 °C
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 9
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Fiber ports quantity - 10
Ports & interfaces - SFP/SFP+ slots quantity - 1
Ports & interfaces - SFP module slots quantity - 1
Power - Input voltage - 53 V
Power - Power source - AC

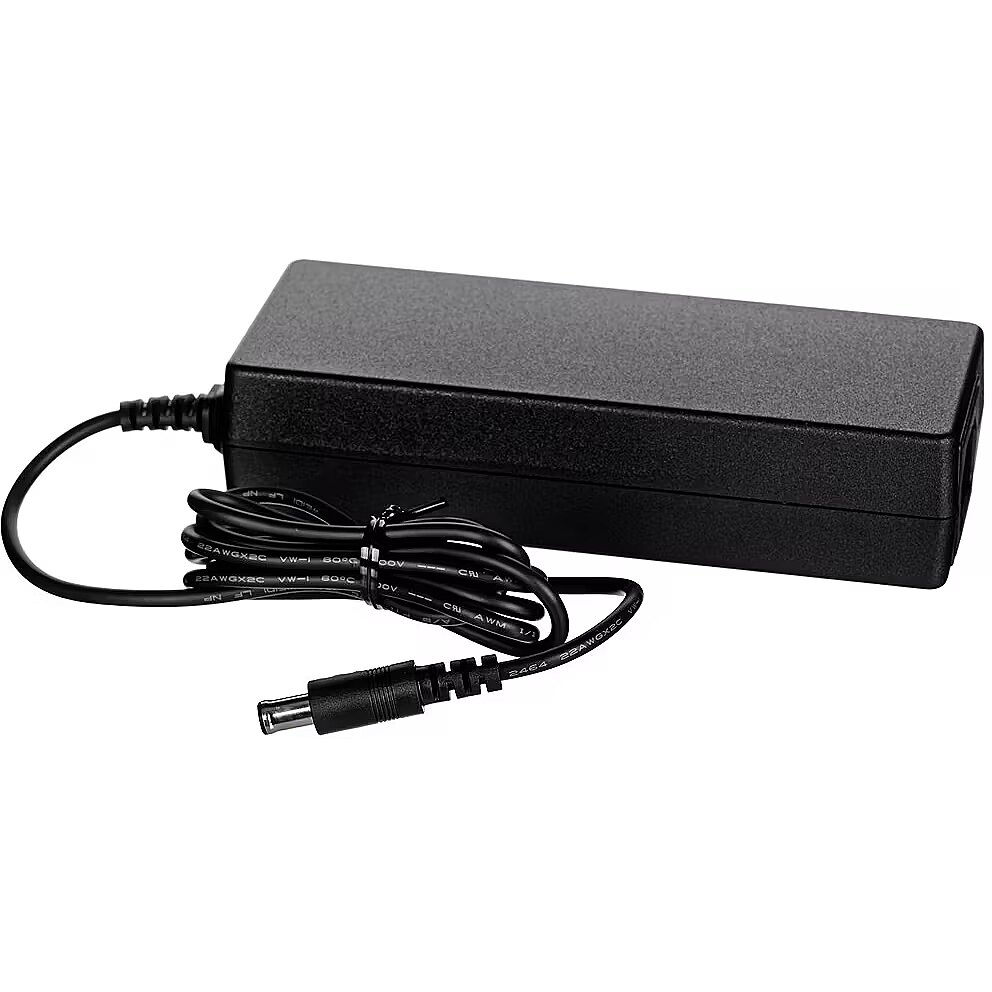

Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 45 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 96 W
producerCode - PFS3110-8ET-96-V2
productName - DAHUA INDUSTRIAL SWITCH PFS3110-8ET-96-V2
ProductName - PFS3110-8ET-96-V2
productSize - Normal
ShortSummaryDescription - Dahua Technology PFS3110-8ET-96-V2, Unmanaged, Fast Ethernet (10/100), Power over Ethernet (PoE), 10U
sizeX - 270
sizeY - 80
sizeZ - 240
Title - Dahua Technology PFS3110-8ET-96-V2 Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) 10U Black
URL - https://www.dahuasecurity.com/products/productDetail/29217
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1325
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 42 mm
Weight & dimensions - Weight - 540 g
Weight & dimensions - Width - 150 mm
