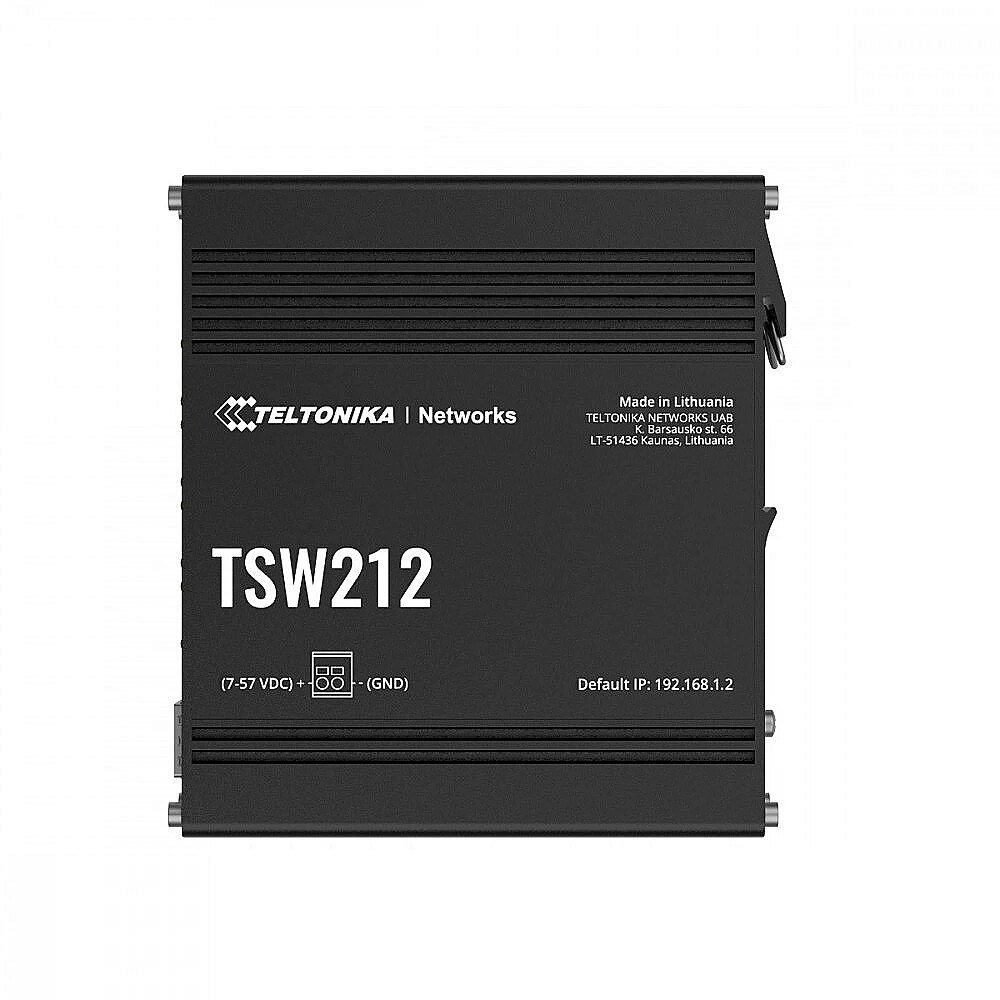

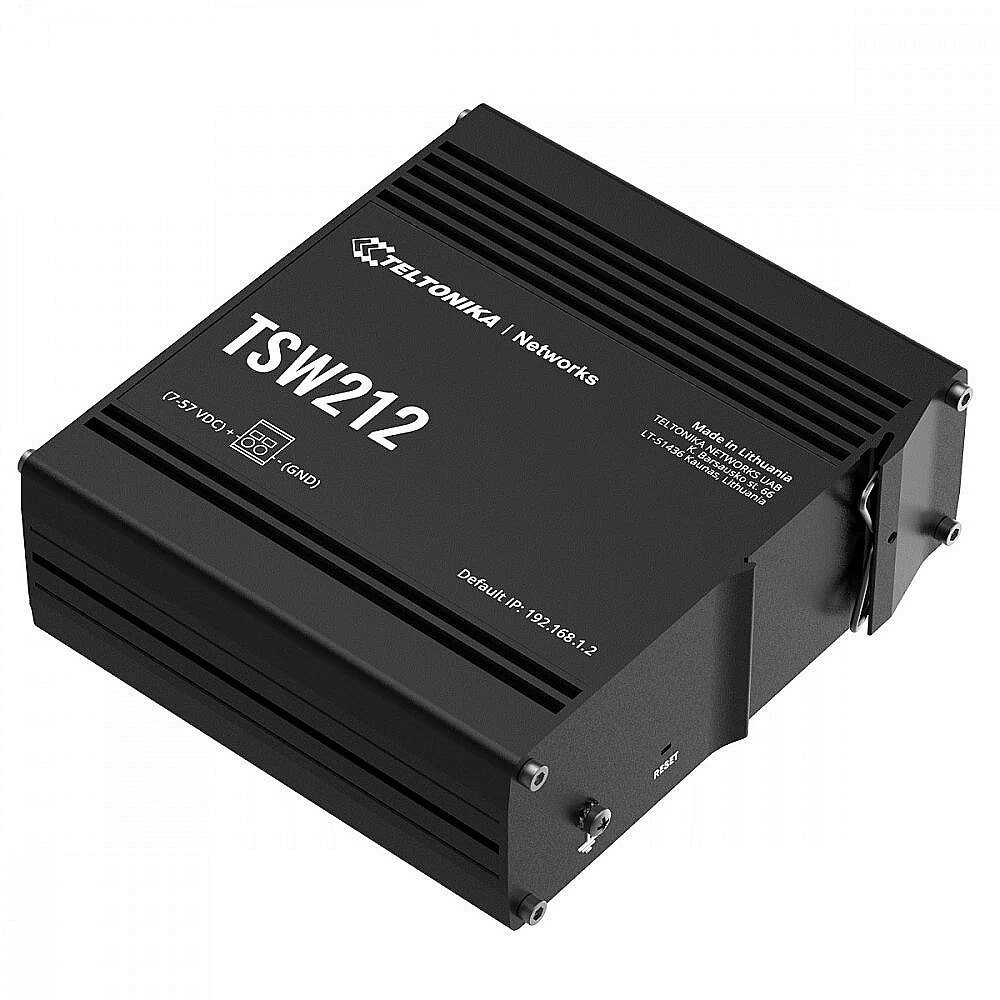

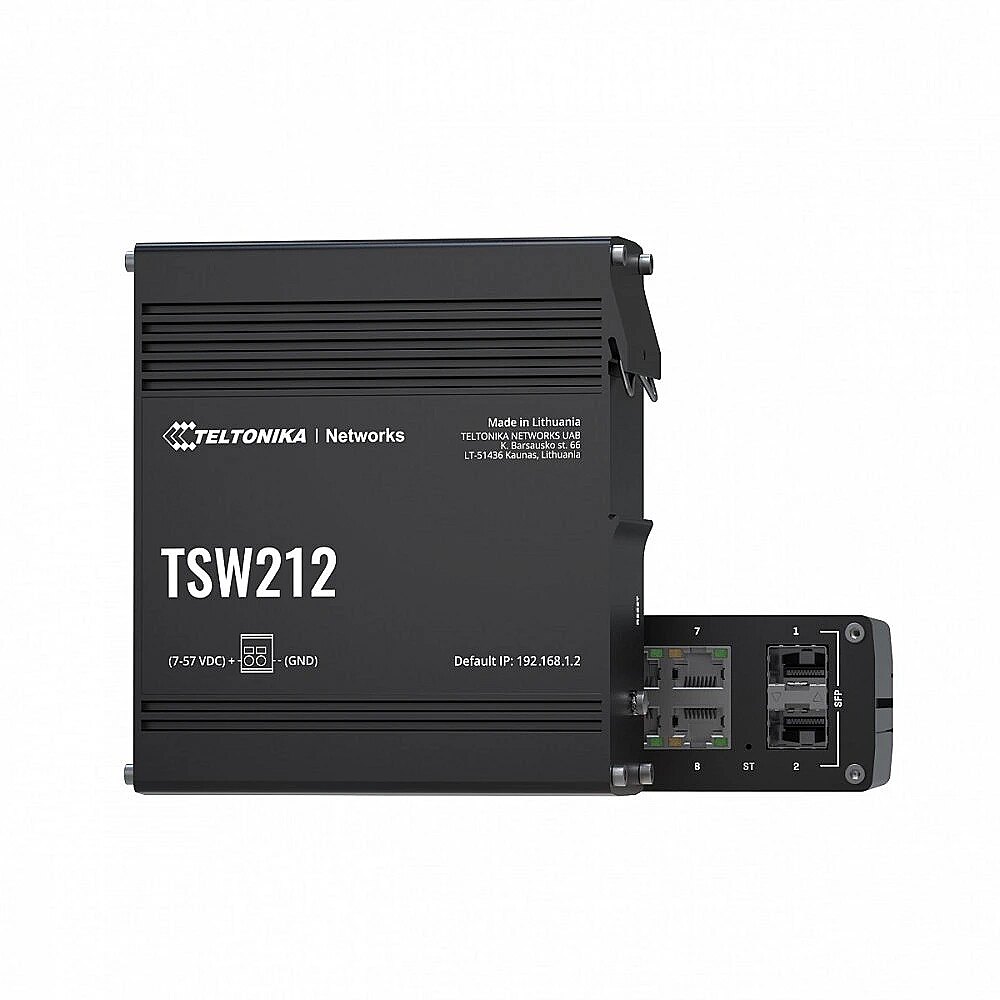

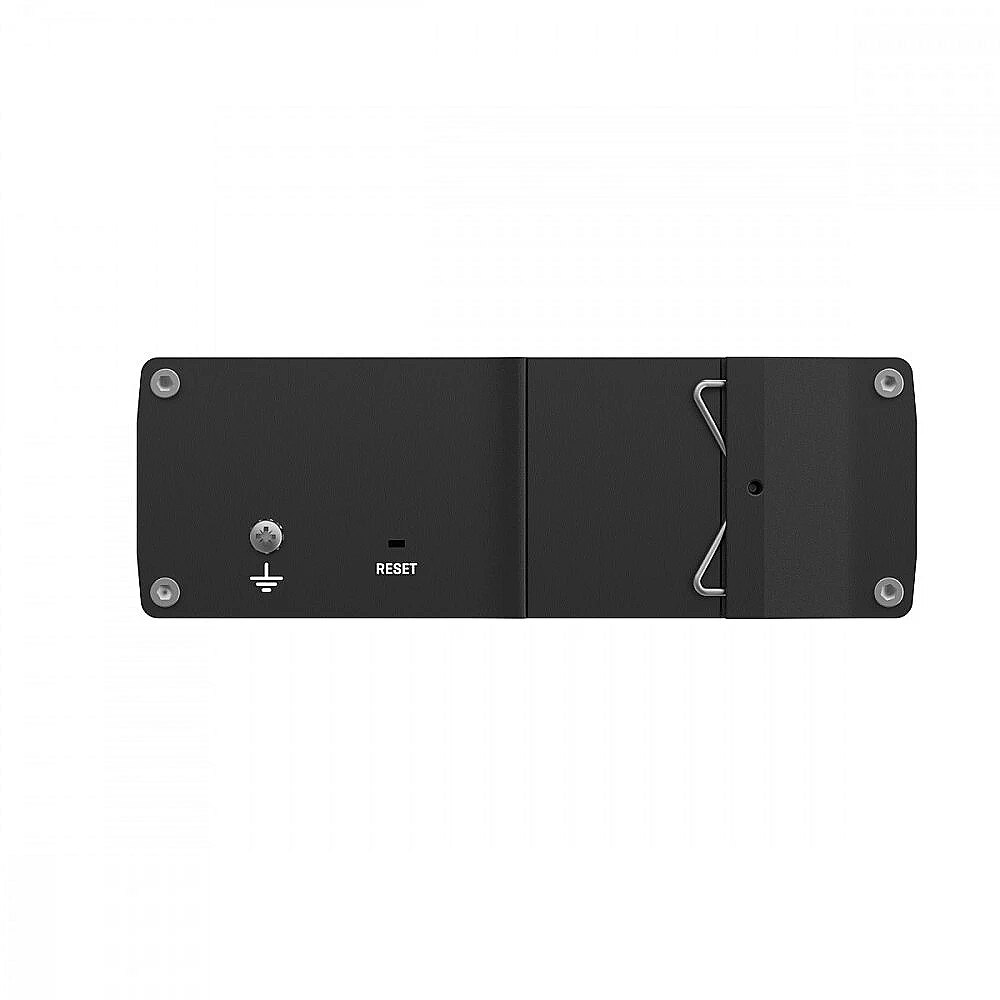

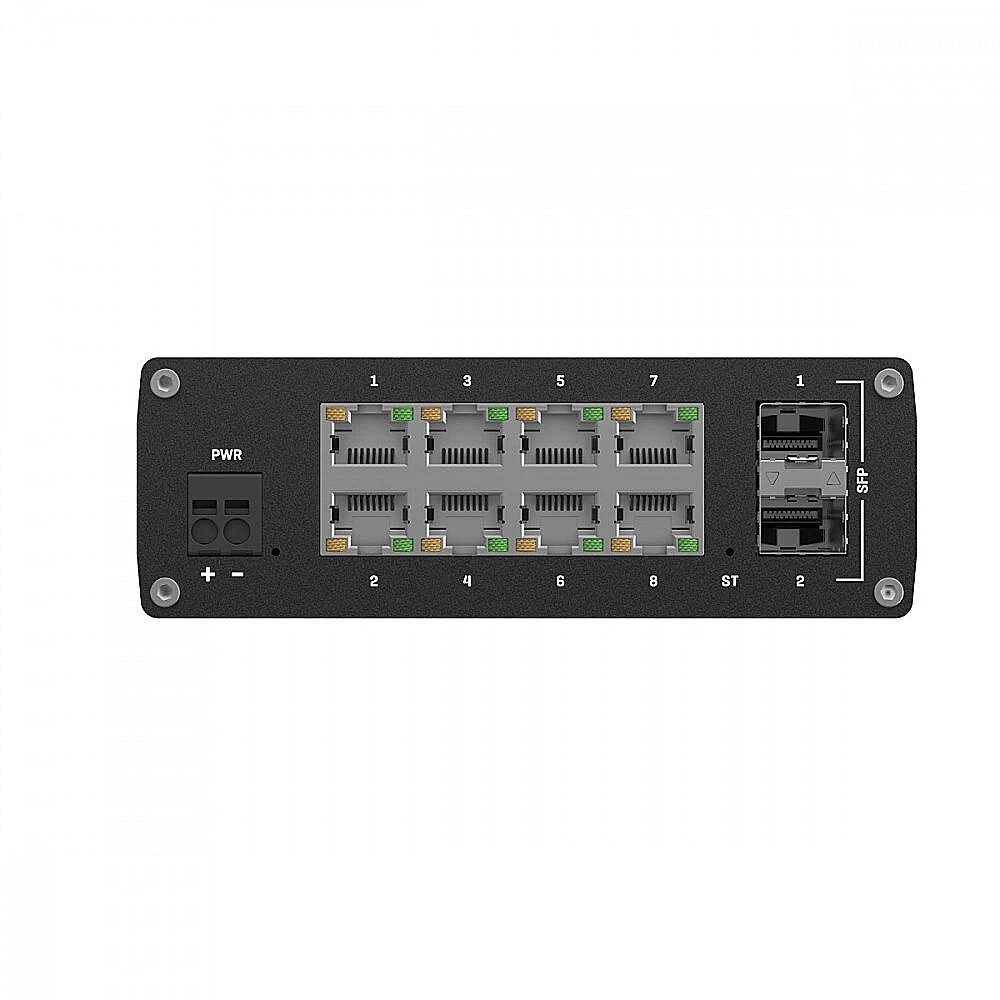

Teltonika TSW212, 8x1Gb 2SFP

10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Home and small office
Auto MDI/MDI-X - Yes
Bandwidth, Gbit/s - 20
Buffer size, KB - 512
Category Code - SWI
Certificates - CE, CB, RCM, FCC, IC,EAC, UCRF
Chassis type - Desktop
Chassis type - Rack
CnCode - 85176200
Code - TSW212000000
Console port - No
Description - TELTONIKA TSW212 MANAGED IOT SWITCH 8X1GB RJ45 2X1GB SFP
Description - TSW202 is the first managed industrial switch from Teltonika Networks that gives you greater control over the flow of data on your network and the role of ports in your solution. The switch is equipped with 8 Gigabit Ethernet VLAN ports, allowing you to manage, configure and monitor your network. Additional software features, such as QoS, increase effective bandwidth management and the classification and prioritization of network traffic. Designed for industrial environments, the TSW202 features an integrated DIN rail mount, a robust aluminum housing, and resistance to extreme temperatures and vibration, ensuring maximum durability with ease of installation.
Description - TSW212 MANAGED ETHERNET SWITCH TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.
Design > Form factor - Wall-mountable
Designation - CE+WEEE
dimension depth - 50 mm
dimension height - 140 mm
Dimensions - 132 x 44.2 x 122.2 mm
Dimensions W x D x H, mm - 132 x 44.2 x 122.2
dimension weight - 633 g
dimension width - 140 mm
EAN - 4779051841370
ean - 4779051841370
Environment requirements - Operating temperature: -40°C to 75°C Degree of protection: IP30 Operating humidity: 10% to 90%, non-condensing
Ethernet LAN (RJ-45) ports quantity - 8
Ethernet LAN data transfer rates, Mbit/s - 10/100/1000
Fan - No
Fiber ports quantity - 2
Fiber type - SFP
Forwarding rate - 14.88 Mpps
Green certifications - REACH
Green certifications - RoHS compliant
guarantee - 24
guarantee_type - normal
Height - 50.000000
IEEE 802.3ab Network standard - Yes
IEEE 802.3az Network standard - Yes
IEEE 802.3i Network standard - Yes
IEEE 802.3u Network standard - Yes
IEEE 802.3x Network standard - Yes
IP classification - IP30
Jumbo frame size - 8 KB
Jumbo Frames support - 10000 bytes
L2 features -
L3 features -
Length - 140.000000
MAC address table, entries - 8K
MAC address table size - 10000
Management, monitoring, configuration -
Management features > Switch type - L2 managed
Manufacturer - Teltonika
ManufacturerPartNumber - TSW212000000
Model - TSW212
Name - Teltonika Switch, 8 ports | TSW212 | L2 managed | Wall-mountable | SFP ports quantity 2
name - Teltonika TSW212 Switch 2xSFP 8xGbE L2/L3 Feat.
Network architecture - GigabitEthernet
Networking standards - 802.3i, 802.3u, 802.3ab, 802.3x
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - 2
Operating temperature range (T-T), °C - - 40 - 75
Other features -
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 130 mm
Package features > Gross height (mm) - 50 mm
Package features > Gross width (mm) - 140 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 949 pc(s)
Package features > Paper/Pasteboard - 100 g
Package features > Tare weight (kg) - 0.1 kg
Package features > Volume (m3) - 0.00091 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packet buffer - 512 KB
PeriodofWarranty - 2 Y
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Ports & interfaces > SFP ports quantity - 2
Ports quantity - 8
Power over Ethernet (PoE) > Power over Ethernet (PoE) - No
Power over Ethernet (PoE) Support - No
Power supply - Input voltage range: 7 - 57 VDC
Power supply - External
Primary port count - 8
producer - TELTONIKA
Product Net Weight - 0.615 kg
QoS -
Quality of Service (QoS) support - Yes
RAM memory - 128 MB
RJ45 Ports - 8
Security - IEC 62368-1:2018
SFP Ports - 2
Stackability - No
Supported protocols and standards - IEEE 802.1p, IEEE 802.1Q, 802.3az
Support for Jumbo frames - Yes
Switch class - Managed
Switching capacity - 20 Gbps
Switch layer - L2+
Switch type - Managed
Technical details > Gross weight - 0.715 kg
Technical details > Net weight - 0.615 kg
Technical details > Producer - Teltonika
Technical details > Producer product family - Switch, 8 ports
Technical details > Producer product name - TSW212
Throughput - 20 Gb/s
Unit Box Height - 0.05
Unit Box Length - 0.14
Unit Box Width - 0.14
Unit Calculated Volume - 0.001455 cubm
Unit Calculated Weight - 0.675 kg
Units per Pallet - 0
Units per Shipping Box - 16
Vendor Homepage - https://www.teltonika-networks.com/products/ethernet-switches/tsw212
vendpn - TSW212000000
VLAN -
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
Weight - 0.640000
Weight - 615 g
Weight, g - 615
Width - 140.000000
