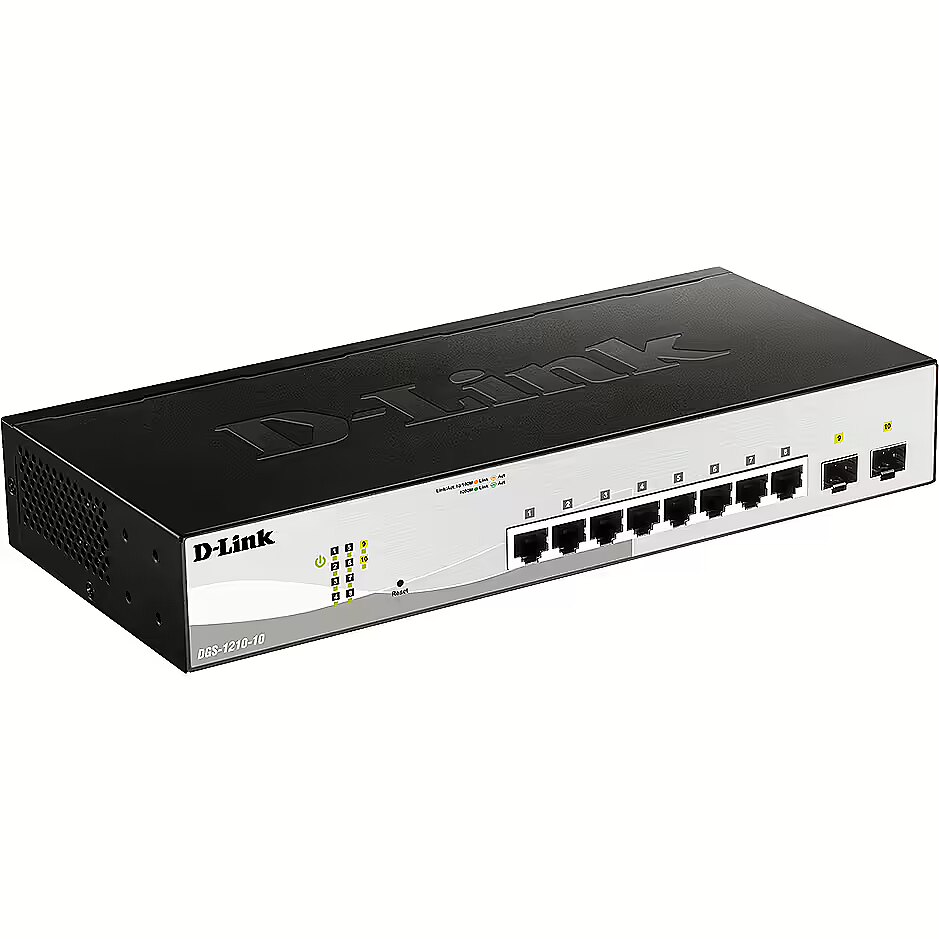

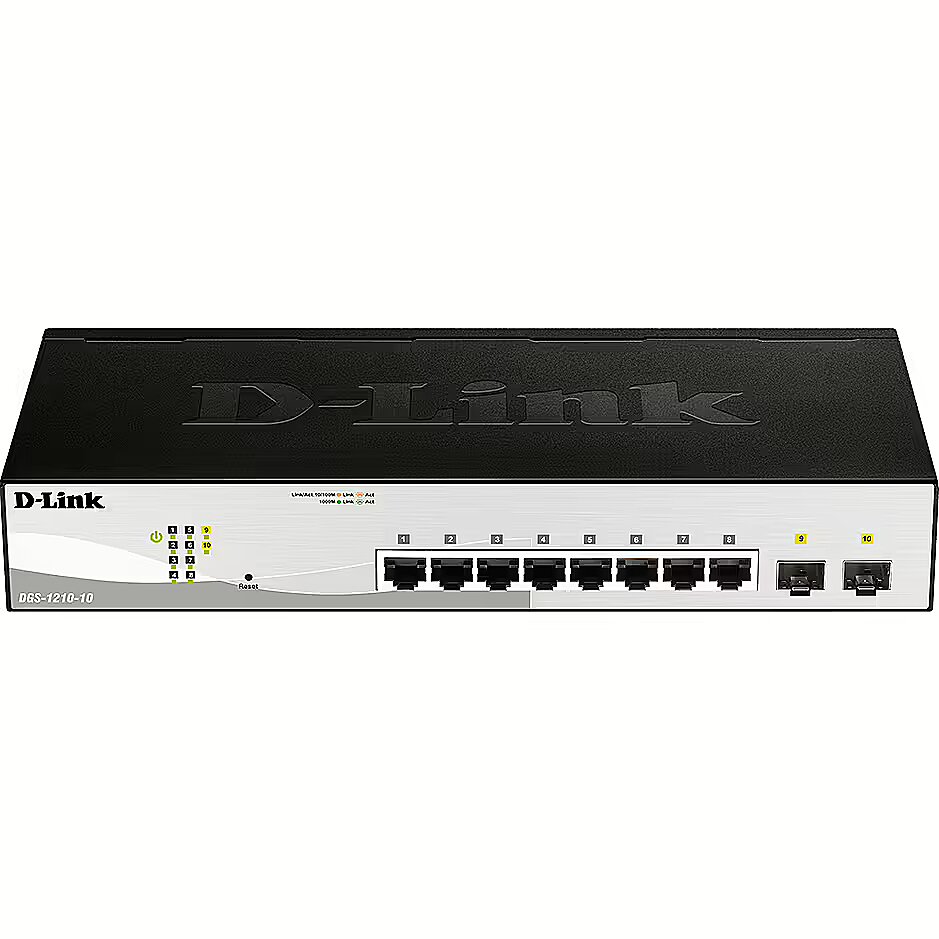

D-Link DGS‑1210‑10 10-Port Gigabit Smart Managed Switch

ARTIKEL1 - DGS-1210-10 GBIT SMART SWITCH
ARTIKEL2 - 10-PORT LAYER2 MANAGED
Brand - D-Link
BrandPartCode - DGS-1210-10/E
Breite - 0.29
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Code - DGS-1210-10/E
Dane techniczne: Grupa produktowa - Przełączniki D-link
Dane techniczne: Gwarancja - 5 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 44 mm
Dane techniczne: Liczba portów LAN 10/100/1000 - 8 szt.
Dane techniczne: Możliwość instalacji w szafach 19' - tak
Dane techniczne: Obsługa VLANów - tak
Dane techniczne: Obsługiwane protokoły - IEEE 802.1p
Dane techniczne: Obsługiwane protokoły - IEEE 802.1Q
Dane techniczne: Obsługiwane protokoły - IEEE 802.3af
Dane techniczne: Obsługiwane protokoły - IEEE 802.3at
Dane techniczne: Producent - D-link
Dane techniczne: Przeznaczenie - do szaf RACK 19"
Dane techniczne: Prędkość magistrali wew. - 20 Gb/s
Dane techniczne: Rozmiar tablicy adresów MAC - 16000
Dane techniczne: Sloty SFP 1000 Mb/s - 2 szt.
Dane techniczne: Szerokość - 280 mm
Dane techniczne: Szybkość przekierowań pakietów - 14.88 mpps
Dane techniczne: Typ - zarządzalny
Dane techniczne: Waga - 1.54 kg
Dane techniczne: Wysokość - 126 mm
Dane techniczne: Zarządzalność - tak
Data transmission - Forwarding rate - 14.88 Mpps
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 0.512 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 20 Gbit/s
Design - Form factor - 1U
Design - Product colour - Black, Grey
Design - Rack mounting - Yes
Design - Stackable - Yes
Design > Form factor - Rackmountable
EAN - 790069467707
EAN - 0790069467707
EANCode - 0790069467707
Eans - 790069467707
EAN_code - 0790069467707
Gewicht - 1.8
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0790069467707
GTIN - 790069467707
GTIN - 5704174940302
HERSTELLER - D-LINK
Hoehe - 0.07
HSTNUMMER - DGS-1210-10/E
Laenge - 0.33
Link - https://www.dlink.com/en/products/dgs-1210-10-10-port-gigabit-smart-managed-switch
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - The DGS-1210-52 Web Smart switch with advanced management functions including SNMP, Web Management, SmartConsole Utility, and compact command line provides a complete and affordable solution for small and medium businesses.The DGS-1210 Series is the latest generation of D-Link Web Smart Switches featuring D-Link Green 3.0 technology. The series complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensure your network remains protected after the upgrade from IPv4 to IPv6*. By offering multiple management options, the DGS-1210 series allows quick deployment, infrastructure expansion, and seamless function upgrades. Targeting small and medium-sized businesses, the DGS-1210 Web Smart Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.Energy SavingDGS-1210 switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, DGS-1210 switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the PoE switch so that unnecessary power consumption can be saved during off hours. The DGS-1210 Series switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.Easy ManagementThe D-Link Web Smart Switch series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC’s operating system. In the first installation, the SmartConsole Utility will automatically discover all D-Link Smart switches in the network, allowing administrators to assign IP addresses and the subnet mask quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. Important management commands, such as download firmware or configuration file, offer a sophisticated method of batch operations for multiple switches.Auto Surveillance VLAN and Voice VLANThe D-Link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of real-time video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic are at their highest levels. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication.Extensive Layer 2 FeaturesEquipped with a complete line-up of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.Secure your NetworkD-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.
LongProductName - 8x 10/100/1000BASE-T RJ-45 + 2x 100/1000 Mbps SFP, 20 Gbps, 14.88 Mpps, 8K MAC, 280 x 126 x 44 mm
LongSummaryDescription - D-Link DGS-1210-10. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting, Form factor: 1U
Management features - ARP inspection - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - MIB support - Y
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Web-based management - Yes
Management features > Switch type - Managed L2+
Manufacturer - D-Link
Manufacturer_code - DGS-1210-10/E
MPN - DGS-1210-10/E
Multicast features - Multicast support - Yes
Name - 8/2P D-Link DGS-1210-10/E M
Name - D-Link DGS-1210-10/E
Name - D-Link | 10-Port Gigabit Smart Managed Switch | DGS-1210-10 | Managed L2+ | Rackmountable
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Network - Port mirroring - Yes
Network - Spanning tree protocol - Yes
Operational conditions - Heat dissipation - 373.96 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -10 - 70 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 50.00 mm
Package features > Gross depth master carton - 310 mm
Package features > Gross height (mm) - 290.00 mm
Package features > Gross height master carton - 225 mm
Package features > Gross width (mm) - 130.00 mm
Package features > Gross width master carton - 210 mm
Package features > Net weight master carton - 3 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 847 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > PET - 4 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 0.249 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 325 mm
Packaging data - Package height - 70 mm
Packaging data - Package weight - 2.08 kg
Packaging data - Package width - 286 mm
Performance - Mean time between failures (MTBF) - 205249 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces - SFP module slots quantity - 2
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Power - AC input voltage - 100 - 240 V
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Producent: Nazwa producenta / importera - D-link
D-Link (Polska) Sp. z o.o.
ul. Mysikrólika 11a
02-809 Warszawa
Producer - D-link
ProducerCode - DGS-1210-10/E
Producer product family - 10-Port Gigabit Smart Managed Switch
Producer product name - DGS-1210-10
ProductName - DGS-1210-10
Security - Access Control List (ACL) - Yes
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - MAC address filtering - Yes
ShortDescription -
ShortSummaryDescription - D-Link DGS-1210-10, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Stck_Kart - 5
Stck_Pal - 0
Storno - Y
Technical details - Master (outer) cases per pallet (air) - 36 pc(s)
Technical details - Master (outer) cases per pallet (sea) - 54 pc(s)
Technical details - Pallet gross length - 110 cm
Technical details - Pallet gross weight (air) - 425.5 kg
Technical details - Pallet gross weight (sea) - 625.9 kg
Technical details - Pallet gross width - 120 cm
Technical details - Pallet height (air) - 140.3 cm
Technical details - Pallet height (sea) - 2.04 m
Technical details - Products per pallet (air) - 180 pc(s)
Technical details - Products per pallet (sea) - 270 pc(s)
Technical details - Products per shipping (inner) case - 5 pc(s)
Technical details - Shipping (inner) case gross weight - 11.1 kg
Technical details - Shipping (inner) case height - 31.7 cm
Technical details - Shipping (inner) case length - 38.2 cm
Technical details - Shipping (inner) case net weight - 10.4 kg
Technical details - Shipping (inner) case width - 34.6 cm
Technical details > Gross weight - 1.18 kg
Technical details > Net weight - 0.98 kg
Technical details > Other features - Optional “standard mode” or “surveillance mode” management user interface
Technical details > Producer - D-Link
Title - D-Link DGS-1210-10 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black, Grey
URL - https://www.dlink.com
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo -
Weight - 1,80
Weight - 1.8
Weight & dimensions - Depth - 126 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 980 g
Weight & dimensions - Width - 280 mm
