Brand - Dahua Technology
BrandPartCode - DH-PFS3010-8ET-65
Category - Network Switches
Certificates - Certification - CE: EN60950
FCC
Data transmission - Forwarding rate - 1.49 Mpps
Data transmission - MAC address table - 2000 entries
Data transmission - Switching capacity - 2 Gbit/s
Design - LED indicators - Yes
Design - Product colour - Black
dimensionalWeight - 1092
GTIN - 6939554946950
LongDesc -

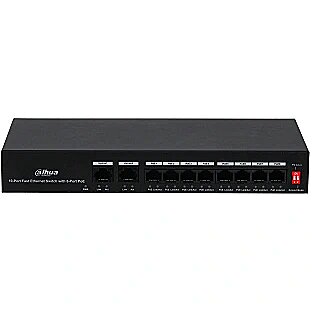

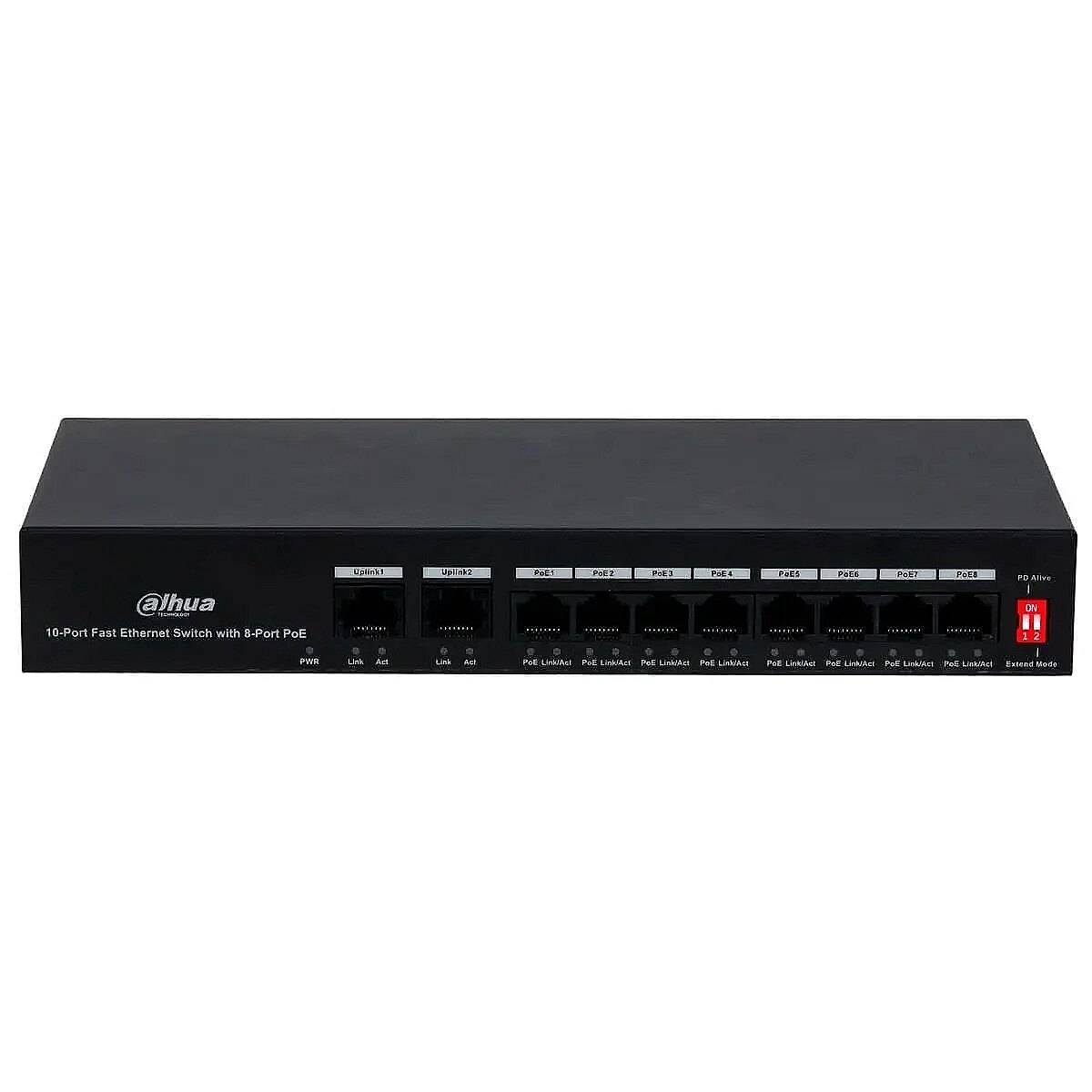

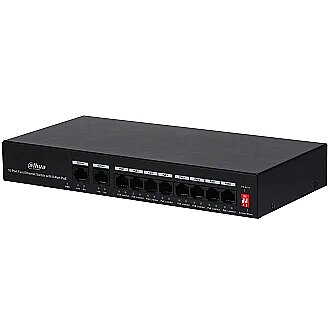

LongProductName - 10-Port Fast Ethernet Switch with 8-Port PoE
LongSummaryDescription - Dahua Technology PoE DH-PFS3010-8ET-65. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 2000 entries, Switching capacity: 2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)
Network - 10G support - No
Network - Ethernet LAN data rates - 10,100 Mbit/s
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - 10 - 90 °C
Packaging data - Package depth - 262 mm
Packaging data - Package height - 72 mm
Packaging data - Package weight - 1.3 kg
Packaging data - Package width - 303 mm
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 10
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Fast Ethernet (copper) ports quantity - 10
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 65 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 65 W
producerCode - PFS3010-8ET-65
productName - Dahua Technology PoE DH-PFS3010-8ET-65 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black
ProductName - DH-PFS3010-8ET-65
productSize - Normal
Safety warning - Warnings - Do not open the case or try to repair it yourself.
Safety warning - Warnings - The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
ShortSummaryDescription - Dahua Technology PoE DH-PFS3010-8ET-65, Fast Ethernet (10/100), Power over Ethernet (PoE)
sizeX - 300
sizeY - 70
sizeZ - 260
Title - Dahua Technology PoE DH-PFS3010-8ET-65 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black
URL - https://www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/Desktop-PoE-Switch/PFS3010-8ET-65
WarrantyInfo -
warrantyLength - 24
warrantyType - F
weight - 1210
Weight & dimensions - Depth - 122.9 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Weight - 760 g
Weight & dimensions - Width - 242.5 mm
