Qnap 2PORT BASET 10GBE NW EXP CARD LOWPROFILE FORMFACTOR PCIEGEN3X4

Accessories included - Network card QIG 3 handles
ARTIKEL1 - 2PORT BASET 10GBE NW EXP CARD
ARTIKEL2 - LOWPROFILE FORMFACTOR PCIEGEN3X4
Brand - QNAP
BrandPartCode - QXG-10G2T
Breite - 0
Category - Network Cards
Category - Root/Electronics/Networks and communication/Network interface cards
Chipset type -
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Interfejs - PCI-E
Dane techniczne: LAN 10 Gb/s - 2 szt.
Dane techniczne: Obsługiwane protokoły - IEEE 802.3an | IEEE 802.3bz
Dane techniczne: Obsługiwane systemy operacyjne - Linux
Dane techniczne: Obsługiwane systemy operacyjne - Windows 10
Dane techniczne: Obsługiwane systemy operacyjne - Windows 11
Dane techniczne: Producent - Qnap
Dane techniczne: Przeznaczenie - NAS
Dane techniczne: Rodzaj komunikacji - przewodowa
Dane techniczne: Typ - wewnętrzna

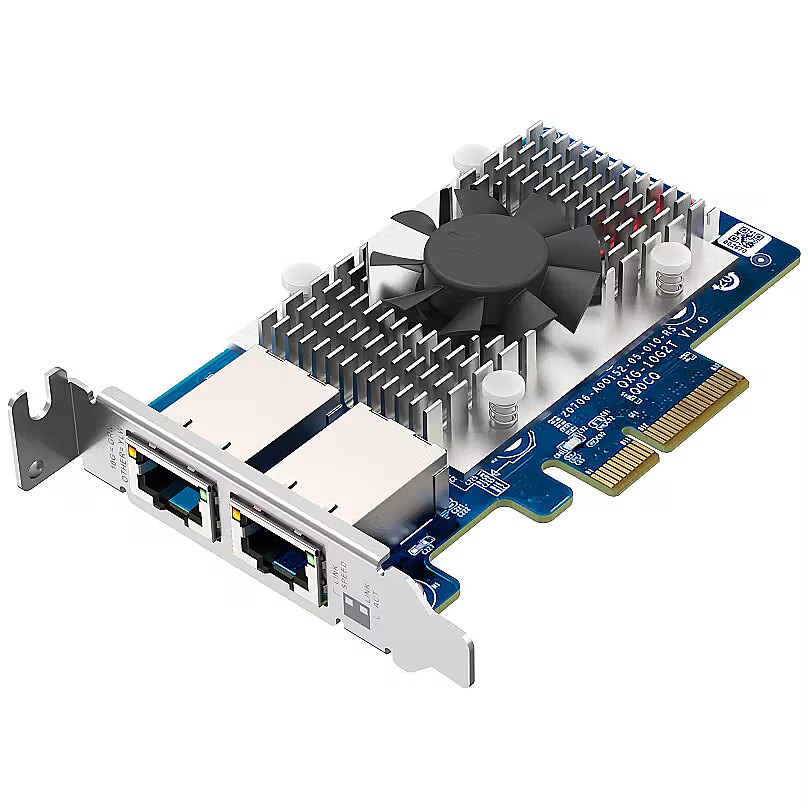

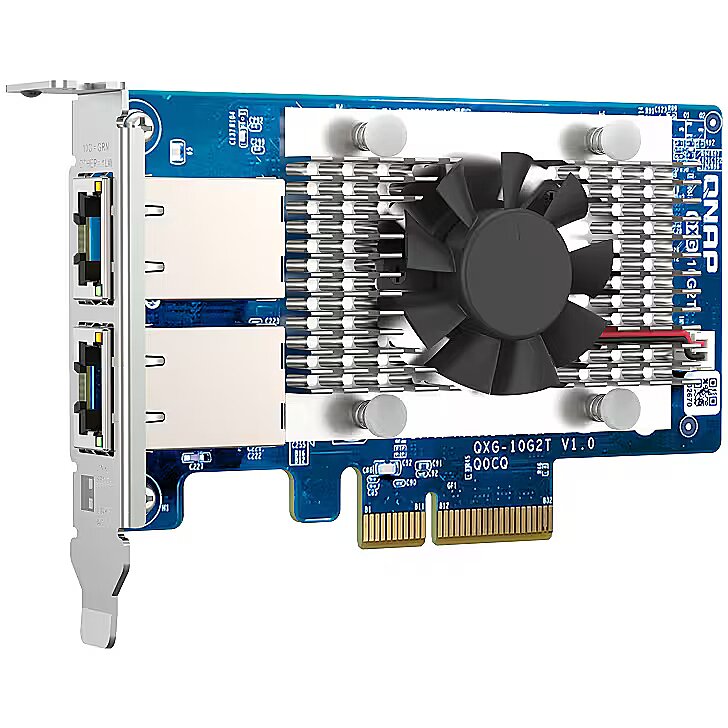

Description - Dual-port 10 GbE network adapter (RJ45) supporting 5 speeds
The QXG-10G2T is a highly energy-efficient and cost-effective 10 GbE network expansion card that is suitable for a team requiring simultaneous data access or a photographer/filmmaker requiring super-fast data transmission.     5 speeds     Supports five speeds (10GbE / 5GbE / 2.5GbE / 1GbE / 100MbE).     NAS servers and computers     The QXG-10G2T can be installed in a QNAP NAS server or Windows computer.     Marvell AQtion AQC107 controller     Highly energy-efficient and cost-effective.     PCIe 3.0     PCIe Gen 3 x4 provides data transfer speeds of up to 32 Gbps.     Module for efficient cooling     Cools the QXG-10G2T and maintains high performance.     LED indicators     Ability to monitor the real-time status of ports with practical LED indicators. NAS and computer operating system support
QNAP network expansion cards support NAS operating systems (QTS and QuTS hero), Windows 10 and Linux, allowing you to maximize the performance potential of all your network devices.
Get connectivity of up to 20 Gbps
By virtually connecting two 10 GbE ports via SMB Multichannel or port trunking, you gain more bandwidth from your QNAP NAS. Let's see which features are suitable for usage scenarios: SMB Multichannel: Multiply the available bandwidth (20 Gbps) between the NAS server and directly connected clients. Suitable for personal use. Port Trunking: Improve file access performance for simultaneous data access with multiple team members. Recommended for users who use network switches in their IT infrastructure.
Design - Chipset - Marvell AQtion AQC107
Design - Component for - PC
Design - Internal - Yes

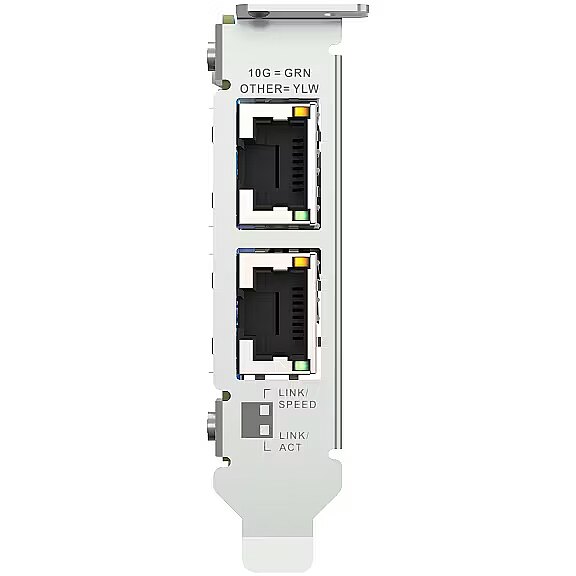

Design - LED indicators - Yes
Design - Product colour - Green
Designation - CE+WEEE
dimensionalWeight - 311
dimension depth - 50 mm
dimension height - 140 mm
Dimensions - Length 111.5mm
dimension weight - 235 g
dimension width - 195 mm
ean - 4711103084373
EANCode - 4711103084373
Eans - 4711103084373
Gewicht - 0
GRUPPE1 - Network
GRUPPE2 - Network Adapters
GTIN - 0885022026722
GTIN - 885022026722
GTIN - 4711103084373
guarantee - 24
guarantee_type - normal
HERSTELLER - QNAP
Hoehe - 0
HSTNUMMER - QXG-10G2T
Interface - PCIe
Laenge - 0
LongDesc -
LongProductName - 2 x NBASE-T (RJ45), PCIe 3.0 x4, 10Gbps
LongSummaryDescription - QNAP QXG-10G2T. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Green
Name - QNAP QXG-10G2T
name - QXG-10G2T Dual-port 10G BASE-T 10Gb Net. Ex.Car
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 100,1000,2500,5000,10000 Mbit/s
Network - Ethernet LAN data rates - 1000
Network - Ethernet LAN data rates - 2500 Mbit/s
Network - Ethernet LAN data rates - 5000 Mbit/s
Network - Ethernet LAN data rates - 10000 Mbit/s
Network - Maximum data transfer rate - 10000 Mbit/s
Network - Networking standards - IEEE 802.3an
Network - Networking standards - IEEE 802.3an, IEEE 802.3bz
Network - Networking standards - IEEE 802.3bz
Other features - Marvell AQtion AQC107 Controller NBASE-T (RJ45) Connector PCIe and PCIe 3.0 x4 Rails Transmission Speeds 10Gb/s/5Gb/s/2.5Gb/s/1Gb/s/100Mb/s Standards IEEE IEEE 802.3an IEEE 802.3bz Bracket Pre-installed low-profile bracket; special full-height brackets included in the package (for selected QNAP NAS devices) NAS Operating System At least QTS/QuTS 5.0.1.2430 build 20230614 Models with PCIe Slots Support for RedHat Linux 3.10 or later Support for Windows Windows 10/11 (32-bit/64-bit) Support for Debian Linux 3.10 or later
Packaging content - Mounting brackets included - Yes
Packaging content - Quick installation guide - Yes
Ports - 2 x RJ-45
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - Ethernet
Ports & interfaces - PCI version - 3.0
Producent: Nazwa producenta / importera - Qnap
QNAP GmbH
Karl-Arnold-Straße 26
47877 Willich
producer - QNAP
Producer - Qnap
producerCode - QXG-10G2T
ProducerCode - QXG-10G2T
productName - QNAP QXG-10G2T network card Internal Ethernet 10000 Mbit/s
ProductName - QXG-10G2T
productSize - Normal
ShortDescription -
ShortSummaryDescription - QNAP QXG-10G2T, Internal, Wired, PCI Express, Ethernet, 10000 Mbit/s, Green
sizeX - 195
sizeY - 145
sizeZ - 55
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
System Requirements - PCIe 1 free slot required
System requirements - Compatible operating systems - QTS/QuTS 5.0.1.2430 build 20230614
System requirements - Linux operating systems supported - Yes
System requirements - Windows operating systems supported - Windows 10
System requirements - Windows operating systems supported - Windows 10, Windows 11
System requirements - Windows operating systems supported - Windows 11
Technical details - Warranty period - 2 year(s)
Title - QNAP QXG-10G2T network card Internal Ethernet 10000 Mbit/s
URL - https://www.qnap.com/en/product/qxg-10g2t/specs/hardware
vendpn - QXG-10G2T
WarrantyInfo - 2 years
warrantyLength - 36
warrantyType - F
weight - 230
