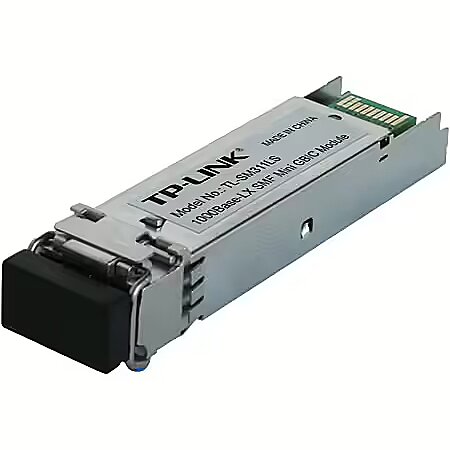

TP-LINK TL-SM311LS Single-mode MiniGBIC Module

ARTIKEL1 - TL-SM311LS SFP FIBER MODULE
ARTIKEL2 - GIGABIT MINIGBIC
Brand - TP-Link
Brand compatibility Features - MSA Compliant
BrandPartCode - TL-SM311LS
Breite - 0
Category - Network Transceiver Modules
Category - Root/Electronics/Networks and communication/Network accessories/Moduły światłowodowe
Category 1 - Netzwerk
Category 2 - SFP/GBIC-Module
Category Code - NTM
Category_1 - Network and Servers
Category_2 - Network - USB Hubs
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC)
CnCode - 85176200
Code - SM311LS
Compliance certificates Certificates - CE, Federal Communications Commission (FCC)
Data Act - Link
Depth Weight & dimensions - 14.6 mm
Description - Moduł światłowodowy TL-SM311 przeznaczony jest do zwiększania zasięgu transferu inteligentnych i zarządzalnych przełączników do kilku, a nawet kilkudziesięciu kilometrów, spełniając wymagania sieci LAN. W zależności od wymagań sieci i konieczności obniżenia kosztów można wybrać właściwe urządzenie sieciowe do którego podłączony jest moduł światłowodowy.
Współpracuje z urządzeniami TL-SG3109/3216/3224, TL-SL3428/3452, TL-SG2109WEB/2216WEB/2224WEB, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351
Description - The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)Supports Digital Diagnostic Monitoring (DDM)Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)Hot-Pluggable with maximum flexibilityCommercial Product Operating Temperature Range: 0-70°C
Designation - CE+WEEE
Digital Diagnostics Monitoring (DDM) Performance - Yes
dimension depth - 65 mm
dimension height - 210 mm
dimension weight - 110 g
dimension width - 165 mm
Duplex system Performance - Full
ean - 1210002612043
EAN - 6935364030216
EANCode - 1210002612043
Eans - 6935364030216
EAN_code - 1210002612043
Features - Brand compatibility - MSA Compliant
Features - Hot-Plug support - Yes
Features - Hot-swap - Yes
Features - Product colour - Silver
Features > Media type - Single-Mode Fiber
Fiber cable diameters supported (core/cladding) Performance - 9/125 µm
Fiber ethernet cabling technology Performance - 1000BASE
Fiber optic connector Performance - LC
Gewicht - 0
Gross Weight Kg - 0,17
GRUPPE1 - Network
GRUPPE2 - Media Converters
GTIN - 0840460605168
GTIN - 840460605168
GTIN - 1210002612043
GTIN - 1210002619301
GTIN - 5715063536957
GTIN - 6935364030216
guarantee - 60
guarantee_type - normal
Height Weight & dimensions - 12.9 mm
HERSTELLER - TP-LINK
Hoehe - 0
Hot-Plug support Features - Yes
Hot-swap Features - Yes
HSTNUMMER - SM311LS
Input voltage Power - 3.3 V
Interface type Performance - mini-GBIC
Laenge - 0
Link - https://www.tp-link.com/us/business-networking/accessory/tl-sm311ls/
Logistics data - Harmonized System (HS) code - 85369010
LongDesc - The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
LongProductName - Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance
LongSummaryDescription - TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: mini-GBIC. Product colour: Silver, Brand compatibility: MSA Compliant. Input voltage: 3.3 V. Compliance certificates: CE, Federal Communications Commission (FCC). Width: 55.4 mm, Depth: 14.6 mm, Height: 12.9 mm
Manual Packaging content - Yes
Manufacturer - TP-Link
Manufacturer Code - SM311LS
Manufacturer Name - TP-LINK
Manufacturer_code - TL-SM311LS
Maximum data transfer rate Performance - 1250 Mbit/s
Maximum transfer distance Performance - 20000 m
Model - TL-SM311LS
MPN - SM311LS
name - MiniGBIC Module TL-SM311LS (10km)
Name - TP-Link TL-SM311LS
Name - TP-LINK TL-SM311LS
Name - TP-link TL-SM311LS, Single-mode MiniGBIC module work with MC210CS | TP-LINK | MiniGBIC Module | TL-SM311LS | Single-Mode Fiber
Name - Z GBIC TP-LINK SM311LS - Gigabit Single-Mode SFP Module
Networking standards Performance - IEEE 802.3z
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 70 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Package depth Packaging data - 207 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 145.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross weight - 0.10 kg
Package features > Gross width (mm) - 50.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Paper/Pasteboard - 30.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.04 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 38 mm
Package weight Packaging data - 110 g
Package width Packaging data - 38 mm
Packaging content - Manual - Yes
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Package depth - 207 mm
Packaging data - Package height - 38 mm
Packaging data - Package weight - 110 g
Packaging data - Package width - 38 mm
Performance - Digital Diagnostics Monitoring (DDM) - Yes
Performance - Duplex system - Full
Performance - Fiber cable diameters supported (core/cladding) - 9/125 µm
Performance - Fiber ethernet cabling technology - 1000BASE
Performance - Fiber optic connector - LC
Performance - Interface type - mini-GBIC
Performance - Maximum data transfer rate - 1250 Mbit/s
Performance - Maximum transfer distance - 20000 m
Performance - Multi-mode fiber (MMF) supported - No
Performance - Networking standards - IEEE 802.3z
Performance - SFP transceiver standard - LX
Performance - SFP transceiver type - Fiber optic
Performance - Single-mode fiber (SMF) supported - Yes
Performance - Wavelength - 1310 nm
Power - Input voltage - 3.3 V
producer - TP-LINK
Producer - TP-Link
ProducerCode - TL-SM311LS
Producer product family - MiniGBIC Module
Producer product name - TL-SM311LS
Product colour Features - Silver
ProductName - Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance
Product Net Weight ELKO Logistics Data - 0.05 kg
Quantity per pack Packaging content - 1 pc(s)
SFP transceiver standard Performance - LX
SFP transceiver type Performance - Fiber optic
Shipping Box Depth ELKO Internal Logistics Data - 12.5 cm
Shipping Box Height ELKO Internal Logistics Data - 4 cm
Shipping Box Weight ELKO Internal Logistics Data - 0.06 kg
Shipping Box Width ELKO Internal Logistics Data - 8.2 cm
ShortDescription -
Short description - TP-LINK MiniGBIC Modul 1GBit SFP LC Singlemode LX SM311LS
ShortSummaryDescription - TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance, Fiber optic, 1250 Mbit/s, mini-GBIC, LC, 9/125 µm, LX
Single-mode fiber (SMF) supported Performance - Yes
Stck_Kart - 1
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 85 °C
Storno - Y
Summary - TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: mini-GBIC. Product colour: Silver, Brand compatibility: MSA Compliant. Input voltage: 3.3 V. Compliance certificates: CE, Federal Communications Commission (FCC). Width: 55.4 mm, Depth: 14.6 mm, Height: 12.9 mm
Technical details > Net weight - 0.06 kg
Technical details > Producer - TP-LINK
Technical specifications - MEDIA KONWERTER I MODUŁ
Standardy i protokoły: IEEE 802.3z, CSMA/CD, TCP/IP
Zasilanie: 3,3V
Kabel: Światłowód jednomodowy
Typ światłowodu: 9/125 um jednomodowy
Maksymalna długość kabla: 10km
Prędkość transmisji: 1,25Gb/s
Typ portu: LC
Długość fali: 1310nm
Certyfikaty: FCC, CE
Środowisko pracy:
    Dopuszczalna temperatura pracy: 0℃~70℃ (32℉~158℉)
    Dopuszczalna temperatura przechowywania: -40℃~80℃ (-40℉~176℉)
    Dopuszczalna wilgotność powietrza: 10%~90%, niekondensująca
    Dopuszczalna wilgotność przechowywania: 5%~90%, niekondensująca
Title - TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance
Unit Box Height - 0.04
Unit Box Length - 0.125
Unit Box Width - 0.082
Unit Calculated Volume ELKO Internal Logistics Data - 0.00041 cubm
Unit Calculated Weight ELKO Logistics Data - 0.06 kg
Units per Shipping Box ELKO Logistics Data - 1
URL - https://www.omadanetworks.com/de/business-networking/omada-accessory-module-cable/sm311ls/
Vendor Homepage - https://www.omadanetworks.com/de/business-networking/omada-accessory-module-cable/sm311ls/
vendpn - SM311LS
Warranty - 24
Warranty - 24 month(s)
Warranty - 60 months
WarrantyInfo -
Wavelength Performance - 1310 nm
Weight - 0,12
Weight - 0.11
Weight & dimensions - Depth - 14.6 mm
Weight & dimensions - Height - 12.9 mm
Weight & dimensions - Width - 55.4 mm
Width Weight & dimensions - 55.4 mm
