Accessories included - Low-profile PCIe card (6.6 inch × 2.731 inch)
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Chipset type -
Description - Marvell QLogic QLE2690/2692 Single and dual port 16GFC enhanced Fiber Channel adapters Marvell QLogic QLE2690 single-port HBAs and QLE2692 dual-port Enhanced 16Gb FC (16GFC) HBAs feature industry-leading native FC performance with extremely low CPU utilization and full hardware overhead. Enhanced 16GFC Compared to 16GFC, the Marvell QLogic Enhanced 16GFC solution offers higher performance per port (up to 650,000 IOPS) with low power consumption. Additionally, Marvell StorFusion technology provides improved provisioning, QoS and improved resiliency, while meeting the needs of IT organizations that require reliability, integrated management and guaranteed network performance. Enhanced 16GFC technology solves the complexity of the data center by enabling a storage network infrastructure that supports advanced virtualization features, application-aware services and simplified management. QLE2690/2692 adapters provide advanced network storage features that can handle the most demanding virtualized and private cloud environments, while taking full advantage of the capabilities of high-performance 16GFC and all-flash (AFA) arrays. Advanced management tools automate and simplify SAN provisioning, helping to reduce cost and complexity, while 16GFC's unmatched performance eliminates potential I/O bottlenecks in today's high-performance, multi-processor, multi-core servers.
Designation - CE+WEEE
dimension depth - 40 mm
dimension height - 180 mm
Dimensions -
dimension weight - 326 g
dimension width - 260 mm
ean - 4711174725618
EAN - 4711174725618
guarantee - 24
guarantee_type - normal
Interface - PCIe
Manufacturer - Synology
MPN - QLE2692

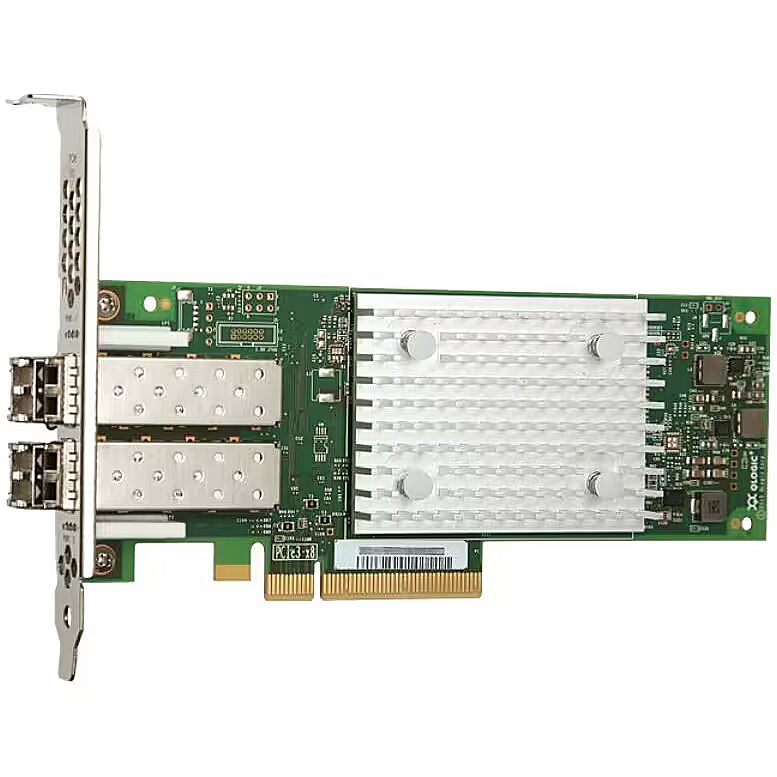

name - QLE2692 16GFC HBA Adapter Card
Name - Synology NAS QLE2692 2K Fibre 16Gbit +++
Other features - Efficiency Full duplex connection speed of 3200 MB/s per port Logins Supports 2048 simultaneous logins and 2048 active exchanges per port Management tools and device tools QConvergeConsole CLI: A unified management tool supporting multiple generations of Marvell FC adapters MCTP/PLDM ESXCLI plugin for vSphere MRVLFC PowerKit (cmdlets for Windows PowerShell) QCC plugins for vSphere Marvell QLogic FC QCC extension for Windows Admin Center Boot support BIOS Unified Extensible Firmware Interface (UEFI) Fourth code (FCode)
producer - Synology
Security - TUV EN60950-1 TUV IEC 60950-1 CB Certified EN55022 EN55024 EN61000-3-2 EN61000-3-3
System Requirements -
Type - LAN
vendpn - QLE2692
