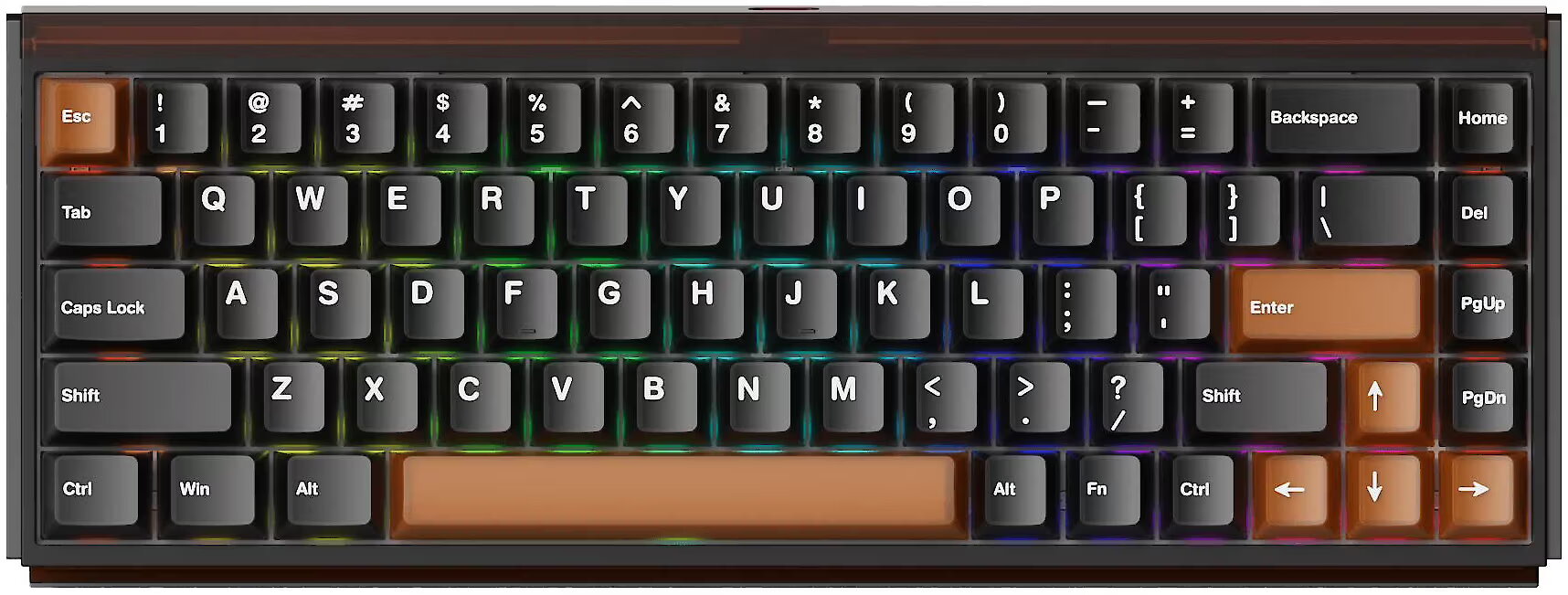

AKKO KEYBOARD WRL RAY68-HE/BROWN 103-RA68A-000

AC adapter included Packaging content - No
Adjustable backlight Design - Yes
Backlight colour Design - RGB
Backlight Design - Yes
Backlight type Design - RGB LED
Battery capacity Power - 8000 mAh
Bluetooth version Keyboard - 5.0
Category Code - KEY
Connectivity technology Keyboard - Wired & Wireless
Description - Lightbox DIY fun
DIY Lightbox
The Ray68 HE Magnetic Keyboard isn’t just a high-performance keyboard—it’s also a platform for self-expression. With the built-in DIY Lightbox, you can personalize your keyboard’s aesthetic like never before. Full Range RT0.01mm
Achieve ultra-accurate 0.01mm Rapid Trigger and adjustable actuation distance in 0.01mm step. This allows users to fine-tune their typing or gaming experience, ensuring optimal actuation for faster response times with enhanced precision, ideal for competitive gaming. Cross-Compatible with Mainstream Magnetic Switches
Ray68 HE Magnetic Keyboard provides compatibility with 5 third-party magnetic switches. Users can choose the appropriate switch from the Akko Driver list and calibrate the keyboard easily after replacement. Mixing and matching them in different keys is also possible. Disclaimer: High-percision switches require tuning and experimenting with the keyboard. The switches listed are guaranteed to perform at 0.01mm precision. Other switches may work but are unable to reach the claimed accuracy. Mechanical switches are not supported. ARM Cortex-M4 CPU
The powerful CPU delivers enhanced processing power with low energy consumption. It features automatic calibration between -20°C and 80°C, ensuring faster performance and extended battery life. 8,000Hz Polling Rate
Enjoy ultra-fast response times and smoother, more precise inputs—perfect for gaming and high-performance tasks. Ray68 Wired Version supports an 8,000Hz polling rate for ultra-low latency and instant response. For Ray68 Wireless Version (Tri-Mode), supports 8000Hz polling rate for all keys in wired or 2.4G wireless modes. RT Stabilizer
This “RT Stabilizer” mode is especially useful when set to a Rapid Trigger precision of 0.005mm, as magnetic switch keyboards may experience unintended inputs or disconnection from slight hand tremors, which can disrupt the overall gaming experience. ARGB at a 500Hz Refresh Rate
The Ray68 HE Magnetic Keyboard features ARGB(addressable RGB) with individually controlled LEDs for smooth, flicker-free lighting. With Alpha channel integration and a 500Hz refresh rate, it offers richer dynamic effects and reduces visual fatigue—perfect for gaming and aesthetic builds. Snap Key
Snap Key, Akko’s SOCD implementation, prioritizes the latest input for faster directional shifts, ensuring smooth, responsive control in FPS games. Adjustable Actuation Distance
These magnetic switches allow users to adjust every key’s actuation point from 0.1mm to 3.4mm, which offers different kinds of pressing for gaming or typing. Rapid Trigger (RT)
Rapid Trigger eliminates actuation delay by instantly activating and deactivating keys with minimal travel—perfect for FPS gaming. Dynamic Keystrokes (DKS)
A single key supports four actions—light press for action 1, deeper press for action 2, and two-stage release settings. Toggle Key (TGL)
TGL (Toggle Key) turns a key into a switch that can either hold a function or trigger it repeatedly at high speed. Mod-Tap
Mod Tap allows dual-function keys—tap for one action, hold for another—offering greater gaming convenience. Built-in 8000mAh Battery
With a high-capacity battery of around 8000mAh, users can enjoy prolonged periods of uninterrupted typing, gaming, or productivity without the need for constant recharging. Multi-Mode
Ray68 HE Magnetic Keyboard can be connected to multiple devices through Bluetooth 5.0, multi-host 2.4Ghz (with a receiver), and wired Type-C modes with an easy switch. Web & Cloud Driver
Full Customization for Lighting, Keys, and Macros. PC+ABS Keycaps
Durable & Balanced
Made from a blend of PC and ABS, these keycaps combine the toughness of polycarbonate with the smooth feel of ABS, ensuring long-lasting use with a refined typing experience.
Device interface Keyboard - USB + RF Wireless + Bluetooth
Frequency band Keyboard - 2.4 GHz
Hot-swap Features - Yes
Keyboard battery type Power - Built-in battery
Keyboard dimensions (WxDxH) Weight & dimensions - 119 x 317 x 38 mm
Keyboard form factor Keyboard - 65%
Keyboard key switch Keyboard - Magnetic key switch
Keyboard key switch technology Keyboard - Akko AstroAim Magnetic
Keyboard language Keyboard - US English
Keyboard layout Keyboard - QWERTY
Keyboard number of keys Keyboard - 68
Keyboard style Design - Straight
Keycap removal tool Packaging data - Yes
Keycaps material Keyboard - ABS/PC
Manual Packaging content - Yes
Material Design - Acrylonitrile butadiene styrene (ABS)
Mouse included Mouse - No
Multi-device support Keyboard - Yes
Name - KEYBOARD WRL RAY68-HE/BROWN 103-RA68A-000 AKKO
Number of products included Packaging content - 1 pc(s)
Numeric keypad Keyboard - No
Physical layout Keyboard - ANSI
Pointing device Keyboard - No
Polling rate Keyboard - 8000 Hz
Power source type Power - Battery, USB
Product colour Design - Black
Receiver included Packaging content - Yes
Rechargeable Power - Yes
Recommended usage Keyboard - Gaming
Shipping Box Depth ELKO Internal Logistics Data - 47.5 cm
Shipping Box Height ELKO Internal Logistics Data - 37.5 cm
Shipping Box Weight ELKO Internal Logistics Data - 18.25 kg
Shipping Box Width ELKO Internal Logistics Data - 38 cm
Summary - Akko Ray68 HE. Keyboard form factor: 65%. Keyboard style: Straight. Connectivity technology: Wired & Wireless, Device interface: USB + RF Wireless + Bluetooth, Keyboard key switch: Magnetic key switch, Keyboard layout: QWERTY, Keyboard number of keys: 68. Backlight type: RGB LED. Recommended usage: Gaming. Product colour: Black
Surface coloration Design - Monochromatic
Unit Box Height - 0.175
Unit Box Length - 0.37
Unit Box Width - 0.065
Unit Calculated Volume ELKO Internal Logistics Data - 0.004835 cubm
Unit Calculated Weight ELKO Logistics Data - 1.3 kg
Unit Depth ELKO Logistics Data - 37 cm
Unit Height ELKO Logistics Data - 17.5 cm
Units per Pallet ELKO Logistics Data - 0
Units per Shipping Box ELKO Logistics Data - 14
Unit Width ELKO Logistics Data - 6.5 cm
USB connector type Features - USB Type-C
USB Type-C charging port Power - Yes
Vendor Homepage - https://akkogear.eu/products/ray68-he-magnetic-keyboard?variant=45362118852807
Warranty - 12/24 months
Windows keys Keyboard - Yes
