Brand - ICY BOX
BrandPartCode - 60988
Category - Laptop Docks & Port Replicators
GTIN - 4250078172710
Logistics data - Harmonized System (HS) code - 84718000
Logistics data - Master (outer) case gross weight - 12.6 kg
Logistics data - Master (outer) case height - 500 mm
Logistics data - Master (outer) case length - 315 mm
Logistics data - Master (outer) case width - 305 mm
Logistics data - Products per master (outer) case - 9 pc(s)

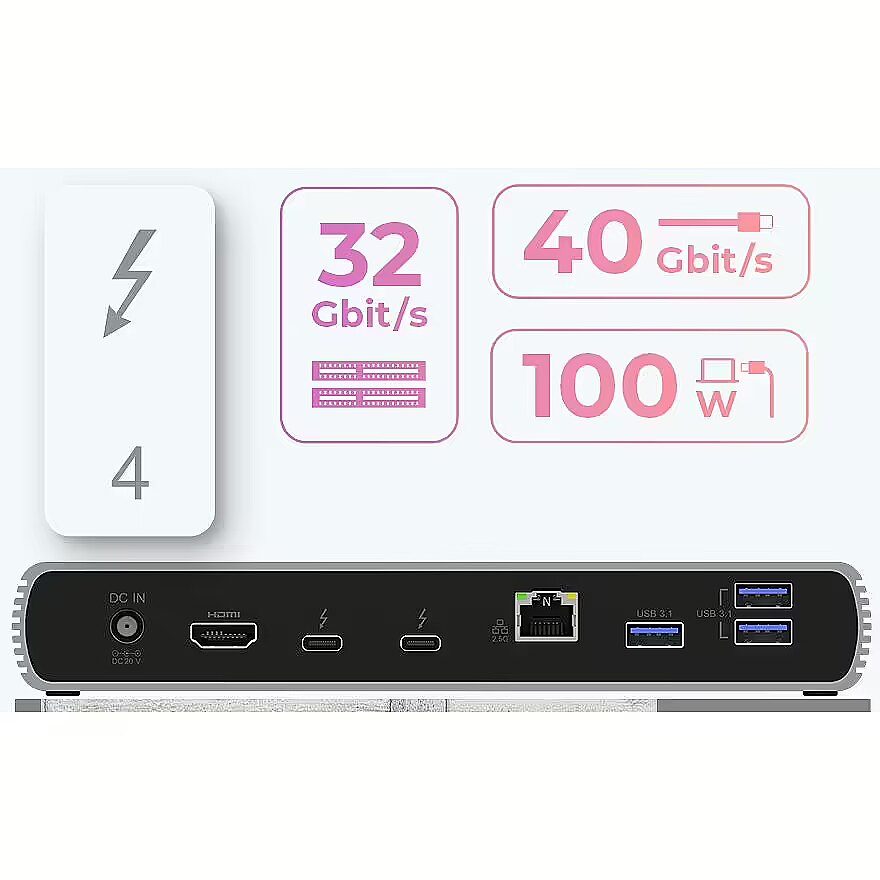

LongDesc - What is Thunderbolt™ 4?It is the superset standard that includesUSB4®, DisplayPort™ and PCI Express (PCIe). With Thunderbolt™ 4, a data transfer rate of up to 40 Gbit/s (at 2 m cable length) as well as 32 GB/s PCIe data transfer must be guaranteed, at least one 100 W charging port must be available and wake-up from sleep mode must be possible.What is the difference between Thunderbolt™ 3 and 4?Theoretically, a Thunderbolt™ 3 device should be able to do the same as a Thunderbolt™ 4 device. However, compared to version 3, Thunderbolt™ 4 now has to meet much stricter standards to be certified. This includes, among other things, support for two 4K displays or one 8K display.IB-DK8801-TB4 prevents cyber attacksThis is realised through Virtualisation Technology for Directed I/O (VT-d). It prevents physical DMA attacks by protecting PCIe peripherals from unauthorised access to memory using DMA remapping. Access is thus only allowed to an isolated and allocated memory of a specific device.
LongProductName - 10 in 1 Thunderbolt 4 Dock mit PD 100 W
LongSummaryDescription - ICY BOX IB-DK8801-TB4. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 96 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Anthracite, Black, Compatible memory cards: SD, Data transfer rate: 40 Gbit/s. Power source type: AC, AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz. Width: 200 mm, Depth: 75 mm, Height: 31 mm
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s

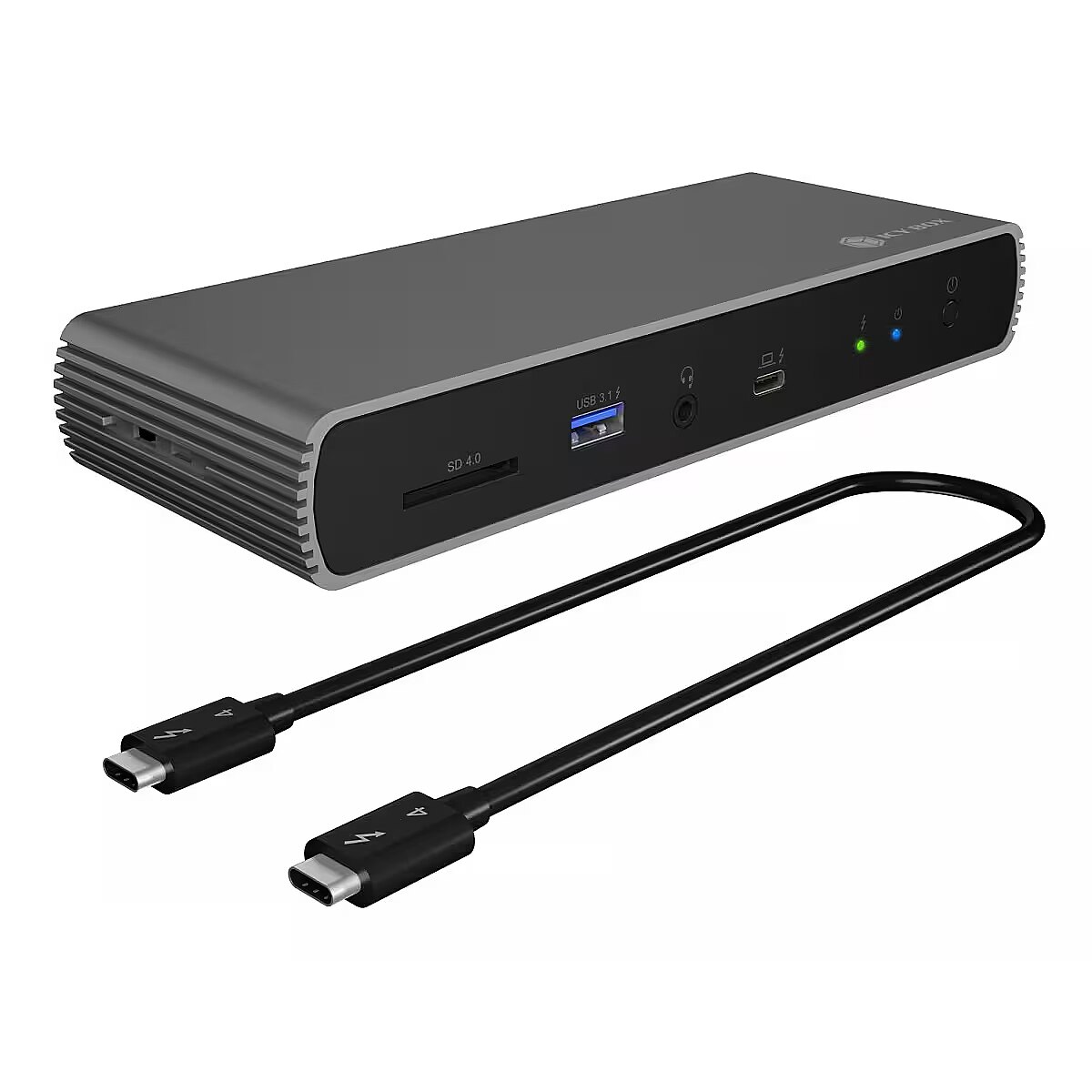

Packaging content - Cables included - DC, Thunderbolt
Packaging content - Manual - Yes
Packaging data - Package depth - 92 mm
Packaging data - Package height - 158 mm
Packaging data - Package weight - 1.4 kg
Packaging data - Package width - 290 mm
Packaging data - Quantity per pack - 1 pc(s)

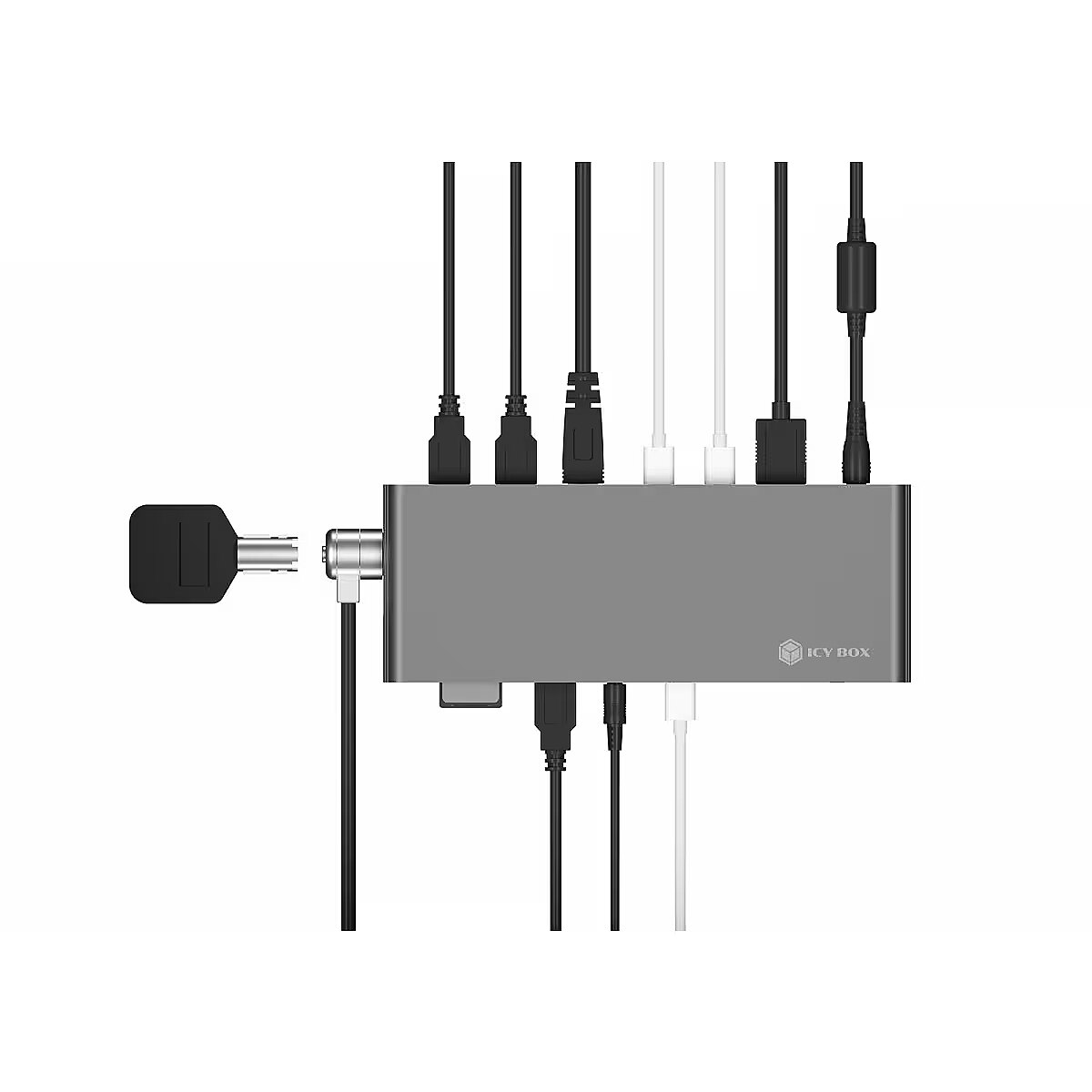

Performance - Cable lock slot - Yes
Performance - Cable lock slot type - Kensington

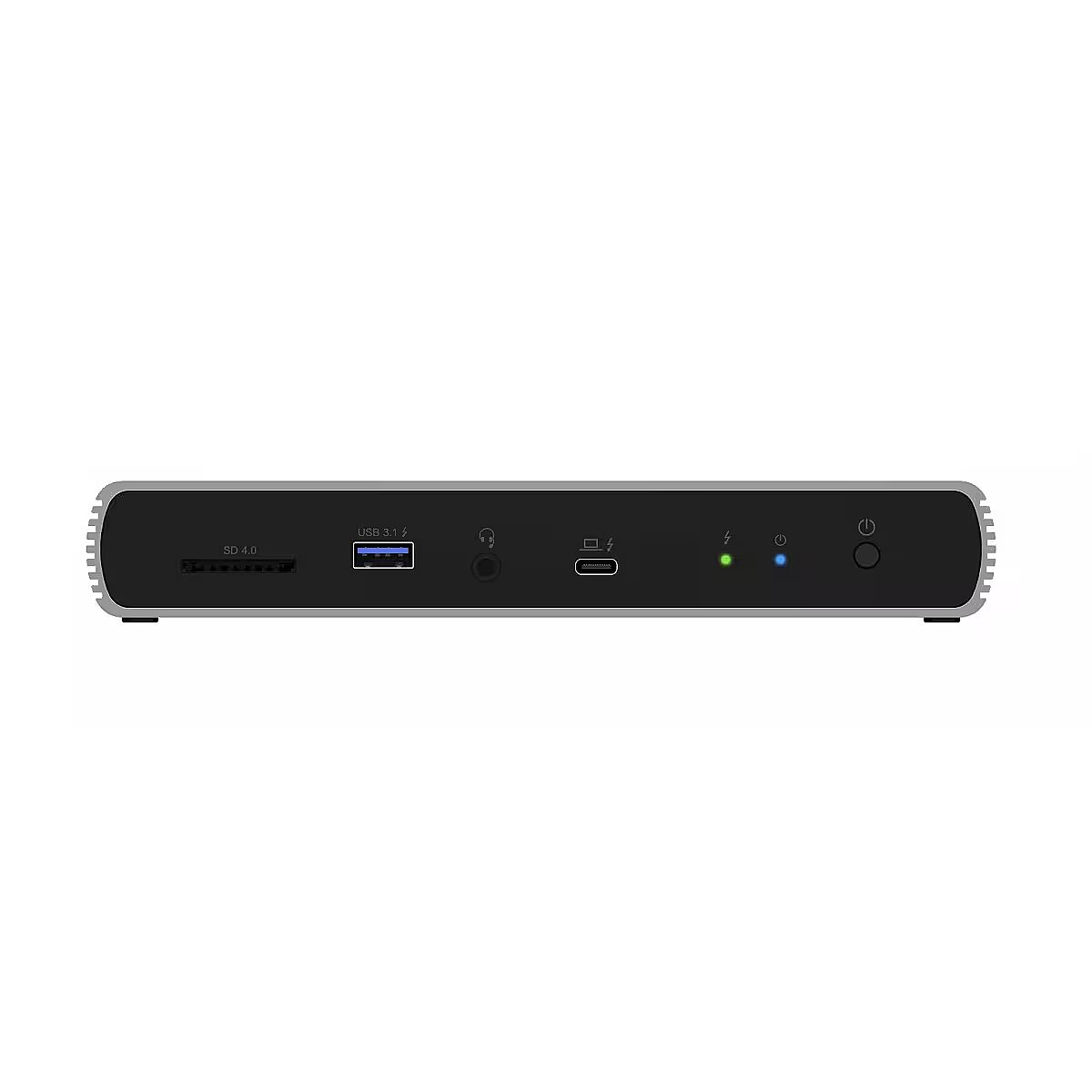

Performance - Card reader integrated - Yes
Performance - Compatible memory cards - SD
Performance - Country of origin - China
Performance - Data transfer rate - 40 Gbit/s
Performance - HD type - 8K Ultra HD
Performance - Housing material - Aluminium
Performance - LED indicators - Yes
Performance - Maximum refresh rate - 60 Hz
Performance - Number of displays supported - 2
Performance - On/off switch - Yes
Performance - Plug and Play - Yes
Performance - Product colour - Anthracite, Black
Performance - UASP support - Yes

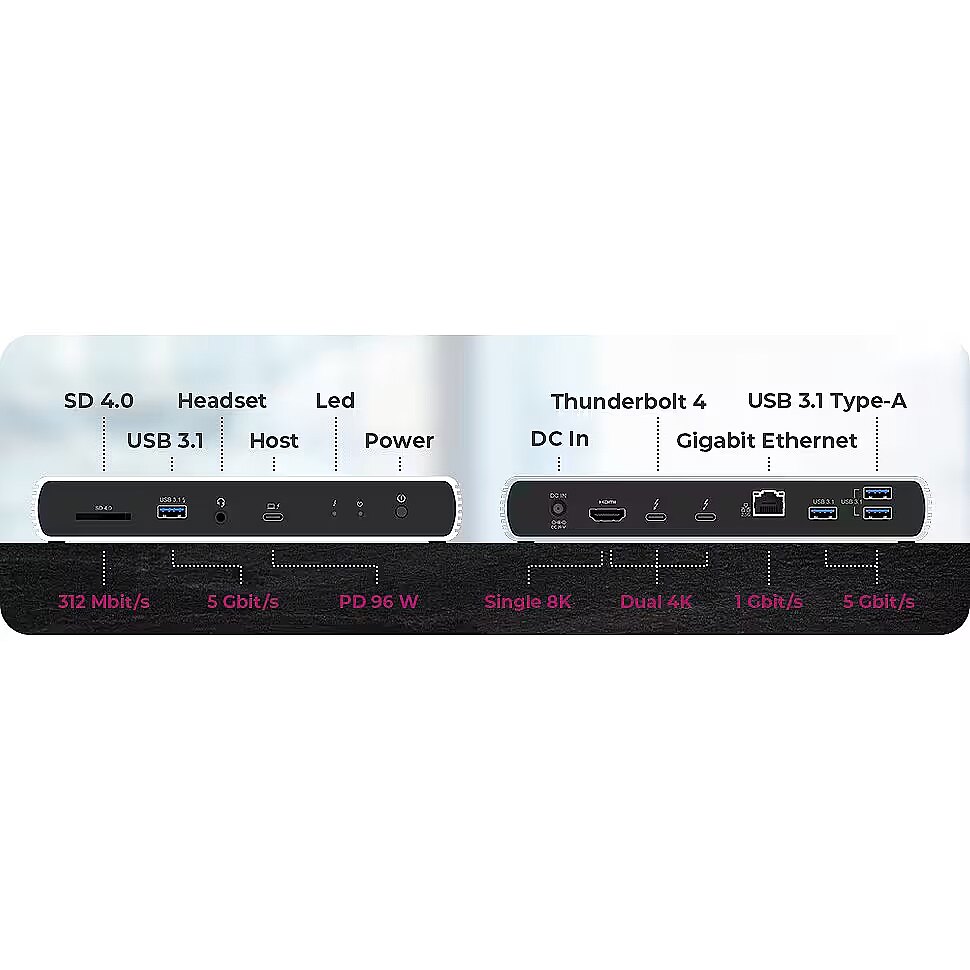

Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired

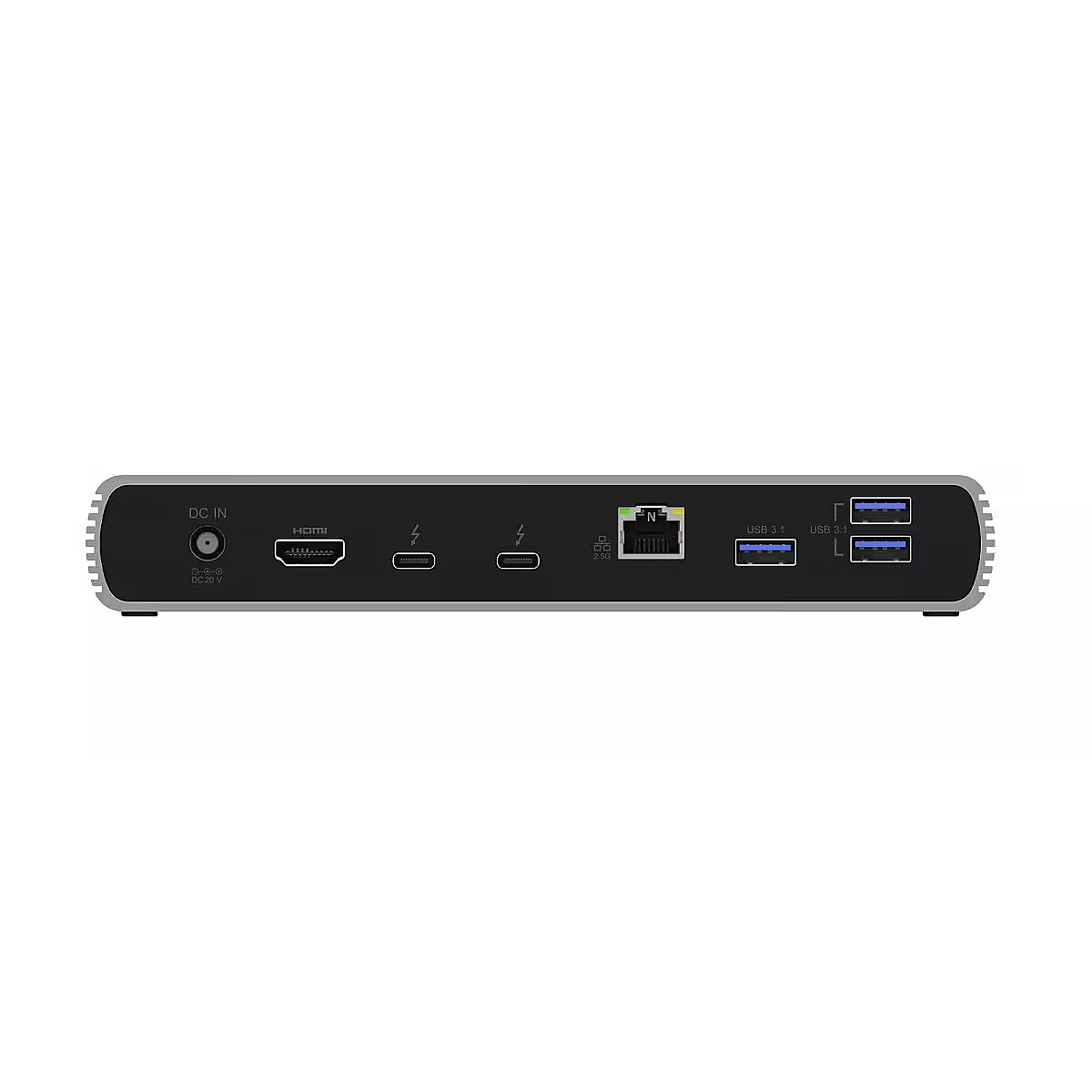

Ports & interfaces - DC-in jack - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - Thunderbolt 4
Ports & interfaces - Microphone in - No
Ports & interfaces - Thunderbolt 4 ports quantity - 2
Ports & interfaces - Thunderbolt ports quantity - 3
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery revision - 3.0
Ports & interfaces - USB Power Delivery up to - 96 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100-240 V
Power - Output current - 6.75 A
Power - Output voltage - 5 - 20 V
Power - Power source type - AC
Power - Power supply - 135 W

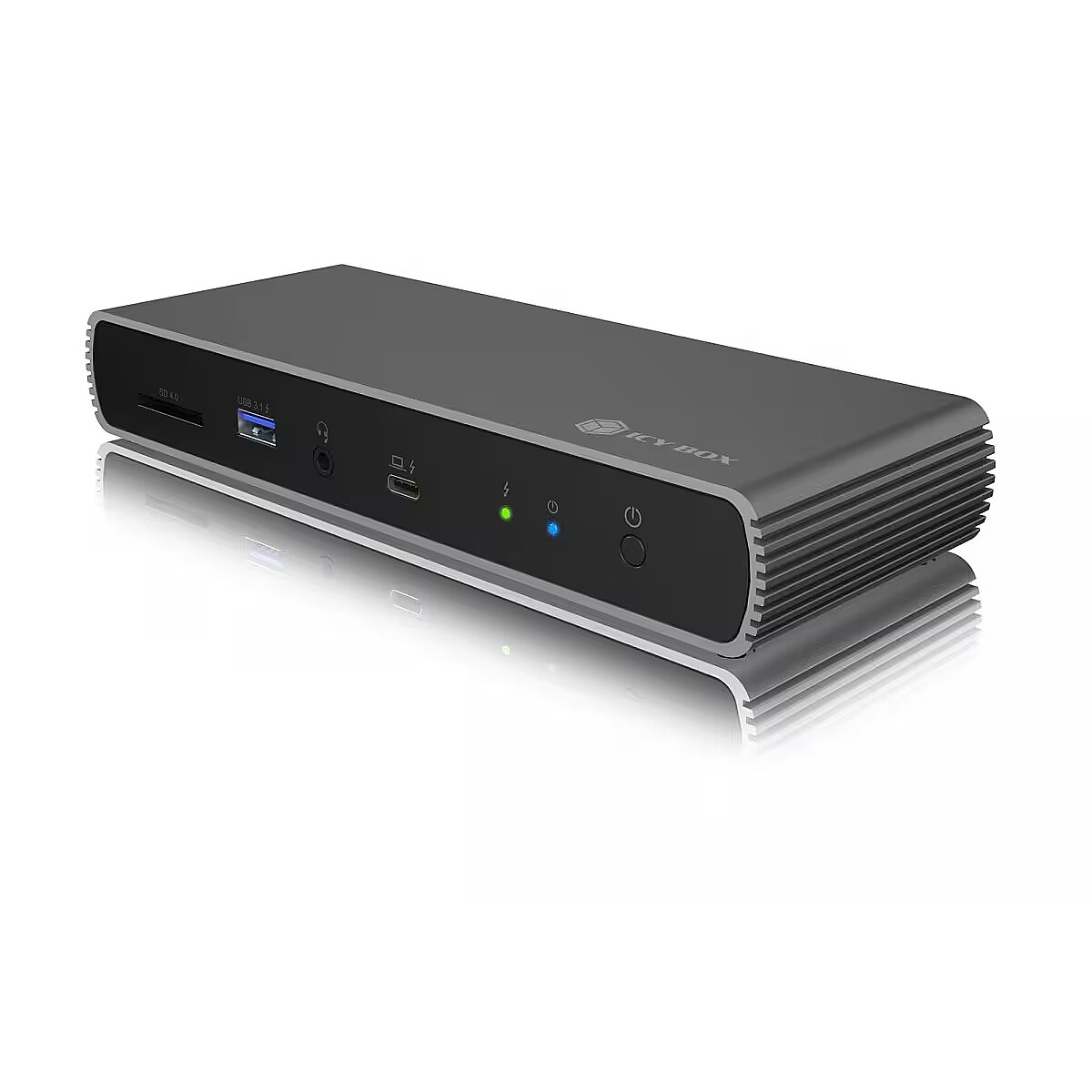

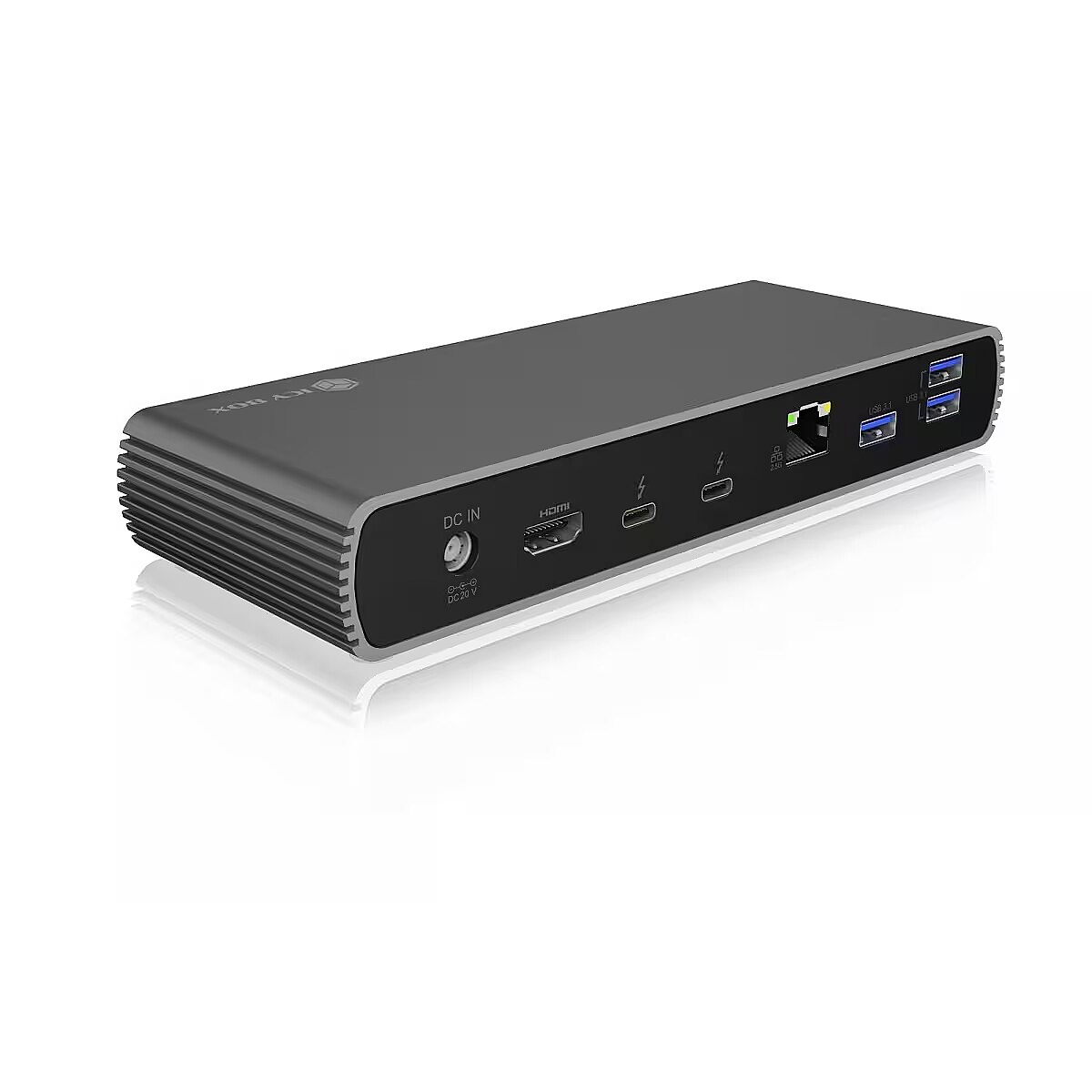

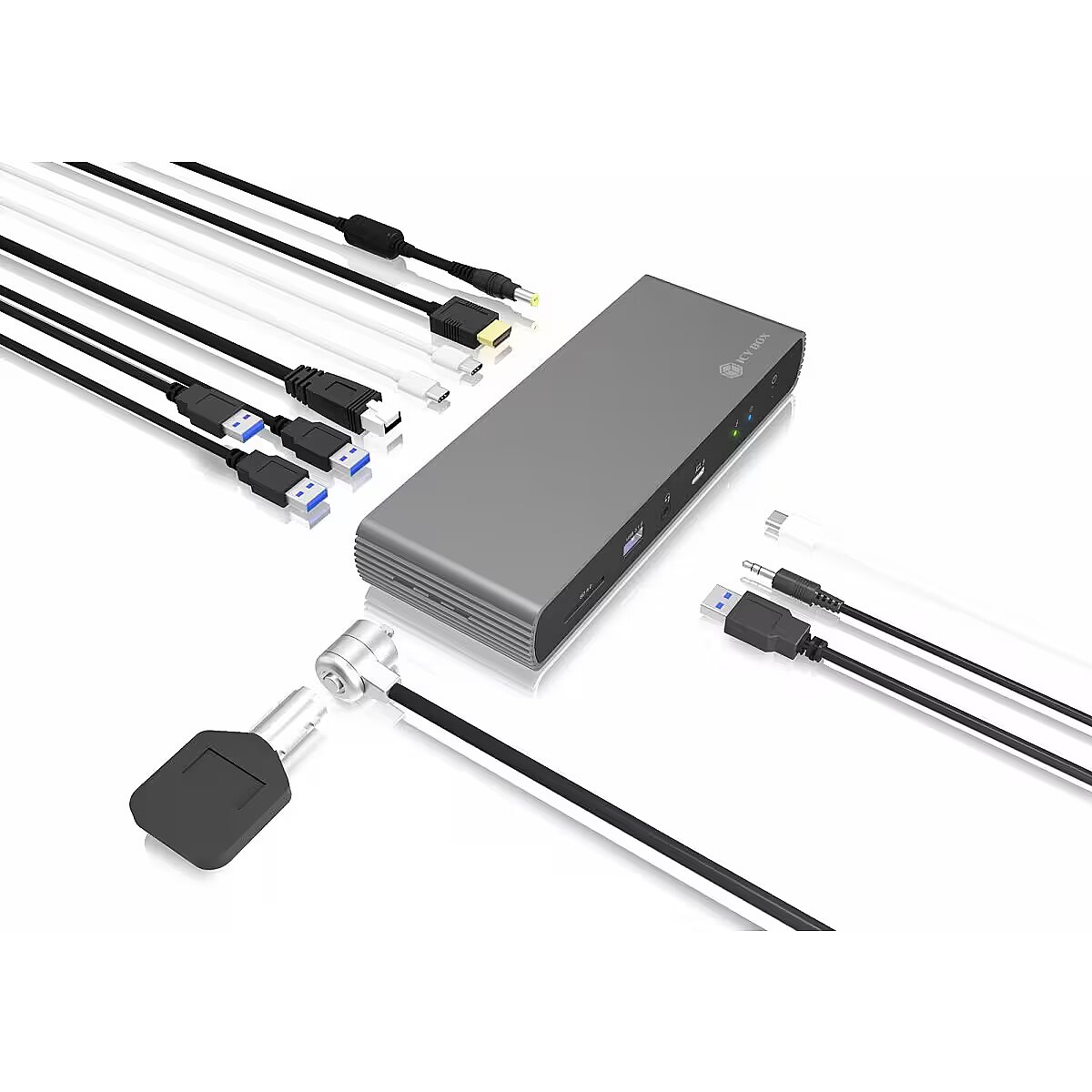

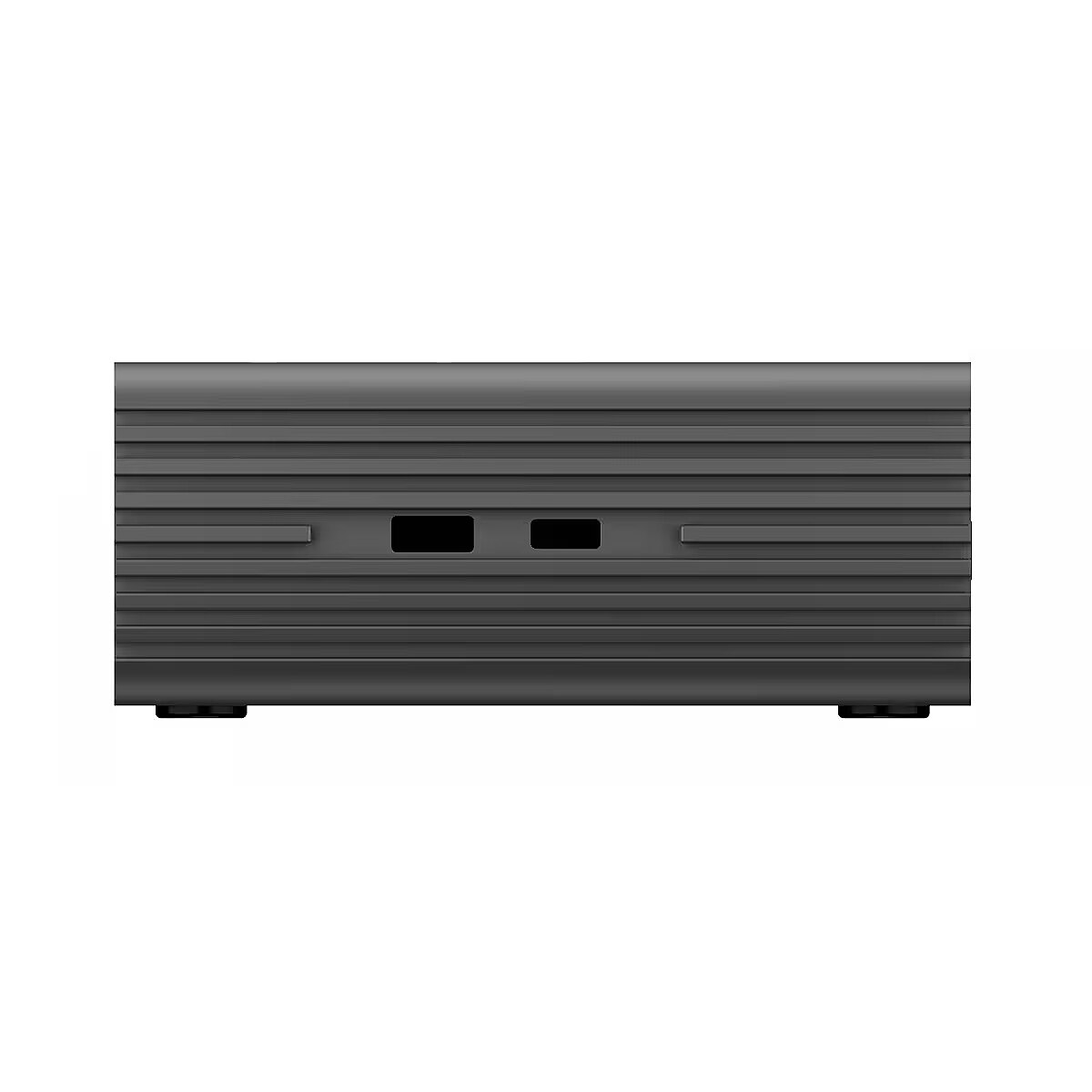

ProductName - IB-DK8801-TB4
ShortSummaryDescription - ICY BOX IB-DK8801-TB4, Wired, Thunderbolt 4, 96 W, 10,100,1000,2500 Mbit/s, Anthracite, Black, SD
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Yes
Title - ICY BOX IB-DK8801-TB4 Wired Thunderbolt 4 Anthracite, Black
URL - https://icybox.de/en/product.php?id=531
WarrantyInfo -
Weight & dimensions - Depth - 75 mm
Weight & dimensions - Height - 31 mm
Weight & dimensions - Weight - 435 g
Weight & dimensions - Width - 200 mm
