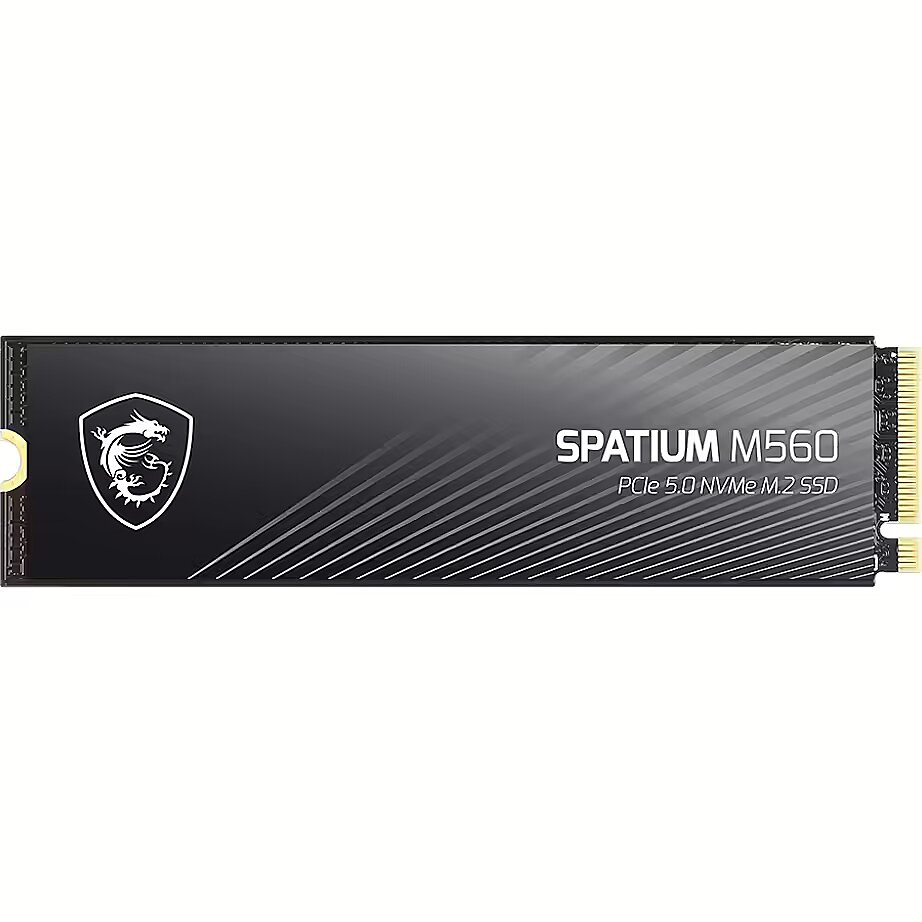

MSI SPATIUM M560, 1TB, M.2 Gen5 x4

Brand - MSI
BrandPartCode - SPATIUM M560 PCIE 5.0 NVME M.2 1TB
Category - Internal Solid State Drives
Category1 - SSD
Category Code - SSU
Color - Not applicable
Component for Features - PC/Laptop
Controller type Features - Phison E31T
Depth - 80 mm
Depth Weight & dimensions - 80 mm
Description - M560
CHARGING AHEAD WITH SPEED
From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM. SUPERCHARGED WITH
PCIe 5.0
Get excited for next-generation storage performance that unites the latest PCIe Gen 5 controller technology and state-of-the-art 3D NAND flash, providing up to 1.8 times faster read/write speeds compared to the previous generation SSDs. The SPATIUM M560 delivers immense performance and capabilities that effortlessly handle even the most extreme gaming or productivity workflows, representing a significant advancement over PCIe 3.0 and SATA technologies. FULFILL UNLIMITED POTENTIAL
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage, empowering you to break records in games or take your talents to the next level. Freeing Up Space
TRIM
To process unnecessary data efficiently and extend the life of SSD for more games or content creations. Gaining Controls
S.M.A.R.T
To Monitor the health of the drive and identify possible issues, letting you be free from worry in games or at work. Error Removal
ECC
To maintain your important records or files intact and ensure a nonstop gaming experience from system failure. Steady Transfer
E2E DATA PROTECTION
To enable reliable data transfer and assist you to game and create in confidence with enhanced system stability. A THOROUGH SHORTCUT WITH DIRECTSTORAGE
DirectStorage accelerates loading times in gameplay and high-resolution rendering, enhancing system performance by enabling hardware decompression directly from NVMe drives to GPUs and freeing up CPU resources for multitasking. Your Performance Booster
BUILT TO WIN
With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency. CREATE. PRODUCE. DONE.
With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency. TAKE CARE OF YOUR DATA
Migrate your data, monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality. PARTNERED WITH ACTIPHY
Actiphy, a world-leading data protection solution provider, develops essential and user-friendly software. ActiveImage Protector* - an enterprise-level backup and disaster recovery software that protects your computer from system failures and data loss. Ideal for individuals and organizations. OPTIMAL M.2 SSD
Designed in the M.2 2280 form factor, SPATIUM SSDs are easy to install into desktops, bringing speedy performance and power efficiency to any computing system. 5-YEAR WARRANTY
MSI stands by the quality and reliability of the SPATIUM M560 with a 5-Year comprehensive warranty. If you need assistance or are not satisfied with your product, MSI support is available to help and assist.PCIe Gen5x4 interface and complies with the NVMe 2.0 standardSequential Read speeds up to 10,300MB/s and Write speeds up to 8,700MB/sUp to 1200 TBWBuilt-in data security and error-correction capabilities1TB to 2TB capacities in M.2 2280 form factorSuitable for both desktop and notebook5-Year Warranty
Description - M560 DATA TRANSFER SPEED From MSI factories comes a new storage solution with astonishing speeds and outstanding performance. Upgrade your system to a new level with SPATIUM series drives. TURBOCHARGED WITH PCIe 5.0 Enjoy extraordinary next-generation storage performance, combining advanced PCIe Gen 5 controller technology with cutting-edge 3D NAND flash memory. This achieves up to 1.8× higher read/write speeds compared to previous-generation SSDs. PCIe 5.0 A BIG LEAP IN PERFORMANCE
SPATIUM M560 drives deliver a massive performance boost, allowing them to easily handle even the most extreme workloads in gaming and heavy data processing-representing a significant advancement over PCIe 3.0 and SATA technology. UNLOCK UNLIMITED POTENTIAL Built-in data protection and error-correction features increase the endurance and durability of NAND flash storage, letting you break gaming records and develop your skills faster. DIRECTSTORAGE ACCELERATED DATA PATH DirectStorage reduces game loading times and high-resolution rendering by improving system performance through hardware-based data decompression directly from NVMe drives to GPU memory, freeing up CPU resources for other tasks. ENHANCED PERFORMANCE BUILT FOR WINNING
Designed for gamers, SPATIUM SSDs are optimized for high performance and bandwidth, delivering minimal latency and significantly reduced game loading times. CREATION. PRODUCTION. READY TO GO. SPATIUM SSDs enable much more. Instantly open images, play videos, load documents, and run demanding applications regardless of storage load. Your creativity and productivity no longer have to wait. TAKE CARE OF YOUR DATA Transfer data, monitor drive health, and track performance in real time using MSI Center. With Actiphy software solutions offering backup and recovery functions, you can prevent loss of valuable files and information. PARTNERSHIP WITH ACTIPHY Actiphy, a world-leading provider of data protection solutions, develops essential and user-friendly software such as ActiveImage Protector*. This enterprise-grade backup and disaster recovery tool protects computers against OS failure and data loss. It is ideal for both individual and business users.
*Compatible with both physical and virtual environments, Windows/Linux systems, and On-Premise/Cloud solutions. OPTIMAL M.2 SSD DRIVE SPATIUM SSDs come in an M.2 2280 form factor, making them easy to install in both desktops and laptops. They offer high performance while maintaining excellent energy efficiency across all computer systems. 5-YEAR WARRANTY MSI guarantees the high quality and reliability of SPATIUM M560 drives, which are covered by a comprehensive 5-year warranty. If you need assistance or are not satisfied with your product, contact MSI technical support-we will help resolve your technical issues.
Note: Warranty lasts up to 5 years or until the TBW (Total Bytes Written) limit specified in the product specification is reached, whichever comes first.
Description1 - MSI SPATIUM M560 - SSD - 1 TB - PCI Express 5.0 x4 (NVMe)
Description2 - The MSI SPATIUM M560 is designed to elevate storage performance in any computing environment. Featuring a 2 TB capacity, this internal solid state drive excels with an internal data rate of 10,300 MBps, ensuring rapid access and transfer of large files. Built with 3D NAND technology, the M560 delivers durability and consistent performance, making it a choice for gamers, content creators, and professionals who require speed and reliability.This SSD supports PCI Express 5.0 x4 (NVMe) interface, providing enhanced bandwidth and responsiveness. Equipped with features like TRIM support and LDPC error correction, the M560 ensures data integrity and boosts the longevity of the storage solution. With its M.2 2280 form factor, the drive seamlessly fits into most modern systems, while the autonomous power state transition (APST) functionality optimizes power consumption, making it a suitable choice for various applications.
Designation - CE+WEEE
dimension depth - 20 mm
dimension height - 160 mm
dimension weight - 40 g
dimension width - 80 mm
Disk type - SSD
Drive type - Internal
ean - 4711377275347
EAN - 4711377275347
ECC Features - Yes
Features - Component for - PC/Laptop
Features - Controller type - Phison E31T
Features - ECC - Yes
Features - Interface - PCI Express 5.0
Features - Low-density parity-check (LDPC) - Yes
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 2.0
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 1300000 IOPS
Features - Random write (4KB) - 1400000 IOPS
Features - Read speed - 10200 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Write speed - 8400 MB/s
Form factor (width) - M.2 2280
GTIN - 4711377275347
guarantee - 60
guarantee_type - normal
HDD capacity - 1 TB
HDD interface - PCIe 5.0
Height - 2.15 mm
Height Weight & dimensions - 2.15 mm
Interface Features - PCI Express 5.0
LongDesc - M560CHARGING AHEAD WITH SPEEDFrom the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.SUPERCHARGED WITHPCIe 5.0Get excited for next-generation storage performance that unites the latest PCIe Gen 5 controller technology and state-of-the-art 3D NAND flash, providing up to 1.8 times faster read/write speeds compared to the previous generation SSDs.The SPATIUM M560 delivers immense performance and capabilities that effortlessly handle even the most extreme gaming or productivity workflows, representing a significant advancement over PCIe 3.0 and SATA technologies.FULFILL UNLIMITED POTENTIALBuilt-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage, empowering you to break records in games or take your talents to the next level.Freeing Up SpaceTRIMTo process unnecessary data efficiently and extend the life of SSD for more games or content creations.Gaining ControlsS.M.A.R.TTo Monitor the health of the drive and identify possible issues, letting you be free from worry in games or at work.Error RemovalECCTo maintain your important records or files intact and ensure a nonstop gaming experience from system failure.Steady TransferE2E DATA PROTECTIONTo enable reliable data transfer and assist you to game and create in confidence with enhanced system stability.A THOROUGH SHORTCUT WITHDIRECTSTORAGEDirectStorage accelerates loading times in gameplay and high-resolution rendering, enhancing system performance by enabling hardware decompression directly from NVMe drives to GPUs and freeing up CPU resources for multitasking.Your Performance BoosterBUILT TO WINWith the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.CREATE. PRODUCE. DONE.With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.TAKE CARE OF YOUR DATAMigrate your data, monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality.PARTNERED WITH ACTIPHYActiphy, a world-leading data protection solution provider, develops essential and user-friendly software. ActiveImage Protector* - an enterprise-level backup and disaster recovery software that protects your computer from system failures and data loss. Ideal for individuals and organizations.OPTIMAL M.2 SSDDesigned in the M.2 2280 form factor, SPATIUM SSDs are easy to install into desktops, bringing speedy performance and power efficiency to any computing system.5-YEAR WARRANTYMSI stands by the quality and reliability of the SPATIUM M560 with a 5-Year comprehensive warranty. If you need assistance or are not satisfied with your product, MSI support is available to help and assist.
LongProductName - 1000GB, M.2 2280, 3D NAND, PCIe 5.0, NVMe
LongSummaryDescription - MSI Spatium M560 PCIE 5.0 NVME M.2 1TB. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 10200 MB/s, Write speed: 8400 MB/s, Component for: PC/Laptop
Low-density parity-check (LDPC) Features - Yes
M.2 SSD size Features - 2280 (22 x 80 mm)
Manufacturer - MSI
ManufacturerID - S78-440L0F0-P83
Mean time between failures (MTBF) Features - 1500000 h
Memory type Features - 3D NAND
Model - SPATIUM M560
name - SSD Disk SPATIUM M560 1TB M.2 PCIe 5.0 10200/8400MB/s
NVMe Features - Yes
NVMe version Features - 2.0
Operating temperature (T-T) Operational conditions - 0 - 70 °C
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - 40 - 85 °C
PackageHeight - 22
PackageLength - 85
PackageWeight - 65
PackageWidth - 146
PCI Express interface data lanes Features - x4
Power - Power consumption (max) - 5.9 W
Power consumption (max) Power - 5.9 W
producer - MSI
ProductName - M560 PCIE 5.0 NVME M.2 1TB
Random read (4KB) Features - 1300000 IOPS
Random read IOPS (max) - 1300 K
Random write (4KB) Features - 1400000 IOPS
Random write IOPS (max) - 1400 K
Reading speed - 10200 MB/s
Read speed Features - 10200 MB/s
S.M.A.R.T. support Features - Yes
ShortSummaryDescription - MSI Spatium M560 PCIE 5.0 NVME M.2 1TB, 1 TB, M.2, 10200 MB/s
SSD capacity Features - 1 TB
SSD form factor Features - M.2
SSD series - SPATIUM M560
Storage temperature (T-T) Operational conditions - 40 - 85 °C
Summary - MSI Spatium M560 PCIE 5.0 NVME M.2 1TB. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 10200 MB/s, Write speed: 8400 MB/s, Component for: PC/Laptop
TBW - 600 TB
Title - MSI Spatium M560 PCIE 5.0 NVME M.2 1TB PCI Express 5.0 3D NAND
TRIM support Features - Yes
Unit Box Height - 0.02
Unit Box Length - 0.16
Unit Box Width - 0.085
Unit Calculated Volume - 0.0006652 cubm
Unit Calculated Weight - 0.065 kg
Units per Shipping Box - 20
URL - https://www.msi.com/Storage/SPATIUM-M560-PCIe-5.0-NVMe-M.2/Overview
Vendor Homepage - https://www.msi.com/Storage/SPATIUM-M560-PCIe-5.0-NVMe-M.2/Overview
vendpn - S78-440L0F0-P83
Warranty - 36L months
WarrantyInfo - 5 Year
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 2.15 mm
Weight & dimensions - Width - 22 mm
Width - 22 mm
Width Weight & dimensions - 22 mm
Write speed Features - 8400 MB/s
Writing speed - 8400 MB/s
