Accessories included -
Active power - 1000 W
Alarm - -
Apparent power - 1600 VA
Backup time (100% load) - 6 min
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
Battery - Typical backup time at half load - 11 min
BatteryType - Replaceable sealed lead acid
Charging time - 4 h
Chassis type - Rack
Color - -
Color - Black
ControlPanel - -
Depth - 312 mm
Description -
Design - Form factor - Tower
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
Design - Safety - IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
dimensionalWeight - 3904
dimension depth - 145 mm
dimension height - 400 mm
Dimensions - 81 x 305 x 312 mm
dimension weight - 8440 g
dimension width - 370 mm
ean - 3553340621635
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Emergency Power Off (EPO) - No
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1000 W
Features - Output power capacity - 1.6 kVA
Features - Surge protection - Yes
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Network
Features - Surge protection features - Telephone
Features - UPS topology - Standby (Offline)
FormFactor - Other
GrossWeight - 8.900 kg
guarantee - 36
guarantee_type - normal
Height - 305 mm
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-45 LAN
InputConnections - -
InputFrequency - 50-60 Hz autoselect
Input power ports - IEC-C14
InputVoltage - 184 V - 264 V (adjustable to 161 V - 284 V)
InterfacePorts - -
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - With an efficient electrical design and the EcoControl function (USB models), which automatically disables peripherals when the master device is turned off, the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
MANUFDATASHEET - http://www.google.ee/url?sa=t&rct=j&q=&esrc=s&frm=1&source=web&cd=1&cad=rja&ved=0CCgQFjAA&url=http%3A%2F%2Flit.powerware.com%2Fll_download.asp%3Ffile%3DEaton-Ellipse-ECO-datasheet-rev-B-low-pdf.pdf&ei=RuKAUpzhBsPNhAf2mYHIDg&usg=AFQjCNHHroTtcgPB-33mgzDEb-J4xFyDpg&bvm=bv.56146854,d.bGE

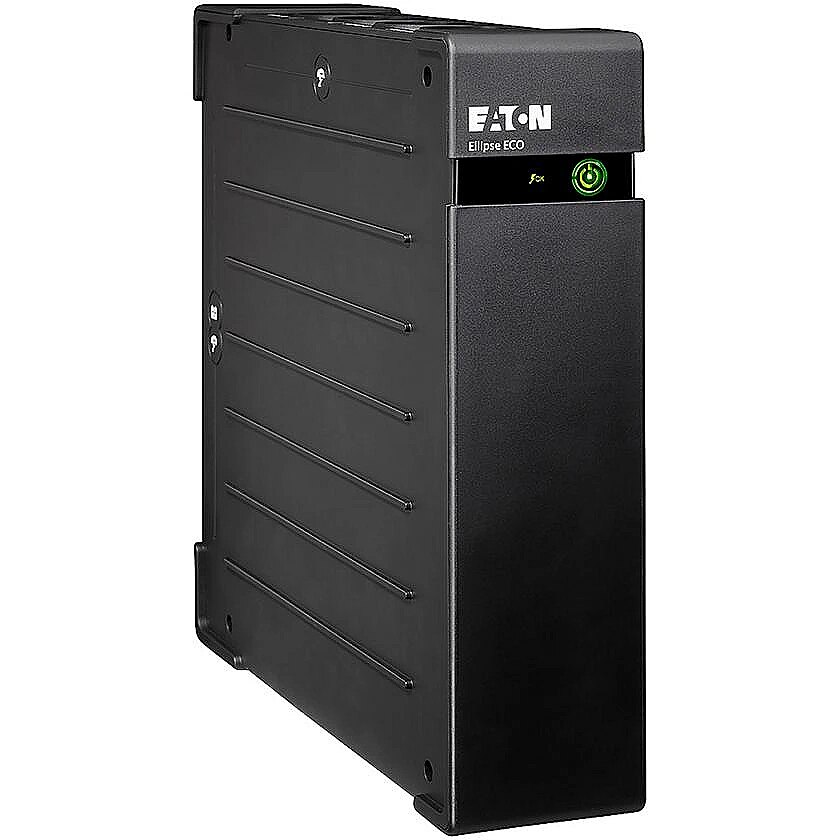

name - UPS Ellipse ECO 1600 IEC USB
Number of phases input - 1 (230V)
Other features -
Other features - Compatible operating systems - Windows 7/Vista/XP\r\nMac OS X\r\nLinux
Other features - Input connection type - IEC
Other features - Mac compatibility - Yes
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 220-240 V
Other features - Overload protection - Yes
OutputConnections - 8
OutputFrequency - -

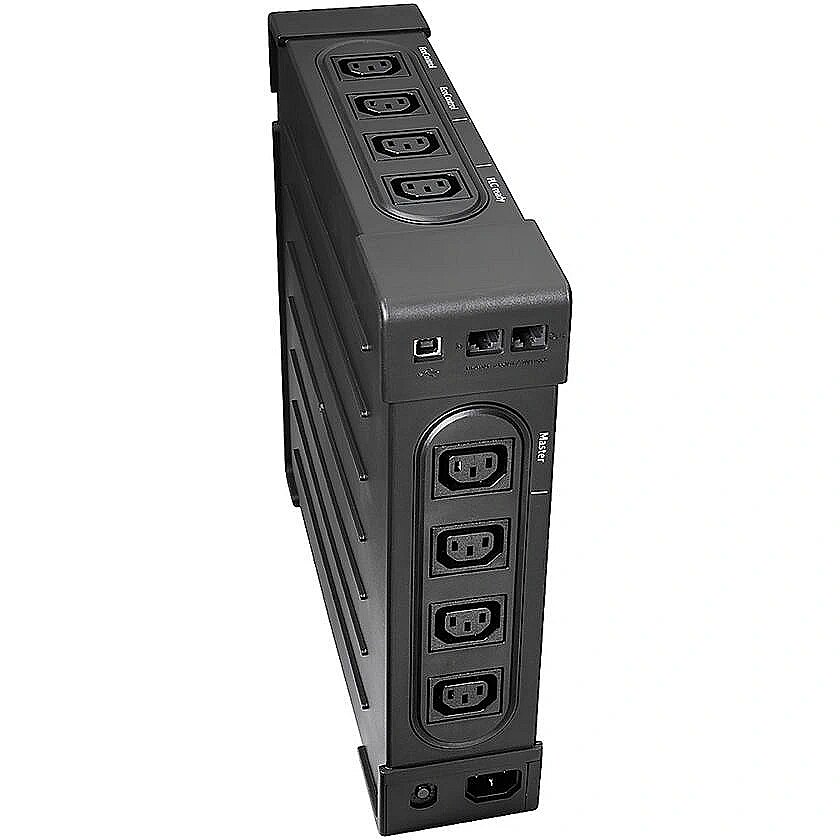

Output power ports - 8 x IEC-C13
OutputVoltage - 230 V (adjustable to 220 V, 230 V, 240 V
PackageContents - -
Packaging data - Bundled software - Eaton Intelligent Power
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
PowerVAW - 1600 VA
PowerW - 1000 W
ProdDesc - 1600VA/1000W UPS, offline, IEC 4+4, Windows/MacOS/Linux support, USB
producer - Eaton
producerCode - EL1600USBIEC
productName - Eaton Ellipse ECO 1600 USB IEC uninterruptible power supply (UPS) Standby (Offline) 1.6 kVA 1000 W 8 AC outlet(s)
ProductPicture - http://www.tdbaltic.ee/images/ds4/EL800USBIEC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
RechargeTime - -
RJ45 - -
Runtime - 11/6
sizeX - 382
sizeY - 140
sizeZ - 365
SmartSlot - -
Software -
Special functions -
Topology - Offline
UPS Architecture - line-interactive
USB - Yes
vendpn - EL1600USBIEC
Warranty - 2 years
warrantyLength - 24
warrantyType - F
WaveformType - -
Weight - 7.8 kg
Weight - 7.800 Kg
weight - 8630
Weight & dimensions - Depth - 312 mm
Weight & dimensions - Height - 305 mm
Weight & dimensions - Weight - 7.8 kg
Weight & dimensions - Width - 81 mm
Width - 81 mm
