Accessories included -
ACoutletsquantity - 8 AC outlet(s)
ACoutlettypes - C13 coupler
Active power - 1500 W
Apparent power - 1500 VA
ARTIKEL1 - EATON 5PX 1500I RT2U G2
ARTIKEL2 -
AutomaticVoltageRegulationAVR -
Battery -
Batterycapacity -
Battery charge/Line voltage LED Displays - Yes
Batterytechnology -
Batteryvoltage -
Cablesincluded -
Category Code - UPW
Certificates - CE cTUVus EAC Cm UKCA Ukr KCC ENERGY STAR certified
Certificates > Certification - CE, cTUVus, EAC, Cm, UKCA, Ukr, KCC, ENERGY STAR certified
Chassis type - Rack
Chassis type - Tower
Code - 5PX1500IRT2UG2
Color - Black
Color - Gray
Depth - 448 mm

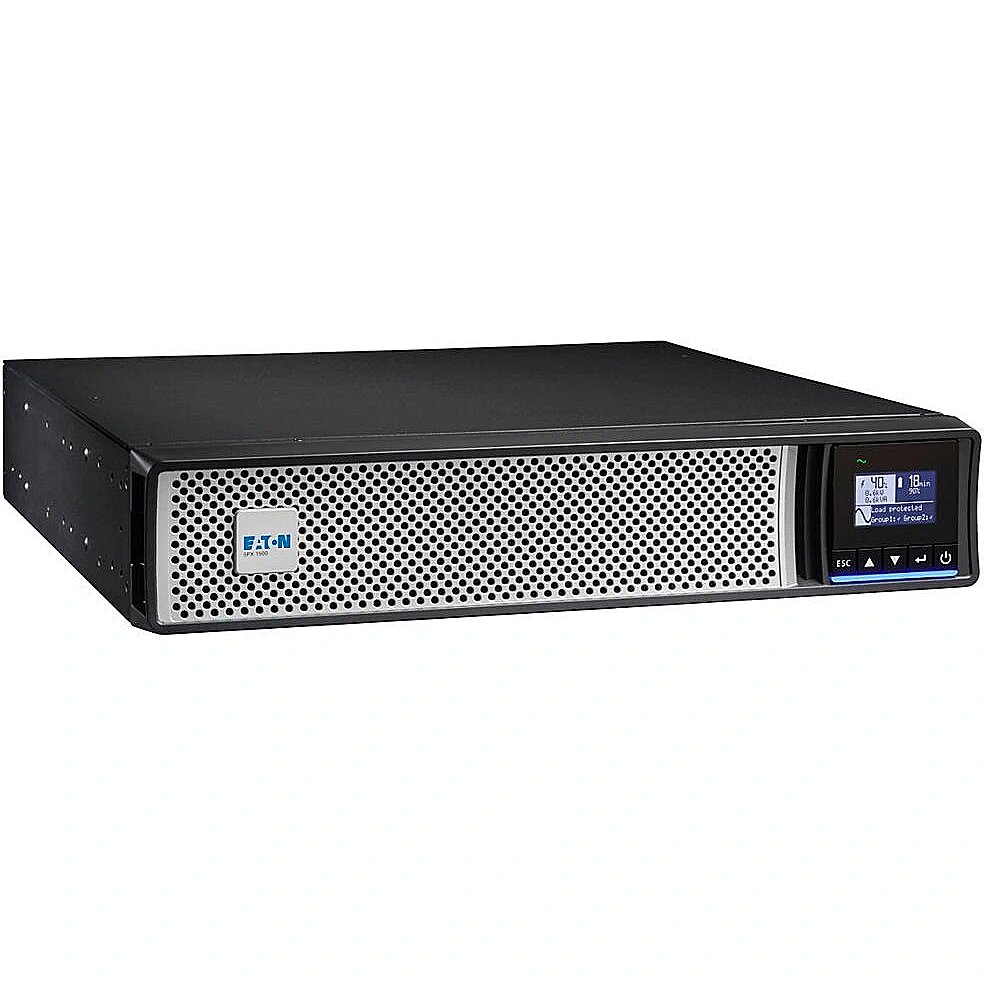

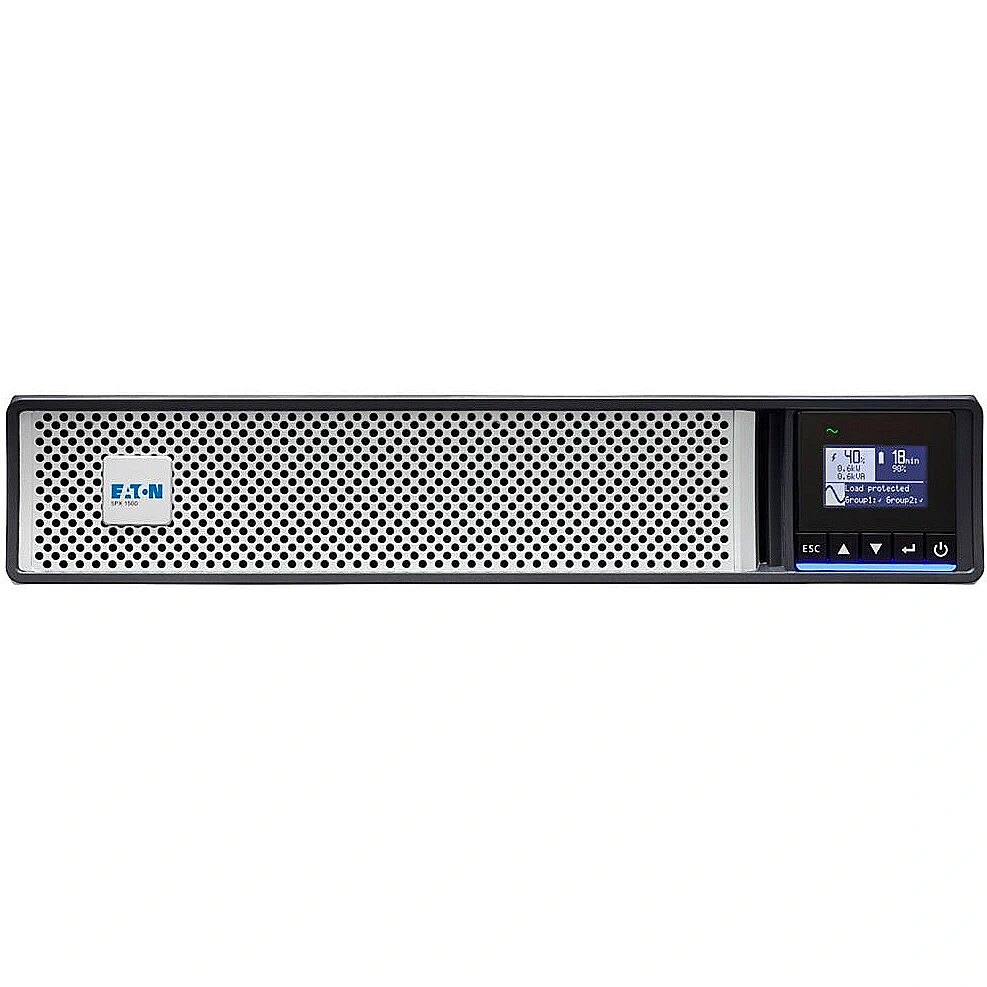

Description - Eaton 5PX 1500i RT2U G2
Description - Zasilacz UPS Eaton 5PX Gen2 1500 VA Wyjątkowa wydajność, łatwość zarządzania i możliwości dla menedżerów IT.
Design -
Design > Form factor - Rack/Tower
Designation - CE+WEEE
Desktop/pedestal Mounting Type - Yes
dimension depth - 500 mm
dimension height - 230 mm
Dimensions - 438 x 448 x 85.5 mm
dimension weight - 28000 g
dimension width - 580 mm
Displaytype - LCD
EAN - 743172104861
ean - 743172104861
EANCode - 0743172104861
Efficiency -
Environment requirements - Temperatura pracy 0 do 40°C Poziom hałasu < 40 dB przy typowym obciążeniu
Features -
Features > Colour of product - Black/Silver
Formfactor - Rackmount/Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 36
guarantee_type - external
Heatdissipation -
Height - 85.5 mm
HERSTELLER - EATON
HighLights -
Hotswapbattery - Yes
HSTNUMMER - 5PX1500IRT2UG2
Inputfrequency - 47/70 Hz
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 160 V
Input ports - Single, IEC320 C14
Input power ports - IEC-C14
Link - https://www.eaton.com/gb/en-gb/skuPage.5PX1500IRT2UG2.html
Load LED Displays - Yes
LongDesc -
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/5PX1500IRT2UG2.pdf
Multi-function LCD status and control console - YES
name - 5PX 1500i RT2U G2 1500VA /1500W
Name - Eaton | UPS | 5PX 1500i RT2U G2 | 1500 VA | 1500 W
Networkcardslot -
Noiselevel - 40 dB
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
On/Off Buttons: - YES
Operatingaltitude -
OperatingrelativehumidityHH -
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Other features - 1 USB port + 1 serial RS232 port + 1 mini-terminal block dla Remote ON/OFF + 1 mini-terminal block dla Remote Power OFF + 1 mini-terminal block
Outputfrequency -
Outputoperationvoltagemax -
Outputoperationvoltagemin -
Outputpower - 1500 W
Outputpowercapacity - 1.5 kVA
Output power capacity, VA - 1500 VA
Output power capacity, W - 1500 Watts
Output power connector type - IEC 320 C13 (10A)
Output power ports - 8 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 580 mm
Package features > Gross height (mm) - 228 mm
Package features > Gross width (mm) - 500 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 13 pc(s)
Package features > Paper/Pasteboard - 5000.00 g
Package features > Plastic (No PET) - 500.00 g
Package features > Tare weight (kg) - 5.50 kg
Package features > TI weight (kg) - 20.00 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.06612 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Performance > Capacity - 1500 VA
Performance > UPS topology - Line-Interactive
Phase - 1phase
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
ProdDesc - Eaton 5PX 1500i RT2U G2
producer - Eaton
Producer product family - UPS
Producer product name - 5PX 1500i RT2U G2
Productcolour - Black
Productcondition - Original
ProductHighLights -
- Line-Interactive
- 1.5 kVA 1500 W
- Waveform: Pure sine
- 8 AC outlet(s)
- Rackmount/Tower Black
Product Net Weight - 22.4 kg
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5PX1500IRT2UG2_1.jpg
ProductPicture1 -
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide -
Rack 2U Mounting Type - Yes
Rackmountkit -
RS232ports -
Serialinterface - Yes
Serialinterfacetype - RS-232
Serialportsquantity - 1
Software -
Special functions - Automatyczna regulacja napięcia (AVR) Wydajność energetyczna, redukcja kosztów energii i chłodzenia Zapewnia czystą falę sinusoidalną Zapewnia większą moc rzeczywistą (W), aby chronić więcej urządzeń dzięki współczynnikowi mocy Unity (VA=W) Wyświetlacz LCD do wyświetlania stanu w czasie rzeczywistym i pomiary Długi czas podtrzymania z maksymalnie 4 opcjonalnymi EBM Licznik zużycia energii (do zarządzanych grup gniazdek) Uniwersalny produkt do instalacji w szafie lub wieży 1 gniazdo na opcjonalną kartę com (karta zarządzania siecią, karta przekaźnikowa lub sieć i przemysł karty) Zgodny ze środowiskami wirtualnymi (VMware, Hyper-V, Citrix Xen, Redhat) 1 port USB + 1 port szeregowy
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Technical details > Capacity - 1500 W
Technical details > Gross weight - 28 kg
Technical details > Net weight - 22.5 kg
Technical details > Producer - Eaton
Technical details > Warranty - 36 month(s)
Topology - LineInteractive
Typicalbackuptimeathalfload -
Unit Box Height - 0.235
Unit Box Length - 0.59
Unit Box Width - 0.5
Unit Calculated Volume - 0.069325 cubm
Unit Calculated Weight - 28.5 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
UPStopology - Line-Interactive
USBport - Yes
USBporttype -
Vendor Homepage - www.eaton.com/gb/en-gb/skuPage.5PX1500IRT2UG2.html
vendpn - 5PX1500IRT2UG2
Video -
Warranty - 3 lata po rejestracji
Warranty - 12 months
Warranty - 24 months
Warranty - 36
Warrantyandmisc -
Waveform - Pure sine
Wave form type - Pure sinewave
Weight - 22.4 kg
Weight - 22.4 kg
Weightdimensions -
Width - 438 mm
