Active power - 1950 W
Apparent power - 3000 VA
Backup time (100% load) - 3 min
Battery - Battery capacity - 7 Ah
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 12 V
Battery - Cold start - Yes
Battery capacity - 7 Ah
Charging time - 7 h
Chassis type - Rack
Color - Black
Description - The power supply generation of the SINLINE USB HID series provides full power protection for advanced single and multi-processor servers, PCs, computer terminals and small to medium-sized networks. Characteristics: Automatic mains voltage regulation system AVR (increasing) - allows you to adjust incorrect input voltage to the level acceptable by receivers without the use of batteries. Clear Digital Sinus (CDS) system - enables the generation of a pure sinusoidal voltage at the output of the UPS during battery operation. Cool Battery Charging (CBC) system - a fast and efficient charging system that reduces charging time and extends the life of the UPS battery. Overload, short-circuit, over-voltage and miswiring protection. LAN filter (1 Gbit/s) to protect the network card against surges. USB HID communication interface compatible with HID Power Devices, allowing the UPS to cooperate with other devices without installing software (the power supply is visible in the system as a battery). Extended switching thresholds (possible to be set using the PowerSoft software) with the following values: Network - ups: ~145V - ~280V +/- 2% Ups - mains: ~150V - ~275V +/- 2% PowerSoft Professional - free software for monitoring and managing power supplies Advanced configuration of events - a possibility of creating rules depending on the PSU operation modes, messages and alarms. Delay before power supply output is restarted (used with BIOS restart option for computers)
Design - Form factor - Rackmount
Design - International Protection (IP) code - IP20
Design - Product colour - Black
Design - Rack capacity - 3U
Designation - CE+WEEE
dimensionalWeight - 11550
dimension depth - 530 mm
dimension height - 210 mm
Dimensions - Height: 132 (3U) mm Width: 483 (19) mm Depth: 400 mm
dimension weight - 33000 g
dimension width - 500 mm
ean - 5907683606510
Features - Automatic Voltage Regulation (AVR) - Yes
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 50 Hz
Features - Input operation voltage (max) - 264 V
Features - Input operation voltage (min) - 160 V
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50 Hz
Features - Output operation voltage (max) - 264 V
Features - Output operation voltage (min) - 194 V
Features - Output power - 1950 W
Features - Output power capacity - 3 kVA
Features - Power protection features - Overload
Features - Power protection features - Short circuit
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Circuit
Filters / protection - Overload
Filters / protection - Surge
guarantee - 36
guarantee_type - external
Hold-up time (maks) - 3 ms
I/O connectors - 1 x USB (Type B)
Input power ports - IEC-C20
name - UPS SINLINE 3000 3U 19 inch RACK L-inter. HID
No. of batteries - 4
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 20 - 95%
Operational conditions - Storage temperature (T-T) - 0 - 40 °C
Other features - Application: Small office and home, Server room Working temperatures [°C]: 0 ÷ +40 Cooling: Natural Rated input voltage (rms) [V]: ~ 230 Input voltage range (rms) [V] and tolerance [%]: ~ 160 ÷ 264 (145 ÷ 280) 2 Rated frequency of the input voltage [Hz]: 50 Input frequency range [Hz] and tolerance [Hz]: 45 ÷ 55 1 Switching thresholds: UPS network [V]: ~ 160 ÷ 264 (145 ÷ 280) 2 % Nominal output voltage (rms) [V]: ~ 230 Output voltage range (rms) [V] and tolerance [%] - mains operation : ~ 184 ÷ 264 (167 ÷ 280) 2 Output voltage range (rms) [V] and tolerance [%] - back-up operation : ~ 230 5 Output voltage shape (backup / mains operation): Sinusoidal / Same as input Rated frequency of the output voltage [Hz]: 50 Frequency range (tolerance) - mains operation [Hz]: synchronous with mains Frequency range (tolerance) - back-up operation [Hz]: 50 1 Output voltage filtering : LC, RFI/EMI interference filter, varistor suppressor Switching thresholds: UPS mains [V]: ~ 165 / 259 (150 / 275) 2 % Switchover time to standby operation [ms]: < 3 Time to return to mains operation [ms]: 0 Internal batteries: 12 V / 7 Ah VRLA Internal battery backup time (100 % / 80 % / 50 % Pmax) [min]: 3 / 4 / 8 DC circuit nominal voltage [V]: 48 Maximum UPS internal battery charging time - after 80 % battery discharge [h]: 7 Transport position: horizontal Maximum output wire length [m]: < 10 Signaling: Acoustic-optical; LED Data line filter - RJ45: LAN 1 Gbit/s Monitoring and management software: PowerSoft Professional Cold start: yes

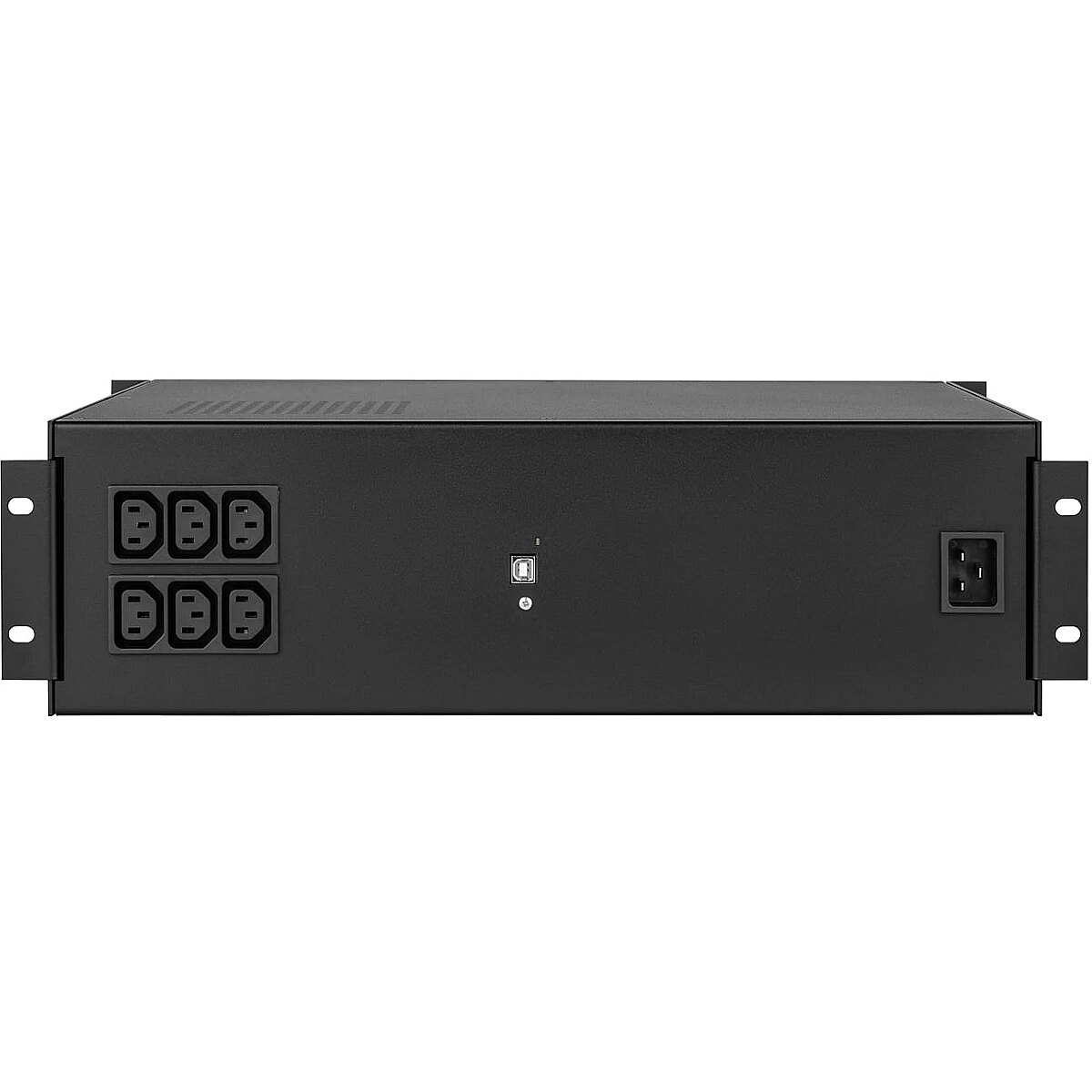

Output power ports - 6 x IEC-C13
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - AC outlet types - IEC 320
Ports & interfaces - USB port - Yes
producer - EVER
producerCode - W/SL00RM-003K00/07

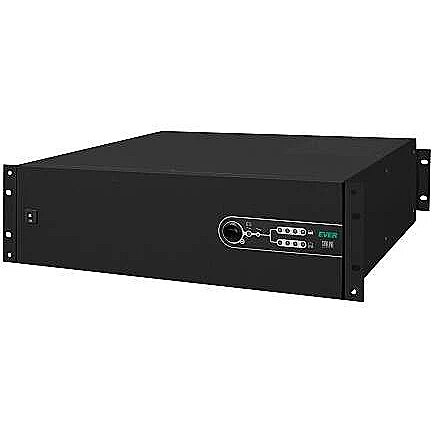

productName - UPS EVER SINLINE 3000 USB HID 19" 3U
productSize - Normal
sizeX - 525
sizeY - 220
sizeZ - 500
UPS Architecture - line-interactive
vendpn - W/SL00RM-003K00/07
Voltage - 230 V
warrantyLength - 36
warrantyType - F
Weight - 31 kg
weight - 31000
Weight & dimensions - Depth - 400 mm
Weight & dimensions - Height - 132 mm
Weight & dimensions - Package height - 210 mm
Weight & dimensions - Package width - 530 mm
Weight & dimensions - Weight - 31 kg
Weight & dimensions - Width - 483 mm
