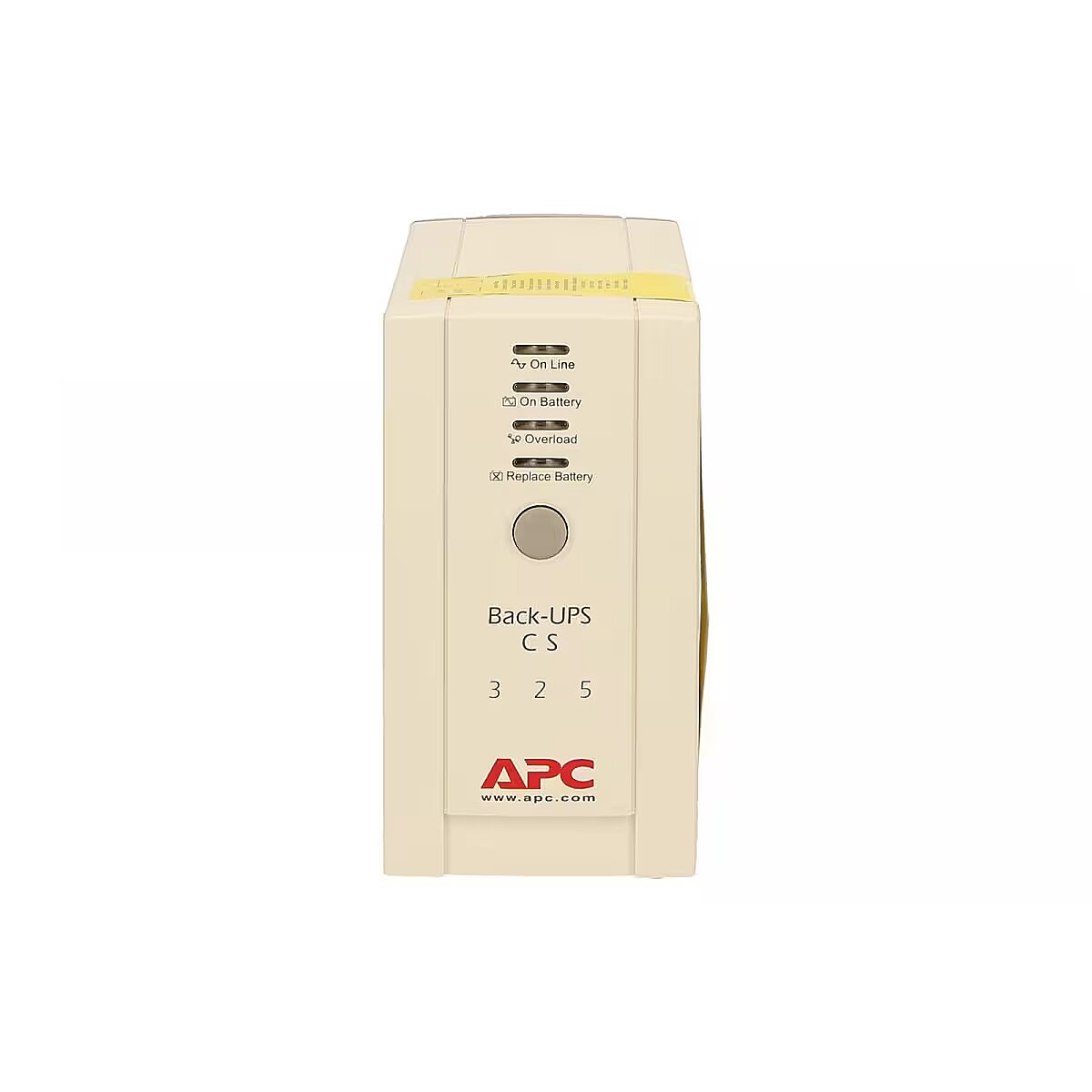

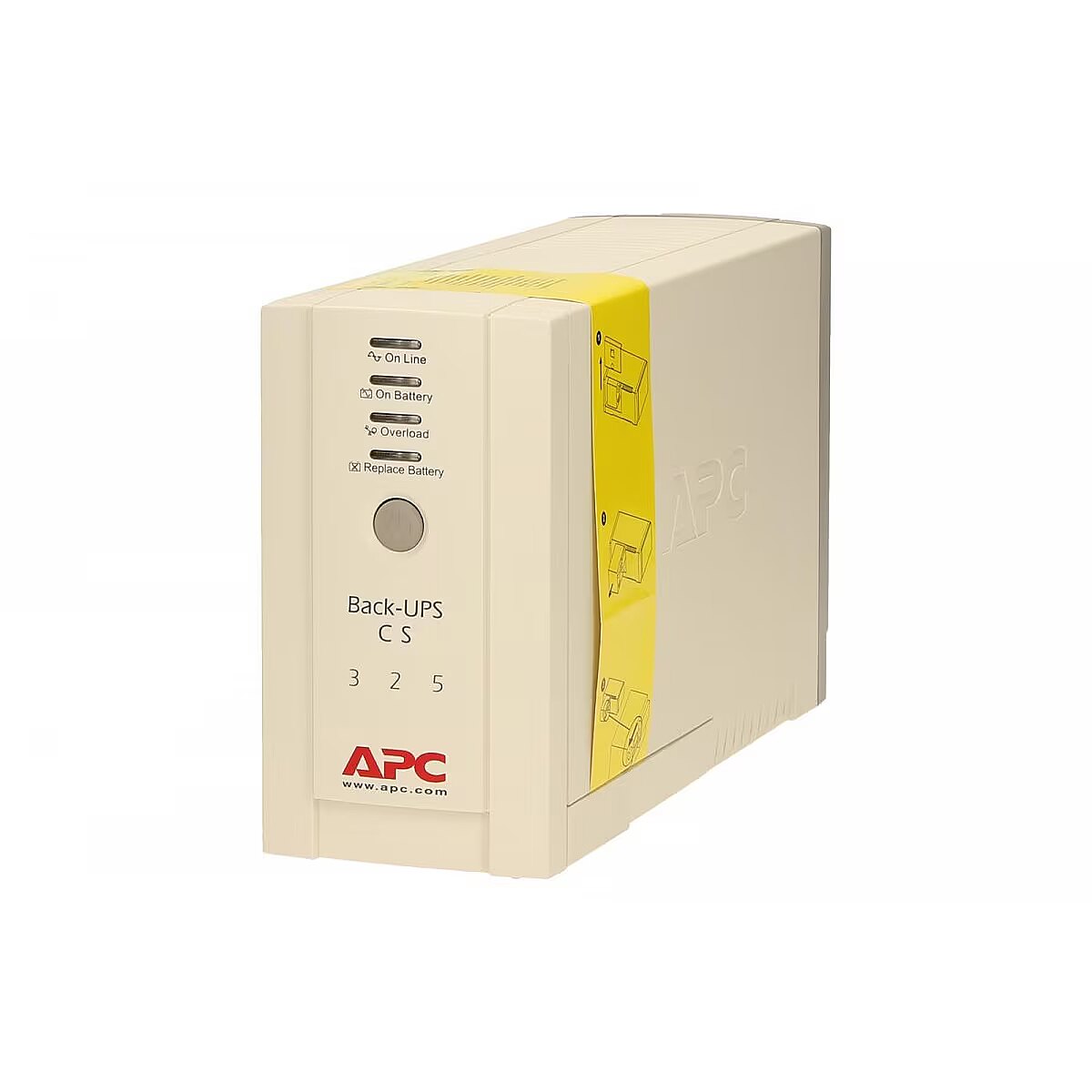

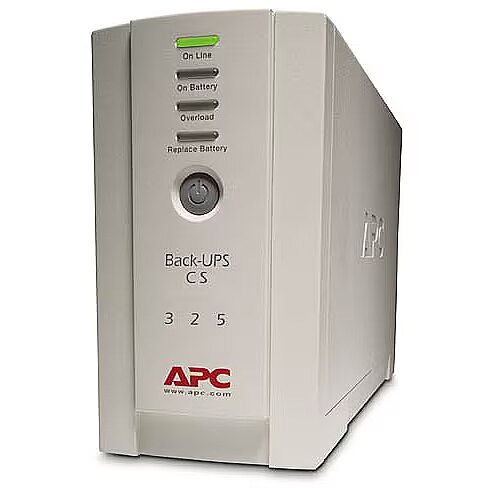

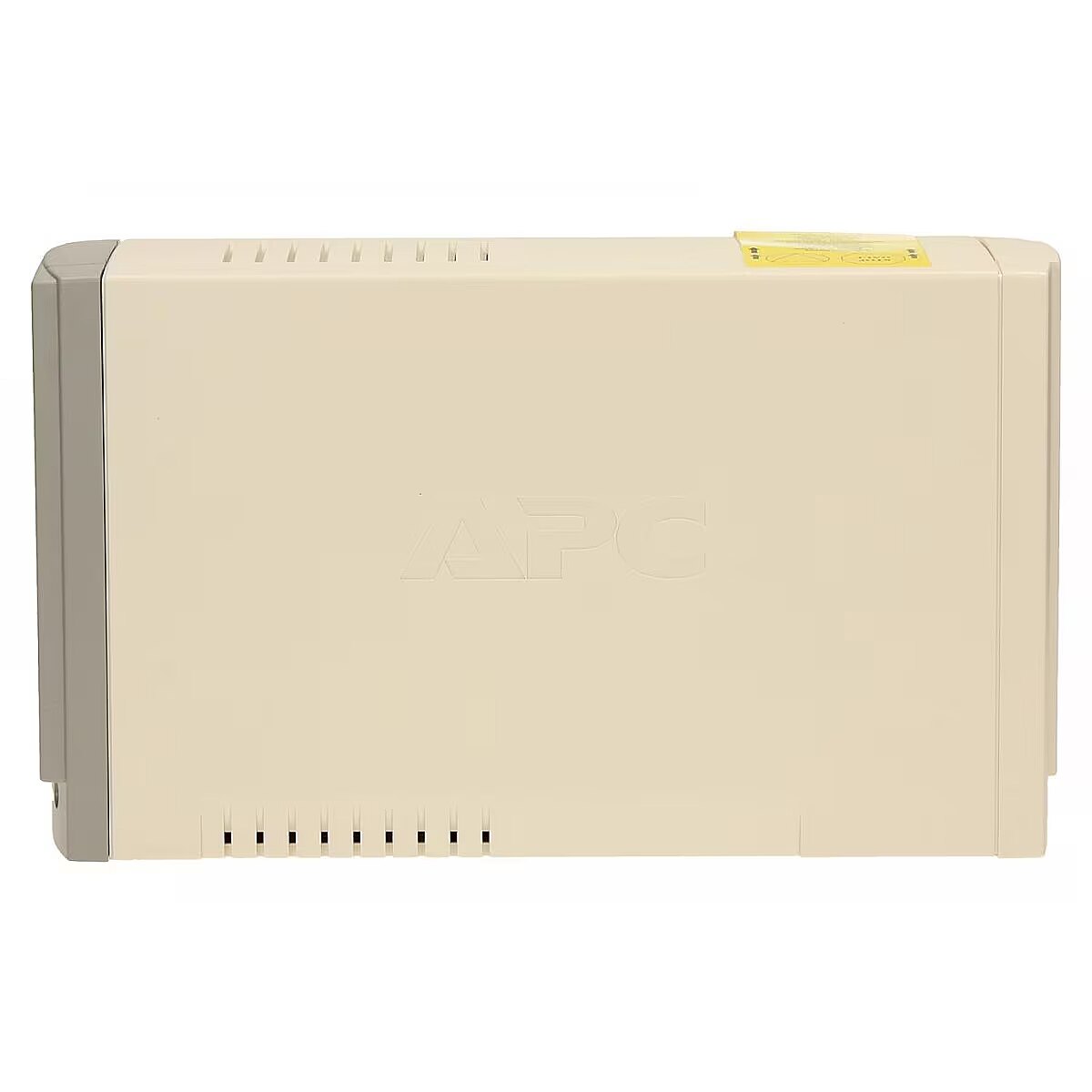

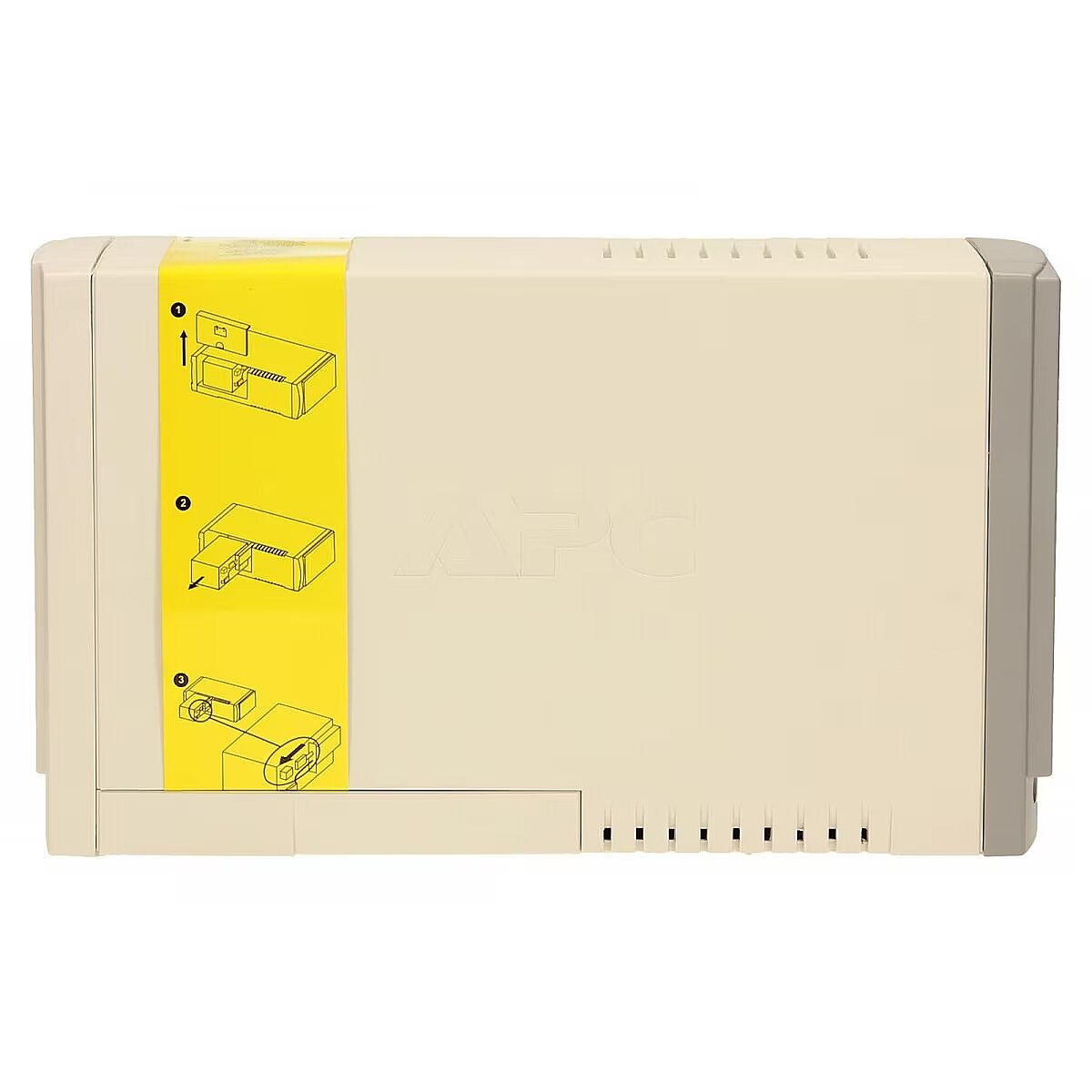

APC Back-UPS BK325I 325VA, 195W, IEC

ACoutletsquantity -
ACoutlettypes - IEC 60320
Active power - 195 W
Apparent power - 350 VA
ARTIKEL1 - BACK-UPS CS 325VA 230V
ARTIKEL2 - WITHOUT SOFTWARE IN
AutomaticVoltageRegulationAVR -
Battery -
Battery - Battery recharge time - 6 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Batterycapacity -
Battery recharge time, h - 6
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Brand - APC
BrandPartCode - BK325I
Breite - 0.24
Cablesincluded -
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Regulatory Approvals:
C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Certificates - Certification - C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE
Chassis type - Tower
Code - BK325I
Color - White
Data Act - Link
Depth -
Depth, mm - 284
Description - APC BACK-UPS CS 325VA 230V W/O SW
Description -   Back-UPS APC Back-UPS 325, 230V, IEC 320, without auto shutdown software
Design -
Design - Product colour - Beige
Designation - CE+WEEE
dimension depth - 600 mm
dimension height - 200 mm
Dimensions - 165 x 91 x 284 mm
dimension weight - 6494 g
dimension width - 200 mm
Displaytype -
EAN - 731304120506
ean - 731304120506
EANCode - 0731304120506
Eans - 731304120506
Efficiency -
Features -
Features - Output power - 210 W
Features - Output power capacity - 0.325 kVA
Features - Surge energy rating - 320 J
Formfactor -
Form factor - Tower
Frequency range, Hz - 47 - 63
Gewicht - 6.58
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0132017967493
GTIN - 132017967493
GTIN - 731304120506
GTIN - 0731304120506
guarantee - 24
guarantee_type - external
Heatdissipation -
Height -
Height - 240.000000
Height, mm - 165
HERSTELLER - APC
HighLights -
Hoehe - 0.19
Hotswapbattery -
HSTNUMMER - BK325I
Included - 2 pcs - detachable IEC power cable IEC C13 to C14, User Manual
Input connection - IEC-320-C14
Input current, A - 7
Inputfrequency -
Input frequency, Hz - 50/60 +/- 3
Inputoperationvoltagemax -
Inputoperationvoltagemin -
Length - 180.000000
Link - https://www.se.com/lt/lt/product/BK325I/apc-backups-cs-325va-230v-be-automatinio-i%C5%A1sijungimo-programin%C4%97s-%C4%AFrangos-4-iec-lizdai-1-vir%C5%A1%C4%AFtampis/
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - APC Back-UPS CS, 210 Watts / 350 VA,Input 230V / Output 230V
LongProductName - Back-UPS CS 325 w/o SW
LongSummaryDescription - APC Back-UPS CS 325 w/o SW. Output power capacity: 0.325 kVA, Output power: 210 W, Surge energy rating: 320 J. AC outlet types: IEC 60320. Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 6 h. Product colour: Beige. Certification: C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE
Manufacturer - APC
ManufacturerPartNumber - BK325I
ManufDatasheet -
Maximum power, W - 210
Name - APC Back BK325I
name - BACK-UPS 325VA BK325I
Name - Schneider Electric APC Back-UPS CS | BK325I | 325 VA | 210 W
Networkcardslot -
Noiselevel -
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH - 0 - 95%
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Dimensions (WxDxH) - 91 x 284 x 165 mm
Other features - Filtering description - 5% IEEE
Other features - Input connection type - IEC-320 C14
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features - Output connections - IEC 320 C13
Other features - Package dimensions (WxDxH) - 241 x 368 x 178 mm
Other features > Special features - Without auto-shutdown software; Lead-acid battery
Outputfrequency -

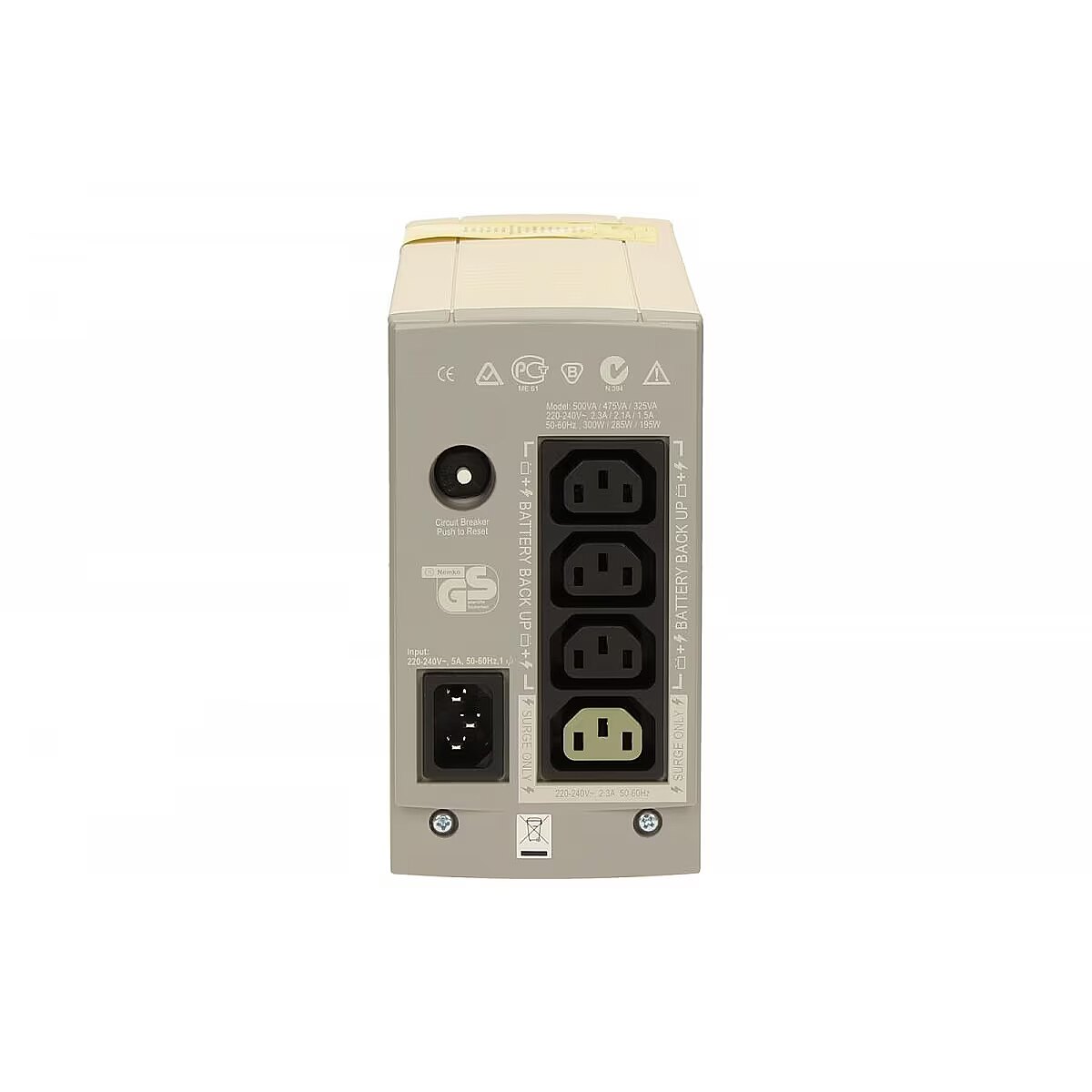

Output interface - (3) IEC 320 C13 (Battery Backup), (1) IEC 320 C13 (selector_surgetitle)
Outputoperationvoltagemax -
Outputoperationvoltagemin -
Outputpower - 210 W
Output power, W - 195
Outputpowercapacity - 0.325 kVA
Output power capacity (VA) - 325
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 178.00 mm
Package features > Gross height (mm) - 368.00 mm
Package features > Gross width (mm) - 241.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 109 pc(s)
Package features > Paper/Pasteboard - 800.00 g
Package features > Plastic (No PET) - 200.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > TI weight (kg) - 2.50 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.02 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Packaging data - Package weight - 6.73 kg
Performance > Capacity - 325 VA
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlet types - IEC 60320
Ports & interfaces - Number of output IEC jumpers - 3
Portsinterfaces -
Powerfactor -
Powerplug -
ProdDesc - APC Back-UPS/325VA offline
producer - APC
Producer - APC
ProducerCode - BK325I
Productcolour - Beige
Productcondition - Original
ProductHighLights -

• 0.325 kVA 210 W
• Sealed Lead Acid (VRLA)
• Beige

ProductName - Back-UPS CS 325 w/o SW
ProductPicture - https://www.tdbaltic.ee/images/products/APC/BK325I_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/APC/BK325I_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/APC/BK325I_3.jpg
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide -
Rackmountkit -
RS232ports -
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
ShortDescription -
Short summary - APC Back-UPS 325
ShortSummaryDescription - APC Back-UPS CS 325 w/o SW, 0.325 kVA, 210 W, 320 J, IEC 60320, Sealed Lead Acid (VRLA), 6 h
Stck_Kart - 26
Stck_Pal - 34
Storage temperature range (T-T), °C - -15 - 45
Storno - N
Technical details > Capacity - 210 W
Technical details > Gross weight - 6.73 kg
Technical details > Net weight - 5.73 kg
Technical details > Producer - Schneider Electric
Technical details > Producer product family - APC Back-UPS CS
Technical details > Producer product name - BK325I
Technical specifications - Output: Output Power Capacity 195 Watts / 325 VA  Max Configurable Power 210 Watts / 350 VA  Nominal Output Voltage 230V  Output Frequency (sync to mains) 47 - 63 Hz  Topology Standby  Output Connections:
(1) IEC 320 C13 (Surge Protection)
(3) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup) Input: Nominal Input Voltage 230V  Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)  Input Connections IEC-320 C14   Input voltage range for main operations 180 - 266V  Maximum Input Current 7A  Input Breaker Capacity 7.0 A Batteries & Runtime: Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof  Typical recharge time 6 hour(s)  Replacement Battery RBC2  RBC Quantity 1  Communications & Management: Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators  Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm  Surge Protection and Filtering Surge energy rating 310 Joules  Filtering Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 Environmental Operating Environment
32 - 104 °F (0 - 40 °C) Operating Relative Humidity
0 - 95% Operating Elevation
0-10000 feet (0-3000 meters) Storage Temperature
5 - 113 °F (-15 - 45 °C) Storage Relative Humidity
0 - 95% Storage Elevation
0-50000 feet (0-15000 meters) Online Thermal Dissipation
19.00 BTU/hr
Title - APC Back-UPS CS 325 w/o SW uninterruptible power supply (UPS) 0.325 kVA 210 W
Typicalbackuptimeathalfload -
UPS devices and accessories - Yes
UPStopology -
URL - https://www.apcc.com/resource/include/techspec_index.cfm?base_sku=BK325I&tab=models
USBport -
USBporttype -
vendpn - BK325I
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
Warrantyandmisc -
WarrantyInfo - 2 years repair or replace.
Waveform -
Weight - 5.73 kg
Weight - 5.73 kg
Weight - 6.140000
Weight & dimensions - Weight - 5.73 kg
Weight, kg - 5.73
Weightdimensions -
Width -
Width - 420.000000
Width, mm - 91
