Eaton 9E3000I, 3000VA 2400W, IEC
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 €
-
Postitoimisto1-2 työpäivän kuluessa6,99 €
-
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa15,99 €
- Akun kapasiteetti (VA): 3000
- Lähtöteho (W): 2400
Ievads - līdz 500 VA ?> Ievads - 550-1000 VA ?> Ievads - 1025-1500 VA ?> Tämä UPS Eaton 9E3000I, 3000VA 2400W, IEC, jonka lähtöteho on 2400 W ja akkukapasiteetti 3000 VA, sopii ammattimaiseen ympäristöön, jossa vaaditaan suurta luotettavuutta ja suojaa sähkönsyötön katkoksilta. Ievads - 1550-3000 VA ?> Ievads - virs 3000 VA ?>

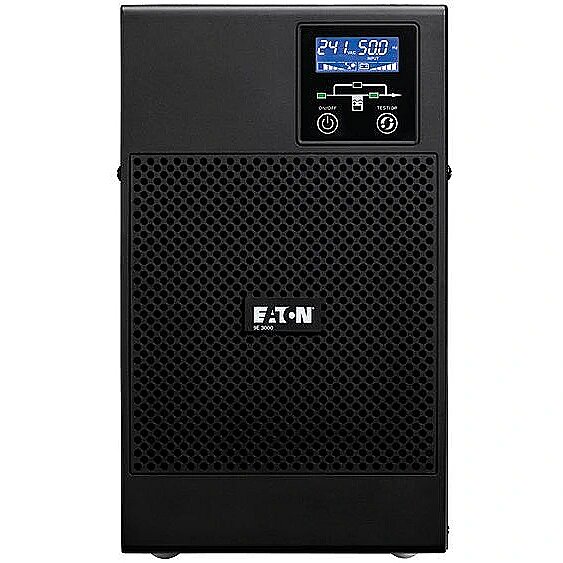

UPS-laitteen näytön läsnäolo mahdollistaa operatiivisten parametrien reaaliaikaisen seurannan. Tämä yksinkertaistaa järjestelmän hallintaa, mahdollistaa poikkeamien oikea-aikaisen havaitsemisen ja mahdollistaa teknisesti perustellut operatiiviset päätökset. Displejs ?>
UPS, jossa on lyijyhappoakku, tarjoaa ajan testaaman teknisen ratkaisun varavoiman tarpeeseen. Akku varmistaa sähköparametrien vakauden, vastustaa syklisiä kuormituksia ja tarjoaa yksinkertaisen latauskaavion, joka vähentää järjestelmän kokonaiskompleksisuutta ja lisää toiminnallista luotettavuutta. Bateriju tips - Lead-acid ?> Bateriju tips - Lithium-Ion ?> Bateriju tips - Lithium Iron Phosphate ?> Bateriju tips - Lithium Polymer (LiPo) ?>
Ligzdu tips - Hard wire ?> IEC320-tyyppisen liitännän käyttö UPS-laitteessa takaa laitteen universaalin ja turvallisen sähköliitännän. Tämän tyyppinen liitäntämuoto vähentää mekaanista rasitusta kosketuksissa, yksinkertaistaa kaapelien järjestelyä ja tukee järjestelmän vakaata toimintaa tyypillisissä työkuormaolosuhteissa. Ligzdu tips - IEC320 ?> Ligzdu tips - NEMA 5-15R ?> Ligzdu tips - Schuko ?> Ligzdu tips - Schuko and IEC ?>
Takuu
Eaton tarjoaa 2 vuoden takuun tälle mallille kaikissa sertifioiduissa huoltokeskuksissa.
*Ostaessasi laitteen oikeushenkilölle, valmistajan takuu on 1 vuosi. Garantija ?>
ACoutletsquantity - 7 AC outlet(s)
AC outlets quantity Ports & interfaces - 7 AC outlet(s)
ACoutlettypes - C13 coupler, C19 coupler
AC outlet types Ports & interfaces - C13 coupler, C19 coupler
Active power - 2400 W
Apparent power - 3000 VA
ARTIKEL1 - EATON 9E 3000I
ARTIKEL2 -
AutomaticVoltageRegulationAVR -
Backup time (100% load) - 4 min
Battery -
Batterycapacity -
Battery capacity - 9 Ah
Batterytechnology -
Batteryvoltage -
Cablesincluded -
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category Code - UPW
Certificates - Certification - CE, CB, EAC
Certification Certificates - CE, CB, EAC
Chassis type - Tower
Code - 9E3000I
Color - Black
Depth - 399 mm
Depth Weight & dimensions - 399 mm
Description - Online double conversion topologyIntuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS statusReliable UPS at an attractive priceProvides more real power (watts) to protect more equipment with a 0.8 power factorInternal bypass and maintenance bypass are available as standards for service continuityCombo input (3:1 and 1:1) on the 10kVA, 15kVA, 20 kVALong runtime with up to 4 optional EBM cabinetsExtra-long runtime available with 3kVA, 10kVA and 20kVA XL modelsXL models with internal supercharger for extra-long runtimeCommunication through USB, RS232 serial or over the network with an optional communication card(Network card, ModBus/Jbus or Contacts/Serial cards)Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)CE compliance certified by external laboratory (CB report from the TUV)
Description - Uninterruptible power supply 9E UPS 3000 VA 2400 W 9E3000I
Design -
Design - Form factor - Tower
Design - Product colour - Black
Design > Form factor - Tower
Designation - CE+WEEE
dimensionalWeight - 15327
dimension depth - 500 mm
dimension height - 480 mm
Dimensions - 19 x 33 x 39.9 cm
dimension weight - 26000 g
dimension width - 350 mm
Displaytype -
EAN - 786689166588
ean - 786689166588
EANCode - 0786689166588
Eans - 786689166588
Efficiency -
Efficiency (On-line mode) Features - 91%
Environment requirements - Temperature: 0° to 40°C Humidity: 0-95%, non-condensing
Features -
Features - Efficiency (On-line mode) - 91%
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 176 V
Features - Noise level - 37 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 2400 W
Features - Output power capacity - 3 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 2%
Features - Overload capacity (1 minute) - 130%
Features - Overload capacity (3 seconds) - 150%
Features - Overload capacity (10 seconds) - 150%
Features - UPS topology - Double-conversion (Online)
Filters / protection - Overdischarge
Formfactor - Tower
Form factor Design - Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 190 mm
Height Weight & dimensions - 190 mm
HERSTELLER - EATON
HighLights -
Hotswapbattery -
HSTNUMMER - 9E3000I

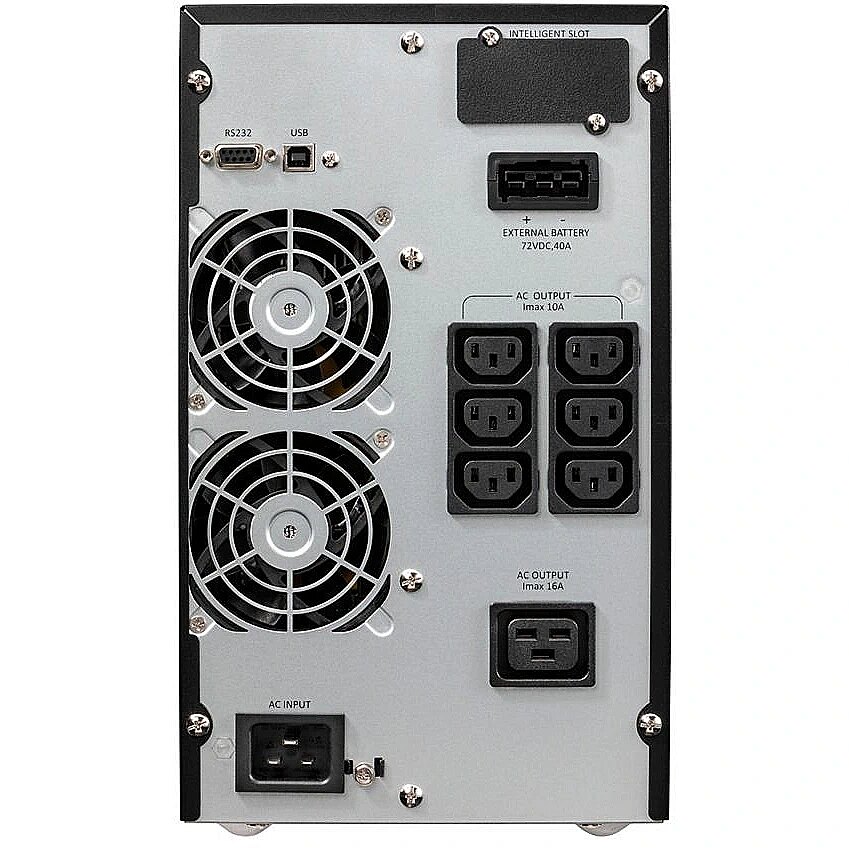

I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Inputfrequency - 40/70 Hz
Input frequency Features - 40/70 Hz
Input operation voltage (max) Features - 300 V
Input operation voltage (min) Features - 176 V
Inputoperationvoltagemax - 300 V
Inputoperationvoltagemin - 176 V
Input power ports - IEC-C20
Link - https://www.eaton.com/za/en-gb/skuPage.9E3000I.html?percolateContentId=post%3A45250264
LongDesc -
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/9E3000I.pdf
name - 9E UPS 3000 VA 2400 W 9E3000I
Name - Eaton 9E3000I
Name - Eaton | OnLine UPS | 9E3000I | 3000 VA | 2400 W | C20
Networkcardslot -
No. of batteries - 6
Noiselevel - 37 dB
Noise level Features - 37 dB
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Outputfrequency - 50/60 Hz
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 208 V
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 208 V
Outputpower - 2400 W
Outputpowercapacity - 3 kVA
Output power capacity Features - 3 kVA
Output power Features - 2400 W
Output power ports - 1 x IEC-C19
Output power ports - 6 x IEC-C13
Output voltage Total Harmonic Distortion (THD) Features - 2%
Overload capacity (1 minute) Features - 130%
Overload capacity (3 seconds) Features - 150%
Overload capacity (10 seconds) Features - 150%
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 330.00 mm
Package features > Gross height (mm) - 464.00 mm
Package features > Gross width (mm) - 496.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 23 pc(s)
Package features > Paper/Pasteboard - 1800.00 g
Package features > Plastic (No PET) - 200.00 g
Package features > Tare weight (kg) - 2.00 kg
Package features > TI weight (kg) - 18.00 kg
Package features > Type of battery - Battery
Package features > Volume (m3) - 0.08 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Performance > Capacity - 3000 VA
Performance > UPS topology - On line
Performance > Waveform - Sine wave
Ports & interfaces - AC outlets quantity - 7 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - AC outlet types - C19 coupler
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces > Power plug - C20
Portsinterfaces -
Powerfactor -
Powerplug - C20 coupler
Power plug Ports & interfaces - C20 coupler
ProdDesc - Eaton 9E 1000i
producer - Eaton
Producer - Eaton
producerCode - 9E3000I
ProducerCode - 9E3000I
Producer product family - OnLine UPS
Producer product name - 9E3000I
Productcolour - Black
Product colour Design - Black
Productcondition - Original
ProductHighLights -
- Online double conversion topology
- Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status
- Reliable UPS at an attractive price
productName - Eaton 9E3000I uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2400 W 7 AC outlet(s)
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/9E3000I_1.jpg
ProductPicture1 -
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
productSize - Normal
Quickinstallationguide -
Rackmountkit -
RS232ports -
Safety regulation & standards - Safety - IEC/EN 62040-1, IEC/EN 62040 -2
Safety Safety regulation & standards - IEC/EN 62040-1, IEC/EN 62040 -2
Safety warning - Warnings - Do not disassemble the unit housing, there may be a risk of electric shock.
Safety warning - Warnings - Keep away from sources of fire and water.
Safety warning - Warnings - Use the appliance in well-ventilated areas to avoid overheating.
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
ShortDescription - Zasilacz awaryjny 9E3000I UPS Online 3000 VA / 2700 W
sizeX - 490
sizeY - 340
sizeZ - 460
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 4
Storno - N
Summary - Eaton 9E3000I. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2400 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 7 AC outlet(s). Form factor: Tower, Product colour: Black. Certification: CE, CB, EAC. Safety: IEC/EN 62040-1, IEC/EN 62040 -2
Technical details > Capacity - 2400 W
Technical details > Gross weight - 26.00 kg
Technical details > Net weight - 24.00 kg
Technical details > Other features - Output 6xC13, 1xC19, Double conversion topology Constantly monitors power conditions and regulates voltage and frequency Internal bypass allows service continuity in case of UPS fault LCD display for real-time status and measurements Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat) Long backup time with up to 4 optional EBM
Technical details > Producer - Eaton
The shape of the output voltage - Full sine wave
Typicalbackuptimeathalfload -
Unit Box Height - 0.46
Unit Box Length - 0.49
Unit Box Width - 0.33
Unit Calculated Volume - 0.07438 cubm
Unit Calculated Weight - 26 kg
Units per Shipping Box - 1
UPS Architecture - on-line double conversion
UPStopology - Double-conversion (Online)
UPS topology Features - Double-conversion (Online)
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype -
Vendor Homepage - https://powerquality.eaton.com/Products-services/Backup-Power-UPS/9E.aspx#documentationtab
vendpn - 9E3000I
Voltage - 12 V
Warranty - 12 months
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Warrantyandmisc -
warrantyLength - 24
warrantyType - F
Waveform -
Weight - 24.2 kg
Weight - 24.2 kg
weight - 10800
Weight & dimensions - Depth - 399 mm
Weight & dimensions - Height - 190 mm
Weight & dimensions - Weight - 24.2 kg
Weight & dimensions - Width - 330 mm
Weightdimensions -
Weight Weight & dimensions - 24.2 kg
Width - 330 mm
Width Weight & dimensions - 330 mm
