Power Walker VI 1500 RT HID, 1500VA 1350W, IEC 2U

Accessories included -
Active power - 1350 W
Apparent power - 1500 VA
Backup time (100% load) - 3 min
Battery - Battery recharge time - 4 h
Battery - Number of battery cells - 3
Battery capacity - 9 Ah
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Charging time - 4 h
Chassis type - Rack
Color - Black
Data Act - Link
Description - Power Walker VI 1500 RT HID LCD is an advanced Line-Interactive UPS characterized by a pure sine wave and high output power factor 0.9.

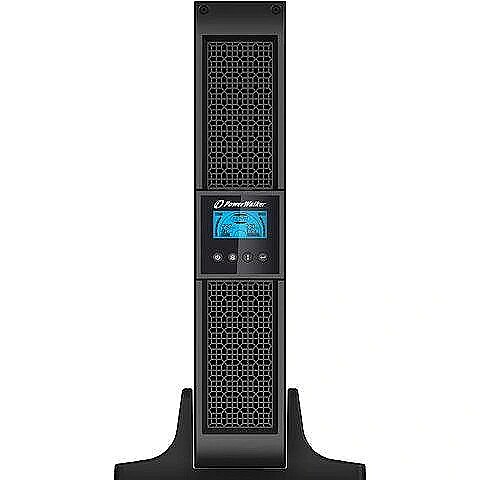

It offers full protection for servers, switches, telephone exchanges, IP cameras, also suitable for industrial applications. Its height is only 2U. UPS can be installed in a 19 "rack (mounting ears included), also has a base for installation in vertical position (Tower).
HID is the primary driver for monitoring the status of devices used for years on Windows, Mac OS, Linux. USB HID port enables communication with connected devices without installing additional software. Power management options are used emergency backup power in the operating system menu, thanks to desktop behaves like a laptop connected to the battery. This series is the best choice for devices that do not have the option of installing additional software, eg. US, some digital recorders, photo kiosks and ATMs.
Features:
- 1500VA Line-Interactive UPS Tower / 19 "rack
- Pure sine wave output power factor of 0.9
- 8x IEC C13 RJ-11 / RJ-45 (in / out)
- Built-in LCD display, the ability to change the display orientation (vertical / horizontal)
- Error messages on the display - blue, red, red blinking - depending on the status of UPS
- Programmable ICE socket C13 - 4 sockets
- The EPO (Emergency Power Off)
- Automatic diagnostic system UPS
- Short charging time
- Integrated voltage stabilization AVR
- Automatic restart after power is restored
- Charging mode off
- The "cold start"
- Communication port USB / RS-232
- Software to monitor UPS operation - WinPower Software - in Polish
- Surge Protection RJ-11 / RJ-45
- Energy saving function (the ability to disable the software)
Design - Form factor - Compact
Design - LED indicators - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 13361
dimension depth - 210 mm
dimension height - 540 mm
Dimensions - 438 x 436 x 86.5 mm
dimension weight - 21160 g
dimension width - 535 mm
ean - 4260074974140
Eans - 4260074974140
Environment requirements - - Operating temperature: 0 - 40 ° C
- Recommended humidity: 20 - 80%
Features - Audible alarm(s) - Yes
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 288 V
Features - Input operation voltage (min) - 154 V
Features - Noise level - 45 dB
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1350 W
Features - Output power capacity - 1.5 kVA
Features - Power protection features - Overload
Features - Power protection features - Over power
Features - Power protection features - Short circuit
Features - Surge energy rating - 430 J
Filters / protection - Surge
guarantee - 24
guarantee_type - normal
Hold-up time (maks) - 10 ms
I/O connectors - 1 x RJ-11
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Important - Chcesz przedłużyć okres gwarancyjny zasilacza UPS i / lub jego akcesoriów? Żaden problem skontaktuj się z doradcą klienta lub napisz na e-mail [email protected] i wykup odpowiednią usługę!
Input power ports - IEC-C14
Name - Power Walker VI 1500 RT LCD
name - UPS PW LINE-IN 1500VA 8x IEC OUT LCD RACK 19'
No. of batteries - 3
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Other features - Optional accessories:
- Mounting Rails 19 ": 10120529
- Card (NMC module SNMP): 10120517
- Data AS / 400: 10120527
- Battery Pack (Battery Pack): 10134010
Other features - Battery type - 12V / 9Ah
Output power ports - 8 x IEC-C13
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - IEC 309 516C6
Ports & interfaces - Modem (RJ-11) ports - 2
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial ports quantity - 2
Ports & interfaces - USB 2.0 ports quantity - 1
producer - PowerWalker
Producer - Power Walker
ProducerCode - VI 1500 RT HID
producerCode - VI 1500 RT LCD
productName - PowerWalker VI 1500RT LCD 1.5 kVA 1350 W 8 AC outlet(s)
productSize - Normal
ShortDescription - LINE-INTERACTIVE 1500VA | 8X IEC OUT | RJ11/RJ45 | USB/RS-232 | LCD | RACK 19"
sizeX - 227
sizeY - 545
sizeZ - 540
Software - Software: WinPower
- Ability to control and monitor multiple UPS units to the local network and the Internet
- Charts power analysis, event statistics, export data history
- Chart UPS unit data in real time (voltage, frequency, load level, battery level)
- Safe shutdown of the system and data protection against power failure
- Notifications using the system sounds, e-mail, SMS, to all computers on the LAN
- Schedule on / off, battery test, programmable control socket, control audible alarms.
- Access protection with password, remote access and management
- Multi-language support: English, Chinese, French, German, Spanish, Russian, Portuguese, Ukrainian, Italian, Polish, Czech, Turkish
- Operating system: Windows / MAC / Linux / Unix / Solaris / AJX / HP-UX / FreeBSD details at: - http://www.powerwalker.com/winpower.html
Special functions -
Technical details - Harmonized System (HS) code - 85078000
Transfer time (max) - 6 ms
UPS Architecture - line-interactive
vendpn - VI 1500 RT HID
Voltage - 12 V
warrantyLength - 24
warrantyType - G
weight - 21280
Weight & dimensions - Depth - 545 mm
Weight & dimensions - Height - 230 mm
Weight & dimensions - Weight - 17.8 kg
Weight & dimensions - Width - 545 mm
