Accessories included -
Active power - 1650 W
Apparent power - 1650 VA
Backup time (100% load) - 3 min
Battery capacity - 7 Ah
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Charging time - 4 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Connectors - SmartSlot
Description - SINLINE RT XL is the latest series of advanced power supplies in which the output active power can attain apparent power. These power supplies are designed for servers, small computer networks and workstations as well as other electrical, electronic and IT equipment. In addition, this series has a LAN filter (1Gbit / s), the ability to manage the output sockets, connect an additional battery module and replace the battery by the user. The LCD graphic display gives the user complete control over the device.
Thanks to the optional power supply in the RS232 / RS485 communication interface with MODBUS protocol and the potential-free output and control inputs, it is possible to integrate the device into the automation systems. The Rack / Tower housing makes it easy to change the way you install the unit.
The built-in automatic voltage regulation (AVR) allows the input voltage to be adjusted to acceptable levels without consuming battery power. The integrated battery charging system with thermal compensation additionally protects internal batteries, extending their service life.
Power supplies have a built-in communication system via a standard network interface (SNMPv1, HTTP) and a USB HID interface that allows the UPS to work with other devices without installing software. In addition, this series allows you to start the device from the battery without having to connect the UPS to the mains supply. "Cold start". Optionally, the UPS has the Emergency Power Off (EPO) function.
Designation - CE+WEEE
dimension depth - 250 mm
dimension height - 550 mm
Dimensions - - Dimensions Rack: 132 x 440 x 460 mm (mounting kit to be purchased separately)
- Tower dimensions (+ pedestal): 450 x 304 x 460 mm
dimension weight - 32000 g
dimension width - 550 mm
ean - 5907683603786
Eans - 5907683603786
Environment requirements - - Working temperature: 0 - 40 degrees Celsius
- Storage temperature: 0 to 45 degrees C
- Operating humidity: 20 - 80% (non-condensing)
- Storage Ambient Humidity: 20 - 95% (non-condensing)
- Height up to 1000 m
Filters / protection - Circuit
Filters / protection - Data line
Filters / protection - Surge
guarantee - 36
guarantee_type - external
Hold-up time (maks) - 3 ms
Input power ports - IEC-C20

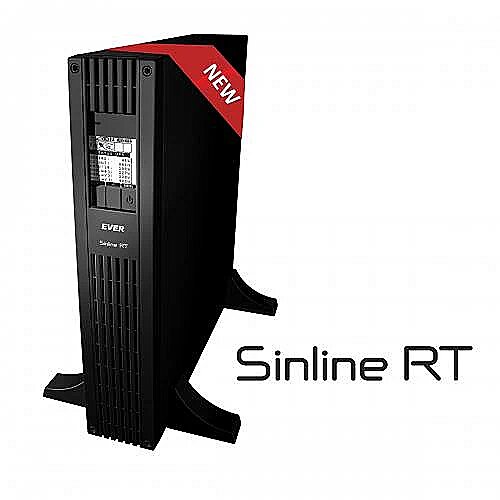

Name - Ever Sinline RT XL 1650
name - UPS SINLINE RT XL 1650VA
No. of batteries - 4
Number of phases input - 1 (230V)
Other features - - Degree of protection: IP20
- Working environment: office / industrial areas with low pollution levels
- Cooling: internal fans
- Input: 230V 50Hz (178 ~ 281V AC 45/55 Hz)
- Output: 230V 50Hz (195 ~ 253V AC 50 Hz)
- Maintenance (80/50%): 4/6 minutes
- Signaling: acoustic-optical
- 3 controllable C13 10A output connectors

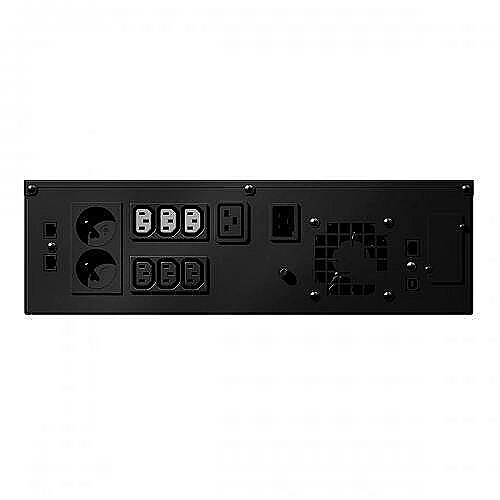

Output power ports - 1 x IEC-C19
Output power ports - 2 x C/E type
Output power ports - 6 x IEC-C13
producer - EVER
Producer - Ever
ProducerCode - W/SRTXRT-001K65/00
ShortDescription -
Software - PowerSoft monitoring and management software
Special functions - - Output power equal to apparent power (PF = 1)
- Rack / Tower mounting
- Voltage regulation system AVR (boost and lower)
- Graphical LCD display
- Battery charging system with thermal compensation
- Predictive hold time
- Ability to manage output sockets
- Cold start
- Battery replacement by the user
- Support for external battery module (optional)
- EPO input support (optional)
- Network interface as standard (SNMP, HTTP)
- HID USB communication interface
- RS232 / RS485 communication interface (MODBUS) (optional)
- Support for potential-free outputs and control inputs (optional)
- LAN filter (1 Gb / s)
- Firmware update by user
Transfer time (max) - 0 ms
UPS Architecture - line-interactive
vendpn - W/SRTXRT-001K65/00
Voltage - 12 V
Warranty - - Door-to-door service
- 3 year warranty on UPS electronics
- 2 year battery warranty
- Repair work done in 2 working days
Weight - 26 kg
