Accessories included -
Active power - 300 W
Apparent power - 500 VA
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
Battery - Typical backup time at half load - 9 min
Charging time - 4 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Connectors - RJ-11

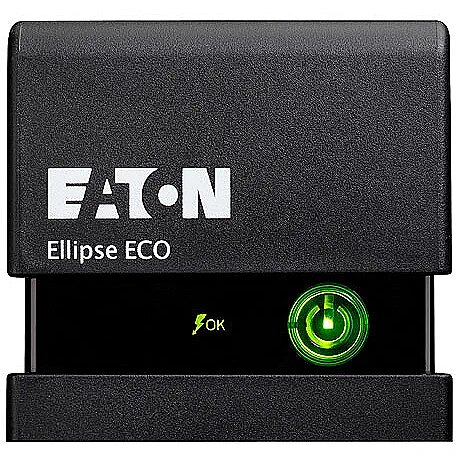

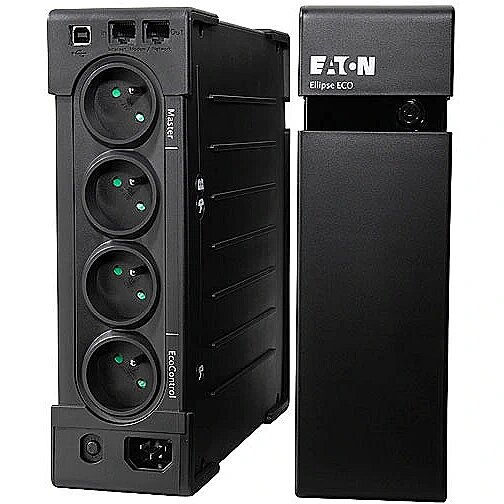

Description - Eaton Ellipse ECO 500 FR The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
Full specification avaiable at manufacturers website: http://powerquality.eaton.com/EL500FR.aspx?CX=101
Design - Form factor - Tower
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
Design - Safety - IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Designation - CE+WEEE
dimensionalWeight - 2553
dimension depth - 400 mm
dimension height - 140 mm
Dimensions - - Height: 263 mm
- Width: 81 mm
- Depth: 235 mm
dimension weight - 3438 g
dimension width - 360 mm
ean - 3553340620515
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Emergency Power Off (EPO) - No
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 300 W
Features - Output power capacity - 0.5 kVA
Features - Surge protection - Yes
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Network
Features - Surge protection features - Telephone
Features - UPS topology - Standby (Offline)
Filters / protection - Data line
Filters / protection - Overdischarge
Filters / protection - Surge
guarantee - 24
guarantee_type - external
Input power ports - IEC-C14
Logistics data - Harmonized System (HS) code - 85078000
name - Ellipse ECO 500 FR EL500FR
Number of phases input - 1 (230V)
Other features - - Input voltage range: 184 - 264V
- 3 output sockets with backup and protection + 1 with protection
- Replaceable sealed lead-acid batteries
- Energy-efficient build
- Time: 50% (9 min), 70% (5 minutes)
Other features - Input connection type - FR
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 220-240 V
Other features - Overload protection - Yes
Output power ports - 4 x C/E type
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - Type E
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Power plug - C14 coupler
producer - Eaton
producerCode - EL500FR
productName - Eaton Ellipse ECO 500 FR uninterruptible power supply (UPS) Standby (Offline) 0.5 kVA 300 W 4 AC outlet(s)
productSize - Normal
sizeX - 320
sizeY - 140
sizeZ - 285
Software -
Special functions - - Easy installation in an office environment
- Protecting data line
- Automatic switch
- LED indicators + audible alarm
- Battery test
- Cold start
UPS Architecture - off-line (standby)
vendpn - EL500FR
Video -
warrantyLength - 24
warrantyType - F
Weight - 2.9 kg
weight - 3510
Weight & dimensions - Depth - 235 mm
Weight & dimensions - Height - 263 mm
Weight & dimensions - Weight - 2.9 kg
Weight & dimensions - Width - 81 mm
