Accessories included -
ACoutletsquantity - 9 AC outlet(s)
ACoutlettypes - C13 coupler, C19 coupler
Active power - 2700 W
Apparent power - 3000 VA
ARTIKEL1 - EATON 5SC 3000I RT2U
ARTIKEL2 - IN
AutomaticVoltageRegulationAVR -
Battery -
Batterycapacity -
Batterytechnology -
Batteryvoltage -
Cablesincluded -
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category Code - UPW
Chassis type - Rack
Color - Black
Colour - Black
Depth - 647 mm
Description -
Description - Eaton 5SC 3000 VA Rack/Tower
Design -
Design - Certification - CE, CB report (TÜV)
Design - Form factor - Rackmount/Tower
Design - Product colour - Black
Design - Safety - IEC / EN 62040-1, UL 1778
Designation - CE+WEEE
dimensionalWeight - 22178
dimension depth - 200 mm
dimension height - 890 mm
Dimensions - 86.2 x 441 x 647 mm
Dimensions - 86.2 x 441 x 647mm
dimension weight - 42200 g
dimension width - 585 mm
Displaytype -
ean - 743172088352
EANCode - 0743172088352
Eans - 0743172088352
Efficiency -
Environment requirements -
Features -
Features - Input frequency - 45/55 Hz
Features - Input operation voltage (max) - 276 V
Features - Input operation voltage (min) - 184 V
Features - Noise level - 45 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Power protection features - Overdischarge
Features - UPS topology - Line-Interactive
Formfactor - Rackmount/Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 86.2 mm
HERSTELLER - EATON
HighLights -
Hotswapbattery -
HSTNUMMER - 5SC3000IRT
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Inputfrequency - 45/55 Hz
Inputoperationvoltagemax - 276 V
Inputoperationvoltagemin - 184 V
Input ports - Single, IEC320 C20 (16AMP)
Input power ports - IEC-C20
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
ManufDatasheet -

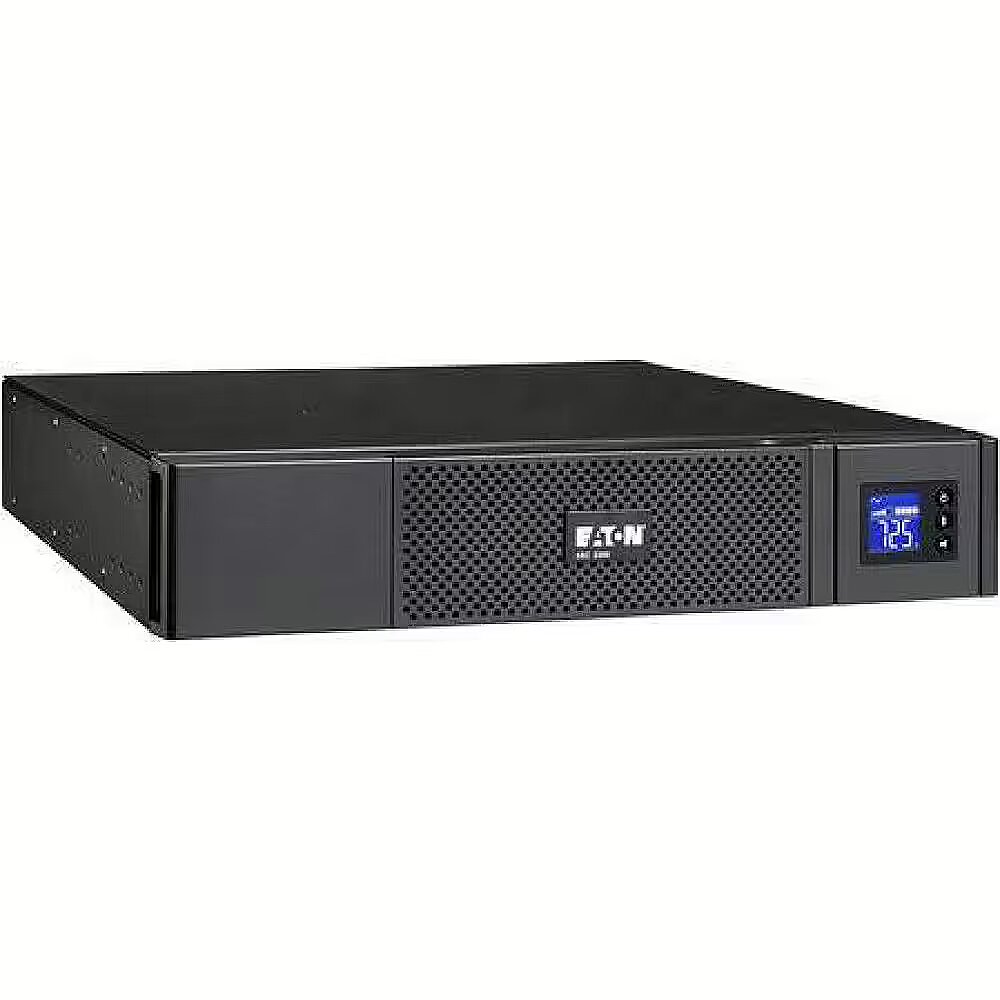

Name - Eaton 5SC 3000I RT2U/IN
name - UPS 5SC 3000i RT2U 5SC3000IRT
Networkcardslot -
No. of batteries - 1
Noiselevel - 45 dB
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Other features - Output voltage - 230 V
Outputfrequency - 50/60 Hz
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 220 V
Outputpower - 2700 W
Outputpowercapacity - 3 kVA
Output power capacity, VA - 3000 VA
Output power capacity, W - 2700 Watts
Output power connector type - IEC 320 C13, IEC 320 C19
Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
Packagingcontent -
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - AC outlet types - C19 coupler
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Portsinterfaces -
Powerfactor -
Powerplug - C20 coupler
ProdDesc - Eaton 5SC 3000i RT2U
producer - Eaton
Producer - Eaton
producerCode - 5SC3000IRT
ProducerCode - 5SC3000IRT
Productcolour - Black
Productcondition - Original
ProductHighLights -
- Line-Interactive
- 3 kVA 2700 W
- 9 AC outlet(s)
- Rackmount/Tower Black
productName - Eaton 5SC 3000I RT2U uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 9 AC outlet(s)
Product Net Weight - 35.3 kg
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5SC3000IRT_1.jpg
ProductPicture1 -
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
productSize - Normal
Quickinstallationguide -
Rackmountkit -
RS232 Communication ports - 1
RS232ports - 1
Serialinterface - Yes
Serialinterfacetype - RS-232
Serialportsquantity -
ShortDescription -
sizeX - 210
sizeY - 590
sizeZ - 895
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Typicalbackuptimeathalfload -
Unit Box Height - 0.2
Unit Box Length - 0.885
Unit Box Width - 0.587
Unit Calculated Volume - 0.1039 cubm
Unit Calculated Weight - 40.5 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
UPStopology - Line-Interactive
USB Communication ports - 1
USBport -
USBporttype -
Vendor Homepage - powerquality.eaton.com/5SC3000iRT.aspx?cx=101
vendpn - 5SC3000IRT
Video -
Warranty - 12 months
Warranty - 24 months
Warrantyandmisc -
warrantyLength - 24
warrantyType - F
Waveform -
Wave form type - Sinewave
Weight - 35.3 kg
Weight - 35.3 kg
weight - 42220
Weight & dimensions - Depth - 647 mm
Weight & dimensions - Height - 86.2 mm
Weight & dimensions - Weight - 35.3 kg
Weight & dimensions - Width - 441 mm
Weightdimensions -
Width - 441 mm
