ID: 1415982
Tuotekoodi: PSA6-1600IT-SCH
Voidaan tilata 4 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 2 vuotta

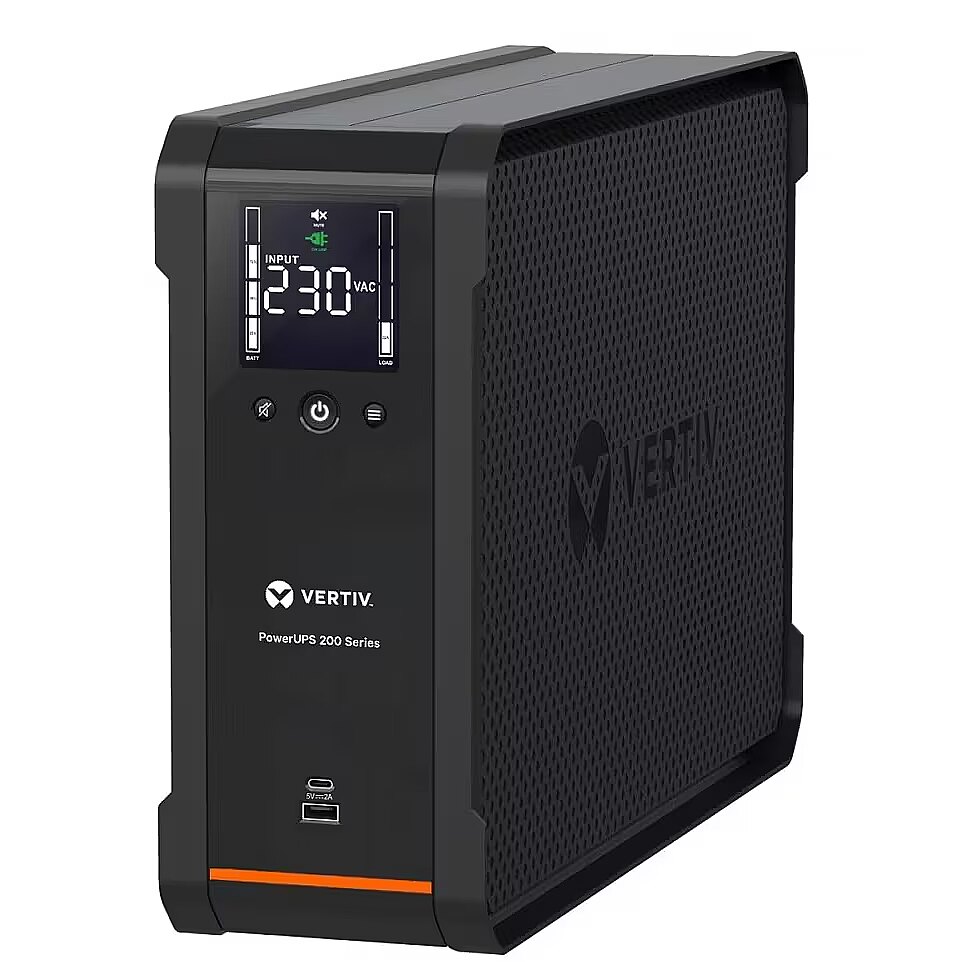

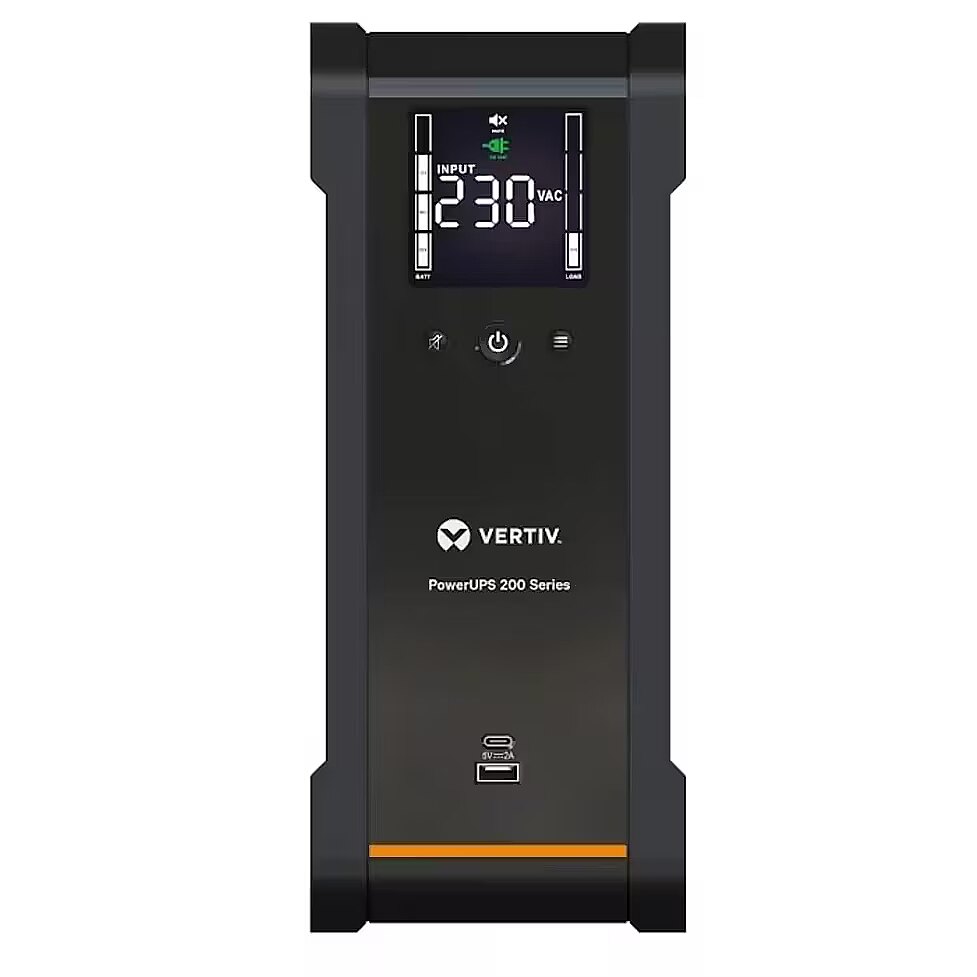

Vertiv UPS PowerUPS 200 PSA6-1600IT-SCH
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Postitoimisto1-2 työpäivän kuluessa6,99 €
-
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa12,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Akun kapasiteetti (VA): 1600
- Lähtöteho (W): 1000
Kuvaus
Tämä UPS Vertiv UPS PowerUPS 200 PSA6-1600IT-SCH, jolla on ulostuloteho 1000 W ja akun kapasiteetti 1600 VA, pystyy palvelemaan tehokkaita järjestelmiä jatkuvalla kuormituksella. Se ylläpitää stabiilia virtalähdettä kriittisen tärkeille laitteille.
Takuu
Vertiv tarjoaa 2 vuoden takuun tälle mallille kaikissa sertifioiduissa huoltokeskuksissa.
Näytön ominaisuudet
Näyttö
: Ei ole
Perustiedot
Akun kapasiteetti (VA)
1600
Akkupaketin kapasiteetti on UPS-laitteen pitkäaikaisen toiminnan mittari ilman pysyvää virtalähdettä. Tämä parametri koskee UPS-laitetta, jonka akkupaketti on täysin ladattu. Jos haluat tarkistaa, kuinka suurta kapasiteettia tietokonelaitteesi tarvitsee, käy osoitteessa www.apc.ru, josta löydät UPS-kapasiteetin määritystyökalun.
Akun tyyppi
: Lead acid
Latausaika (tuntia)
: 6
Lähtöteho (W)
: 1000

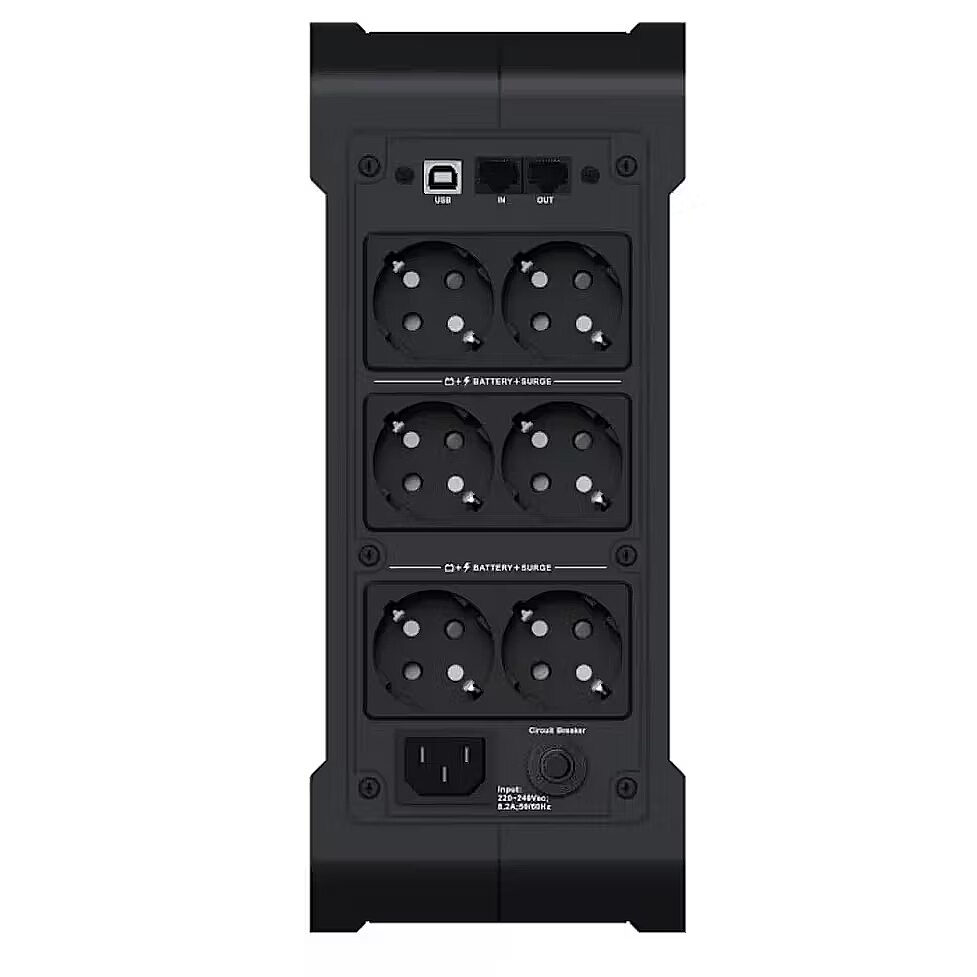

Satamat ja laitteet
Pesien lukumäärä (yhteensä)
: 6
Pistorasian tyyppi
: Schuko
Pistorasioiden määrä (akkuvarmennus)
: 6
RJ-45
: 2
USB
: 0
Yksityiskohtaisempi erittely
Active power - 1000 W
Apparent power - 1600 VA
Backup time (100% load) - 2 min
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Typical backup time at full load - 2 min
Battery - Typical backup time at half load - 10 min
Brand - Vertiv
BrandPartCode - PSA6-1600IT-SCH
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Compliance certificates - CB, CE, EAC, RCM, REACH, RoHS, UKCA, WEEE
Chassis type - Tower
Color - Black
Description -
Design - Cable length - 1.8 m
Design - Display type - LCD
Design - Form factor - Tower
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 220 mm
dimension height - 390 mm
Dimensions - 290 x 120 x 430 mm
dimension weight - 14500 g
dimension width - 530 mm
ean - 767041045123
Environment requirements - Zakres temperatur (przechowywanie): -20 - 40 C Dopuszczalna wysokość podczas eksploatacji (n.p.m.): 0 - 3000 m Zakres wilgotności względnej: 0 - 95 % Zakres temperatur (eksploatacja): 0 - 40 C Dopuszczalna wysokość (n.p.m.): 0 - 3000 m
Features - Efficiency - 95%
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 290 V
Features - Input operation voltage (min) - 140 V
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 255 V
Features - Output operation voltage (min) - 195 V
Features - Output power - 1000 W
Features - Output power capacity - 1.6 kVA
Features - Power protection features - Over current, Overcharge, Overload, Short circuit
Features - Surge energy rating - 600 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Automatic Voltage Regulation (AVR)
guarantee - 24
guarantee_type - external
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-45 LAN
Input power ports - IEC-C14
LongDesc - The Vertiv PowerUPS 200 Line Interactive Series PSA6-1600IT-SCH is a compact UPS offering reliable, high-performance battery backup and surge protection for desktop PCs, personal electronics, wireless networks, entertainment devices, surveillance systems, and retail point-of-sale (POS) systems. With automatic voltage regulation, it stabilizes input voltage fluctuations and provides clean, continuous power during outages or brownouts. Its intuitive color LCD display delivers at-a-glance system diagnostics, while the USB-A and USB-C ports allow convenient charging for portable electronics. The hot-swappable, user-replaceable batteries reduce downtime and simplify maintenance, and the free Vertiv Power Assist software enables seamless shutdown of devices, preserving data and hardware integrity. This unit also has a dedicated mute button for quickly silencing alarms, as well as dataline surge protection to safeguard your equipment from power surges traveling through network cables.
LongProductName - PowerUPS 200 Line Interactive PSA6-1600IT-SCH, 1600VA/1000W, AVR, USB Charging, Color LCD, User-Replaceable Battery, 6 Schuko Outlets
LongSummaryDescription - Vertiv PowerUPS 200 1600VA/1000W 230V Line Interactive 6 Schuko. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1000 W. Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2 min, Typical backup time at half load: 10 min. Form factor: Tower, Product colour: Black, Cable length: 1.8 m. Compliance certificates: CB, CE, EAC, RCM, REACH, RoHS, UKCA, WEEE
name - UPS PowerUPS 200 PSA6-1600IT-SCH
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 3000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 40 °C
Output power ports - 6 x C/F type (Schuko)
Packaging data - Package depth - 510 mm
Packaging data - Package height - 370 mm
Packaging data - Package weight - 14 kg
Packaging data - Package width - 215 mm
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - Power plug - C14 coupler
producer - Vertiv
ProductName - PowerUPS 200 1600VA/1000W 230V Line Interactive 6 Schuko
ShortSummaryDescription - Vertiv PowerUPS 200 1600VA/1000W 230V Line Interactive 6 Schuko, Line-Interactive, 1.6 kVA, 1000 W, Sine, 140 V, 290 V
Software - Vertiv Power Assist
The shape of the output voltage - Full sine wave
Title - Vertiv PowerUPS 200 1600VA/1000W 230V Line Interactive 6 Schuko
Transfer time (max) - 10 ms
UPS Architecture - line-interactive
URL - https://www.vertiv.com
vendpn - PSA6-1600IT-SCH
WarrantyInfo - 3 Year
Weight - 11.8 kg
Weight & dimensions - Depth - 430 mm
Weight & dimensions - Height - 290 mm
Weight & dimensions - Weight - 11.8 kg
Weight & dimensions - Width - 120 mm
