Battery - Battery capacity - 9 Ah
Battery - Battery recharge time - 3 h
Battery - Battery voltage - 12 V
Battery - Hot-swap battery - Yes
Battery - Number of battery cells - 6
Battery - Typical backup time at full load - 33 min
Brand - FSP
BrandPartCode - PPF30A0600
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certificates - Certification - EMC EN62040-2 C2
Certificates - Compliance certificates - CE
Design - Built-in fan - Yes
Design - Control type - Buttons
Design - Cooling type - Active
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - Product colour - Black
EAN - 4713224524905
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Overload alarm, Low battery alarm
Features - Crest factor - 3:1
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 110 V
Features - Noise level - 50 dB
Features - Number of input phases - 1
Features - Output frequency - 46/64 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 3000 W
Features - Output power capacity - 3 kVA
Features - Output voltage regulation - 1%
Features - Power factor - 0.99
Features - Response time - 4 ms
Features - Surge protection - Yes
Features - Total Harmonic Distortion (THD) (linear load) - 2%
Features - Total Harmonic Distortion (THD) (non-linear load) - 4%
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
GTIN - 4713224524905
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - FSP RT Clippers Series Clippers series is a premium featured online double conversion UPS with Rack/Tower design and high efficiency to reduce customer‘s total cost of ownership. The internal hot-swappable battery increases system reliability and reduces MTTR; the parallel function is designed for future equipment expansion. Its special firmware design can adapt to various applications like laser printers and ultrasound devices and supports long backup time with battery monitoring.
LongProductName - 2U, 3000 VA, 3000 W, 220 - 240 V, 3:1, 438 x 610 x 88 mm, 27.5 kg
LongSummaryDescription - FSP Clippers RT 3K. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, USB port type: USB Type-B, Serial interface type: RS-232. Battery capacity: 9 Ah, Battery voltage: 12 V, Typical backup time at full load: 33 min. Form factor: Rackmount/Tower, Product colour: Black, Cooling type: Active. Compliance certificates: CE, Certification: EMC EN62040-2 C2
Manufacturer - FSP
MPN - PPF30A0600
Name - FSP Clippers RT 3K Rack/Tower Online UPS 3000VA 3000W USB RS-232 EPO
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Packaging content - UPS, user manual, software CD, C14-C13 cable, USB cable, tower stands, mounting ears & screws

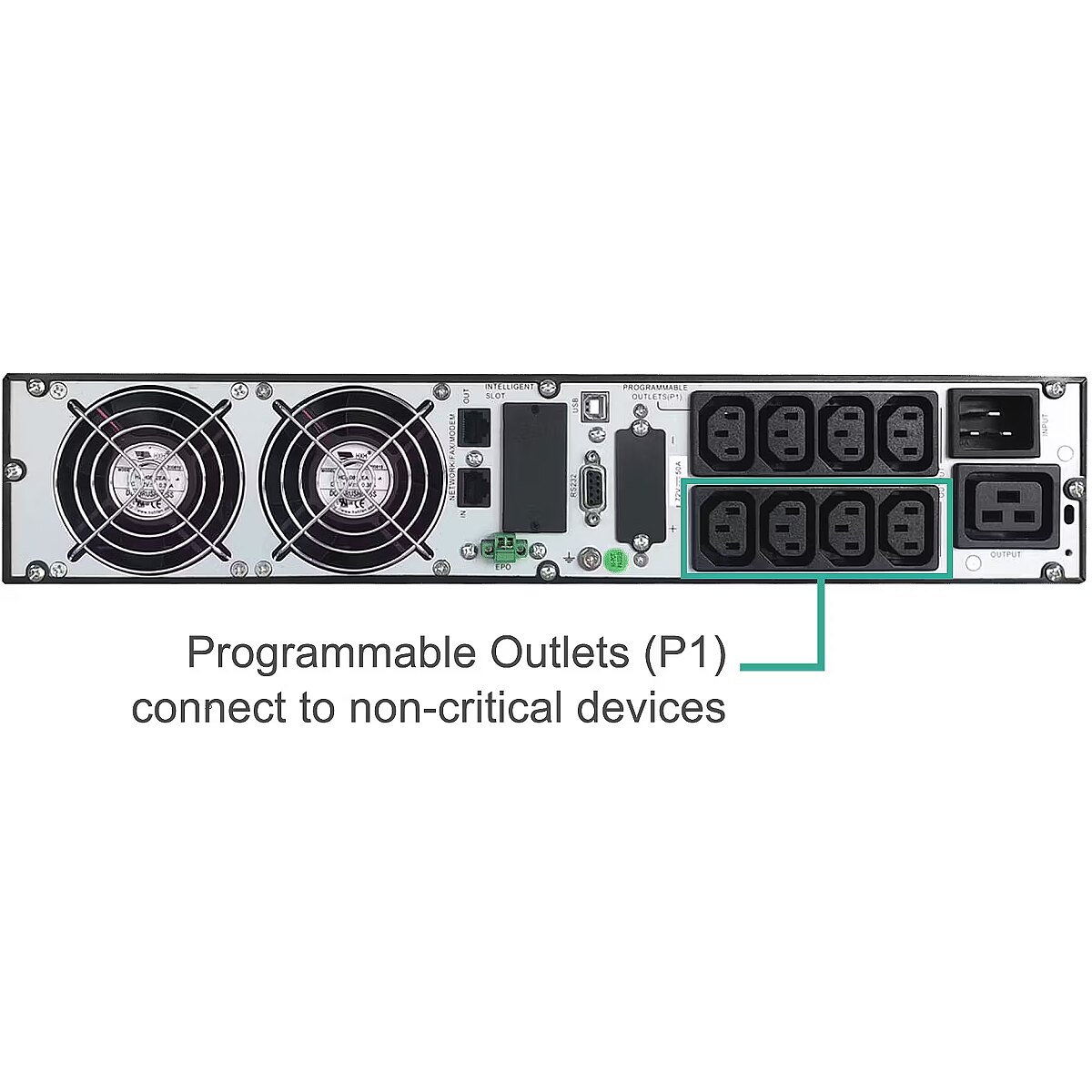

Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
ProductName - Clippers RT 3K
ShortSummaryDescription - FSP Clippers RT 3K, Double-conversion (Online), 3 kVA, 3000 W, Sine, 110 V, 300 V
Sustainability - Sustainability compliance - Yes
Title - FSP Clippers RT 3K uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W
URL - https://energy.fsp-europe.com/product/clippers-3k/
WarrantyInfo -
Weight - 30.6
Weight & dimensions - Depth - 630 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Weight - 27.5 kg
Weight & dimensions - Width - 438 mm
