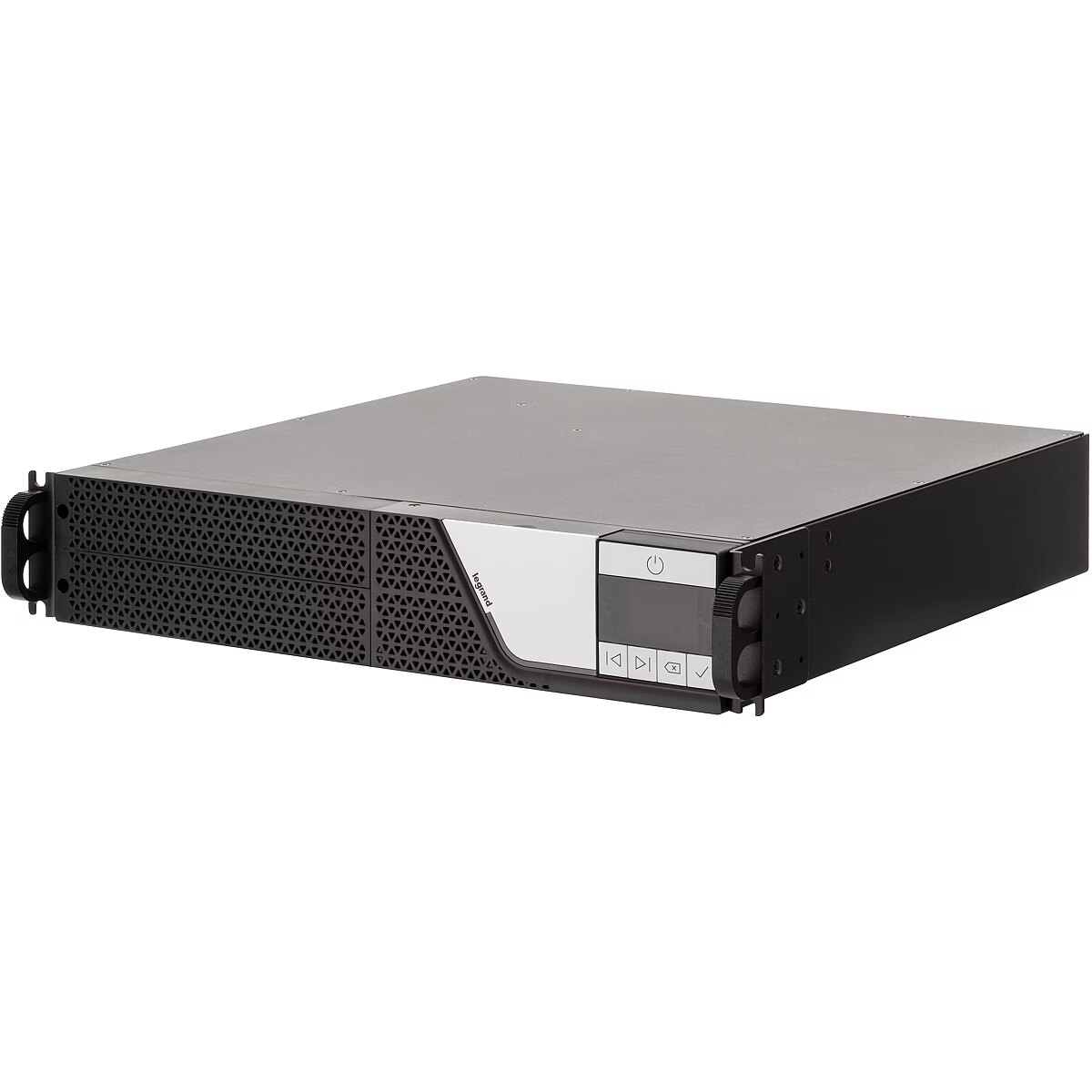

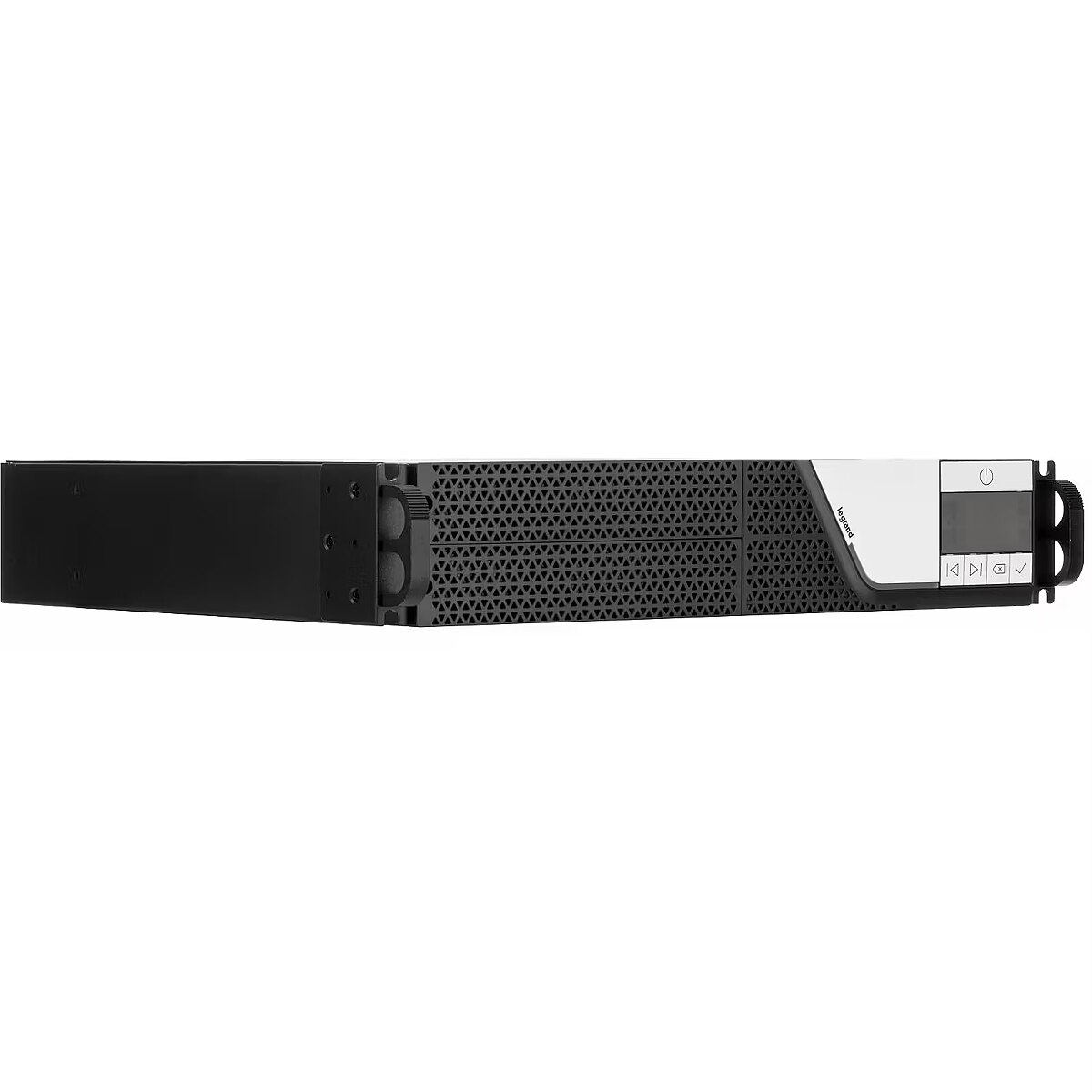

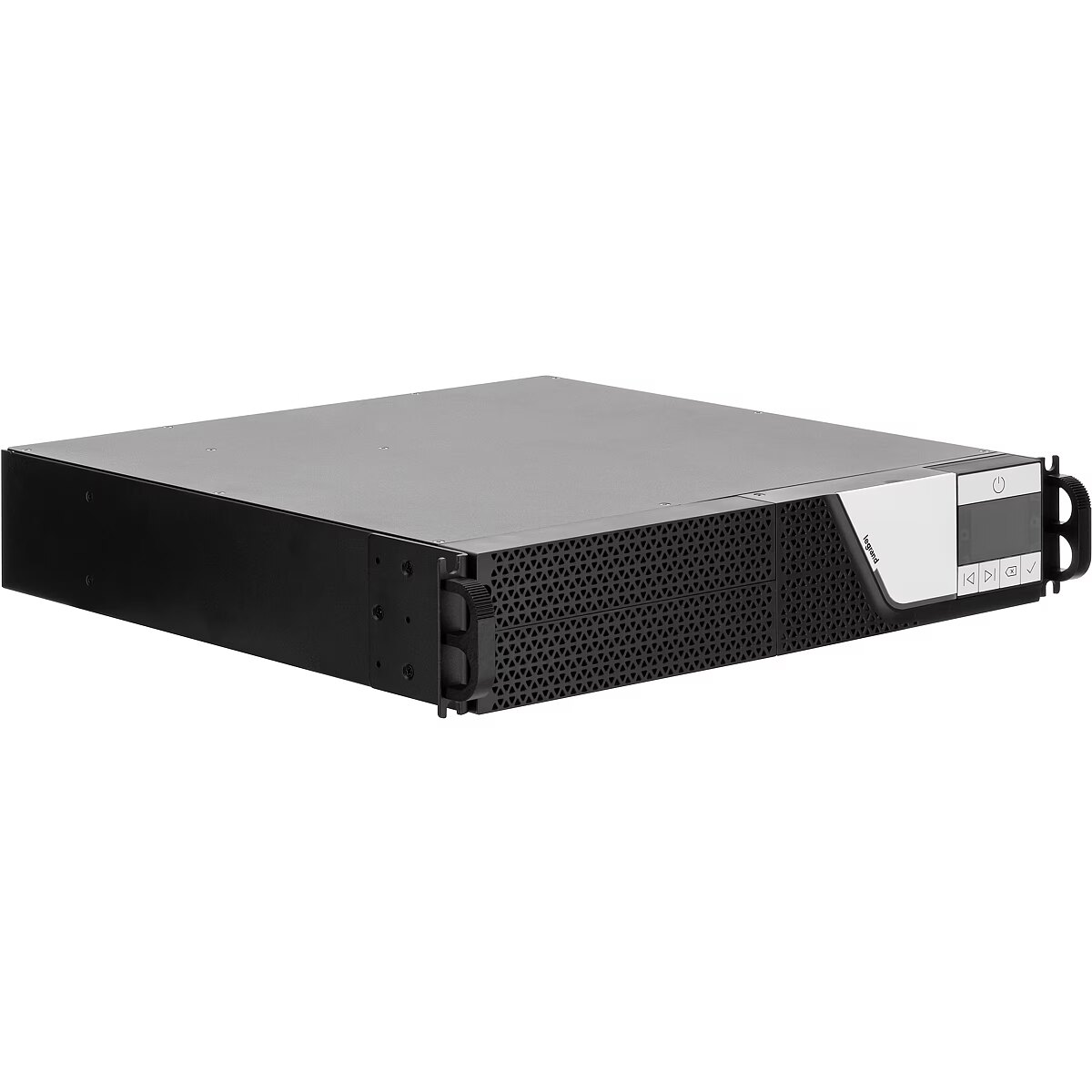

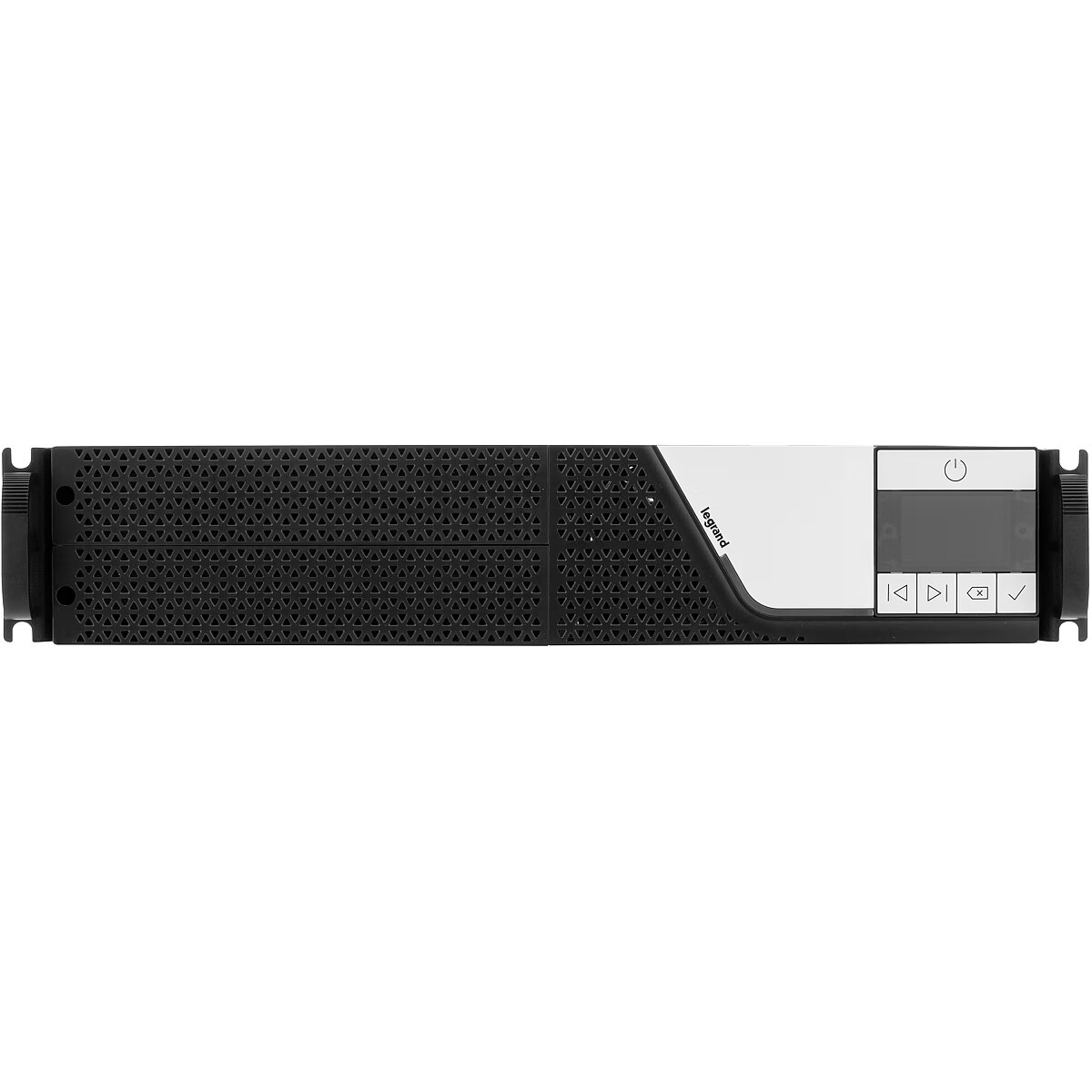

Legrand UPS Keor SPE Rack 2U 1kVA

Accessories included -
Active power - 1050 W
Apparent power - 1500 VA
Battery - Typical backup time at full load - 0.00016 min
Battery capacity - 7 Ah
Brand - Legrand
BrandPartCode - 311069
Category - Uninterruptible Power Supplies (UPSs)
Charging time - 4 h
Chassis type - Rack
Color - Black
Data Act - Link
Description - Keor SPE Rack 2U 1.5kVA uninterruptible power supply Legrand KEOR SPE R/T 1500 is an uninterruptible UPS power supply made using Line interactive technology with a rated power of 1500VA - 1050W. The operation of the device is managed by a high-quality, dedicated microprocessor. The power supply has the ability to run auto diagnostic tests and a cold start function. The KEOR SPE RT power supply can be used in both tower and rack configurations. KEOR SPE R/T 1500 is equipped with hermetically sealed lead batteries with an adjustable valve, which guarantee a minimum backup time of 8 minutes at 80% load. The batteries can be easily replaced thanks to special covers located on the front of the UPS. The presence of an electronic voltage stabilizer (AVR) in the power supply ensures high output voltage stability and effective protection against interference in the electrical network. The UPS has a number of 2 x output sockets (4 x IEC320-C13), one group of sockets can be programmable. KEOR SPE R/T 1500 can be connected to a PC via an SNMP, USB or RS232 serial port, which allows for convenient monitoring of its operation using free software, as well as emergency shutdown of Windows and Linux operating systems. The power supply has a 5-button control panel, an LCD screen and 3 LEDs for the power supply status:   GREEN: Correct operation. The load is secured. YELLOW: The load is powered by the UPS battery, but the alarm is active, control is required. RED: The load is not powered by the UPS. An emergency condition exists.   The LCD display allows you to read:   Operating mode Measurement:   a) Input and output voltage/frequency b) Active and apparent power c) Load percentage d) Battery voltage e) Battery charge percentage f) Hold time g) Ambient temperature   Alarms and errors   The KEOR SPE R/T 1500 power supply is CE marked in accordance with Directives 2014/35 and 2014/30 and has been designed and built in accordance with the following standards:   EN 62040-1 "General and safety requirements for UPS units used in places accessible to the operator" EN 62040-2 "Electromagnetic compatibility (EMC) requirements" EN 62040-3 "Requirements for performance properties and test methods"
Design - Display type - LCD
Design - Form factor - Rackmount
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 610 mm
dimension height - 200 mm
Dimensions - 440 x 44 x 557 mm (2U)
dimension weight - 20000 g
dimension width - 500 mm
ean - 3414972083423
Environment requirements - Operating temperature (°C): 0 - 40 Relative humidity (%): 0-95 non-condensing Noise level at 1 m (dBA): below 40 Estimated content of materials from a circular economy: approximately 41% Recyclability rate calculated using the method described in Technical Report IEC/TR 62635: approximately 78%
Features - Auto shut-off - Yes
Features - Efficiency - 85%
Features - Efficiency (ECO mode) - 98%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 47/63 Hz
Features - Input operation voltage (max) - 288 V
Features - Input operation voltage (min) - 175 V
Features - Management protocols - Network management,Simple Network Management Protocol (SNMP)
Features - Number of output phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 1200 W
Features - Output power capacity - 1.5 kVA
Features - Output power factor - 0.8
Features - Output voltage Total Harmonic Distortion (THD) - 3%
Features - Potential-free output - Yes
Features - Power factor - 0.8
Features - Power source type - AC
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Against reverse current
Filters / protection - Circuit
Filters / protection - Overload
Filters / protection - Thermal
GTIN - 3414972083423
guarantee - 24
guarantee_type - normal
I/O connectors - 1 x EPO
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Input power ports - IEC-C14
Logistics data - Products per master (outer) case - 1 pc(s)
LongDesc -

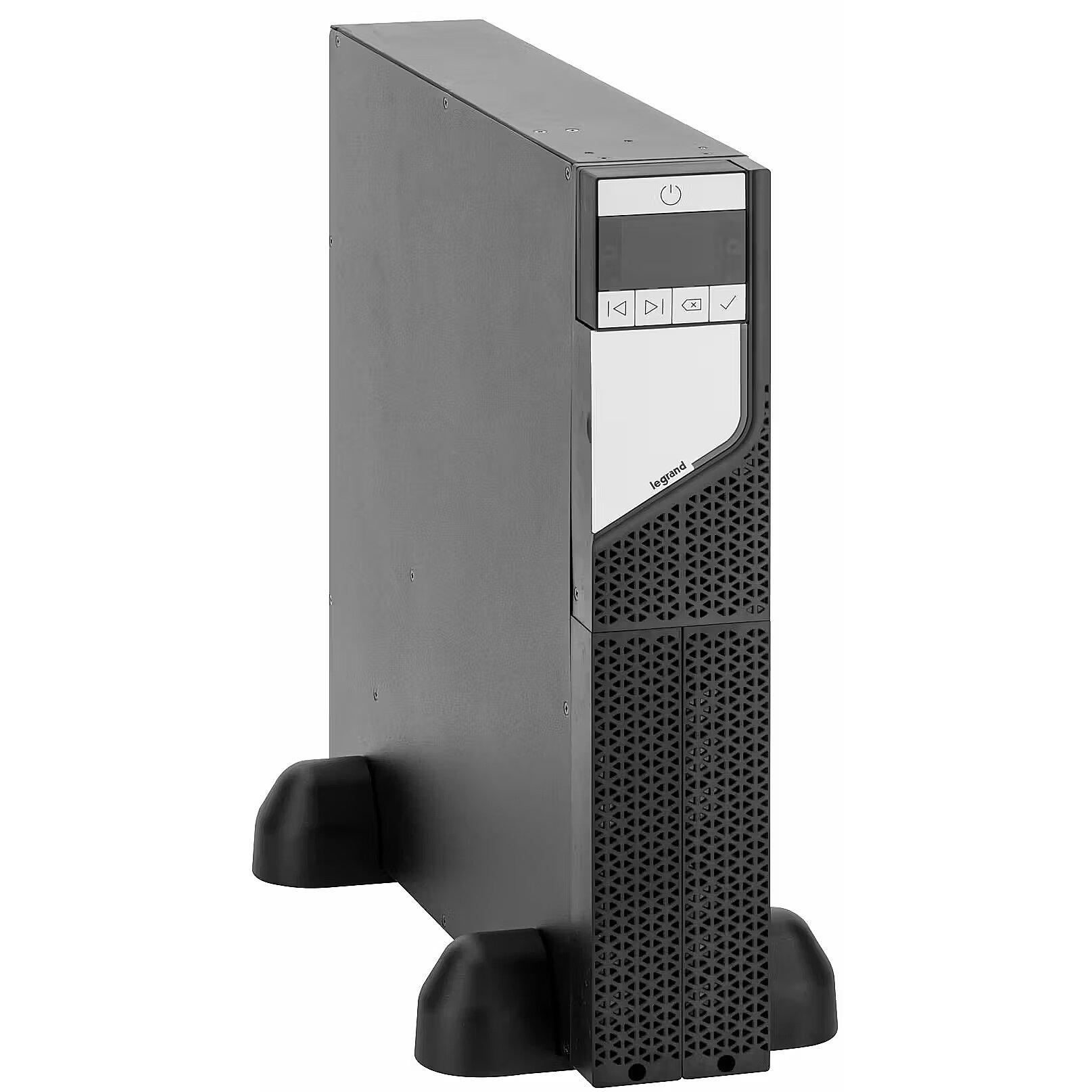

LongProductName - 19" Rack Type Line-Interactive UPS designed for IT equipments, servers and voice/data networks. Legrand Keor SPE RT has a rack/tower convertible chassis and screen.
LongSummaryDescription - Legrand Keor ASI SPE rack 2U 1.5KVA. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1200 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Typical backup time at full load: 0.00016 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 440 mm, Height: 88 mm
name - UPS Keor SPE Rack 2U 1kVA
No. of batteries - 6
Number of phases input - 1 (230V)
Other features -

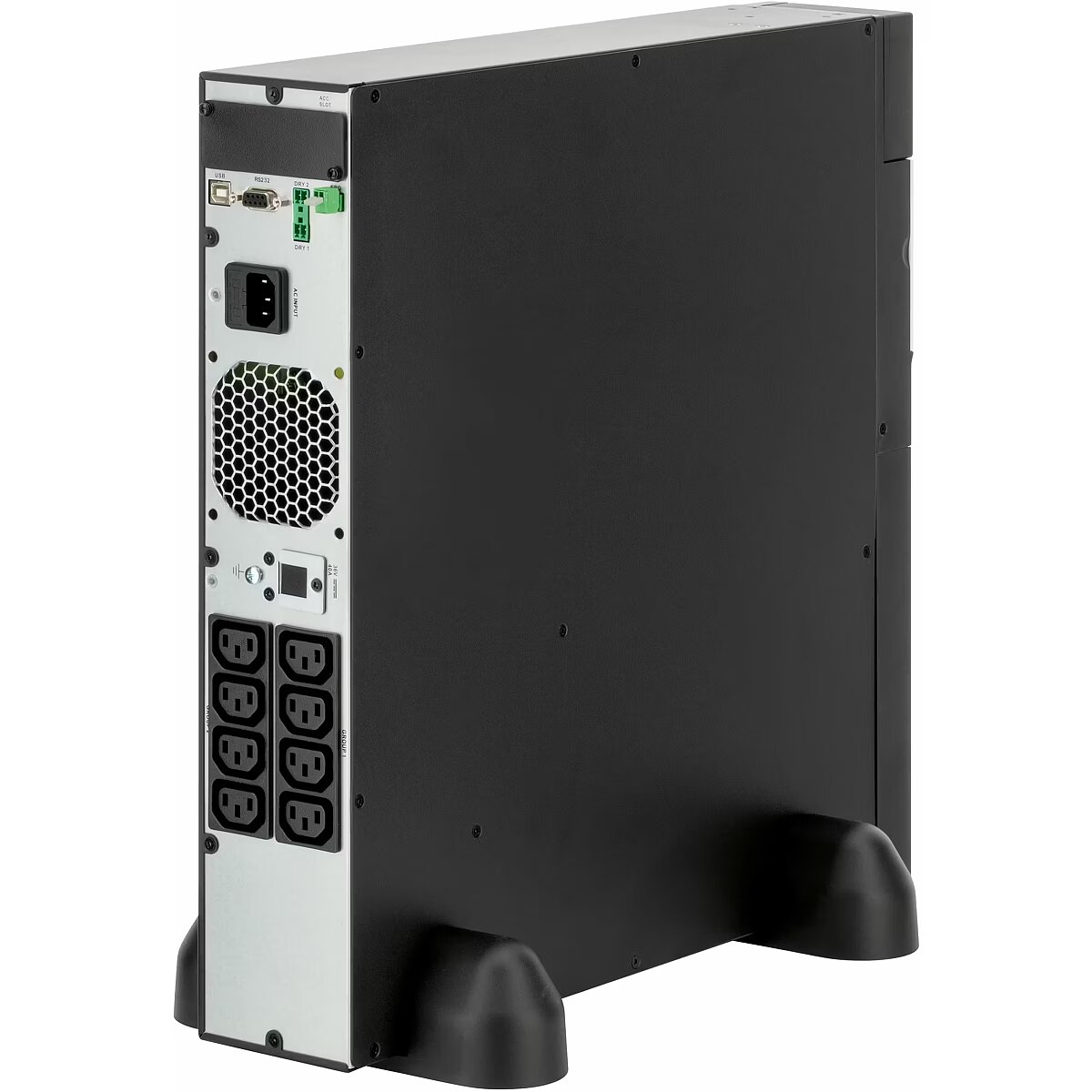

Output power ports - 8 x IEC-C13
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - No
Ports & interfaces - USB port - Yes
producer - Legrand
ProductName - ASI KEOR SPE rack 2U 1.5KVA
ShortSummaryDescription - Legrand Keor ASI SPE rack 2U 1.5KVA, Line-Interactive, 1.5 kVA, 1200 W, Sine, 175 V, 288 V
Software -
Special functions -
The shape of the output voltage - Full sine wave
Title - Legrand Keor ASI SPE rack 2U 1.5KVA uninterruptible power supply (UPS) Line-Interactive 1200 W 8 AC outlet(s)
UPS Architecture - line-interactive
URL - https://ups.legrand.com/
vendpn - 311069
Voltage - 6 V
WarrantyInfo -
Weight - 16.8 kg
Weight & dimensions - Depth - 440 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Weight - 17.5 kg
Weight & dimensions - Width - 440 mm
