Alarm - -
BatteryType - Replaceable sealed lead acid
Color - -
ControlPanel - -
Depth - 235 mm
FormFactor - Tower
GrossWeight - 3.350 kg
Height - 263 mm
InputConnections - -
InputFrequency - 50-60 Hz autoselect
InputVoltage - 184 V - 264 V (adjustable to 161 V - 284 V)
InterfacePorts - -
LongDesc - With an efficient electrical design and the EcoControl function (USB models), which automatically disables peripherals when the master device is turned off, the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
MANUFDATASHEET - http://www.google.ee/url?sa=t&rct=j&q=&esrc=s&frm=1&source=web&cd=1&cad=rja&ved=0CCgQFjAA&url=http%3A%2F%2Flit.powerware.com%2Fll_download.asp%3Ffile%3DEaton-Ellipse-ECO-datasheet-rev-B-low-pdf.pdf&ei=RuKAUpzhBsPNhAf2mYHIDg&usg=AFQjCNHHroTtcgPB-33mgzDEb-J4xFyDpg&bvm=bv.56146854,d.bGE

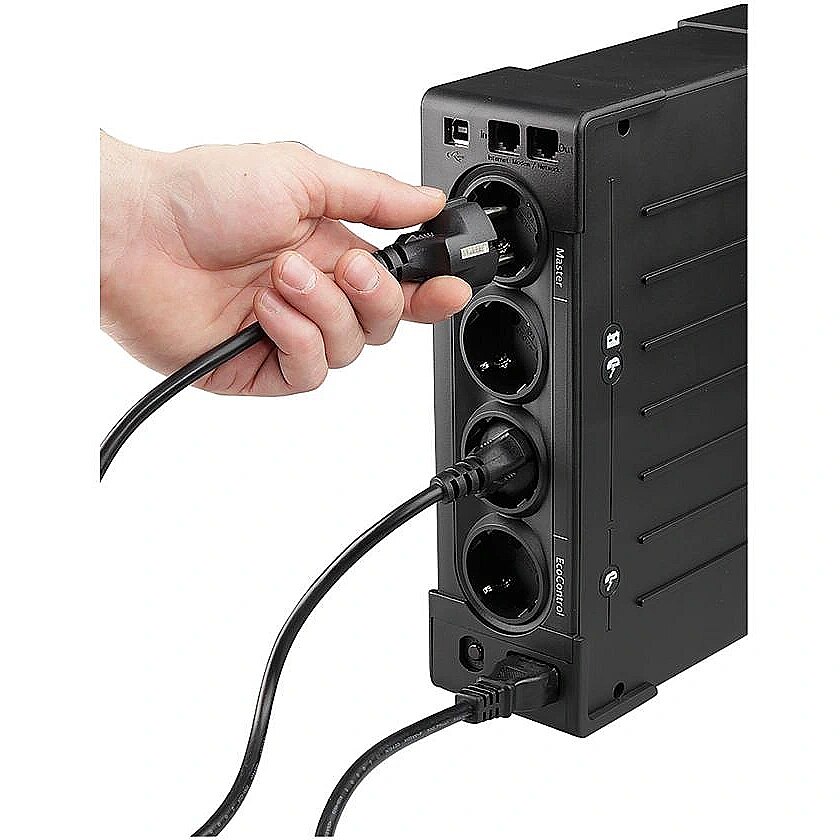

OutputConnections - 4
OutputFrequency - -
OutputVoltage - 230 V (adjustable to 220 V, 230 V, 240 V
PackageContents - -
PowerVAW - 500 VA
PowerW - 300 W
ProdDesc - 500VA/300W UPS, offline, DIN 3+1

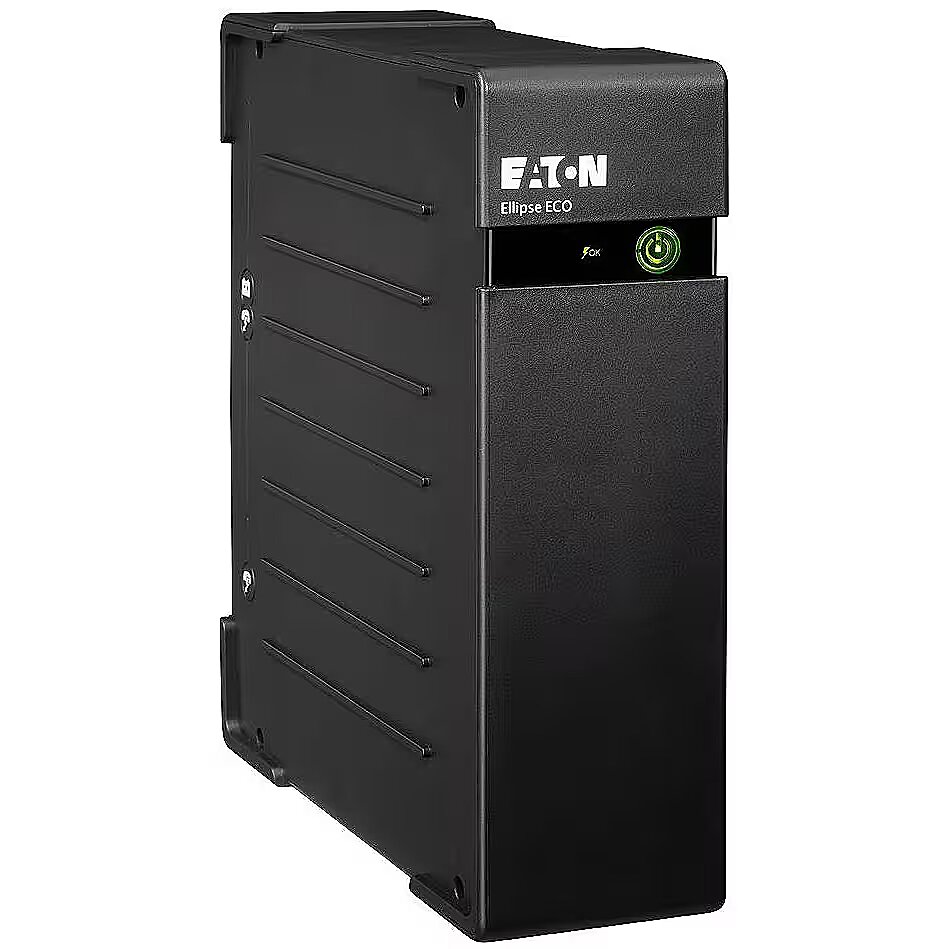

ProductPicture - http://www.tdbaltic.ee/images/ds4/EL800USBIEC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - -
RJ45 - -
Runtime - 9/5
SmartSlot - -
Topology - Offline
USB - -
Warranty - 2 years
WaveformType - -
Weight - 2.900 Kg
Width - 81 mm
