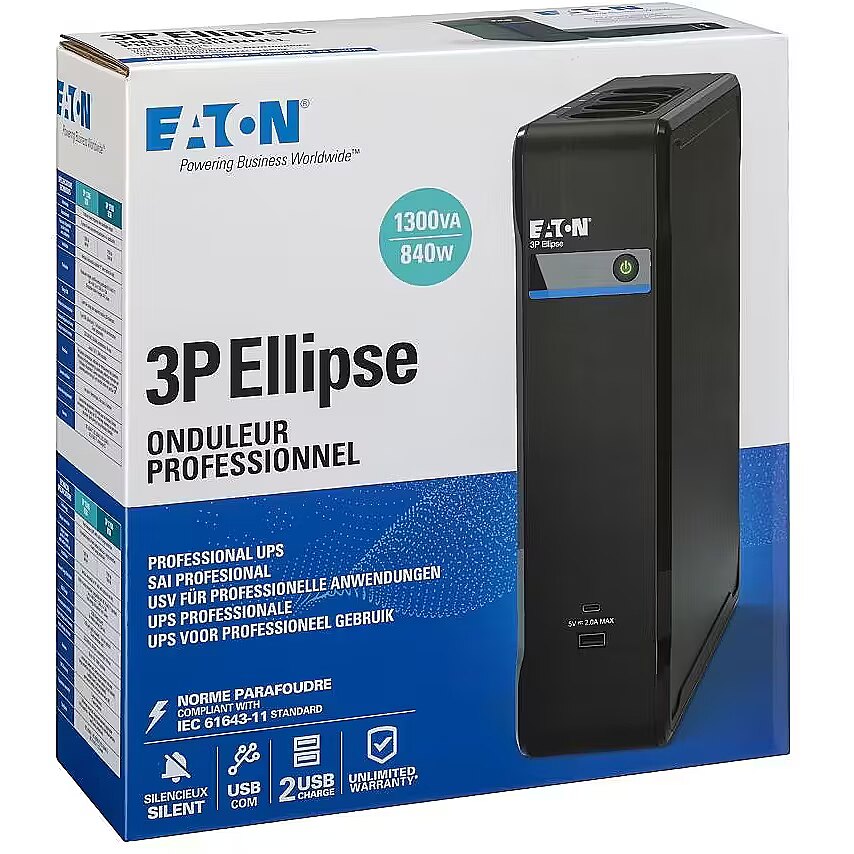

Eaton 3P Ellipse 1300 USB FR

Accessories included - Input Cable USB Cable Quick Start Guide Safety Instructions
Active power - 840 W
Apparent power - 1300 VA
Battery - Battery capacity - 7 Ah
Battery - Battery voltage - 12 V
Battery capacity - 7 Ah
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Certificates - Certification - IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
CE
UKCA
Ukr
Cm
Certificates - Compliance certificates - CB
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - WEEE
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
Chassis type - Tower
Color - Black
Description - Ellipse 3P UPS
The Ellipse 3P UPS is the latest addition to Eaton's power protection portfolio. The sleek, attractive design and near-silent operation of this compact UPS deliver exceptional battery backup experiences and benefits for both homes and small businesses.
More Power
Enjoy up to 12% more power than its predecessor (Ellipse ECO) and a runtime of 15 to 20 minutes under typical use, allowing you to efficiently and safely cope with power outages. No need for additional adapters. Connect your equipment directly to the UPS's FR or Schuko outlets. This is a significant improvement over UPSs equipped only with IEC outlets. Provide your valuable equipment with the highest level of protection thanks to built-in surge protection compliant with the stringent IEC 61643-11 standard.
Modern Design
The classic yet contemporary look of the 3P Ellipse will complement any interior design, from a workspace to a gaming room. The flat and narrow housing allows the UPS to seamlessly integrate into any space. The 3P Ellipse can be used on a desk, horizontally or vertically, or in a rack or wall-mounted (with optional mounting kits).
Charge mobile devices whenever you need them using the USB-A and USB-C ports (USB versions).
Work, play, or relax without unnecessary noise.
Enjoy quiet operation in both homes and offices thanks to the 3P's fully passive cooling, without loud fans.
A UPS in the Clouds
With the optional CLOUD-PS card, real-time UPS status and notifications are available via a mobile app or web browser. With remote work now the new normal for many small businesses, cloud connectivity offers incredible convenience and peace of mind, no matter where you are.
Design - Control type - Buttons
Design - Display type - LED
Design - Form factor - Tower
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 4072
dimension depth - 140 mm
dimension height - 365 mm
Dimensions - 305 x 81 x 312 mm
dimension weight - 8000 g
dimension width - 380 mm
ean - 3553340621383
Eans - 3553340621383
Environment requirements - Altitude: 3000 m Noise level: Less than 25 dB at 1 m Relative humidity: 0 - 95% (non-condensing) Temperature range: 0°C to 40°C (32°F to 104°F) Operating temperature: 0 - 40 degrees C
Features - Auto shut-off - Yes
Features - Efficiency - 97%
Features - Efficiency (ECO mode) - 97%
Features - Input frequency - 46/70 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Noise level - 25 dB
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 284 V
Features - Output operation voltage (min) - 161 V
Features - Output power - 840 W
Features - Output power capacity - 1.3 kVA
Features - Output power factor - 0.6
Features - Power consumption (average operating) - 26 W
Features - Surge protection - Yes
Features - UPS topology - Standby (Offline)
Features - Waveform - Stepwise
Filters / protection - Overdischarge
Filters / protection - Surge
guarantee - 36
guarantee_type - normal
I/O connectors - 1 x USB (Type B)
I/O connectors - 1 x USB (Type C)
I/O connectors - 1 x USB 2.0
Input power ports - IEC-C14
Name - Eaton 3P Ellipse 1300 USB FR
name - UPS 3P Ellipse 1300 USB FR
No. of batteries - 1
Number of phases input - 1 (230V)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Other features - Input connection type - C14
Other features - Nominal input voltage - 220-240 V
Other features - Relative humidity - 0 - 95%
Output power ports - 4 x C/E type
Packaging content - Cables included - USB cable
Packaging content - Quick installation guide - Yes
Packaging data - Package type - Box
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB port - Yes
producer - Eaton
Producer - Eaton
producerCode - 3P1300UF
ProducerCode - 3P1300UF
productName - Eaton 3P Ellipse 1300 uninterruptible power supply (UPS) Standby (Offline) 1.3 kVA 840 W 8 AC outlet(s)
productSize - Normal
ShortDescription -
sizeX - 143
sizeY - 388
sizeZ - 367
Software - Eaton UPS Companion
Special functions - Replaceable batteries Automatic battery test Cold start capability
UPS Architecture - off-line (standby)
vendpn - 3P1300UF
Voltage - 12 V
Warranty - 3-year manufacturer's warranty (2 years for batteries)
warrantyLength - 24
warrantyType - F
Weight - 7 kg
weight - 8060
Weight & dimensions - Depth - 312 mm
Weight & dimensions - Height - 305 mm
Weight & dimensions - Weight - 7 kg
Weight & dimensions - Width - 81 mm
