Accessories included - Szyny Karta komunikacyjna
Active power - 3000 W
Apparent power - 3000 VA
ARTIKEL1 - VLIEBERT GXT5 1PH UPS 3KVA
ARTIKEL2 - INPUT IEC C20 INLET 2U OUTPUT -
Backup time (100% load) - 3.3 min
Battery - Battery capacity - 9 Ah
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 12 V
Battery - Hot-swap battery - Yes
Battery - Number of batteries included - 6 pc(s)
Battery - Typical backup time at full load - 3.3 min
Battery - Typical backup time at half load - 10.8 min
Battery capacity - 9 Ah
Brand - Vertiv
BrandPartCode - GXT5-3000IRT2UXLN
Breite - 0
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Compliance certificates - REACH, RoHS, WEEE
Chassis type - Rack
Chassis type - Tower
Color - Black
Description -
Design - Control type - Buttons
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 270 mm
dimension height - 720 mm
Dimensions - 85 x 430 x 540 mm
dimension weight - 35500 g
dimension width - 560 mm
ean - 4061471435261
EANCode - 4061471435261
Environment requirements - Operating temperature: full power up to 40°C (up to 50°C with derating) Storage temperature: -20 to 60°C (containing batteries will be -15 to 40°C) Relative humidity 0 to 95%, non-condensing
Features - Audible alarm(s) - Yes
Features - ECO mode - Yes
Features - Efficiency - 95%
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 288 V
Features - Input operation voltage (min) - 115 V
Features - Noise level - 48 dB
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 3000 W
Features - Output power capacity - 3 kVA
Features - Output voltage regulation - ±3%
Features - Power factor - 1
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Pure sine
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 4061471435261
guarantee - 36
guarantee_type - external
HERSTELLER - VERTIV
Hoehe - 0
HSTNUMMER - GXT5-3000IRT2UXLN
I/O connectors - 1 x RJ-11/RJ-45
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x USB (Type B)
Input power ports - IEC-C20
Laenge - 0
Logistics data - Country of origin - China

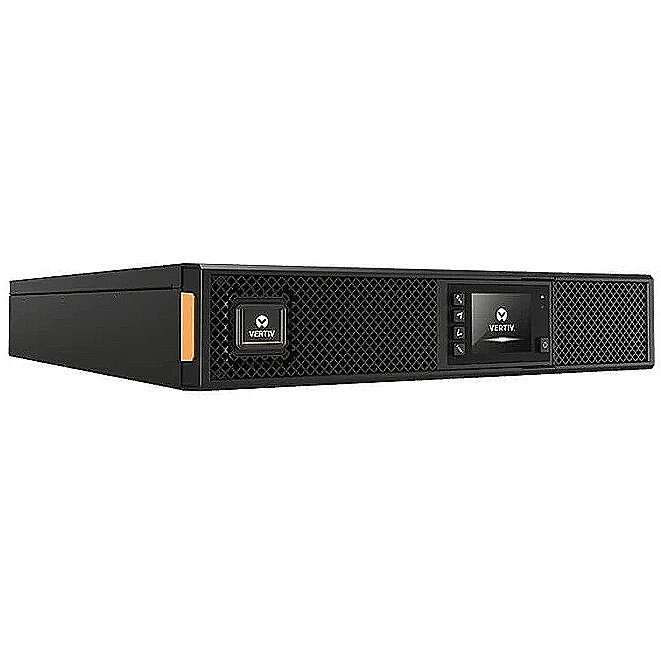

LongDesc - The Vertiv Liebert GXT5 UPS 3000VA/3000W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. This unit has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a three-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.
LongProductName - 2U Rack/Tower | 3 Hour Recharge | 3.30 Minute Stand-by | 230 V AC Input | 200 V AC, 208 V AC, 220 V AC Output | 1 x IEC 60320 C19, 6 x IEC 60320 C13 Receptacle(s) | Single Phase | Pure Sine Wave | Serial Port | SNMP/HTTP Remote Monitoring | 5-year Warranty (3-year Standard Warranty + 2-year Extended Warranty)
LongSummaryDescription - Vertiv Liebert GXT5 Double Online Conversion UPS -3000VA/3000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-3000IRT2UXLN. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 7 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: REACH, RoHS, WEEE
name - UPS GXT5-3000IRT2UXL with rails and communication card
No. of batteries - 6
Number of phases input - 1 (230V)
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 40 °C
Other features -
Output power ports - 1 x IEC-C19
Output power ports - 6 x IEC-C13
Packaging content - Cables included - USB cable
Packaging content - Manual - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 570 mm
Packaging data - Package height - 262 mm
Packaging data - Package weight - 33.4 kg
Packaging data - Package width - 717 mm
Ports & interfaces - AC outlets quantity - 7 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
producer - Vertiv
ProductName - GXT5 Double Online Conversion UPS -3000VA/3000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-3000IRT2UXLN
Safety regulation & standards - Safety - EN 62040-1:2008+A1:2013
ShortSummaryDescription - Vertiv Liebert GXT5 Double Online Conversion UPS -3000VA/3000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-3000IRT2UXLN, Double-conversion (Online), 3 kVA, 3000 W, Pure sine, 115 V, 288 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 2
Storno - N
Sustainability - Sustainability certificates - ENERGY STAR
Sustainability - Sustainability compliance - Yes
The shape of the output voltage - Full sine wave
Title - Vertiv Liebert GXT5 Double Online Conversion UPS -3000VA/3000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-3000IRT2UXLN
UPS Architecture - on-line double conversion
URL - https://www.vertiv.com/
vendpn - GXT5-3000IRT2UXLN
Voltage - 12 V
WarrantyInfo - 5-year Warranty (3-year Standard Warranty + 2-year Extended Warranty)
Weight - 28.5 kg
Weight & dimensions - Depth - 540 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 28.5 kg
Weight & dimensions - Width - 430 mm
