Accessories included -
Active power - 5000 W
Apparent power - 5 kVA
Battery capacity - 7 Ah
Chassis type - Rack
Chassis type - Tower
Color - Black
Description - A total solution for reliable power with high availability and performance The Amplon RT Series 5-20kVA is an online double-conversion UPS that provides best-in-class designs in compact 2U size, high power density, system efficiency, and versatile configurations to fulfill customers' requirements. Unity output power factor maximizes capacity for more critical loads, while outstanding energy savings can be achieved based on the AC-AC efficiency of up to 96.5% and 99% in ECO mode. In addition, RT Series 5-20kVA UPS is the first in the market that offers standard Li-ion external battery cabinets, which deliver better power density and sustainability. Along with the parallel capacity of up to four units, the new series is the ideal small power UPS for mission-critical applications, such as servers, data centers, telecommunications, and manufacturing.
Designation - CE+WEEE
dimension depth - 176 mm
dimension height - 440 mm

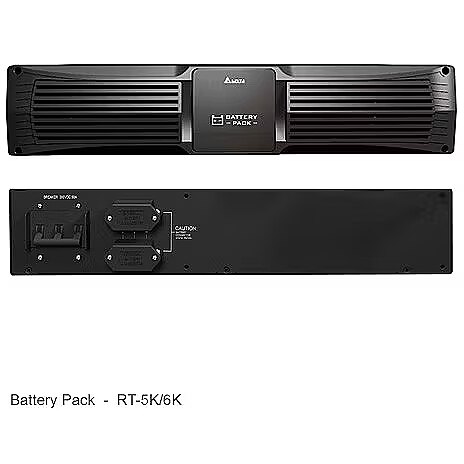

Dimensions - UPS: 440 x 671 x 89 mm Battery module: 440 x 638 x 89 mm
dimension weight - 54000 g
dimension width - 665 mm
ean - 4710901730918
Environment requirements - Operating Temperature0 ~ 40°C Relative Humidity 0 ~ 95 % RH (non-condensing) Noise Level[1.1K] : < 54 dBA
Filters / protection - Suppression
Filters / protection - Voltage drop
guarantee - 24
guarantee_type - external
I/O connectors - 1 x LPT (Parallel)
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x RS-485
I/O connectors - 1 x USB 2.0
name - UPS New RT-5K Standard
No. of batteries - 16
Number of phases input - 1 (230V)
Other features -
Output power ports - 1 x Terminal
Output power ports - 3 x IEC-C19
Output power ports - 6 x IEC-C13
producer - DELTA ELECTRONICS
Software -
Special functions -
UPS Architecture - on-line double conversion
vendpn - UPS502R2RT0B035
Weight - 51 kg
