Eaton 5P850IRNG2, 850VA 680W, IEC 1U

Accessories included - Zestaw do montażu w szafie rack System blokady przewodów Kabel USB 2 x Przewód IEC-IEC Szybki start Instrukcje dotyczące bezpieczeństwa Karta sieciowa
ACoutletsquantity - 4 AC outlet(s)
AC outlets quantity Ports & interfaces - 4 AC outlet(s)
ACoutlettypes - C13 coupler
AC outlet types Ports & interfaces - C13 coupler
Active power - 680 W
Apparent power - 850 VA
ARTIKEL1 - EATON 5P 850I RACK 1U NETPACK
ARTIKEL2 - G2
Automatic Voltage Regulation (AVR) Features - Yes
AutomaticVoltageRegulationAVR - Yes
Backup time (100% load) - 4 min
Battery -
Batterycapacity - 7 Ah
Battery capacity - 7 Ah
Battery capacity Battery - 7 Ah
Batterytechnology - Sealed Lead Acid (VRLA)
Battery technology Battery - Sealed Lead Acid (VRLA)
Batteryvoltage - 6 V
Battery voltage Battery - 6 V
Breite - 0
Cablesincluded - USB cable
Cables included Packaging content - USB cable
Category Code - UPW
Certification Certificates - IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Chassis type - Rack
Color - Black
Color - Silver
Compliance certificates Certificates - Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS
Depth - 509 mm
Depth Weight & dimensions - 509 mm
Description - 5P850IRNG2 UPS Eaton 5P, 850 VA, 680 W, wejście: C14, wyjścia: (4) C13, rack, 1U, karta sieciowa System automatycznej regulacji napięcia (AVR) Ochrona zasilania dla zastosowań o wysokiej gęstości: tylko 1U Energooszczędność, redukcja kosztów energii i chłodzenia Czysta sinusoida na wyjściu Kompatybilność ze środowiskami wirtualnymi (VMware, Hyper-V, Citrix Xen, Redhat) Pełna integracja z oprogramowaniem Eaton Brightlayer Software suite 1 port USB + 1 port szeregowy Technologia zaawansowanego zarządzania bateriami (ABM+) zwiększająca żywotność baterii oraz poprawiająca dokładność przewidywania żywotności Wyświetlacz graficzny LCD nowej generacji Baterie wymienialne podczas pracy urządzenia Zdalny restart i optymalizacja czasu podtrzymania dzięki 2 zarządzanym grupom gniazd Karta sieciowa w zestawie
Design -
Designation - CE+WEEE
dimension depth - 590 mm
dimension height - 175 mm
Dimensions - 509 x 43.2 x 438 mm
dimension weight - 18000 g
dimension width - 545 mm
Displaytype - LCD
Display type Design - LCD
ean - 3553340710391
EANCode - 3553340710391
Efficiency - 98%
Efficiency Features - 98%
Environment requirements - Wilgotność względna: 0-90%, bez kondensacji
Features -
Filters / protection - Automatic Voltage Regulation (AVR)
Filters / protection - Overdischarge
Formfactor - Rackmount
Form factor Design - Rackmount
Gewicht - 18.58
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
Heatdissipation - 307 BTU/h
Heat dissipation Features - 307 BTU/h
Height - 43.2 mm
Height Weight & dimensions - 43.2 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0
Hot-swap battery Battery - Yes
Hotswapbattery - Yes
HSTNUMMER - 5P850IRNG2
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x Terminal
I/O connectors - 1 x USB (Type B)
Inputfrequency - 47/70 Hz
Input frequency Features - 47/70 Hz
Input operation voltage (max) Features - 294 V
Input operation voltage (min) Features - 150 V
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 150 V
Input power ports - IEC-C14
Laenge - 0
LongDesc -
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/5P850IRNG2.pdf
Model - 5P850IRNG2
name - UPS 5P 850i Rack 1U Netpack G2 850VA/680W

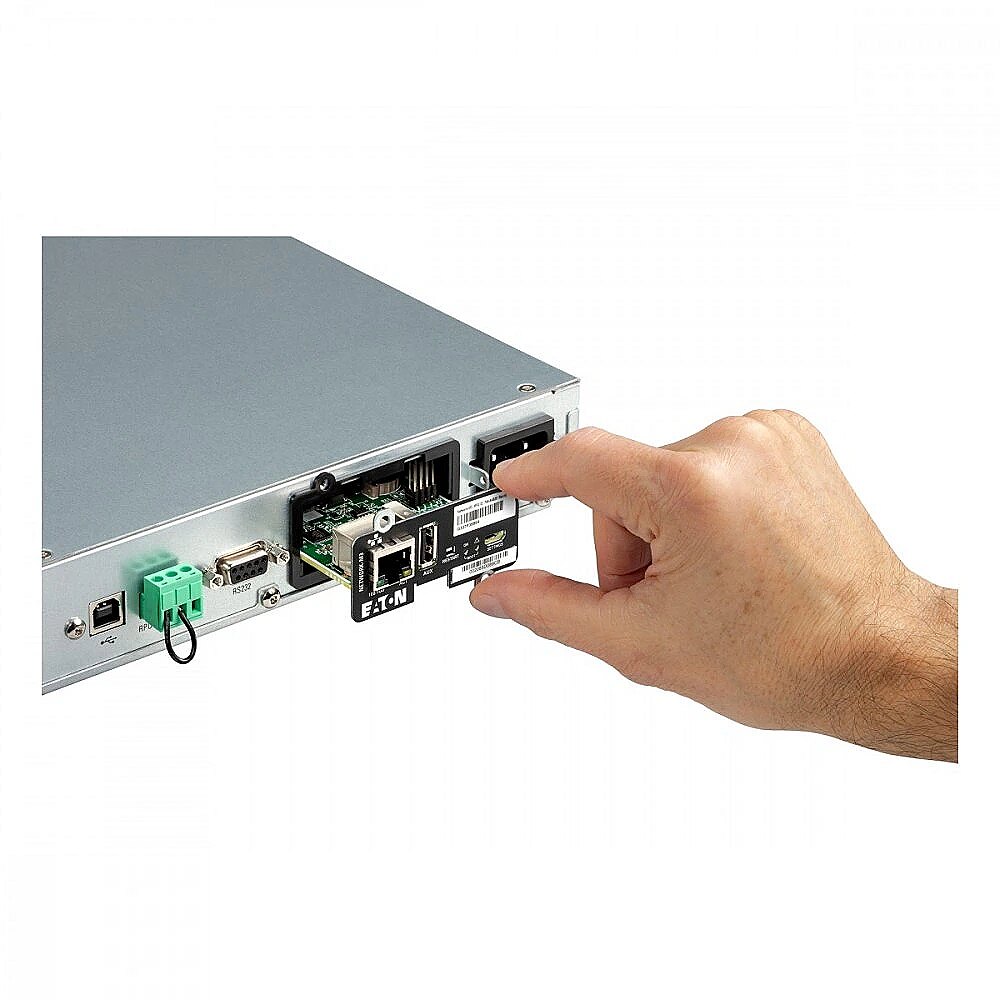

Networkcardslot - Yes
Network card slot Ports & interfaces - Yes
No. of batteries - 4
Noiselevel - 35 dB
Noise level Features - 35 dB
Numberofbatterycells - 4
Number of battery cells Battery - 4
Numberofinputphases - 1
Number of input phases Features - 1
Numberofoutputphases - 1
Number of output phases Features - 1
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
Operating altitude Operational conditions - 0 - 3000 m
Operating relative humidity (H-H) Operational conditions - 0 - 90%
OperatingrelativehumidityHH - 0 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Other features -
Outputfrequency - 50/60 Hz
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 200 V
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 200 V
Outputpower - 680 W
Outputpowercapacity - 0.85 kVA
Output power capacity Features - 0.85 kVA
Output power Features - 680 W
Output power ports - 4 x IEC-C13
Packagingcontent -
Portsinterfaces -
Powerfactor - 0.8
Power factor Features - 0.8
Powerplug - C14 coupler
Power plug Ports & interfaces - C14 coupler
ProdDesc - Eaton 5P 850i Rack 1U Netpack G2
producer - Eaton
Productcolour - Black, Silver
Product colour Design - Black, Silver
Productcondition - Original
ProductHighLights -

• Line-Interactive
• 0.85 kVA 680 W
• Waveform: Sine
• 4 AC outlet(s)
• Sealed Lead Acid (VRLA) 6 V 7 Ah
• Rackmount Black, Silver

ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5P850IRNG2_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/5P850IRNG2_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/5P850IRNG2_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/EATON/5P850IRNG2_4.jpg
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide - Yes
Quick installation guide Packaging content - Yes
Rackmountkit - Yes
Rack mount kit Packaging content - Yes
RS-232 ports Ports & interfaces - 1
RS232ports - 1
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
Software - Eaton Brightlayer Software suite
Special functions - Automatyczny test baterii
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Summary - Eaton 5P850IRNG2. UPS topology: Line-Interactive, Output power capacity: 0.85 kVA, Output power: 680 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
The shape of the output voltage - Full sine wave
Typicalbackuptimeathalfload - 13 min
Typical backup time at half load Battery - 13 min
Unit Box Height - 0.17
Unit Box Length - 0.59
Unit Box Width - 0.54
Unit Calculated Volume - 0.05416 cubm
Unit Calculated Weight - 18.5 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
UPStopology - Line-Interactive
UPS topology Features - Line-Interactive
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype - USB Type-B
USB port type Ports & interfaces - USB Type-B
Vendor Homepage - https://www.eaton.com/ua/en-gb/skuPage.5P850IRNG2.html
vendpn - 5P850IRNG2
Voltage - 6 V
Warranty - 24 months
Warrantyandmisc -
Waste Electrical and Electronic Equipment (WEEE) compliance Certificates - Yes
Waveform - Sine
Waveform Features - Sine
Weight - 13.7 kg
Weight - 13.8 kg
Weightdimensions -
Weight Weight & dimensions - 13.8 kg
Width - 438 mm
Width Weight & dimensions - 438 mm
