Eaton 5P850IG2, 850VA 680W, IEC

Accessories included - Kabel USB 2 x Przewód IEC-IEC Szybki start Instrukcje dotyczące bezpieczeństwa
ACoutletsquantity - 6 AC outlet(s)
AC outlets quantity Ports & interfaces - 6 AC outlet(s)
ACoutlettypes - C13 coupler
AC outlet types Ports & interfaces - C13 coupler
Active power - 680 W
Apparent power - 850 VA
ARTIKEL1 - EATON 5P 850I G2
ARTIKEL2 -
AutomaticVoltageRegulationAVR -
Auto shut-off Features - Yes
Backup time (100% load) - 4.5 min
Battery -
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 4.5 min
Battery - Typical backup time at half load - 13 min
Batterycapacity - 7 Ah
Battery capacity - 7 Ah
Battery capacity Battery - 7 Ah
Batterytechnology - Lead-Acid
Battery technology Battery - Lead-Acid
Batteryvoltage - 12 V
Battery voltage Battery - 12 V
Breite - 0
Cablesincluded - USB cable
Cables included Packaging content - USB cable
Category Code - UPW
Certification Certificates - IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Chassis type - Tower
CnCode - 85044095
Color - Black
Color - Silver
Compliance certificates Certificates - Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, WEEE
Depth - 345 mm
Depth Weight & dimensions - 345 mm
Description - 5P850IG2 UPS Eaton 5P, 850 VA, 680 W, wejście: C14, wyjścia: (6) C13, tower System automatycznej regulacji napięcia (AVR) Energooszczędność, redukcja kosztów energii i chłodzenia Czysta sinusoida na wyjściu 1 slot na opcjonalną kartę komunikacyjną (karta sieciowa, karta przekaźnikowa lub karta sieciowa obsługująca protokoły przemysłowe) Kompatybilność ze środowiskami wirtualnymi (VMware, Hyper-V, Citrix Xen, Redhat) Pełna integracja z oprogramowaniem Eaton Brightlayer Software suite 1 port USB + 1 port szeregowy Technologia zaawansowanego zarządzania bateriami (ABM+) zwiększająca żywotność baterii oraz poprawiająca dokładność przewidywania żywotności Wyświetlacz graficzny LCD nowej generacji Baterie wymienialne podczas pracy urządzenia Zdalny restart i optymalizacja czasu podtrzymania dzięki 2 zarządzanym grupom gniazd Złącza zdalnego wł./wył. oraz zdalnego wyłączania zasilania
Description - The smart and secure way to power your IT edge environments. Power and efficiency in a compact design
Enhance your operations with the Eaton 5P Gen 2 UPS, delivering up to 1350 Watts—22% more power than its predecessor and 35% above competitors—in a compact 1U form factor. It ensures stable, high-quality output for sensitive equipment and increased efficiency, reducing energy consumption and costs.
Intelligent load segment control prioritises critical devices and optimises battery runtime. Secure, smart, and integrated
The Eaton 5P Gen 2 UPS together with the cybersecured gigabit network card (included in the Netpack versions), meet stringent cybersecurity standards. Remote management features offer secure UPS
configuration and firmware updates, while the Brightlayer Software Suite provides seamless integration with virtualization environments and cloud services, ensuring continuous service and integrityю Optimized battery management, easy maintenance, total flexibility
Benefit from a prolonged battery life (up to 50%) and machine learning predictive maintenance with Eaton’s ABM+ technology. User hot-swappable batteries and intuitive battery replacement wizard through graphical LCD display. Whether with the 1U rack format or a compact tower option, the Eaton 5P Gen 2 UPS fits to your space requirements, ensuring compatibility for various setups.
Design -
Design - Certification - IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, cTUVus
Design - Display type - LCD
Design - Form factor - Tower
Design - Product colour - Black
Design - Product colour - Grey
Design - Safety - IEC/EN 62040-1, UL 1778
Designation - CE+WEEE
dimensionalWeight - 6476
dimension depth - 435 mm
dimension height - 320 mm
Dimensions - 345 x 233 x 150 mm
dimension weight - 12000 g
dimension width - 230 mm
Displaytype - LCD
Display type Design - LCD
ean - 3553340710261
EANCode - 3553340710261
Efficiency - 98%
Efficiency Features - 98%
Environment requirements - Wilgotność względna: 0-90%, bez kondensacji
Features -
Features - ECO mode - No
Features - Efficiency - 98%
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 294 V
Features - Input operation voltage (min) - 160 V
Features - Noise level - 35 dB
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 200 V
Features - Output operation voltage (min) - 240 V
Features - Output power - 680 W
Features - Output power capacity - 0.85 kVA
Features - UPS topology - Line-Interactive
Features - Waveform - Pure sine
Filters / protection - Automatic Voltage Regulation (AVR)
Filters / protection - Overdischarge
Formfactor - Tower
Form factor Design - Tower
Gewicht - 11.48
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 233 mm
Height Weight & dimensions - 233 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0
Hotswapbattery -
HSTNUMMER - 5P850IG2
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x Terminal
I/O connectors - 1 x USB (Type B)
Inputfrequency - 47/70 Hz
Input frequency Features - 47/70 Hz
Input operation voltage (max) Features - 294 V
Input operation voltage (min) Features - 160 V
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 160 V
Input power ports - IEC-C14
Laenge - 0
LongDesc -
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/5P850IG2.pdf
Model - 5P Gen2
name - UPS 5P 850i G2 850VA / 680W ABM+
Networkcardslot -
No. of batteries - 2
Noiselevel - 35 dB
Noise level Features - 35 dB
Number of batteries supported Battery - 2
Numberofbatterycells -
Numberofinputphases - 1
Number of input phases Features - 1
Numberofoutputphases - 1
Number of output phases Features - 1
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
Operating altitude Operational conditions - 0 - 3000 m
Operating relative humidity (H-H) Operational conditions - 0 - 90%
OperatingrelativehumidityHH - 0 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Other features - Input connection type - IEC C14
Other features - Mac compatibility - No
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Outputfrequency - 50/60 Hz
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 230 V
Outputoperationvoltagemax - 230 V
Outputoperationvoltagemin -
Outputpower - 680 W
Outputpowercapacity -
Output power factor Features - 0.8
Output power Features - 680 W
Output power ports - 6 x IEC-C13
Packagingcontent -
Packaging data - Management card included - No
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
Power plug Ports & interfaces - C14 coupler
ProdDesc - Eaton 5P Gen2 UPS
producer - Eaton
producerCode - 5P850IG2
Productcolour - Black, Silver
Product colour Design - Black, Silver
Productcondition - Original
ProductHighLights -

• Line-Interactive
• 680 W
• Waveform: Sine
• 6 AC outlet(s)
• Lead-Acid 12 V 7 Ah
• Tower Black, Silver

productName - Uninterruptible Power Supply (UPS) EATON 5P 850i G2

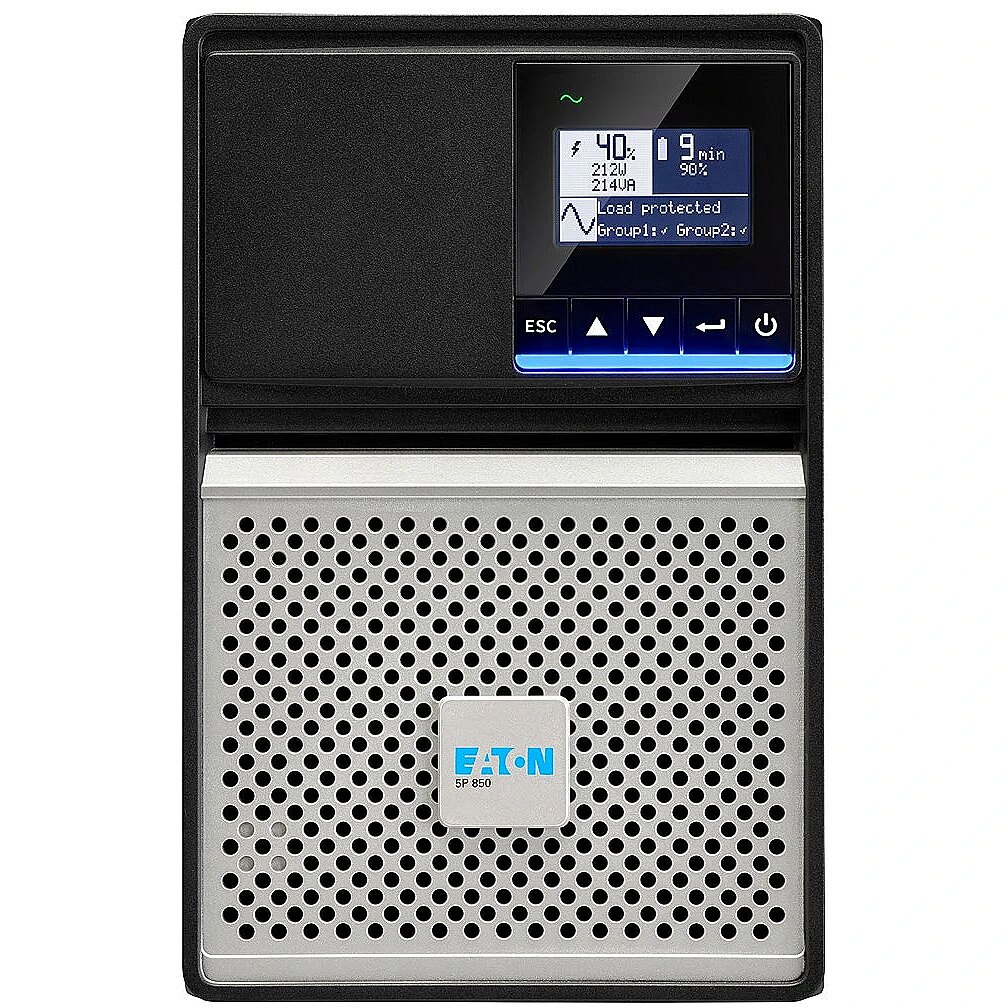

ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5P850IG2_1.jpg

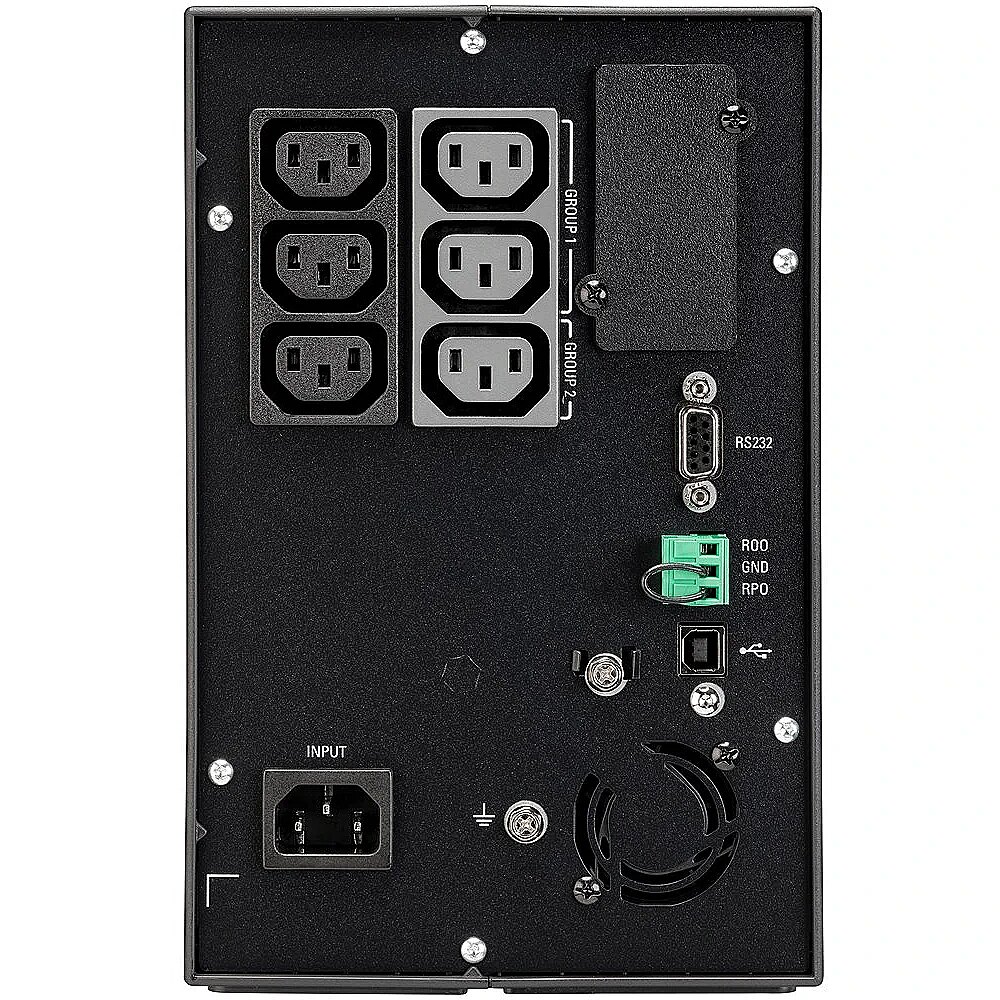

ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/5P850IG2_2.jpg

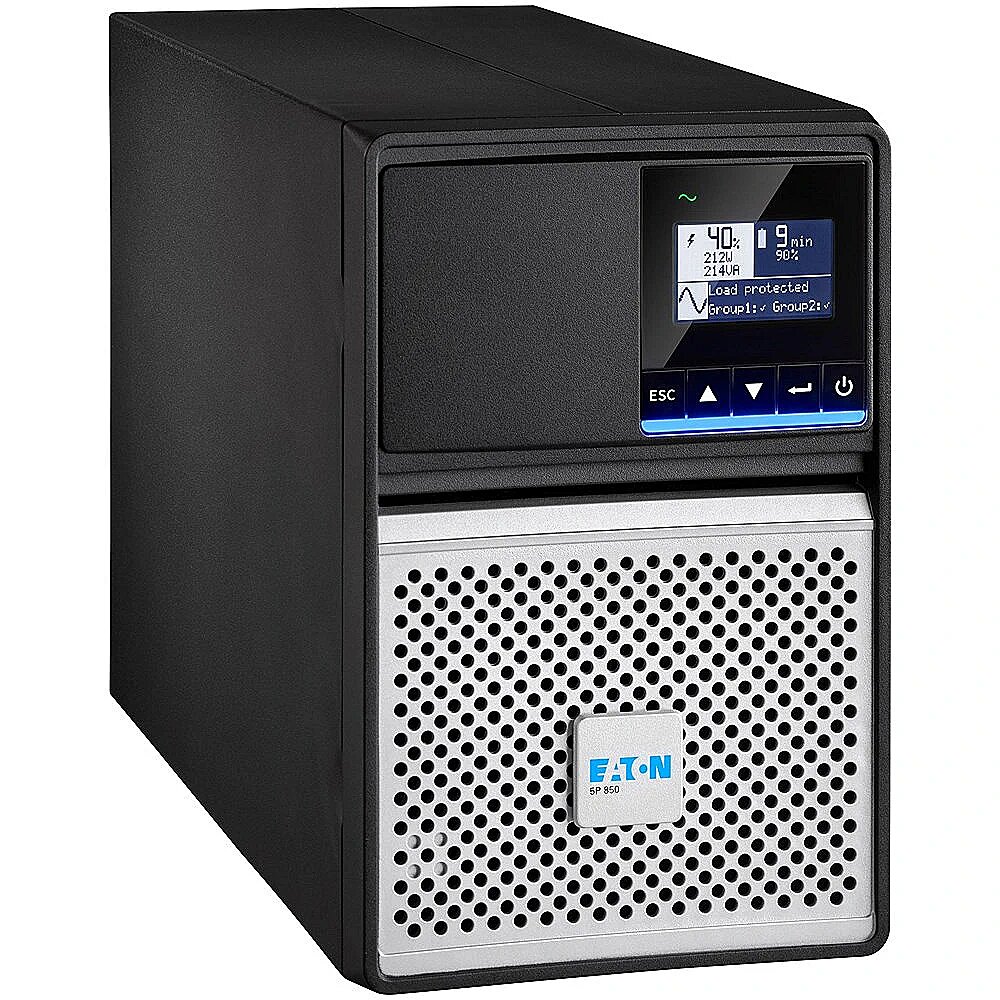

ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/5P850IG2_3.jpg
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
productSize - Normal
Quickinstallationguide - Yes
Quick installation guide Packaging content - Yes
Rackmountkit - No
Rack mount kit Packaging content - No
RS232ports -
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
sizeX - 230
sizeY - 440
sizeZ - 320
Software - Eaton Brightlayer Software suite
Special functions - Automatyczny test baterii
Stck_Kart - 1
Stck_Pal - 4
Storno - Y
Summary - Eaton 5P850IG2. UPS topology: Line-Interactive, Output power: 680 W, Waveform: Sine. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
The shape of the output voltage - Full sine wave
Typicalbackuptimeathalfload -
Unit Box Height - 0.325
Unit Box Length - 0.435
Unit Box Width - 0.235
Unit Calculated Volume - 0.03322 cubm
Unit Calculated Weight - 11.6 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
UPStopology - Line-Interactive
UPS topology Features - Line-Interactive
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype -
Vendor Homepage - https://www.eaton.com/gb/en-gb/skuPage.5P850IG2.html
vendpn - 5P850IG2
Voltage - 12 V
Warranty - 24 months
Warrantyandmisc -
warrantyLength - 24
warrantyType - F
Waveform - Sine
Waveform Features - Sine
Weight - 10.2 kg
Weight - 10.2 kg
weight - 12000
Weight & dimensions - Depth - 345 mm
Weight & dimensions - Height - 233 mm
Weight & dimensions - Weight - 10.2 kg
Weight & dimensions - Width - 150 mm
Weightdimensions -
Weight Weight & dimensions - 10.2 kg
Width - 150 mm
Width Weight & dimensions - 150 mm
