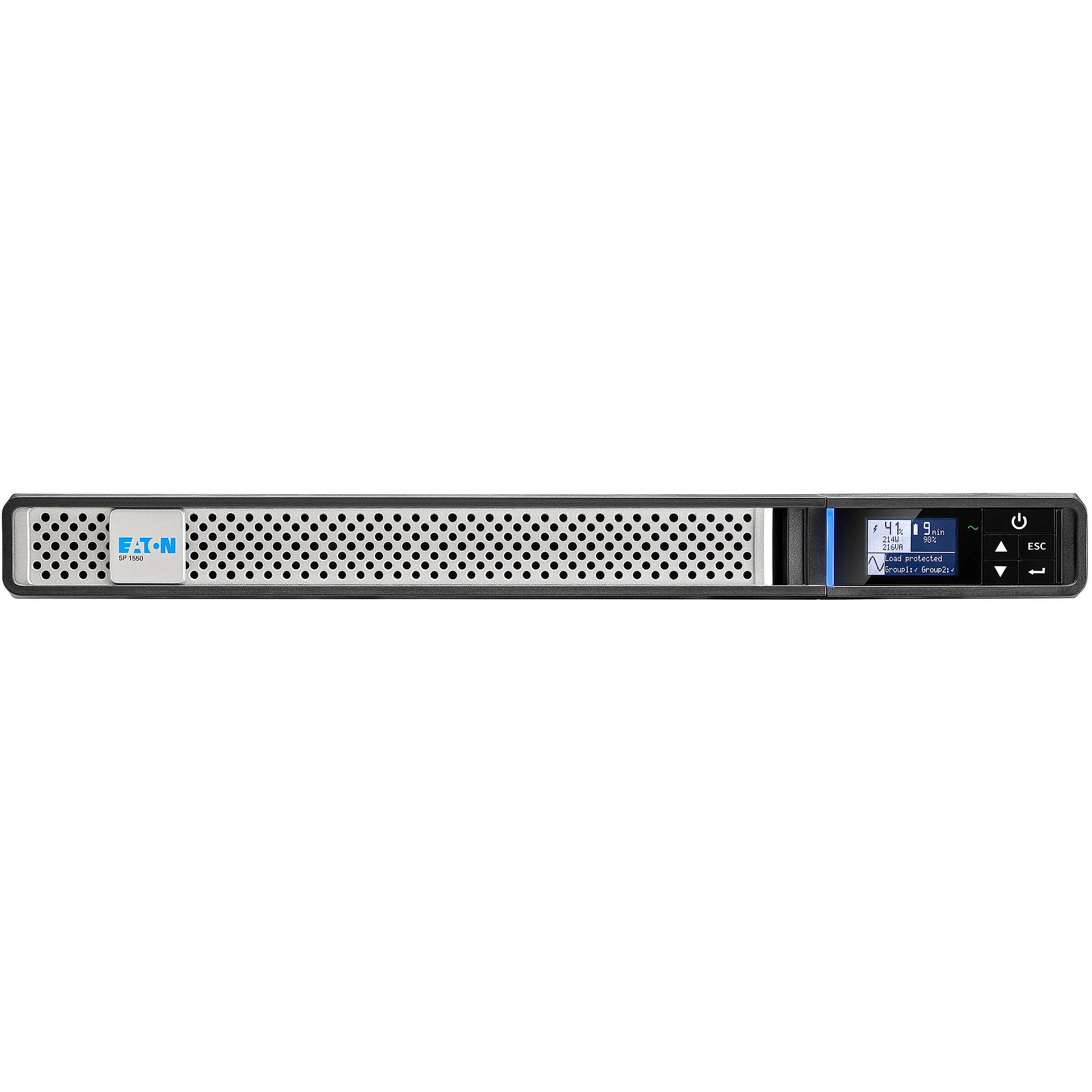

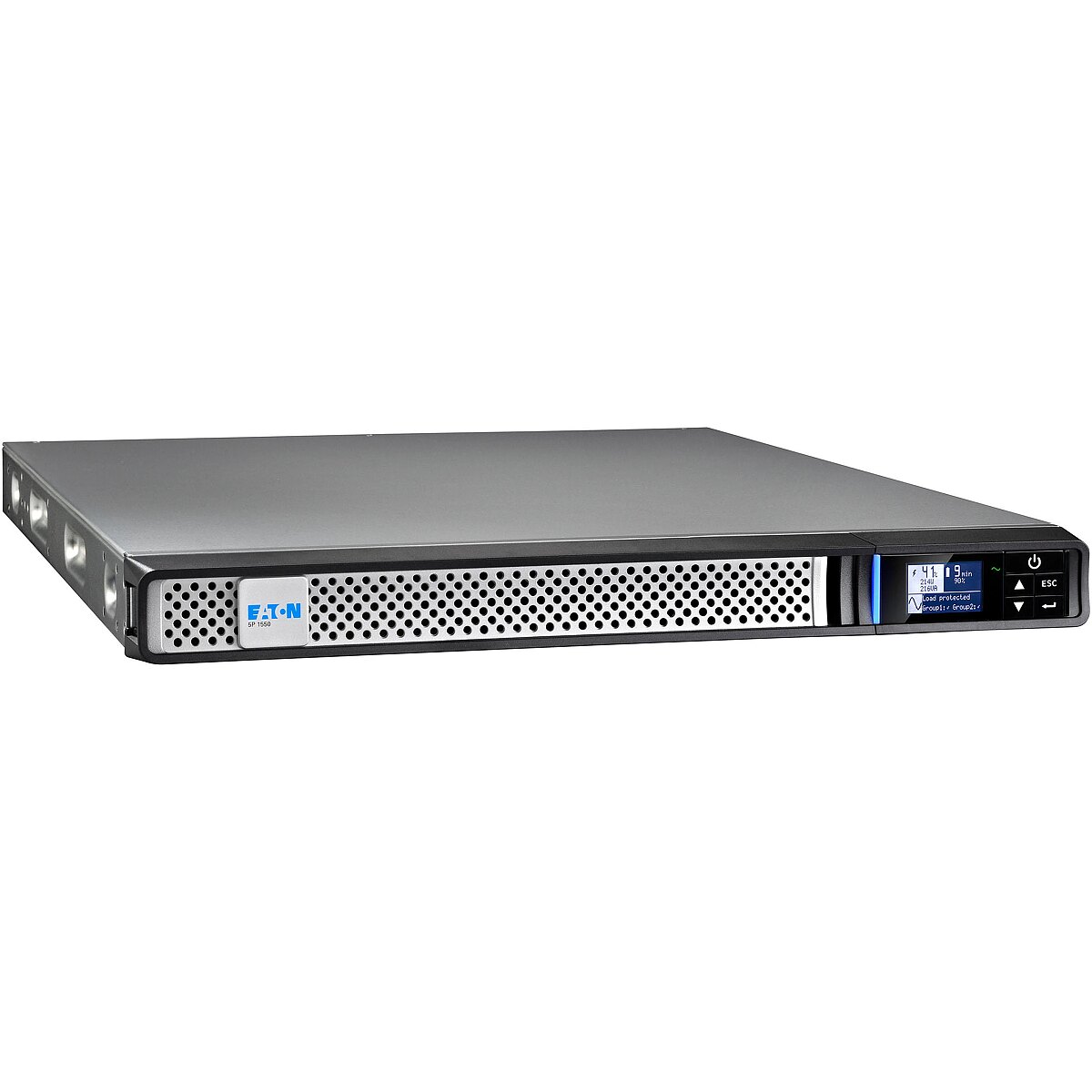

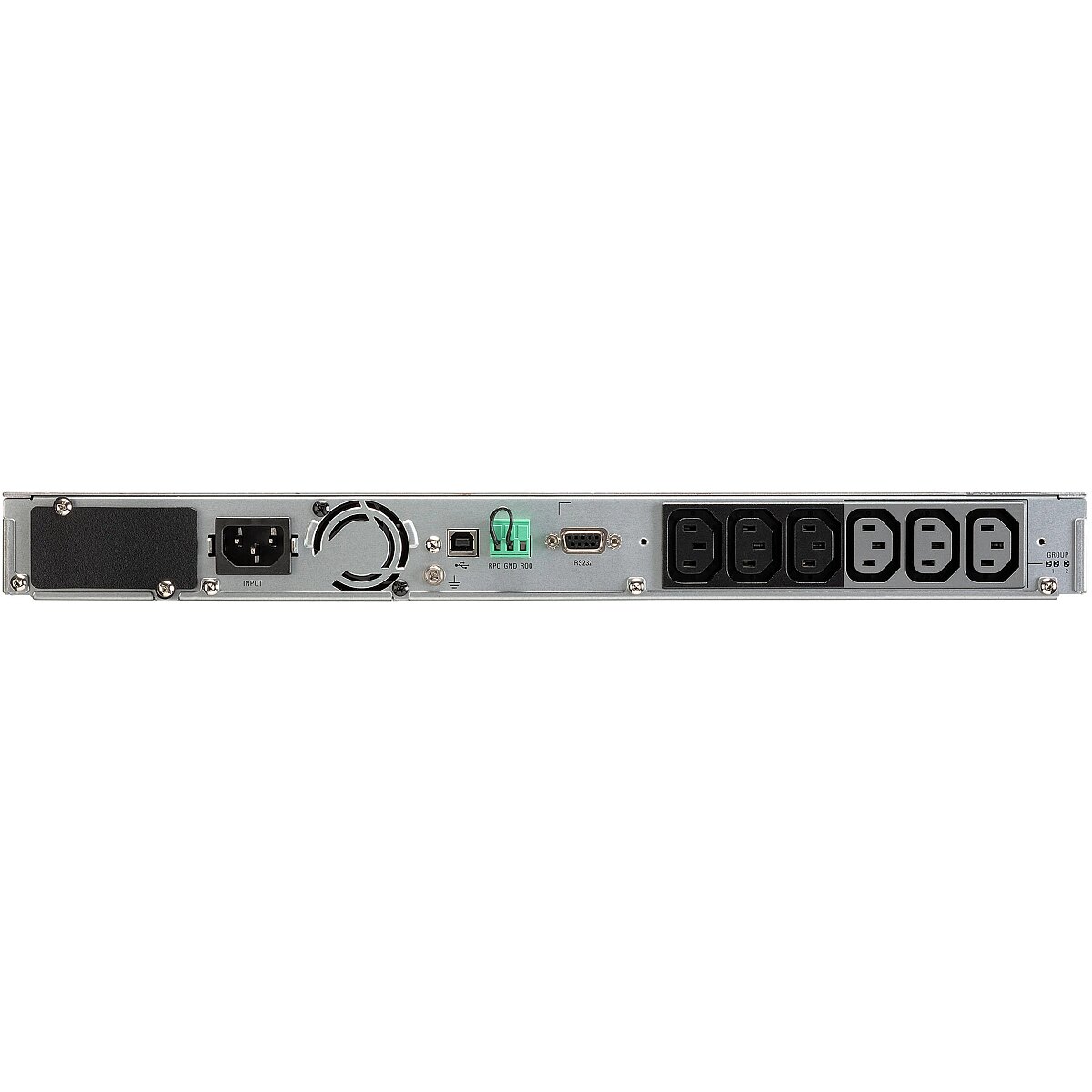

Eaton 5P1550IRG2, 1550VA 1350W, IEC 1U

Accessories included - Zestaw do montażu w szafie rack System blokady przewodów Kabel USB 2 x Przewód IEC-IEC Szybki start Instrukcje dotyczące bezpieczeństwa
ACoutletsquantity - 6 AC outlet(s)
AC outlets quantity Ports & interfaces - 6 AC outlet(s)
ACoutlettypes - C13 coupler
AC outlet types Ports & interfaces - C13 coupler
Active power - 1350 W
Apparent power - 1550 VA
ARTIKEL1 - EATON 5P 1550I RACK 1U G2
ARTIKEL2 - EQUIPMENT (NETWORK SERVER STORAG
Automatic Voltage Regulation (AVR) Features - Yes
AutomaticVoltageRegulationAVR - Yes
Backup time (100% load) - 2 min
Battery -
Batterycapacity - 9 Ah
Battery capacity - 9 Ah
Battery capacity Battery - 9 Ah
Batterytechnology - Sealed Lead Acid (VRLA)
Battery technology Battery - Sealed Lead Acid (VRLA)
Batteryvoltage - 6 V
Battery voltage Battery - 6 V
Breite - 0
Cablesincluded -
Category Code - UPW
Chassis type - Rack
Code - 5P1550IRG2
Color - Black
Color - Silver
Depth - 555 mm
Depth Weight & dimensions - 555 mm
Description - 5P1550IRG2 UPS Eaton 5P, 1550 VA, 1350 W, wejście: C14, wyjścia: (6) C13, rack, 1U System automatycznej regulacji napięcia (AVR) Ochrona zasilania dla zastosowań o wysokiej gęstości: tylko 1U Energooszczędność, redukcja kosztów energii i chłodzenia Czysta sinusoida na wyjściu 1 slot na opcjonalną kartę komunikacyjną (karta sieciowa, karta przekaźnikowa lub karta sieciowa obsługująca protokoły przemysłowe) Kompatybilność ze środowiskami wirtualnymi (VMware, Hyper-V, Citrix Xen, Redhat) Pełna integracja z oprogramowaniem Eaton Brightlayer Software suite 1 port USB + 1 port szeregowy Technologia zaawansowanego zarządzania bateriami (ABM+) zwiększająca żywotność baterii oraz poprawiająca dokładność przewidywania żywotności Wyświetlacz graficzny LCD nowej generacji Baterie wymienialne podczas pracy urządzenia Zdalny restart i optymalizacja czasu podtrzymania dzięki 2 zarządzanym grupom gniazd
Design -
Designation - CE+WEEE
dimension depth - 760 mm
dimension height - 150 mm
Dimensions - 555 x 43.2 x 438 mm
dimension weight - 24000 g
dimension width - 580 mm
Displaytype - LCD
Display type Design - LCD
EAN - 3553340710322
ean - 3553340710322
EANCode - 3553340710322
Efficiency - 98.2%
Efficiency Features - 98.2%
Environment requirements - Wilgotność względna: 0-90%, bez kondensacji
Features -
Filters / protection - Automatic Voltage Regulation (AVR)
Filters / protection - Overdischarge
Formfactor - Tower
Form factor Design - Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
Heatdissipation - 654 BTU/h
Heat dissipation Features - 654 BTU/h
Height - 43.2 mm
Height Weight & dimensions - 43.2 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0
Hotswapbattery -
HSTNUMMER - 5P1550IRG2
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x Terminal
I/O connectors - 1 x USB (Type B)
Inputfrequency - 50/60 Hz
Input frequency Features - 50/60 Hz
Input operation voltage (max) Features - 294 V
Input operation voltage (min) Features - 150 V
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 150 V
Input power ports - IEC-C14
Laenge - 0
Link - https://www.eaton.com/za/en-gb/skuPage.5P1550IRG2.html
LongDesc -
Manual Packaging content - Yes
ManufDatasheet -
Model - 5P Gen2
Name - Eaton UPS | 5P1550IRG2 | 1550 VA | 1350 W
name - UPS 5P 1550i Rack 1U G2 1550VA /1350W ABM
Networkcardslot -
No. of batteries - 6
Noiselevel - 35 dB
Noise level Features - 35 dB
Number of batteries supported Battery - 6
Numberofbatterycells -
Numberofinputphases - 1
Number of input phases Features - 1
Numberofoutputphases - 1
Number of output phases Features - 1
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
Operating altitude Operational conditions - 0 - 3000 m
Operating relative humidity (H-H) Operational conditions - 0 - 90%
OperatingrelativehumidityHH - 0 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Other features -
Other features > Dimensions (WxDxH) - 438 x 555 x 43.2 mm
Outputfrequency - 50/60 Hz
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin -
Outputpower - 1350 W
Outputpowercapacity - 1.55 kVA
Output power capacity Features - 1.55 kVA
Output power Features - 1350 W
Output power ports - 6 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 550.00 mm
Package features > Gross height (mm) - 165.00 mm
Package features > Gross width (mm) - 595.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 16 pc(s)
Package features > Paper/Pasteboard - 3000.00 g
Package features > Plastic (No PET) - 960.00 g
Package features > Tare weight (kg) - 3.96 kg
Package features > TI weight (kg) - 14.00 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.05 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Performance > Capacity - 1550 VA
Performance > UPS topology - Line-Interactive
Portsinterfaces -
Power > AC input frequency - 50-60 Hz
Powerfactor -
Powerplug - C14 coupler
Power plug Ports & interfaces - C14 coupler
ProdDesc - Eaton 5P 1550i Rack 1U G2
producer - Eaton
Productcolour - Black, Silver
Product colour Design - Black, Silver
Productcondition - Original
ProductHighLights -

• Line-Interactive
• 1.55 kVA 1350 W
• Waveform: Sine
• 6 AC outlet(s)
• Sealed Lead Acid (VRLA) 6 V 9 Ah
• Tower Black, Silver

ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5P1550IRG2_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/5P1550IRG2_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/5P1550IRG2_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/EATON/5P1550IRG2_4.jpg
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide - Yes
Quick installation guide Packaging content - Yes
Rack capacity Design - 1U
Rackmountkit -
RS232ports -
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
Software - Eaton Brightlayer Software suite
Special functions - Automatyczny test baterii
Stck_Kart - 1
Stck_Pal - 4
Storno - Y
Summary - Eaton 5P1550IRG2. UPS topology: Line-Interactive, Output power capacity: 1.55 kVA, Output power: 1350 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Tower, Product colour: Black, Silver, Rack capacity: 1U. Width: 438 mm, Depth: 555 mm, Height: 43.2 mm
Technical details > Capacity - 1350 W
Technical details > Gross weight - 22.66 kg
Technical details > Net weight - 18.70 kg
Technical details > Producer - Eaton
Technical details > Producer product family - UPS
Technical details > Producer product name - 5P1550IRG2
The shape of the output voltage - Full sine wave
Typicalbackuptimeathalfload -
Unit Box Height - 0.18
Unit Box Length - 0.77
Unit Box Width - 0.58
Unit Calculated Volume - 0.08039 cubm
Unit Calculated Weight - 24 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
UPStopology - Line-Interactive
UPS topology Features - Line-Interactive
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype - USB Type-B
USB port type Ports & interfaces - USB Type-B
Vendor Homepage - https://www.eaton.com/ua/en-gb/skuPage.5P1550IRG2.html
vendpn - 5P1550IRG2
Voltage - 6 V
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Warrantyandmisc -
Waveform - Sine
Waveform Features - Sine
Weight - 18.7 kg
Weight - 18.7 kg
Weightdimensions -
Weight Weight & dimensions - 18.7 kg
Width - 438 mm
Width Weight & dimensions - 438 mm
