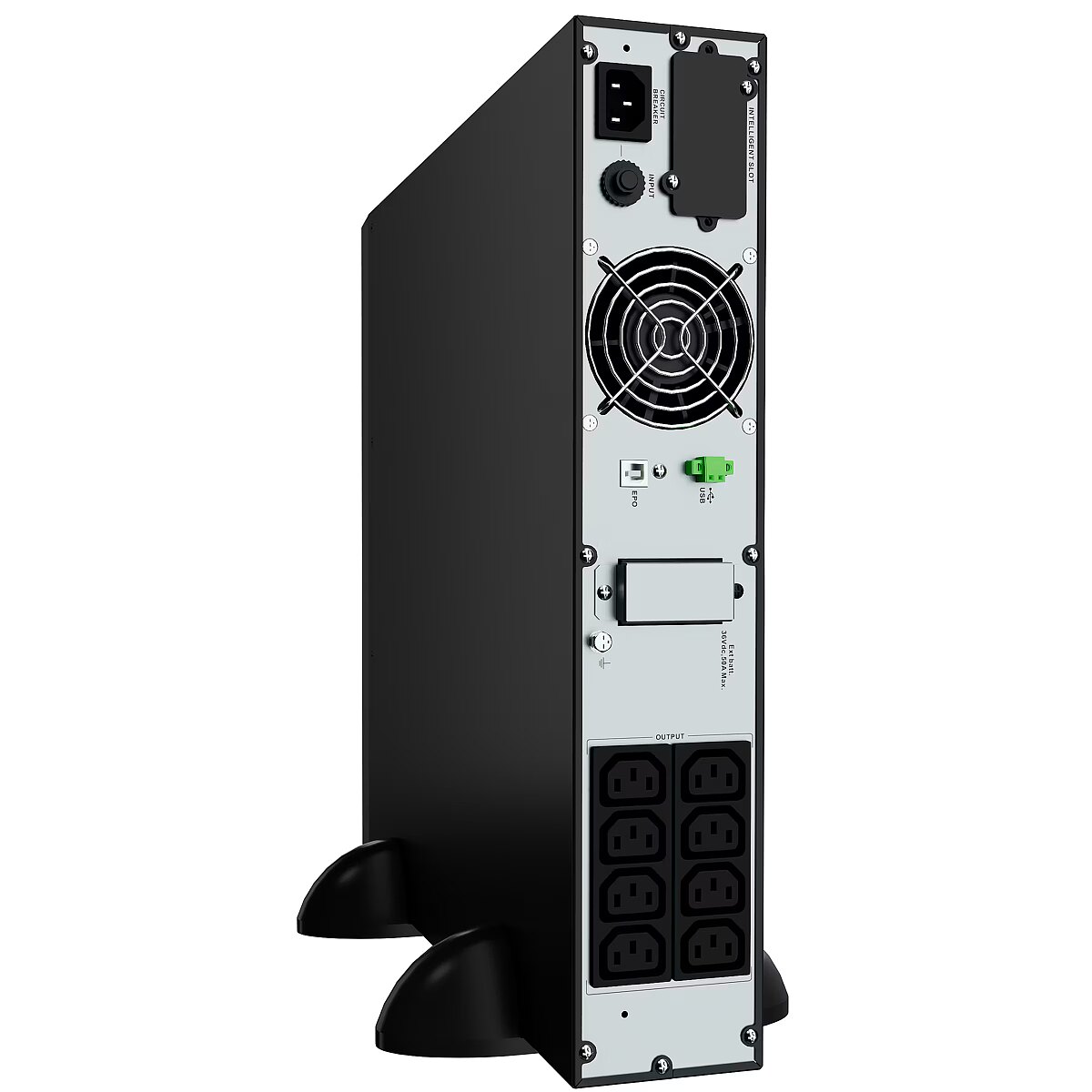

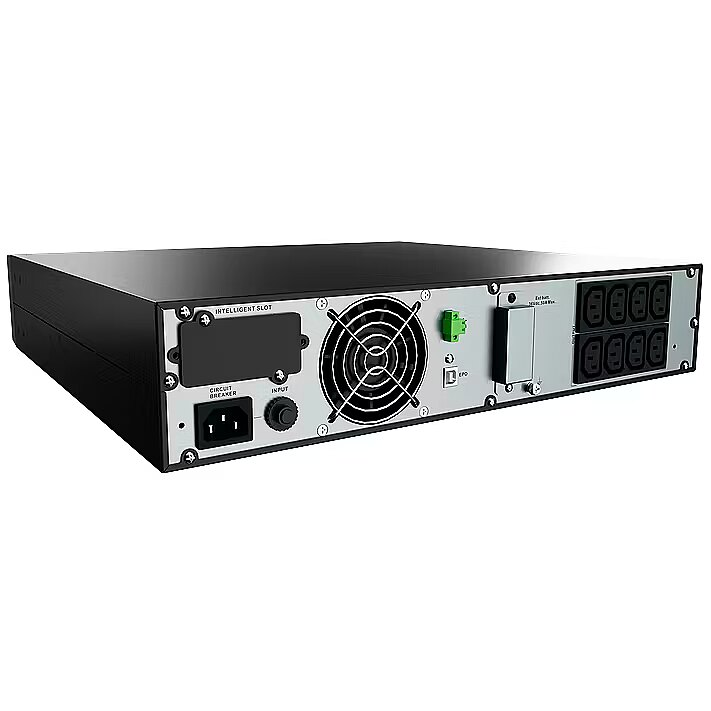

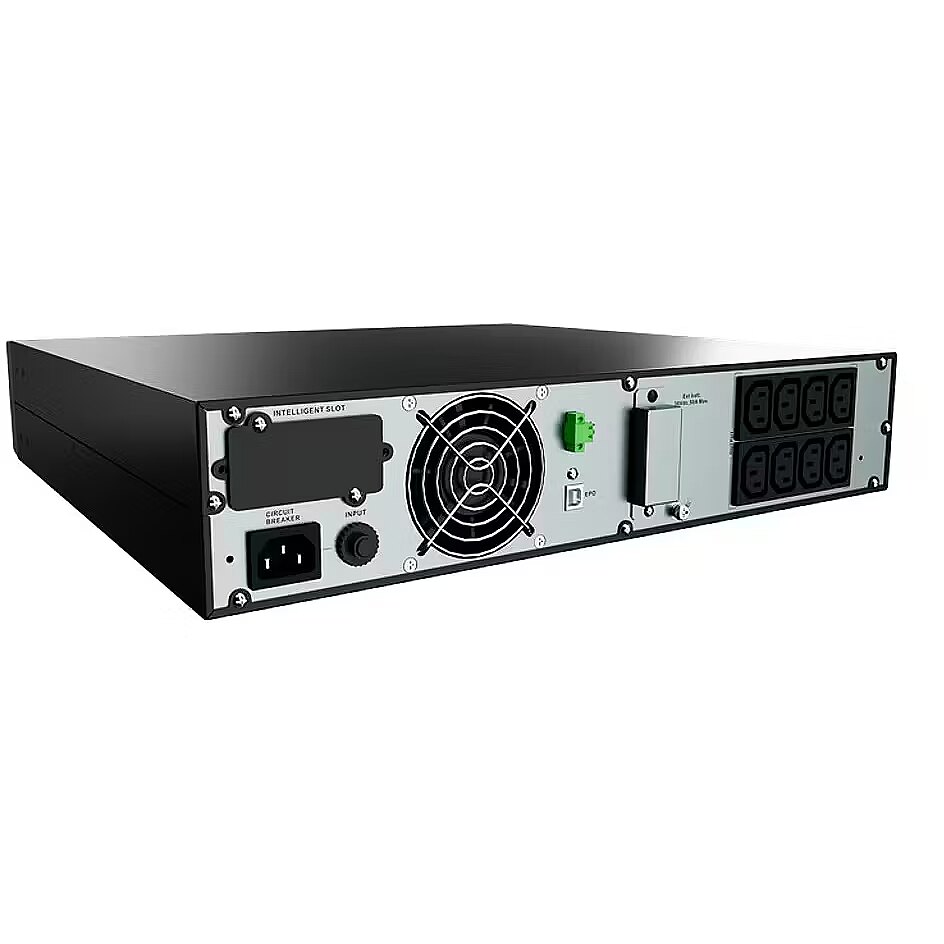

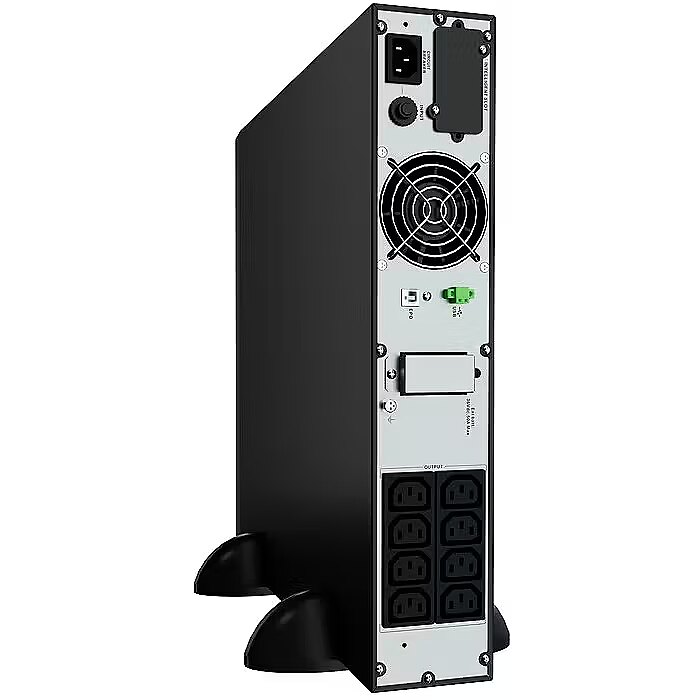

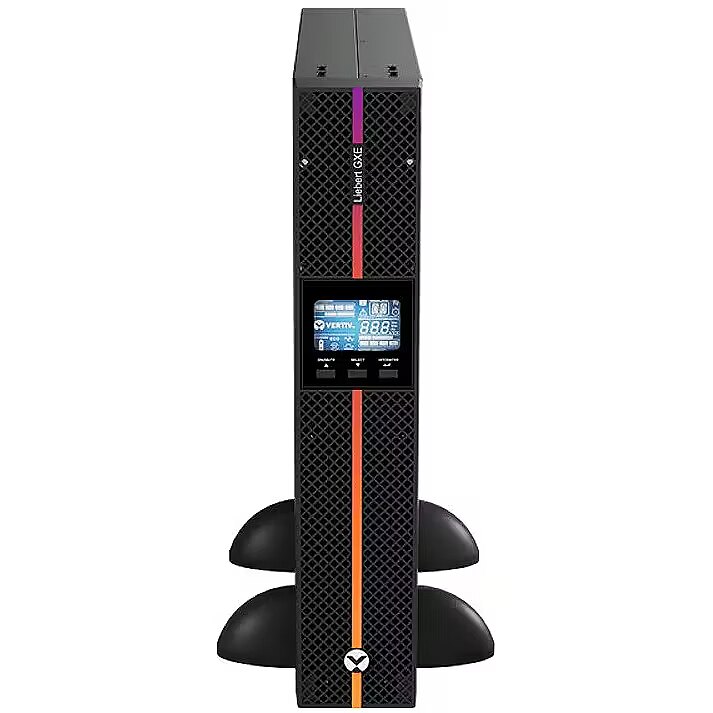

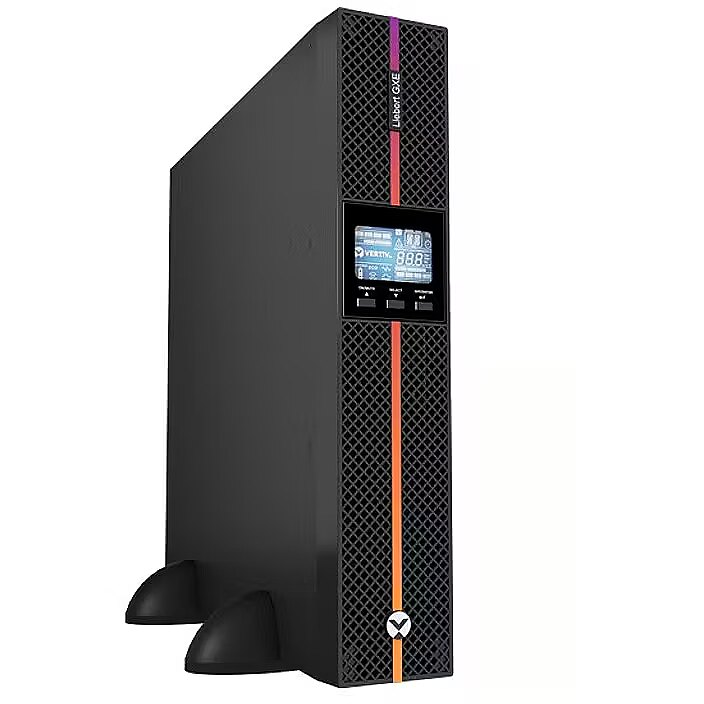

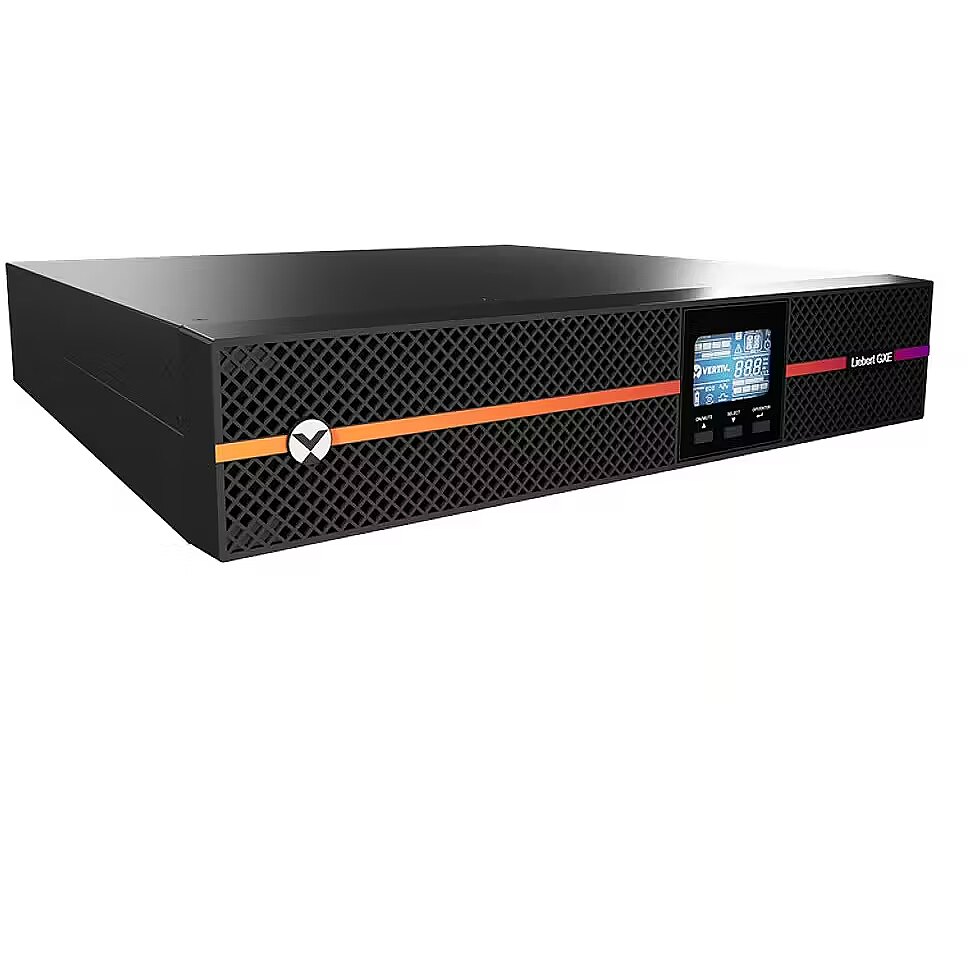

Vertiv LIEBERT GXE UPS 2KVA 1PH UPS 230V RACK/TOWER W/BATTERIES C20

Accessories included - Kabel mocy wejściowy Kabel mocy wyjściowy Kabel USB Instrukcja szybkiej instalacji
Active power - 1800 W
Apparent power - 2000 VA
ARTIKEL1 - LIEBERT GXE UPS 2KVA 1PH UPS
ARTIKEL2 - 230V RACK/TOWER W/BATTERIES C20
Backup time (100% load) - 3.2 min
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 4 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Number of batteries supported - 4
Battery - Typical backup time at full load - 3.2 min
Battery - Typical backup time at half load - 9 min
Brand - Vertiv
BrandPartCode - GXE3-2000IRT2UXL
Breite - 0
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Compliance certificates - CB, CE, RCM, REACH, RoHS, UKCA, WEEE
Charging time - 4 h
Chassis type - Rack
Color - Gray
Description - Zasilacz UPS Vertiv Liebert GXE 1000-3000 VA
Vertiv Liebert GXE UPS to ekonomiczny i wydajny jednofazowy zasilacz UPS pracujący w trybie podwójnej konwersji online, zapewniając ekonomiczne i efektywne zabezpieczenie zasilania oraz elastyczność wdrażania i pracy. Wysoki współczynnik mocy wyjściowej (0,9) zasilacza UPS Liebert GXE zapewnia ciągłe i niezawodne zasilanie większej liczby podłączonych urządzeń, chroniąc je przed wieloma zakłóceniami, które mogą powstać w sieci prądu przemiennego, dzięki technologii podwójnej konwersji online. Oferowany w wersji do montażu w szafie rack lub wolnostojącej zapewnia elastyczność instalacji i gwarantuje zabezpieczenie zasilania krytycznego sprzętu IT w każdym zastosowaniu.
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - Product colour - Grey
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 240 mm
dimension height - 610 mm
Dimensions - 438 x 430 x 86 mm
dimension weight - 24500 g
dimension width - 565 mm
ean - 767041034417
EANCode - 0767041034417
Environment requirements - Zakres temperatur (eksploatacja) 0 - 40 °C Zakres temperatur (przechowywanie) -20 - 50 °C Zakres wilgotności względnej 5 - 90% Dopuszczalna wysokość podczas eksploatacji (n.p.m.) 0 - 2000 m
Features - Efficiency (ECO mode) - 95%
Features - Efficiency (On-line mode) - 89%
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 290 V
Features - Input operation voltage (min) - 110 V
Features - Noise level - 53 dB
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1800 W
Features - Output power capacity - 2 kVA
Features - Surge energy rating - 600 J
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Pure sine
Filters / protection - No
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0767041034417
GTIN - 767041034417
guarantee - 24
guarantee_type - external
HERSTELLER - VERTIV
Hoehe - 0
HSTNUMMER - GXE3-2000IRT2UXL
I/O connectors - 1 x EPO
I/O connectors - 1 x USB (Type B)
Input power ports - IEC-C20
Laenge - 0
LongDesc - The Vertiv Liebert GXE UPS is an affordable, efficient UPS with high output power factor (0.9PF), which enables continuous and reliable power to more connected devices. With online double conversion, this 2kVA UPS protects devices against many disturbances. It is ideal for critical applications in financial, government, and manufacturing industries. It has flexible rack/tower mounting options. Up to 4 additional external battery cabinets provide scalable runtime for those applications requiring longer period of backup in case of AC mains failures. The high efficiency in both online and ECO modes of operation (up to 95% in ECO mode) for this already affordable UPS further drives energy and operational costs savings. An optional network management card allows remote management and server shutdown. Its extended runtime and multiple monitoring options make this compact UPS ideal for delivering best-in-class power protection to equipment at the edge of networks or in remote sites.
LongProductName - Liebert GXE UPS 2000VA/1800W 230V Online Double Conversion Rack/Tower | Lead Acid VRLA Battery | Optional battery cabinets (GXE3-2000IRT2UXL)
LongSummaryDescription - Vertiv Liebert GXE3-2000IRT2UXL. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: C13 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 3.2 min, Typical backup time at half load: 9 min. Form factor: Rackmount/Tower, Product colour: Grey, Rack capacity: 2U. Compliance certificates: CB, CE, RCM, REACH, RoHS, UKCA, WEEE
name - Rack kit Power supply online GXE3-2000IRT2UXL 2000VA/1800W 1 x C20, 8 x C13
No. of batteries - 4
Number of phases input - 1 (230V)
Operational conditions - Operating altitude - 0 - 2000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 50 °C
Other features - Napięcie operacyjne wejścia (minimalne) 110 V Napięcie operacyjne wejścia (maksymalne) 290 V Częstotliwość danych wejściowych 40 - 70 Hz Napięcie operacyjne wyjścia (maksymalne) 220 V Napięcie operacyjne wyjścia (minimalne) 240 V Wartość znamionowa udaru energii 600 J
Output power ports - 8 x IEC-C13
Packaging content - Cables included - Input power cable, Output power cable, USB cable
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 600 mm
Packaging data - Package height - 235 mm
Packaging data - Package weight - 24.8 kg
Packaging data - Package width - 560 mm
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - USB port - Yes
producer - Vertiv
ProductName - GXE3-2000IRT2UXL
ShortSummaryDescription - Vertiv Liebert GXE3-2000IRT2UXL, Double-conversion (Online), 2 kVA, 1800 W, Pure sine, 110 V, 290 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Sustainability - Sustainability compliance - Yes
The shape of the output voltage - Full sine wave
Title - Vertiv Liebert GXE3-2000IRT2UXL uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 8 AC outlet(s)
UPS Architecture - on-line
URL - https://www.vertiv.com/en-us/
vendpn - GXE3-2000IRT2UXL
WarrantyInfo - 2 years
Weight - 22.7 kg
Weight & dimensions - Depth - 430 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 22.7 kg
Weight & dimensions - Width - 438 mm
