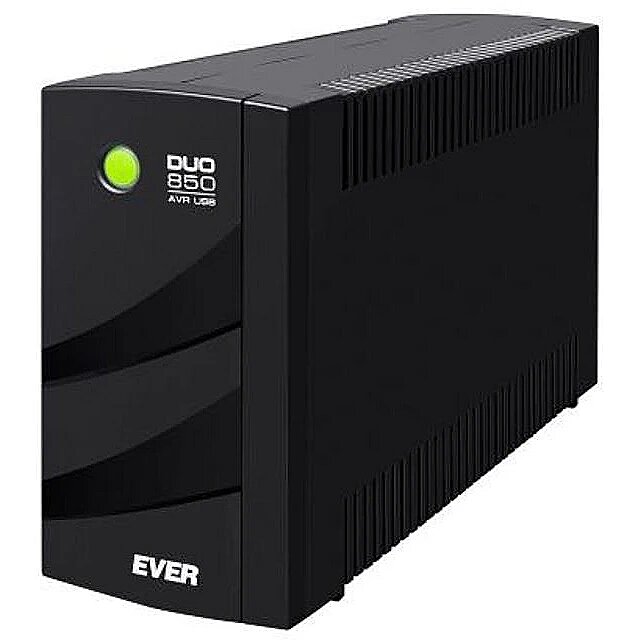

Ever DUO, 850PL 550W

Active power - 550 W
Apparent power - 850 VA
Backup time (100% load) - 1.5 min
Battery - Battery capacity - 5 Ah
Battery - Battery voltage - 12 V
Battery - Cold start - Yes
Battery - Number of batteries supported - 2
Battery capacity - 5 Ah
Charging time - 8 h
Chassis type - Tower
Color - Black
Data Act - Link
Description - UPS EVER DUO 850 PL AVR USB
The UPS EVER DUO 850 PL AVR USB series provides ideal protection for devices used in offices and homes. It protects connected equipment against voltage drops and power outages, ensuring longer and more reliable operation.
The UPS EVER DUO 850 PL AVR USB series provides ideal protection for devices used in offices and homes. It protects connected equipment against voltage drops and power outages, ensuring longer and more reliable operation. The main applications of the DUO PL AVR USB series UPS units include: PCs, telecommunications devices (switches, routers), monitors, and fiscal devices.
The offered UPS series is equipped with a HID USB communication interface, enabling the UPS to cooperate with other devices without the need to install additional software. Furthermore, thanks to the proprietary PowerSoft software, it is possible to monitor and configure the UPS EVER DUO 850 PL AVR USB. This free software provides the user with information about the UPS operating mode, load level, battery charge status, and backup runtime.
The built-in AVR (Automatic Voltage Regulation) system, featuring both boost and buck functions, enables adjustment of improper input voltage to a level acceptable for connected equipment without consuming battery power. The implemented system allows automatic UPS restart after battery discharge and restoration of mains power. In addition, the "Cold Start" function enables the UPS to be started without being connected to the mains supply. Automatic Voltage Regulation (AVR boost and buck) Short-circuit and overload protection 3 French-type sockets (Polish standard) and 1 IEC320 C13 socket Resettable circuit breaker "Cold Start" - ability to start the UPS without mains power connected HID USB communication interface Free PowerSoft monitoring and management software (available for download from the manufacturer's website)
Design - Form factor - Tower
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 2606
dimension depth - 365 mm
dimension height - 260 mm
Dimensions - 189 x 100 x 325 mm
dimension weight - 7600 g
dimension width - 145 mm
ean - 5907683608200
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 290 V
Features - Input operation voltage (min) - 162 V
Features - Output operation voltage (max) - 253 V
Features - Output operation voltage (min) - 191 V
Features - Output power - 550 W
Features - Output power capacity - 0.85 kVA
Features - UPS topology - Line-Interactive
Filters / protection - Circuit
Filters / protection - Overload
Filters / protection - Surge
guarantee - 24
guarantee_type - external
Hold-up time (maks) - 6 ms
I/O connectors - 1 x USB (Type B)
Input power ports - Wtyczka sieciowa
name - UPS DUO 850 PL AVR USB T/DAVRTO-000K85/01
No. of batteries - 2
Number of phases input - 1 (230V)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Output power ports - 3 x C/E type
Ports & interfaces - AC outlets quantity - 3 AC outlet(s)
producer - EVER
producerCode - T/DAVRTO-000K85/01
productName - EVER DUO 850 PL AVR USB UPS
productSize - Normal
sizeX - 365
sizeY - 140
sizeZ - 255
Software - PowerSoft Professional
Special functions - Cold start
The shape of the output voltage - Stepped
UPS Architecture - line-interactive
vendpn - T/DAVRTO-000K85/01
Voltage - 12 V
warrantyLength - 24
warrantyType - F
Weight - 6.9 kg
weight - 7600
Weight & dimensions - Depth - 325 mm
Weight & dimensions - Height - 189 mm
Weight & dimensions - Package height - 256 mm
Weight & dimensions - Package width - 141 mm
Weight & dimensions - Weight - 6.9 kg
Weight & dimensions - Width - 100 mm
