Audio - Built-in speaker(s) - No
Brand - Shuttle
BrandPartCode - DL30N
Category - PC/Workstation Barebones
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - 1.35L sized PC
Design - Cooling type - Passive
Design - Housing material - Steel
Design - LED indicators - HDD, Power
Design - On/off switch - Yes
Design - Panel mounting interface - 100 x 75 mm
Design - Product colour - Black
Design - Product type - Mini PC barebone
Design - VESA mounting - Yes
EAN - 887993006093
Graphics - Discrete graphics card model - Not available
Graphics - Graphics card family - Intel
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Number of displays supported - 3
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card model - Intel® UHD Graphics
Gross Weight Kg - 1,94
GTIN - 0887993006093
GTIN - 887993006093
Logistics data - Harmonized System (HS) code - 84733080

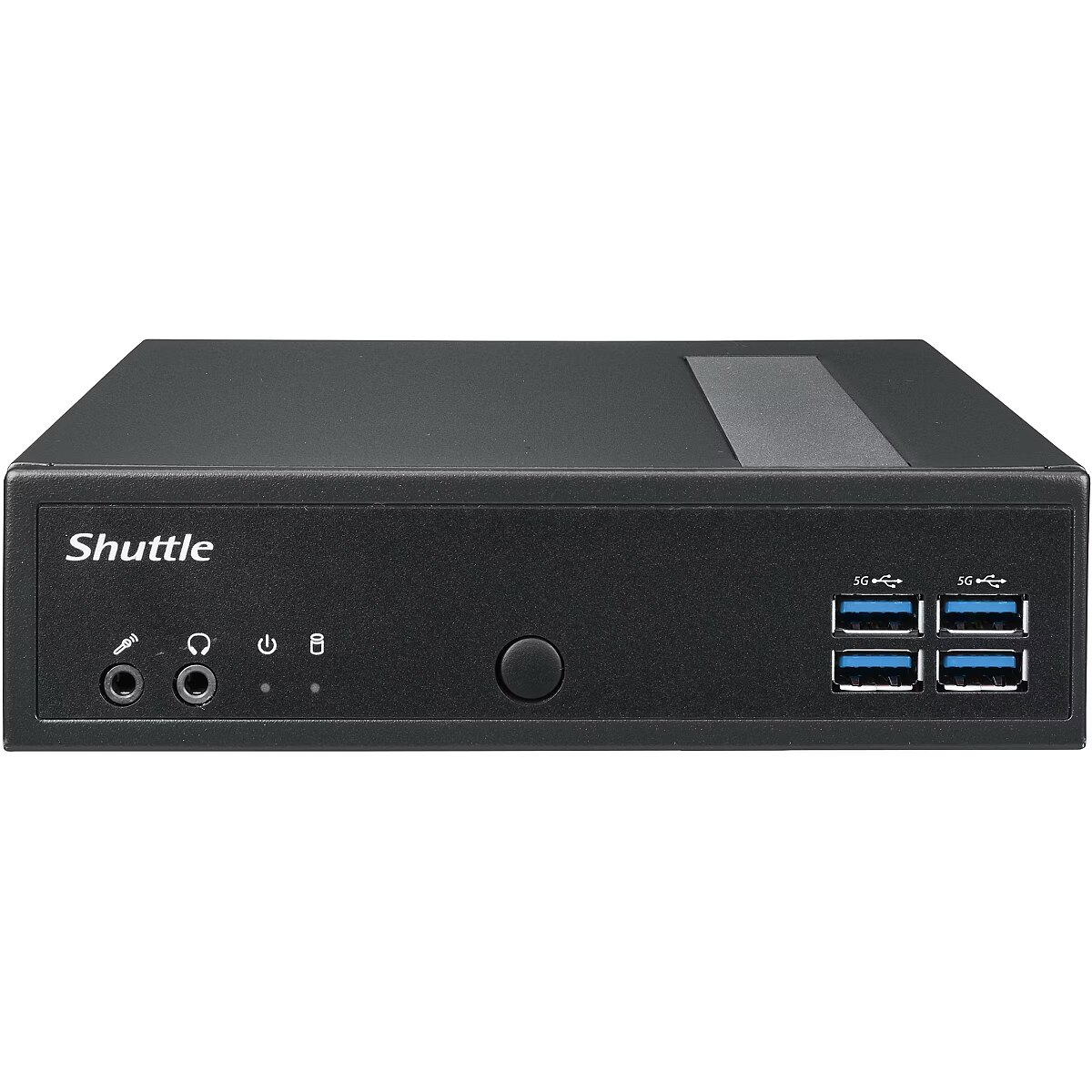

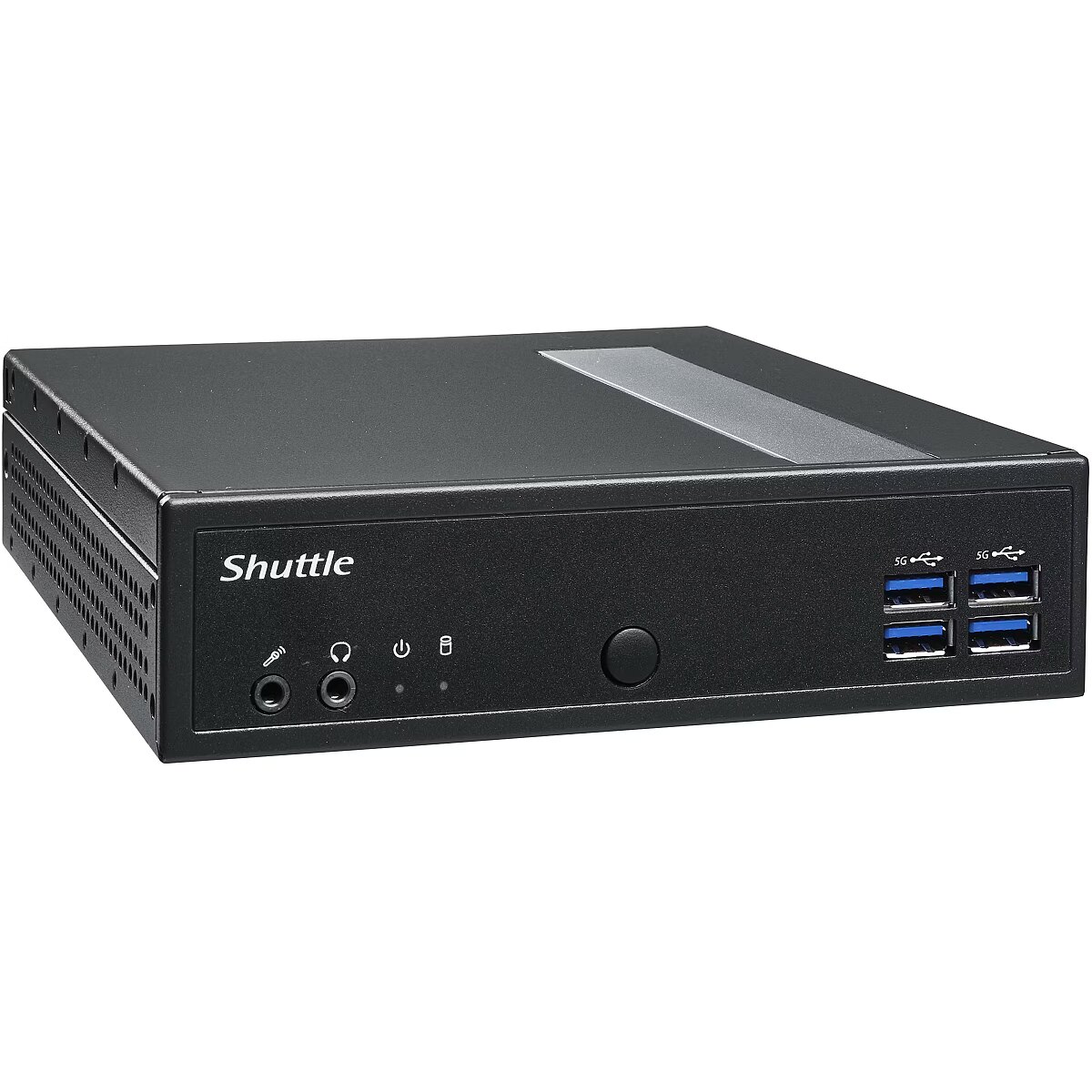

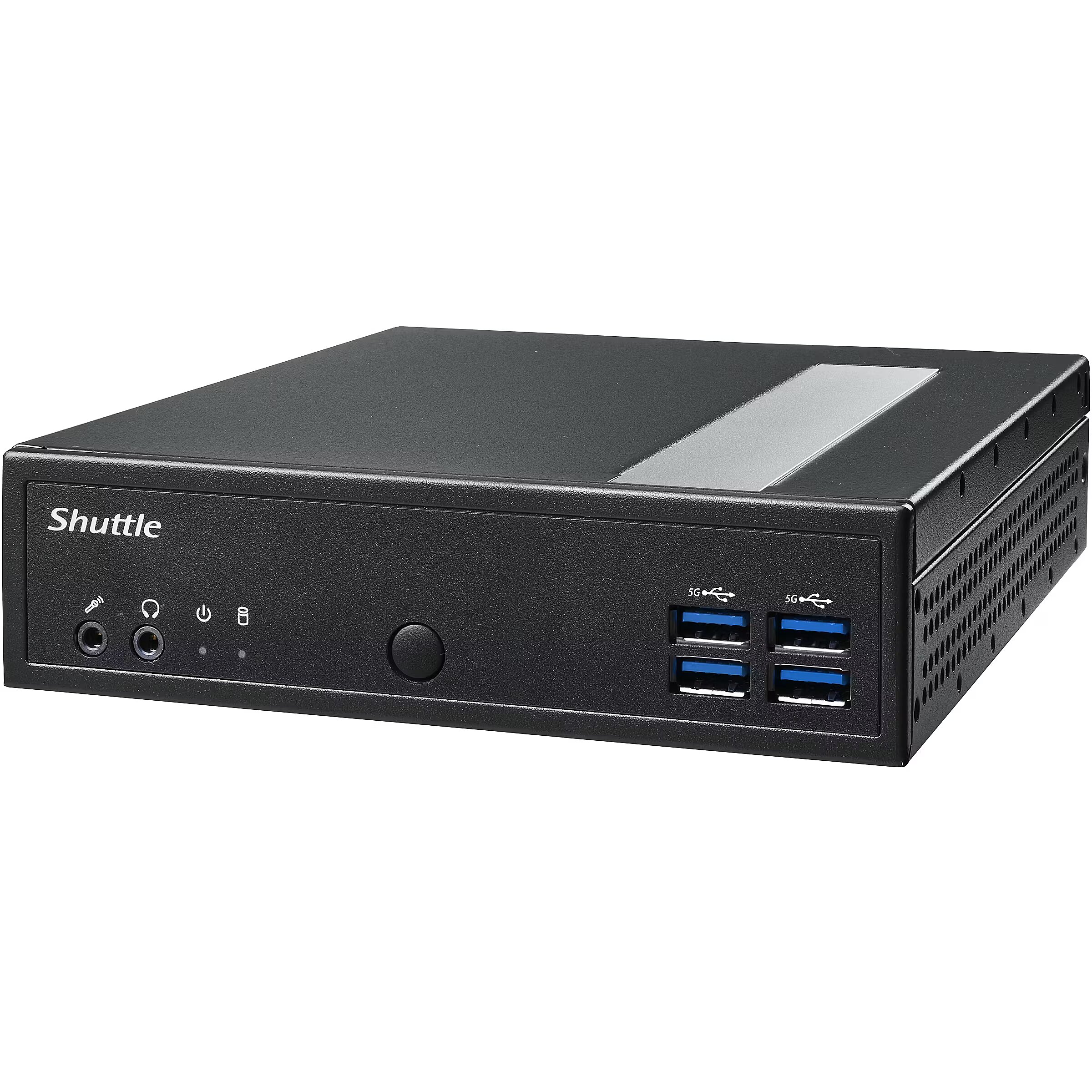

LongDesc - The Shuttle XPC slim Barebone DL30N series is the successor to Shuttle's DL20N series. These fanless Slim PC barebones with an energy-efficient Intel 12th-Gen "Alder Lake-N" processor are suitable for building particularly slim PC systems with drives and operating system as well as client/server setups for pure network-based applications. Two Intel 2.5G LAN ports provide excellent network connectivity and the optional Shuttle accessory WWN03 allows for an LTE module to be installed for mobile internet access. The integrated graphics is based on Intel's powerful Intel UHD Graphics that supports hardware acceleration for 4K videos. Combined with an SSD drive, these Slim-PCs works virtually noiseless.
LongProductName - Intel N100, 1 x SO-DIMM DDR5-4800, 1 x 2.5" SATA III / 1 x M.2-2280M, Dual 2.5G LAN, 65W

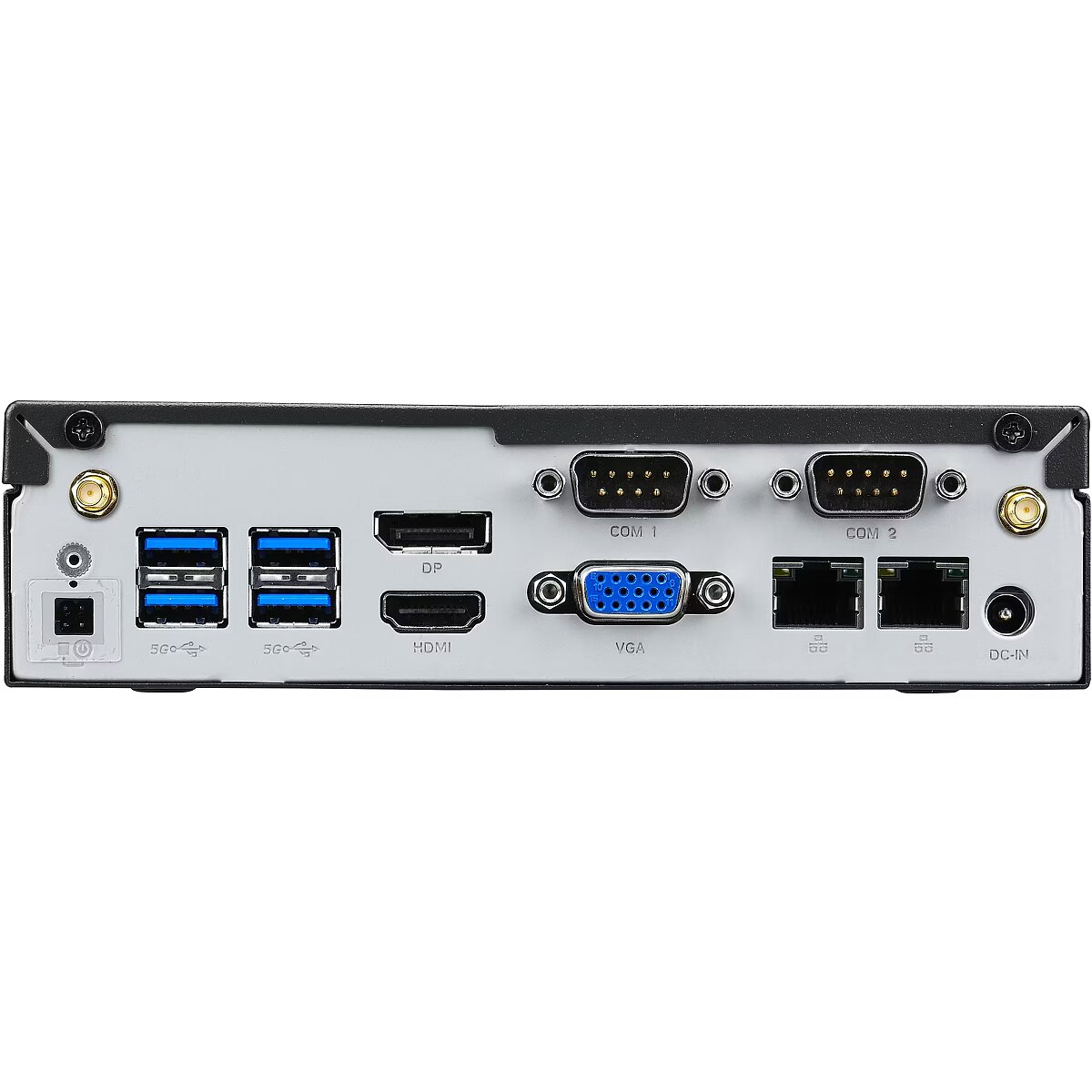

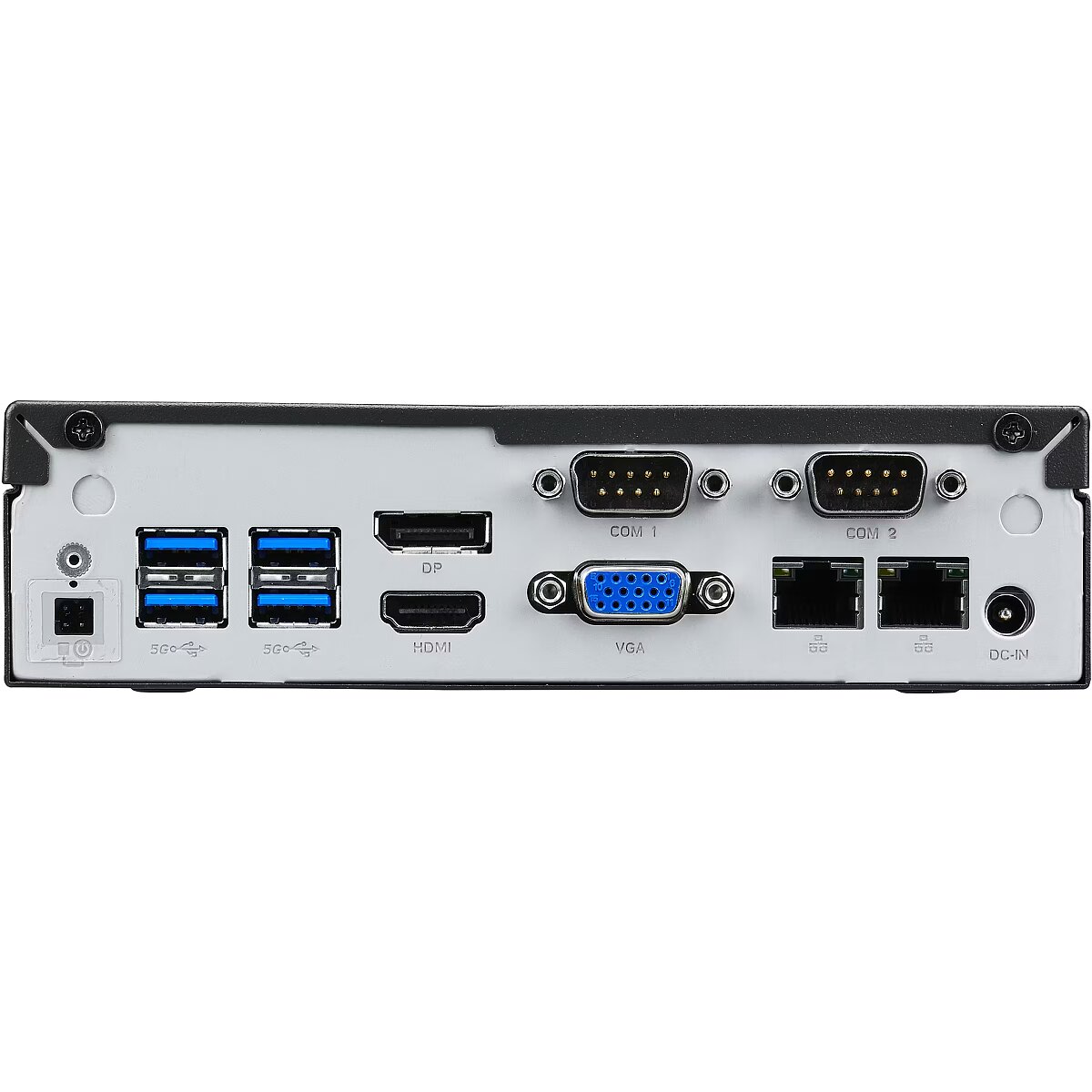

LongSummaryDescription - Shuttle XPC slim Barebone DL30N, Intel N100, 1x DDR5, 2x LAN (2x 2.5Gbit), 2xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation. Chassis type: 1.35L sized PC, Product type: Mini PC barebone. BIOS type: UEFI AMI. Supported memory types: DDR5-SDRAM, Number of memory slots: 1, Maximum internal memory: 16 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Cooling type: Passive. Power supply: 65 W
Manufacturer Code - DL30N
Manufacturer Name - Shuttle
Memory - ECC - No
Memory - Maximum internal memory - 16 GB
Memory - Memory channels - Single-channel
Memory - Memory slots type - SO-DIMM
Memory - Memory voltage - 1.1 V
Memory - Non-ECC - Yes
Memory - Number of memory slots - 1
Memory - Supported memory clock speeds - 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Network - Ethernet LAN - Yes
Network - LAN controller - Intel I226-LM
Network - Wi-Fi - No
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - AC adapter included - Yes
Packaging content - Drivers included - Yes
Packaging content - Power cord included - Yes
Packaging content - Quick start guide - Yes
Performance - Audio chip - Realtek ALC888S
Performance - BIOS type - UEFI AMI
Performance - Number of processors supported - 1
Performance - Trusted Platform Module (TPM) - Yes
Performance - Trusted Platform Module (TPM) version - 2.0
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0b
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Microphone in - Yes
Ports & interfaces - Serial ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 8
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output current - 3.42 A
Power - AC adapter output voltage - 19 V
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power supply - 65 W
Power - Power supply type - External AC adapter
Processor - Built-in processor - Yes
Processor - ECC supported by processor - No
Processor - Processor boost frequency - 3.4 GHz
Processor - Processor cache - 6 MB
Processor - Processor cores - 4
Processor - Processor manufacturer - Intel
Processor - Processor model - N100
Processor - Processor threads - 4
Processor - Thermal Design Power (TDP) - 6 W
ProductName - XPC slim Barebone DL30N, Intel N100, 1x DDR5, 2x LAN (2x 2.5Gbit), 2xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Short description - Shuttle Barebone DL30N
ShortSummaryDescription - Shuttle XPC slim Barebone DL30N, Intel N100, 1x DDR5, 2x LAN (2x 2.5Gbit), 2xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation, 1.35L sized PC, Mini PC barebone, DDR5-SDRAM, PCI Express, Serial ATA III, Ethernet LAN, 65 W
Software - Linux operating systems supported - Yes
Software - Operating system installed - No
Software - Windows operating systems supported - Windows 10, Windows 11 x64
Storage - Card reader integrated - No
Storage - Number of storage drives supported - 2
Storage - NVMe - Yes
Storage - Storage drive interface - PCI Express, Serial ATA III
Storage - Storage drive sizes supported - 2.5,M.2
Storage - Supported storage drive types - HDD & SSD
Sustainability - Sustainability certificates - ENERGY STAR, ErP
Sustainability - Sustainability compliance - Yes
Technical details - Compliance certificates - BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI
Title - Shuttle XPC slim Barebone DL30N, Intel N100, 1x DDR5, 2x LAN (2x 2.5Gbit), 2xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
URL - https://www.shuttle.eu/en/products/slim/dl30n
WarrantyInfo -
Weight & dimensions - Depth - 190 mm
Weight & dimensions - Height - 43 mm
Weight & dimensions - Package weight - 2.1 kg
Weight & dimensions - Weight - 800 g
Weight & dimensions - Width - 165 mm
