Brand - ATEN
BrandPartCode - CS74U-AT
Category - KVM Switches
Code - CS74U-A7
Design - Housing material - Metal
Design - Product colour - Grey
Design - Rack mounting - No
Design > Material - Housing: Metal
Display - Built-in display - No
EAN - 4710423773448
GTIN - 0672792002946
GTIN - 672792002946
GTIN - 4710423773448
Link - https://www.aten.com/global/en/products/kvm/desktop-kvm-switches/cs74u/
Logistics data - Harmonized System (HS) code - 85176200
Logistics data - Master (outer) case gross weight - 8.67 kg
Logistics data - Master (outer) case height - 194 mm
Logistics data - Master (outer) case length - 517 mm
Logistics data - Master (outer) case net weight - 7.33 kg
Logistics data - Master (outer) case width - 292 mm
Logistics data - Products per master (outer) case - 5 pc(s)

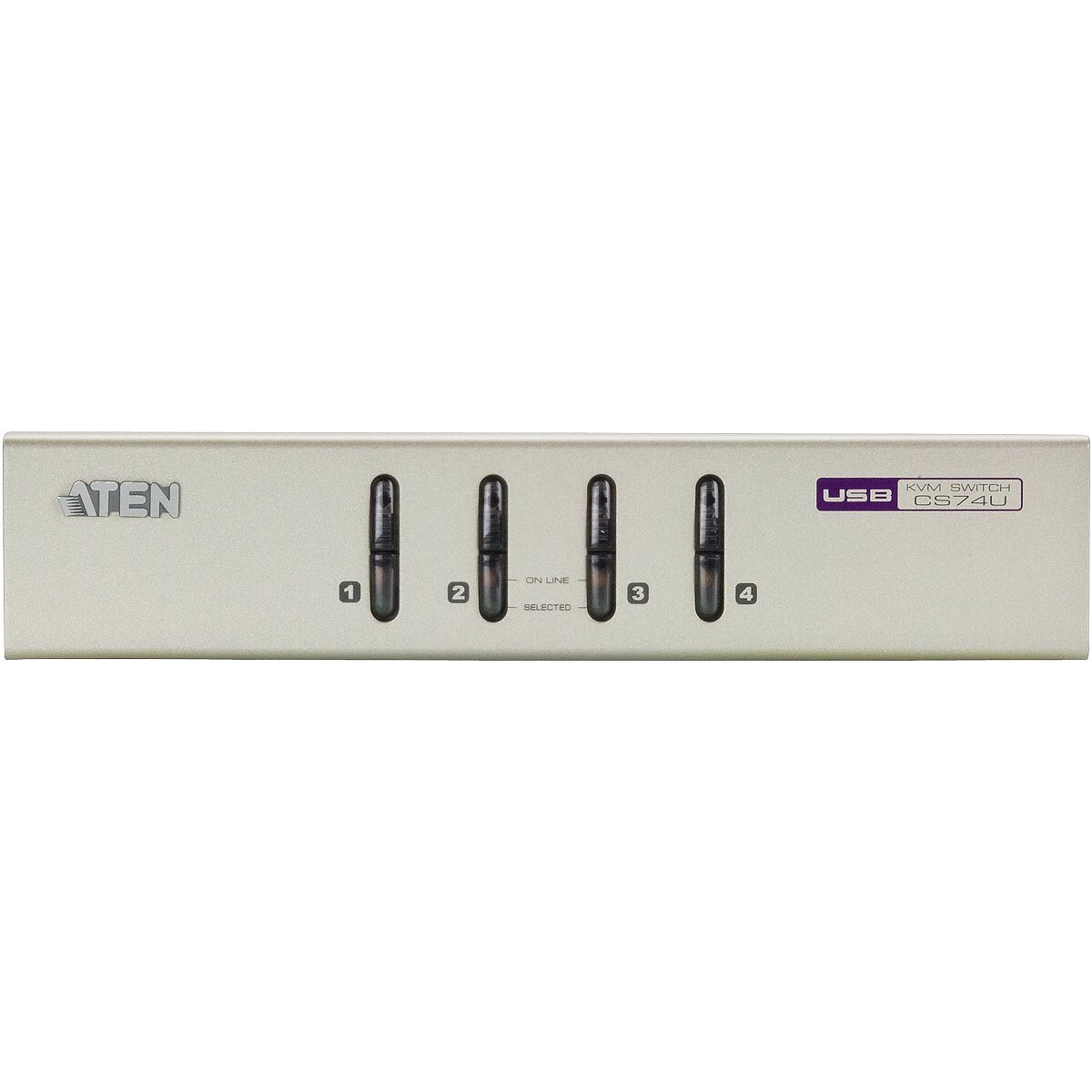

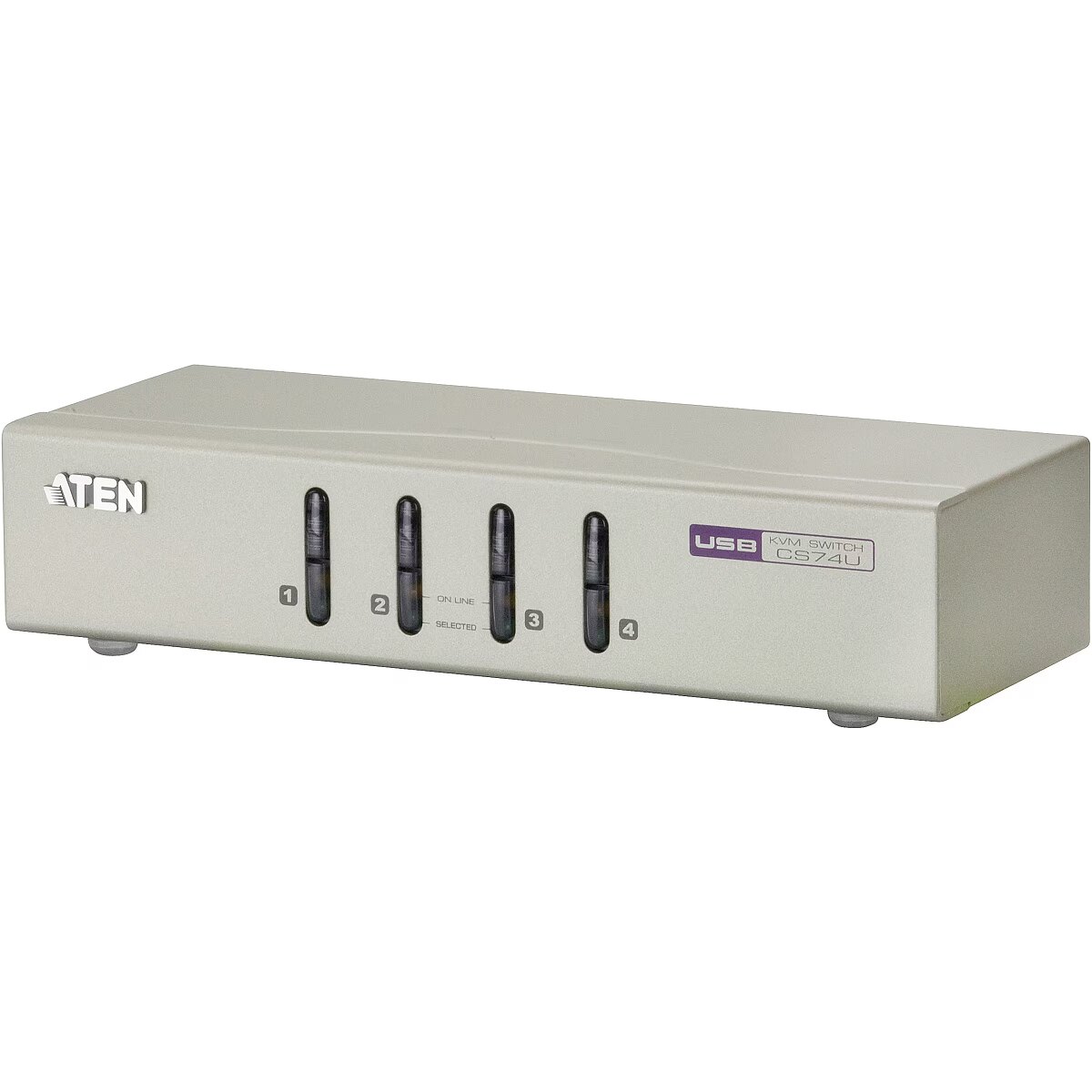

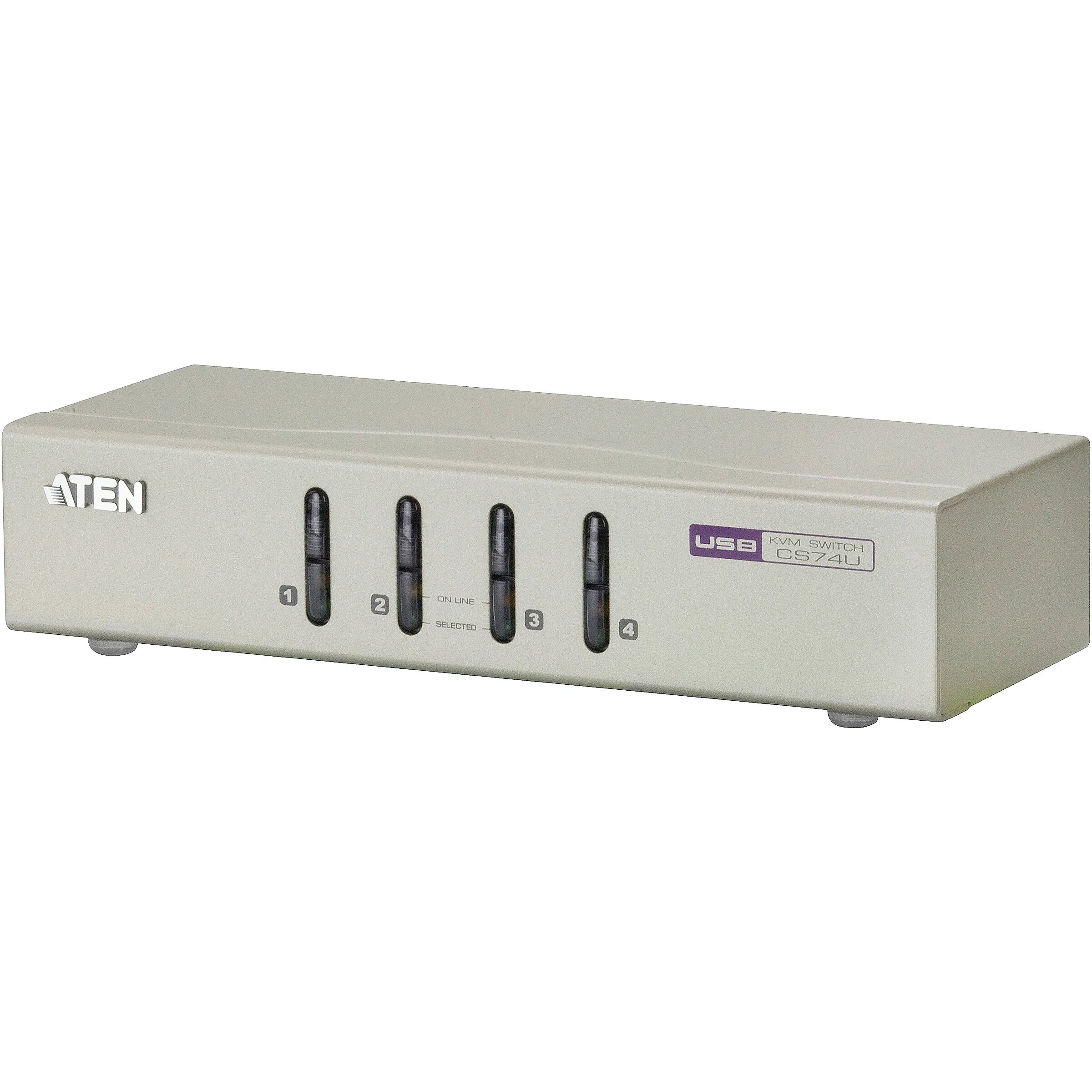

LongDesc - The CS74U 4-Port USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (keyboard and mouse, audio and VGA monitor). With the CS74U, you can access computers conveniently using port selection pushbuttons located on the unit's front panel.1x CS74U 4-Port USB KVM Switch2x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)2x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)1x User InstructionsNote: The provided custom KVM cable set is custom-made to work with CS72U / CS74U, which transmits video, audio, and USB signals from the unit to the connected PC. There are two custom KVM cable sets available for purchase (1.2 m custom KVM cable set: LIN5-23X5-X31G; 1.8 m custom KVM cable set: LIN5-23X5-X32G). To purchase additional custom-made KVM cables, please contact your ATEN dealer for more information.
LongProductName - 4-Port USB VGA KVM with Audio (KVM Cables included)
LongSummaryDescription - ATEN 4-Port USB VGA KVM with Audio (KVM Cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA. Product colour: Grey, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.177 W. Width: 200 mm, Depth: 76.5 mm, Height: 44 mm
Name - Aten CS74U-A7 4-Port USB VGA/Audio KVM Switch | Aten | 4-Port USB VGA/Audio KVM Switch | CS74U-A7
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 80%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operational conditions > Operating relative humidity (H-H) - 0 - 80% RH, Non-Condensing %
Operational conditions > Operating temperature (T-T) - 0 to 50 °C
Other features > Resolution - 2048 x 1536 @ 60 Hz; DDC2B
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 200.00 mm
Package features > Gross height (mm) - 44.00 mm
Package features > Gross width (mm) - 76.50 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1242 pc(s)
Package features > Paper/Pasteboard - 150.00 g
Package features > Plastic (No PET) - 15.00 g
Package features > Tare weight (kg) - 0.17 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Manual - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 283 mm
Packaging data - Package height - 173 mm
Packaging data - Package weight - 1.67 kg
Packaging data - Package width - 100 mm
Performance - DDC2B support - Yes
Performance - HD type - QXGA
Ports & interfaces - Audio connections - Yes
Ports & interfaces - Console ports - 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Ports & interfaces - Console USB ports quantity - 2
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 4
Ports & interfaces - Number of microphone inputs - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 4
Ports & interfaces - Video port type - VGA
Power - Input voltage - 5 V
Power - Power consumption (typical) - 0.177 W
Power - Power source - DC
Producer product family - 4-Port USB VGA/Audio KVM Switch
Producer product name - CS74U-A7
ProductName - 4-Port USB VGA KVM with Audio (KVM Cables included)
ShortSummaryDescription - ATEN 4-Port USB VGA KVM with Audio (KVM Cables included), QXGA, 0.177 W, Grey
Technical details > Gross weight - 0.81 kg
Technical details > Net weight - 0.64 kg

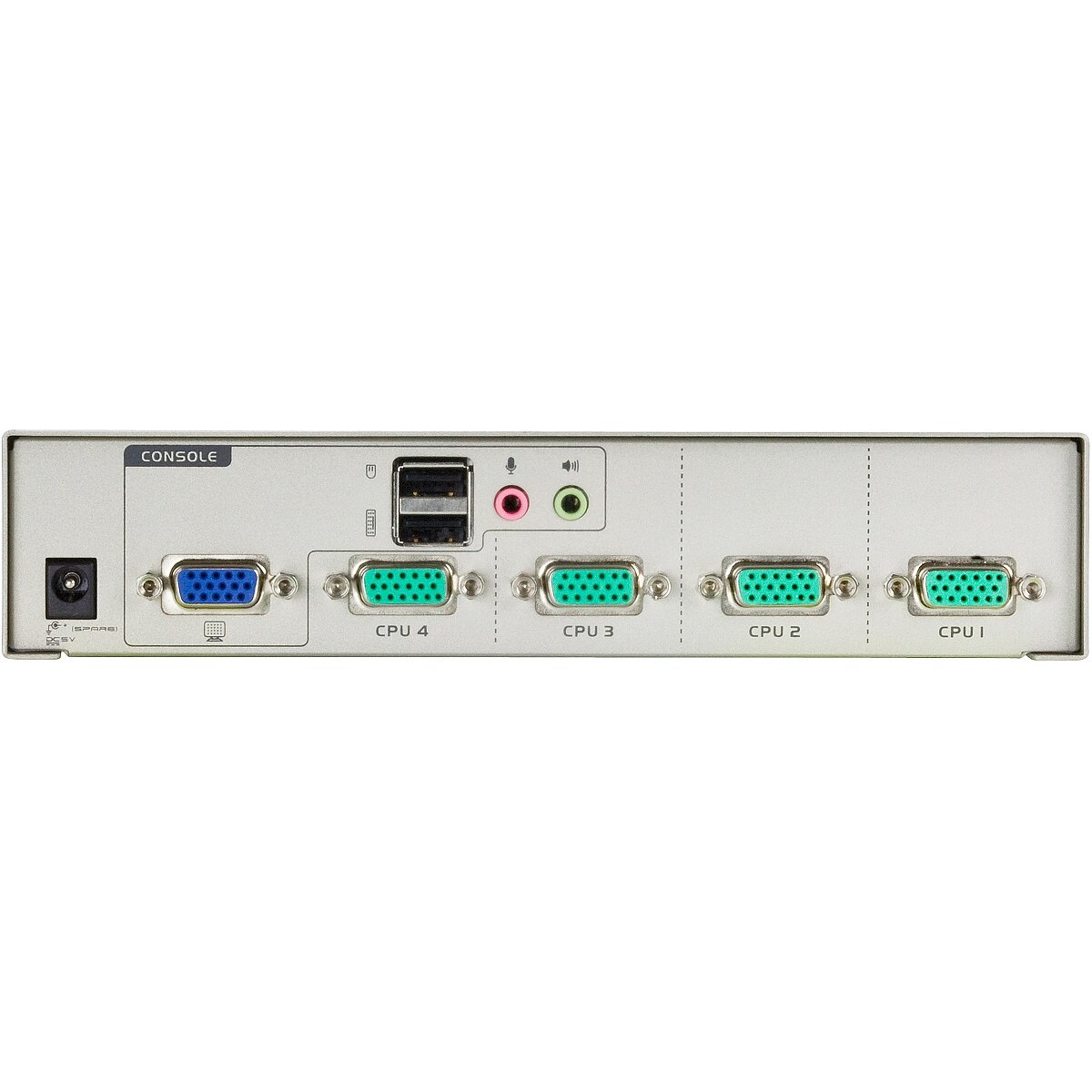

Technical details > Other features - Console Ports: 2x USB Type A Female (Black), 1x HDB-15 Female (Blue), 1x mini stereo Jack Female (Pink), 1 x mini stereo Jack Female (Green); KVM Ports: 4x SPHD-18 Female (Green); Power: 1x DC 5V Jack (Spare)
Technical details > Producer - Aten
Title - ATEN 4-Port USB VGA KVM with Audio (KVM Cables included)
URL - https://www.atten.eu/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 76.5 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 1.47 kg
Weight & dimensions - Width - 200 mm
